Roper RED4400TQ0

Model: RED4400TQ0

Save Part Not Listed?
product name

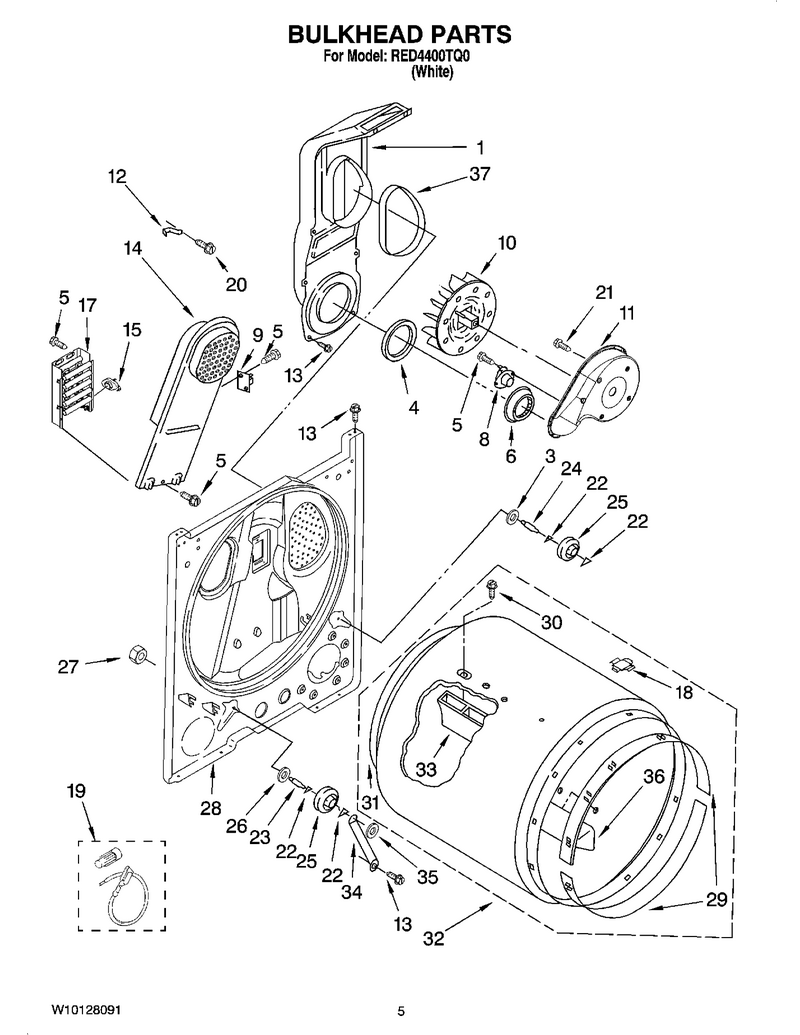

03 - Bulkhead Parts, Optional Parts (not Included)

...
...
Paint, Bulk (1 Qt.) (Biscuit (Uncut)) WPL-4392900
...
1
Chute WPL-W11117429
...
3
Washer WPL-WP3388703
...
4
Seal WPL-W11415783
...
5
Screw WPL-WP90767
...
6
Shield WPL-W11233063
...
8
Thrmst-Fix WPL-WP3387134
...
9
Kit, Thermal Cut Off (Includes Thermostat) WPL-279816
...
10
Wheel WPL-WP694089
...
11
Housing WPL-WP8577230
...
12
Clip WPL-279771
...
13
Screw WPL-WP681414
...
14
Box WPL-WP8541818
...
15
Thrmst-Fix WPL-WP3977767
...
17
Element WPL-279838
...
18
Drum Hole Plug WPL-8066086
...
19
Terminal Wire Kit (For Heater Element Wiring Harness Repair) WPL-279457
...
20
Screw WPL-WP489463
...
21
Screw WPL-WP488729
...
22
Ring WPL-WPW10512946
...
23
Shaft WPL-WPW10359270
...
24
Shaft WPL-WPW10359269
...
25
Support WPL-349241T
...
26
Washer WPL-WP348197
...
27
Nut WPL-WP3359452
...
28
Bulkhead WPL-W11178668
...
29
Ring, Bearing WPL-279441
...
30
Screw WPL-WPW10109200
...
31
Seal WPL-W10612022
...
32
Assembly, Drum (Complete) WPL-W10899578
...
33
Baffle-Drm WPL-WP692490
...
34
Bracket WPL-W11684613
...
35
Clip WPL-WP90296
...
36
Baffle-Drm WPL-WP3403636
...
37
Seal WPL-WP339956

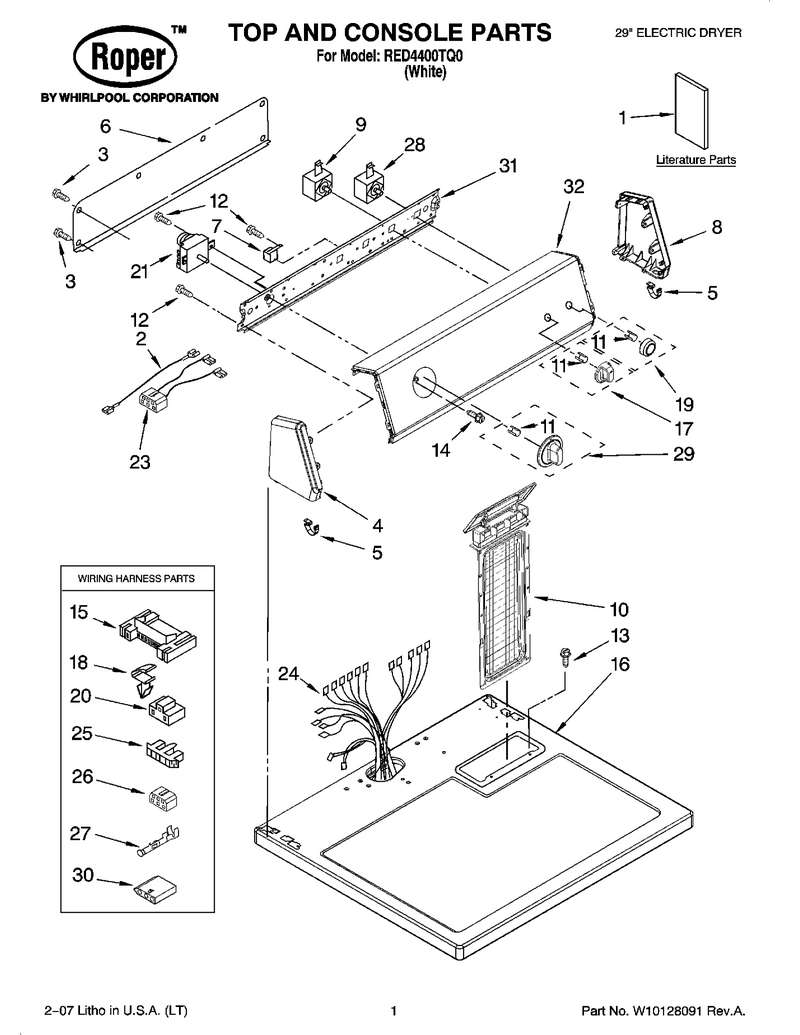

01 - Top And Console Parts

...
...
1
Diy WPL-677818L
...
2
Wire, Jumper (Black) WPL-3401684
...
3
Screw WPL-WP693995
...
4
Cap, End (L.h.) WPL-8579674
...
5
Clip WPL-WP8312709
...
6
Panel, Rear (Console) WPL-W10103406
...
7
Buzzer-Adj WPL-WP694419
...
8
Cap, End (R.h.) WPL-8579673
...
9
Switch WPL-WP3399639
...
10
Screen WPL-W11607443
...
11
Clip WPL-WP8536939
...
12
Screw WPL-WP90767
...
13
Screw WPL-W11693756
...
14
Screw, 8-18 X 7/32 WPL-3400859
...
15
Connector (Motor) WPL-3395683
...
16
Top WPL-WP8563663
...
17
Knob WPL-WPW10110063
...
18
Clip WPL-WP3394427
...
19
Knob, Push-To-Start WPL-W10110066
...
20
Connector, (Pts Relay) WPL-3401144
...
21
Timer WPL-WP3979617
...
23
Wire, Jumper (Temperature) WPL-8539893
...
24
Harness, Wiring WPL-8576502
...
25
Connector, Timer WPL-3397269
...
26
Connector 6-Circuit WPL-3347243
...
27
Terminal WPL-WP94614
...
28
Relay-Pts WPL-WP3398095
...
29
Timer-Knob Assembly WPL-W10110064
...
30
Connector WPL-3936144
...
31
Bracket, Control WPL-8579672
...
32
Panel, Control WPL-W10086700

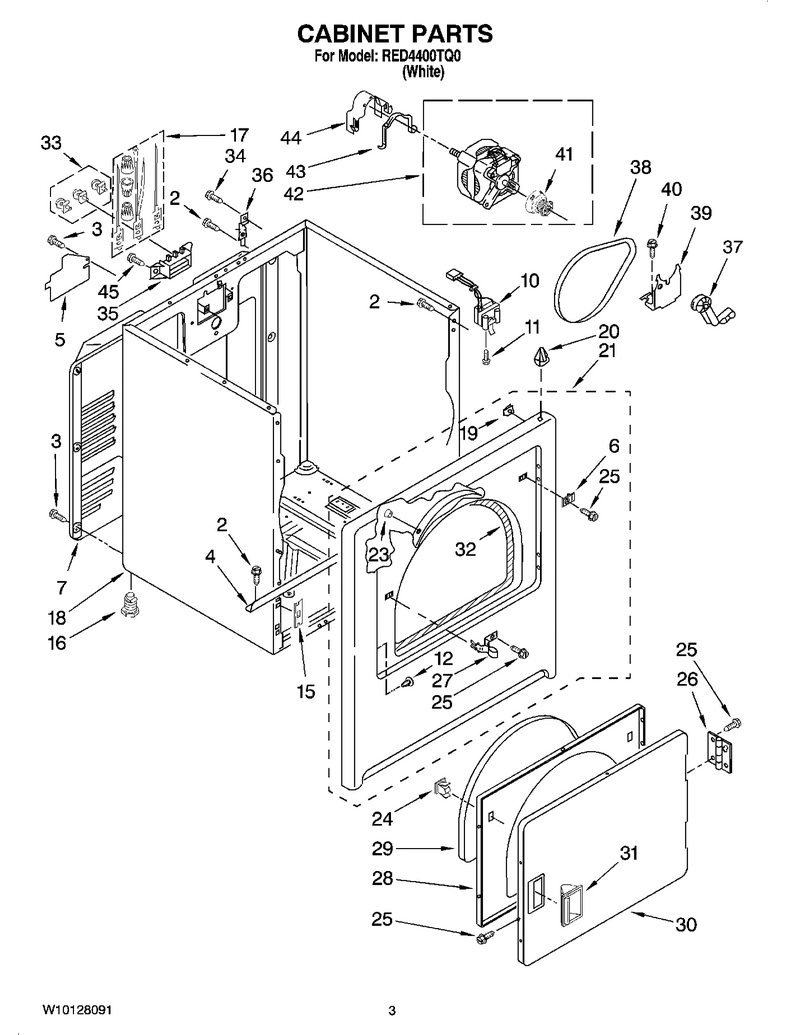

02 - Cabinet Parts

...
...
2
Screw WPL-WP681414
...
3
Screw WPL-WP693995
...
4
Bracket, Cabinet WPL-8541400
...
5
Cover WPL-W11736322
...
6
Plug WPL-WP3403630
...
7
Panel-Rear WPL-280043
...
10
Switch-Dor WPL-WPW10237959
...
11
Screw WPL-WP3395530
...
12
Plug WPL-WP3404413
...
15
Clip WPL-W10854425
...
16
Feet-Lvlng WPL-49621
...
17
Terminal, Tinned & Brass (3) (Includes Illus. 39) WPL-279318
...
18
Cabinet WPL-8533643
...
19
Nut WPL-WP98234
...
20
Lock WPL-WP18776
...
21
Panel WPL-279852
...
23
Clip WPL-279220
...
24
Catch WPL-WP3389441
...
25
Screw WPL-WP488627
...
26
Hinge WPL-WPW10362431
...
27
Strike WPL-W11429589
...
28
Door WPL-WP3402341
...
29
Seal-Door WPL-W10861521
...
30
Door WPL-W10861227
...
31
Handle WPL-WP3405184
...
32
Brng&seal WPL-W11035878
...
33
Terminal Block Kit (For Terminal Block) WPL-279393
...
34
Screw WPL-W10850756
...
35
Block-Term WPL-WP3397659
...
36
Hinge WPL-WP8066217
...
37
Pulley-Idr WPL-WP691366
...
38
Belt, Drive WPL-341241
...
39
Base WPL-WP348780
...
40
Bolt, 5/16-18 X 3/4 WPL-3400500
...
41
Pulley-Mtr WPL-WP8066184
...
42
Motor-Drve WPL-279827
...
43
Clamp WPL-WP660658
...
44
Clamp WPL-WP3404162
...
45
Screw WPL-WP308685
