product name

Roper IMKIT

Model: IMKIT

Save Part Not Listed?
product name

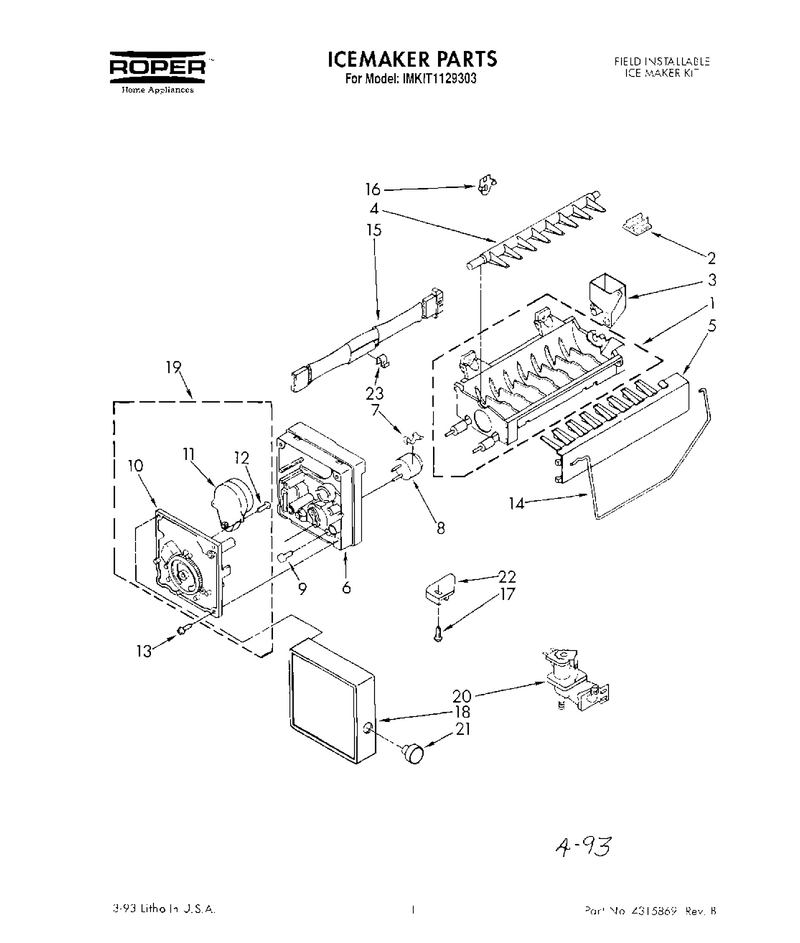

01 - Icemaker

...
...
Modular Icemaker Service Sheet WPL-LIT628370
...
1
Mold-Ice WPL-WPW10190929
...
2
Clip WPL-W11501419
...
3
Cup-Fill WPL-WP628356
...
4
Arm-Ejectr WPL-WP627843
...
5
Arm-Stripr WPL-WP2182124
...
6
Housing-Im WPL-WP2195914
...
7
Clip WPL-WP2315522
...
8
Bimetl-Def WPL-WP627985
...
9
Screw (2) WPL-8533917
...
10
Motor-Modl WPL-W10190935
...
11
Motor-Modl WPL-W10190935
...
12
Screw, (2) 3-24 X 23/64 WPL-489136
...
13
Screw WPL-WP681249
...
14
Arm-Shut WPL-WP627792
...
15
Harns-Wire WPL-WP2187464
...
16
Clip-Mtg WPL-WP627712
...
17
Screw, 8-32 X 27/64 WPL-489365
...
18
Cover-Frnt WPL-WPW10289690
...
19
Motor-Modl WPL-W10190935
...
20
Valve-Inlt WPL-WP2315576
...
21
Knob, Water WPL-627992
...
22
Bracket WPL-W11500948
...
23
Washer WPL-WP16123
