product name

Roper GL5030VW0

Model: GL5030VW0

Save Part Not Listed?
product name

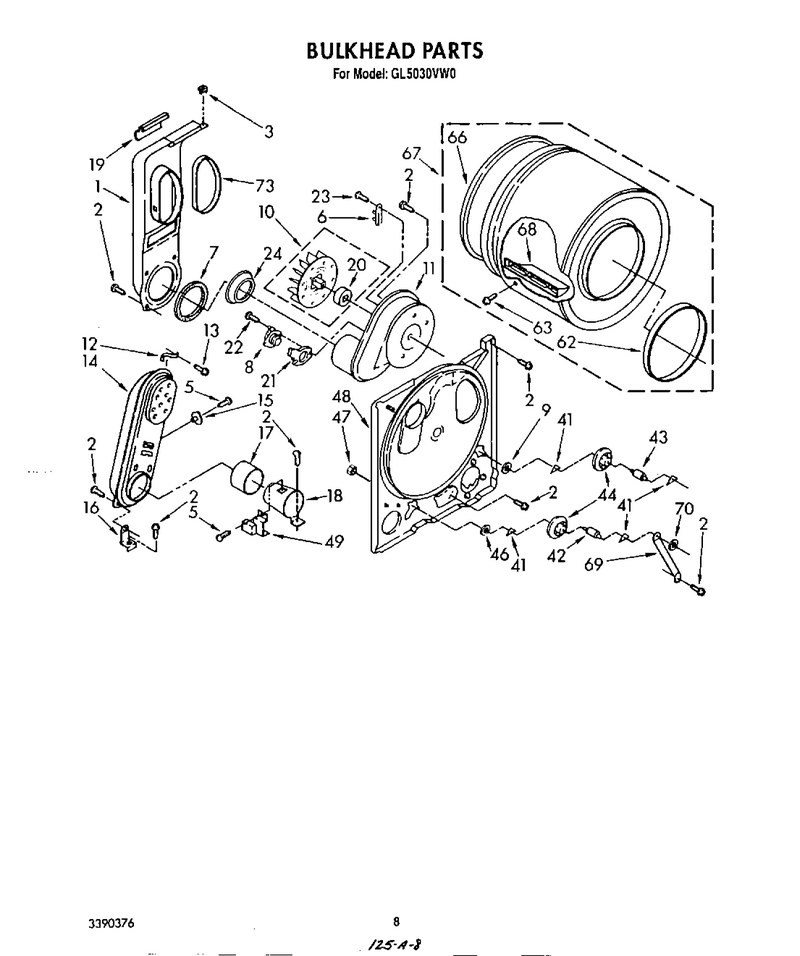

05 - Section

...
...
1
Chute WPL-279505
...
2
Screw WPL-WP681414
...
3
Nut, Push In WPL-98460
...
5
Screw WPL-WP90767
...
6
Fuse-Thrml WPL-WP3392519
...
7
Seal WPL-W11415783
...
8
Thrmst-Fix WPL-WP694674
...
9
Washer WPL-WP3388703
...
10
Wheel WPL-WP694089
...
11
Housing WPL-WP8577230
...
12
Clip WPL-279771
...
13
Screw WPL-WP681414
...
14
Box WPL-279900
...
15
Thrmst-Fix WPL-WP341196
...
16
Support, Heater Box (2) WPL-337445
...
17
Box WPL-279900
...
18
Box WPL-279900
...
19
Support Protector WPL-686770
...
20
Seal WPL-WP3394196
...
21
Heatr-Stat WPL-WP61894
...
22
Screw WPL-WP488729
...
23
Screw WPL-WP965173
...
24
Shield WPL-W11233063
...
41
Ring WPL-WPW10512946
...
42
Shaft WPL-WPW10359270
...
43
Shaft WPL-WPW10359269
...
44
Support WPL-349241T
...
46
Washer WPL-WP348197
...
47
Nut WPL-WP358160
...
48
Bulkhead WPL-685775
...
49
Sensor WPL-WP338906
...
62
Bearng-Rng WPL-WP3394508
...
63
Screw, 11-16 X 7/8 WPL-690372
...
66
Seal WPL-239087
...
67
Drum Assembly WPL-3396775
...
68
Baffle-Drm WPL-WP342847
...
69
Bracket, Support WPL-3976435
...
70
Clip WPL-WP90296
...
73
Seal WPL-WP339956

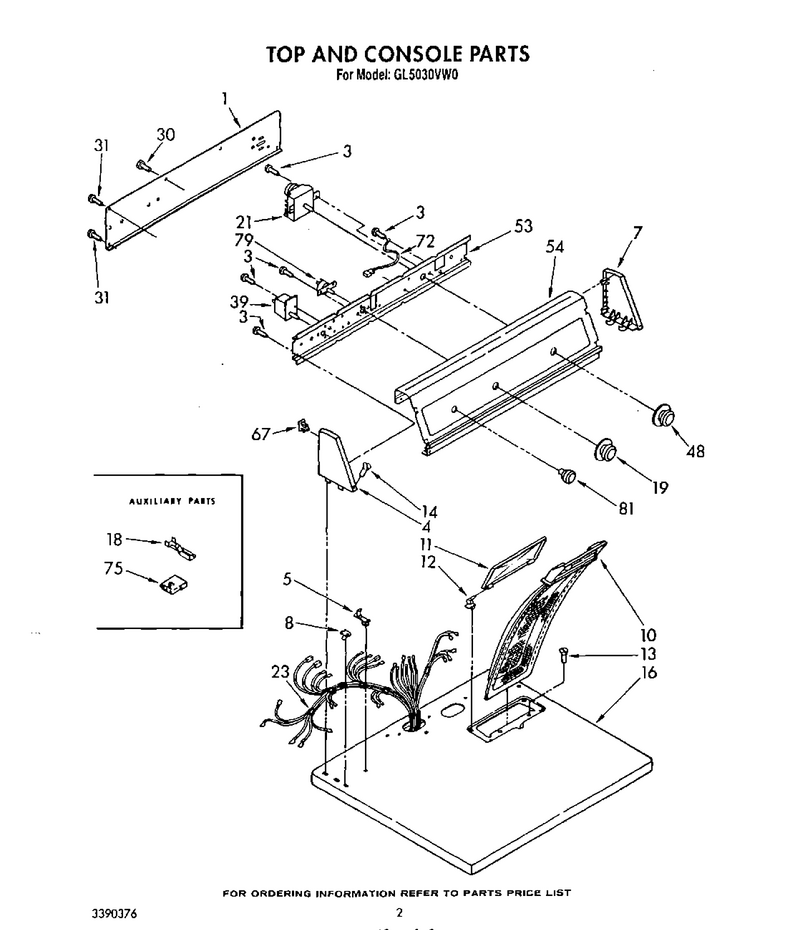

02 - Cabinet

...
...
Paint, Touch-Up (1/2oz. White) WPL-72017
...
1
Panel, Rear Console WPL-386367
...
3
Screw WPL-WP3390631
...
4
Cap, End (L.h.) WPL-3352243
...
5
Stop, Push-In (2) WPL-358472
...
7
Cap, End (R.h.) WPL-3352238
...
8
Nut WPL-WP358473
...
10
Screen WPL-339392V
...
11
Cover, Lint Screen (White) WPL-688150
...
12
Hinge WPL-WPW10044470
...
13
Screw WPL-W11693756
...
14
Screw WPL-WP388326
...
16
Top (Almond) WPL-3393386
...
18
Terminal WPL-WP94614
...
19
Control Knob, Temperature WPL-3352169
...
21
Timer WPL-279561
...
23
Harness, Wiring WPL-3391746
...
30
Screw WPL-WP693995
...
31
Screw WPL-WP489069
...
39
Switch, Push-To-Start WPL-279173
...
48
Timer Knob Assembly WPL-3391823
...
53
Bracket, Control WPL-3396009
...
54
Panel, Control WPL-3391777
...
67
Nut WPL-WP689559
...
72
Wire, Ground WPL-69085-3
...
75
Receptacle, Latching (3-Way) (Uses Terminal 94614) WPL-691707
...
79
Switch, Temperature WPL-694720
...
81
Knob, Push-To-Start WPL-3391829

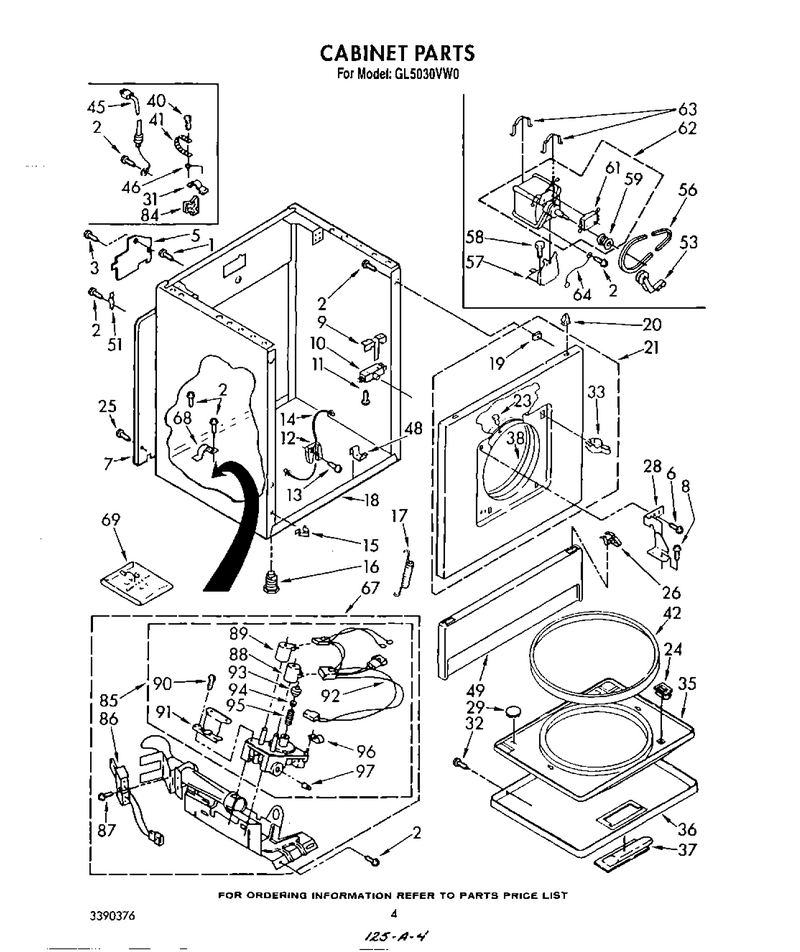

03 - 694670 Burner

...
...
1
Screw WPL-WP681414
...
2
Screw WPL-WP681414
...
3
Screw WPL-WP693995
...
5
Cover WPL-W11736322
...
6
Screw WPL-WP90767
...
7
Panel, Rear WPL-347736
...
8
Screw WPL-WP488627
...
9
Actuator WPL-WP691581
...
10
Switch-Lid WPL-W10820036
...
11
Screw WPL-WP98129
...
12
Guide WPL-WP337182
...
13
Screw WPL-WP90767
...
14
Cable WPL-WP230131
...
15
Clip WPL-279638
...
16
Feet-Lvlng WPL-49621
...
17
Sprng-Door WPL-WP337186
...
18
Cabinet (Includes Illus. No.`s 5,7,16,41, & 57) (White) WPL-3399580
...
19
Nut WPL-WP98234
...
20
Lock WPL-WP18776
...
21
Upper Front Panel (Almond) WPL-689529
...
23
Clip WPL-279220
...
24
Latch WPL-279570
...
25
Screw WPL-WP489069
...
26
Retainer WPL-WP3388229
...
28
Hinge WPL-WP238456
...
29
Button-Plg WPL-WP660975
...
31
Clip WPL-WP98997
...
32
Screw WPL-WP694091
...
33
Latch WPL-279570
...
35
Door, Rear WPL-695953
...
36
Door, Front (Almond) WPL-689485
...
37
Handle WPL-WP348721
...
38
Air Channel Box WPL-279264
...
40
Screw, 10-24 X 1 WPL-132848
...
41
Strap, Ground WPL-22965
...
42
Seal-Door WPL-W11613302
...
45
Cord-Power WPL-W11222083
...
46
Wire, Ground WPL-303485
...
48
Clip WPL-WP297092
...
49
Toe Panel WPL-279841
...
51
Hinge WPL-WP8066217
...
53
Pulley-Idr WPL-WP691366
...
56
Belt, Drive WPL-341241
...
57
Base WPL-WP348780
...
58
Bolt, 5/16-18 X 3/4 WPL-3400500
...
59
Pulley-Mtr WPL-WP8066184
...
61
Motor-Drve WPL-279827
...
62
Motor-Drve WPL-279827
...
63
Clamp WPL-WP660658
...
64
Wire, Ground (Motor) WPL-690236
...
67
Burner-Gas WPL-279536
...
68
Clamp, Pipe WPL-341029
...
69
Conversion Kit (Type 1 And 2) To Type (4) L.p.g. WPL-49572A
...
84
Clip WPL-353253
...
85
Valve-Gas WPL-279923
...
86
Ignitor WPL-279311
...
87
Screw WPL-WPW10366705
...
88
Coil-Valve WPL-279834
...
89
Coil-Valve WPL-279834
...
90
Screw, Bracket Mounting (8-32 X 1/2) (2) WPL-694421
...
91
Bracket, Coil WPL-694538
...
92
Harns-Wire WPL-WP3401850
...
93
Limiter WPL-WP694424
...
94
Regulator WPL-WP694423
...
95
Spring WPL-WP694422
...
96
Clip, Harness WPL-694510
...
97
Pipe Plug WPL-W10295523
