Roper F6558W1

Model: F6558W1

Save Part Not Listed?
product name

Popular Parts

Popular Parts

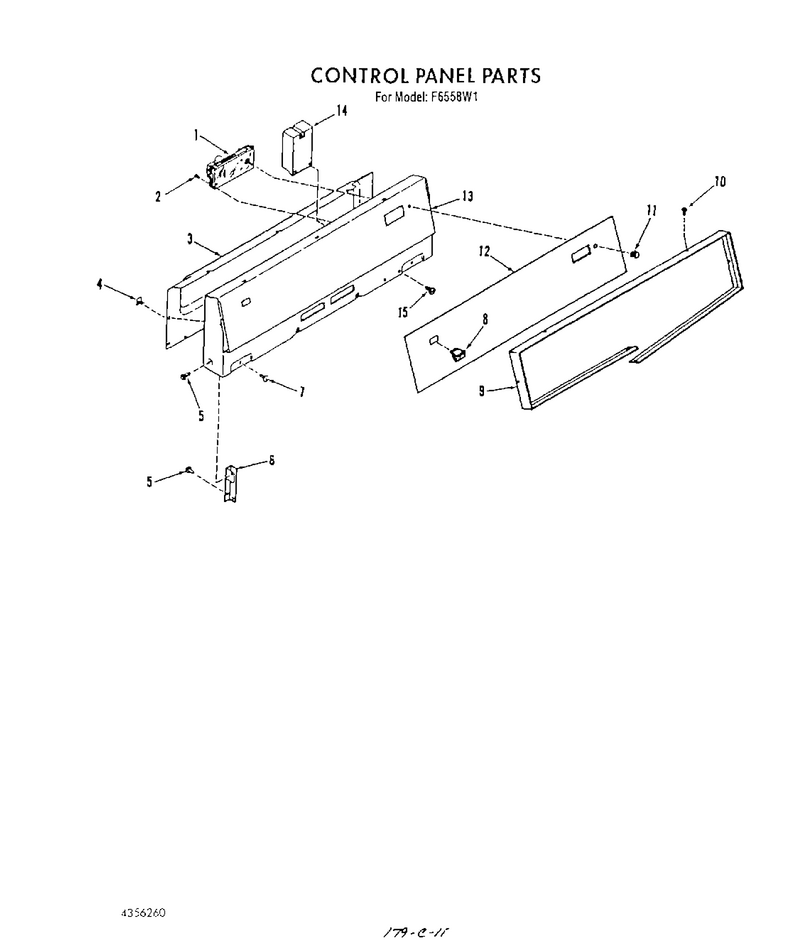

02 - Control Panel

...
...
1
Clock, Includes Lens No.4337926 WPL-4337923
...
2
Screw, No.6-32 X 5/16 WPL-4323476
...
3
Cover, Wire WPL-4337308
...
4
Clip, Trim WPL-4323413
...
5
Screw WPL-WP681414
...
6
Support (Right) WPL-4335176
...
7
Screw WPL-WP308685
...
8
Swtch-Lite WPL-WP4314961
...
9
Frame, Bezel WPL-4337603
...
10
Screw WPL-4337678
...
11
Knob, Clock WPL-4337111
...
12
Insert-Backguard WPL-4337548
...
13
Backguard WPL-4337547
...
14
Module, Spark WPL-4334842
...
15
Screw, No.13-16 X 1/2 WPL-4336143

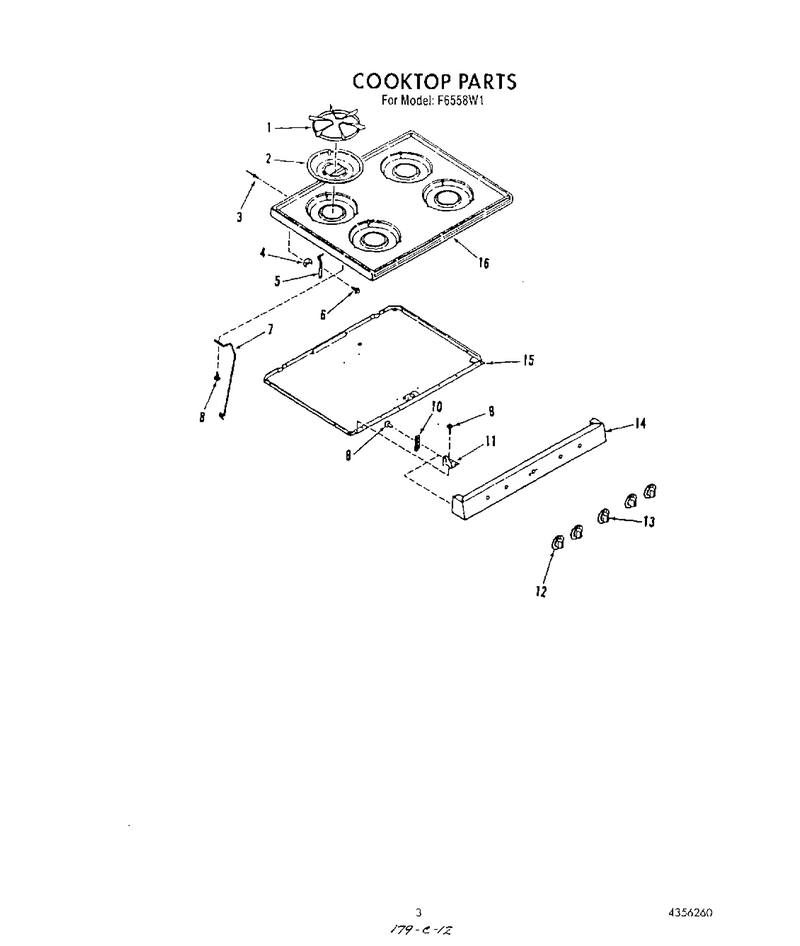

03 - Cook Top

...
...
1
Grate, Burner (4) WPL-4336234
...
2
Aeration Pan WPL-4336770
...
3
Rivet WPL-4338425
...
4
Bracket, Hinge WPL-4337624
...
5
Hinge (Right) WPL-4333234
...
6
Screw WPL-WP999367
...
7
Rod, Support WPL-4336765
...
8
Screw WPL-4337678
...
9
Screw WPL-WP681414
...
10
Cleat WPL-4337625
...
11
Bracket, Manifold (Right) WPL-4336962
...
12
Knob, Gas Valve (4) WPL-4337054
...
13
Knob, Thermostat WPL-4337055
...
14
Panel, Manifold WPL-4337570
...
15
Bottom, Burner Box WPL-4337004
...
16
Main Cooktop (White) WPL-4336778

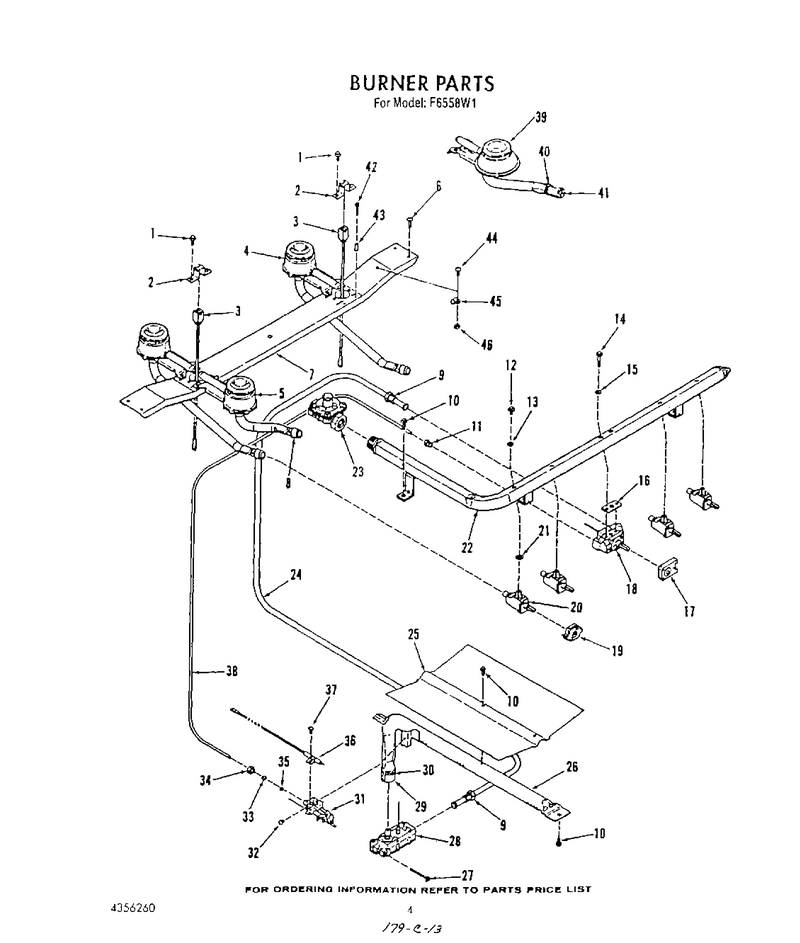

04 - Burner

...
...
1
Screw WPL-WP489128
...
2
Bracket, Spark Igniter WPL-4331307
...
3
Electrode (Right) WPL-4337231
...
4
Burner, Rear Lt/rt WPL-4342874
...
5
Burner, Front-Lt. Or Rt. (Incl. No.8) WPL-4342875
...
6
Screw WPL-WP487353
...
7
Support, Burner WPL-4337013
...
8
Air Shutter WPL-4342896
...
9
Nut, Tubing (2) WPL-4389559
...
10
Screw WPL-WP681414
...
11
Loxit Nut WPL-4323489
...
12
Screw WPL-W10491986
...
13
Seal (For No.12) WPL-4331164
...
14
Screw (For No.18) WPL-4332668
...
15
Seal (For No.14) WPL-4332709
...
16
Seal (For No.18) WPL-4332708
...
17
Switch, Thermostat WPL-4332653
...
18
Thermostat, (Inc`s No.16) WPL-4336370
...
19
Switch, Gas Valve WPL-4331311
...
20
Valve, Gas (Right Front) WPL-4338377
...
21
Seal (For No.20) WPL-4331665
...
22
Manifold Pipe WPL-4337090
...
23
Regulator WPL-3195006
...
24
3/8 Tubing (Inc`s No.9) WPL-4327510
...
25
Baffle, Burner WPL-4336021
...
26
Burner-Oven (Inc`s 25, 29 & 30) WPL-4336130
...
27
Screw, No.10-32 X 2 WPL-4333826
...
28
Valve-Oven WPL-4333718
...
29
Shutter, Air WPL-4331501
...
30
Adjustment Screw WPL-4331502
...
31
Pilot (Inc`s No.35) WPL-4332674
...
32
Screw WPL-487125
...
33
Sleeve WPL-4322428
...
34
Nut WPL-245185
...
35
Orifice Cup (For No.31) WPL-4332673
...
36
Electrode WPL-4335201
...
37
Screw, No.6 X 3/8 WPL-4324445
...
38
Tubing 3/16 WPL-4354564
...
39
Burner, Lt Front WPL-4342927
...
40
Adjustment Screw WPL-4328513
...
41
Air Shutter WPL-4342928
...
42
Screw No.6-32x7/8 WPL-4335220
...
43
Eyelet WPL-4337565
...
44
Screw (4) WPL-4162214
...
45
Clip WPL-4323987
...
46
Nut WPL-WP488130

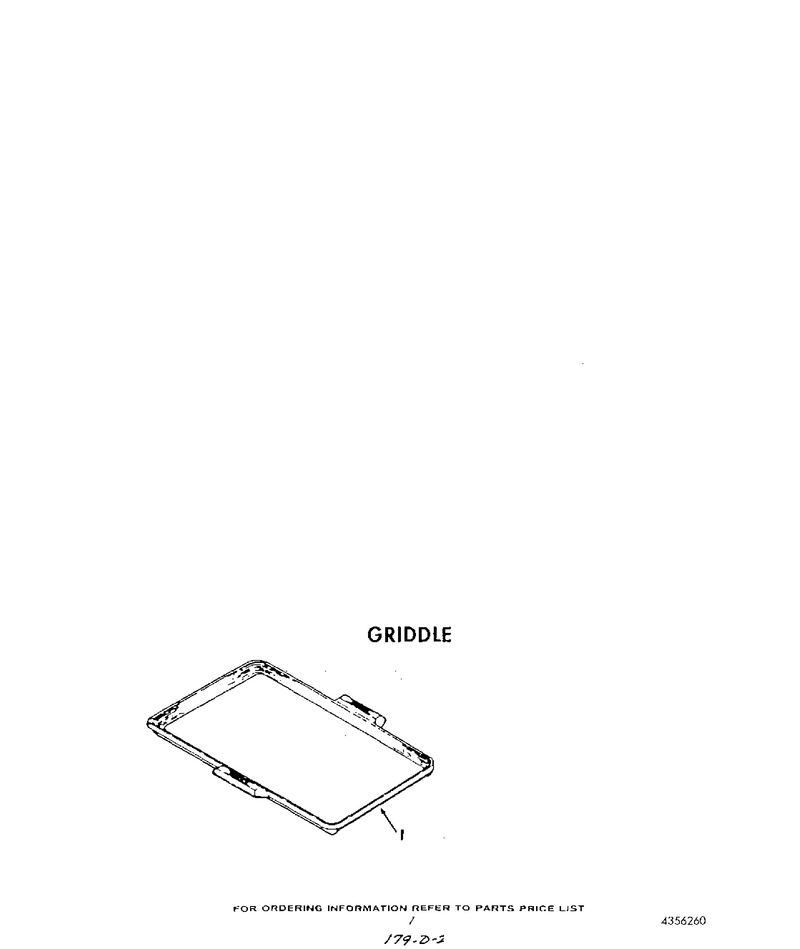

06 - Griddle

...
...
1
Griddle, Set-On WPL-4326773

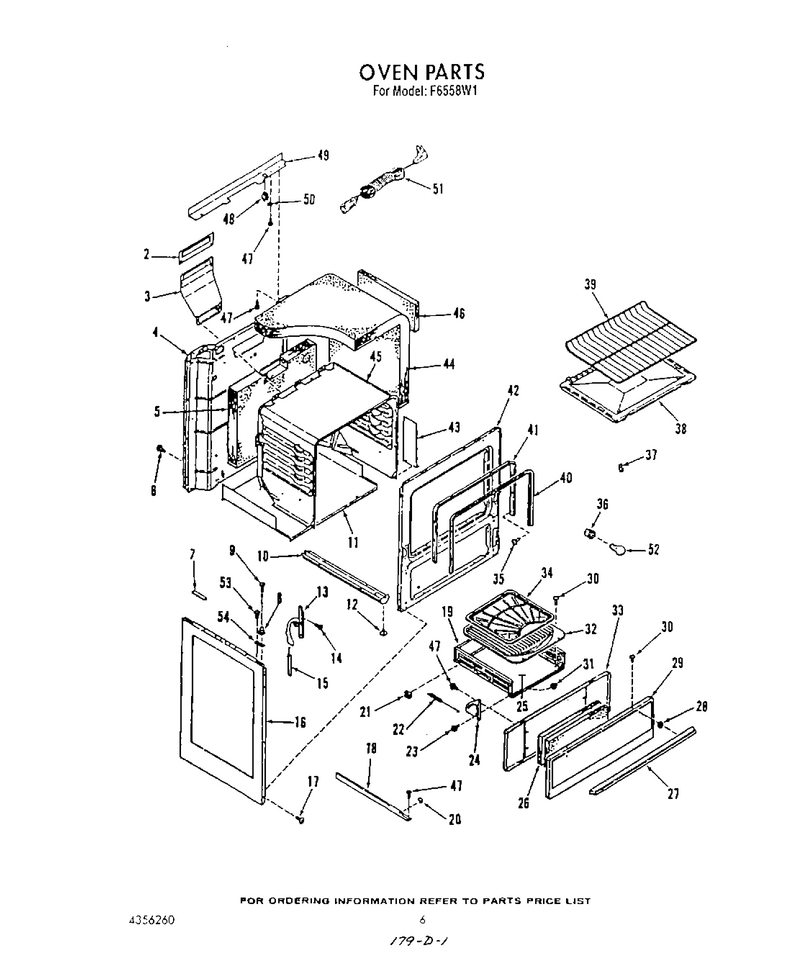

05 - Oven

...
...
2
Insulation-Flue WPL-4336020
...
3
Deflector-Flue WPL-4335162
...
4
Cover, Back WPL-4335165
...
5
Insulation WPL-4335413
...
6
Screw WPL-W10850756
...
7
Spacer-Top WPL-4337485
...
8
Strike WPL-4337082
...
9
Screw No.6-32x7/8 WPL-4335220
...
10
Base W/levelers-Lt Or Rt WPL-4337332
...
11
Bottom WPL-4335153
...
12
Leveler WPL-4389110
...
13
Hinge-Door (Left) WPL-4336784
...
14
Screw, 10-32 X 5/8 (2) WPL-488933
...
15
Spring, Door WPL-4337297
...
16
Side-Body (Black) WPL-4337594
...
17
Screw WPL-WP308685
...
18
Guide-Broiler (Left) WPL-4337201
...
19
Drawer, Broiler WPL-4342680
...
20
Slide Block-Front WPL-4337370
...
21
Slide Block-Rear WPL-4337369
...
22
Spring-Broiler WPL-4335295
...
23
Bolt, Shoulder WPL-4335999
...
24
Hinge-Broiler (Left) WPL-4338606
...
25
Bottom, Drawer WPL-4336575
...
26
Insulation WPL-4335406
...
27
Handle WPL-4337344
...
28
Spacer WPL-241279
...
29
Panel-Drwr WPL-4389852
...
30
Screw, 10-24 X 1/2 WPL-486146
...
31
Nut WPL-W10080180
...
32
Pan, Broiler WPL-4336603
...
33
Lining, Broiler Door WPL-4336584
...
34
Grid, Broiler Pan WPL-4336598
...
35
Screw WPL-WP308685
...
36
Sockt-Lite WPL-W10856866
...
37
Clip, Thermostat WPL-4324423
...
38
Bottom, Oven WPL-4335164
...
39
Rack-Oven WPL-WP4334809
...
40
Gaskt-Door WPL-4334894
...
41
Retainer, Door Seal WPL-4335426
...
42
Frame, Front WPL-4337112
...
43
Retainer, Insul. WPL-4335889
...
44
Insulation-Top & Sides WPL-4354750
...
45
Oven WPL-4337600
...
46
Insulation WPL-4335406
...
47
Screw WPL-WP681414
...
48
Disconnect WPL-4324642
...
49
Cover, Wire WPL-4335215
...
50
Clip WPL-4324071
...
51
Power Cord WPL-4336084
...
52
Light Bulb WPL-8009
...
53
Screw WPL-4337678
...
54
Support, Side (Left) WPL-4337184

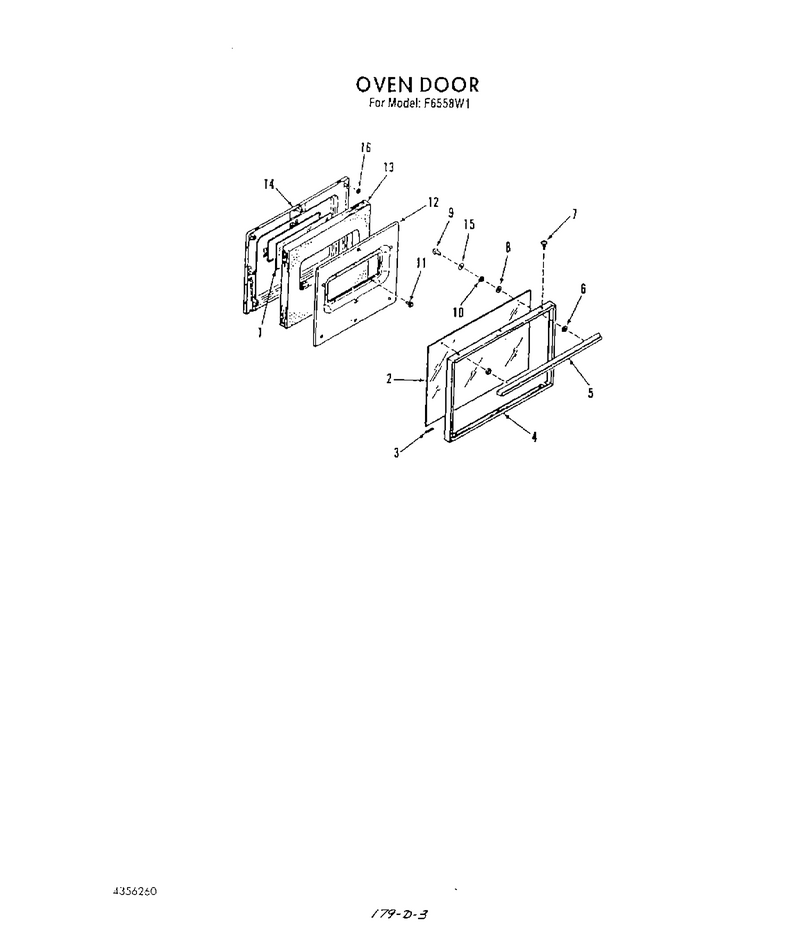

07 - Oven Door

...
...
1
Glass, Center WPL-4335008
...
2
Glass, Outer WPL-4336721
...
3
Cushion WPL-4324217
...
4
Frame WPL-4336720
...
5
Handle WPL-4337480
...
6
Spacer WPL-241279
...
7
Screw, 10-32 X 5/8 (2) WPL-488933
...
8
Washer WPL-4336868
...
9
Screw WPL-WP999367
...
10
Spacer, Glass WPL-4336869
...
11
Screw, No.10-32x17/32`` WPL-4323884
...
12
Retainer WPL-4335755
...
13
Insulation WPL-4335412
...
14
Lining WPL-4334773
...
15
Washer, Metal 12 X 1/2 (2) WPL-681424
...
16
Terminal WPL-WP285432
