Roper EL6050VW0

Model: EL6050VW0

Save Part Not Listed?
product name

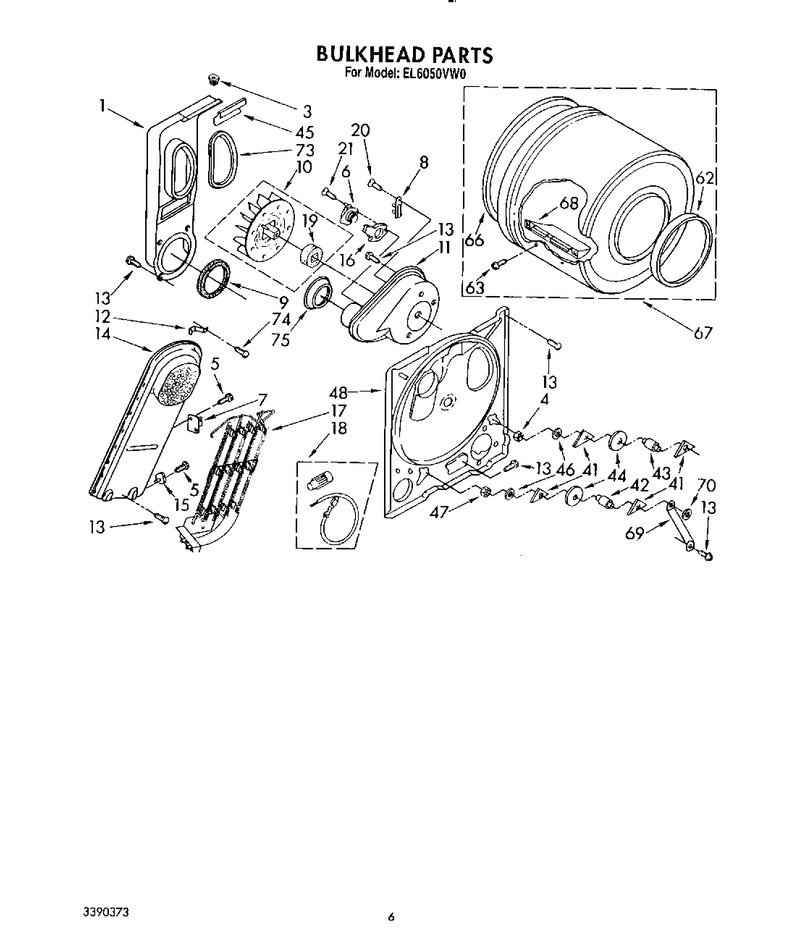

04 - Section

...
...
1
Chute WPL-279505
...
3
Nut, Push-In (2) WPL-98460
...
4
Washer WPL-WP3388703
...
5
Screw WPL-WP90767
...
6
Thrmst-Fix WPL-WP694674
...
7
Kit, Thermal Cut-Off (Includes Thermostat) WPL-279769
...
8
Fuse-Thrml WPL-WP3392519
...
9
Seal WPL-W11415783
...
10
Wheel WPL-WP694089
...
11
Housing WPL-WP8577230
...
12
Clip WPL-279771
...
13
Screw WPL-WP681414
...
14
Box, Heater WPL-695547
...
15
Thrmst-Fix WPL-WP3390291
...
16
Heatr-Stat WPL-WP61894
...
17
Element WPL-WP4391960
...
18
Terminal Wire Kit (For Heater Element Wiring Harness Repair) WPL-279457
...
19
Seal WPL-WP3394196
...
20
Screw WPL-WP965173
...
21
Screw WPL-WP488729
...
41
Ring WPL-WPW10512946
...
42
Shaft WPL-WPW10359270
...
43
Shaft WPL-WPW10359269
...
44
Support WPL-349241T
...
45
Support Protector WPL-686770
...
46
Washer WPL-WP348197
...
47
Nut WPL-WP358160
...
48
Bulkhead WPL-685775
...
62
Bearng-Rng WPL-WP3394509
...
63
Screw, 11-16 X 7/8 WPL-690372
...
66
Seal WPL-239087
...
67
Drum WPL-697760
...
68
Baffle-Drm WPL-WP342847
...
69
Bracket, Support WPL-3976435
...
70
Clip WPL-WP90296
...
73
Seal WPL-WP339956
...
74
Screw WPL-WP681414
...
75
Shield WPL-W11233063

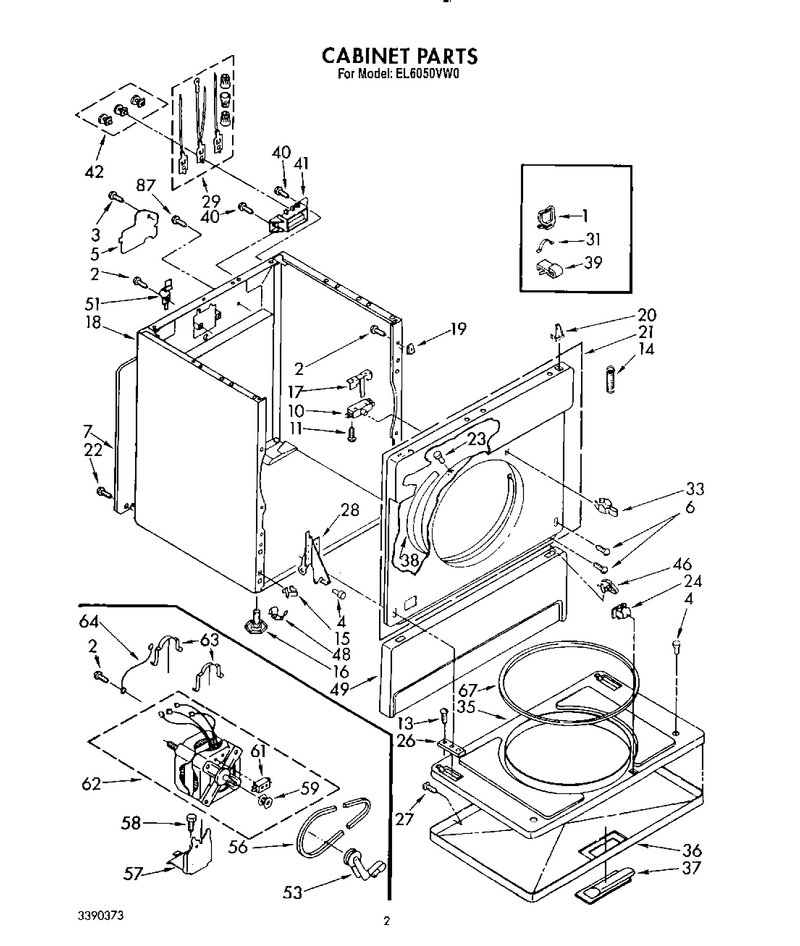

02 - Section

...
...
1
Clip WPL-353253
...
2
Screw WPL-WP681414
...
3
Screw WPL-WP693995
...
4
Bumper WPL-238614
...
5
Cover WPL-W11736322
...
6
Screw, 10-24 X 1/2 WPL-486146
...
7
Panel, Rear WPL-347736
...
10
Switch-Lid WPL-W10820036
...
11
Screw WPL-WP98129
...
13
Screw WPL-WP308685
...
14
Spring, Door (2) WPL-237979
...
15
Clip WPL-279638
...
16
Feet-Lvlng WPL-49621
...
17
Actuator WPL-WP691581
...
18
Cabinet (Includes Illus. No.`s 5,7,16,41, & 57) (Almond) WPL-3399581
...
19
Nut WPL-WP98234
...
20
Lock WPL-WP18776
...
21
Panel Assembly, Upper Front (White) WPL-338012
...
22
Screw WPL-WP489069
...
23
Clip WPL-279220
...
24
Latch WPL-279570
...
26
Clip WPL-W11252547
...
27
Screw WPL-WP694091
...
28
Hinge, R.h. WPL-687905
...
29
Terminal, Tinned & Brass (3) (Includes Illus. 42) WPL-279318
...
31
Clip WPL-WP98997
...
33
Latch WPL-279570
...
35
Door, Rear WPL-695954
...
36
Door, Front (White) WPL-348728
...
37
Handle, Door (Almond) WPL-690271
...
38
Air Channel Box WPL-279264
...
39
Clip, Harness (Door Switch Leads) WPL-689180
...
40
Screw WPL-WP308685
...
41
Block-Term WPL-279320
...
42
Terminal Block Kit (For Terminal Block) WPL-279393
...
46
Retainer WPL-WP3388229
...
48
Clip WPL-WP297092
...
49
Toe Panel WPL-279841
...
51
Hinge WPL-WP8066217
...
53
Pulley-Idr WPL-WP691366
...
56
Belt, Drive WPL-341241
...
57
Base WPL-WP348780
...
58
Bolt, 5/16-18 X 3/4 WPL-3400500
...
59
Pulley-Mtr WPL-WP8066184
...
61
Motor-Drve WPL-279827
...
62
Motor-Drve WPL-279827
...
63
Clamp WPL-WP660658
...
64
Wire, Ground WPL-690236
...
67
Seal-Door WPL-WP3390733
...
87
Screw WPL-WP681414

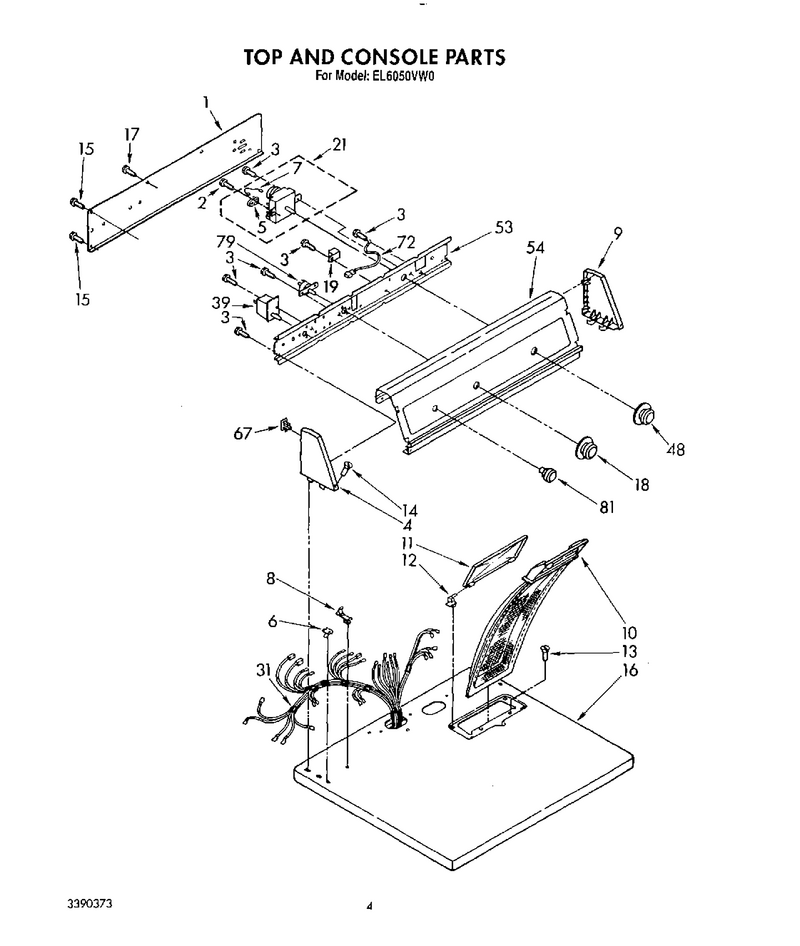

03 - Section

...
...
Platinum (Uncut) WPL-285368
...
1
Panel, Rear Console WPL-386367
...
2
Screw WPL-WP681414
...
3
Screw WPL-WP3390631
...
4
Cap, End (L.h.) WPL-3352243
...
5
Resistor WPL-279872
...
6
Nut WPL-WP358473
...
7
Wire, Jumper WPL-696098
...
8
Nut, Push-In (2) WPL-358472
...
9
Cap, End (R.h.) WPL-3352238
...
10
Screen WPL-339392V
...
11
Cover, Lint Screen (White) WPL-688150
...
12
Hinge WPL-WPW10044470
...
13
Screw WPL-W11693756
...
14
Screw WPL-WP388326
...
15
Screw WPL-WP489069
...
16
Top (Almond) WPL-3393386
...
17
Screw WPL-WP693995
...
18
Knob, Temperature Selector WPL-3352169
...
19
Buzzer-Adj WPL-WP694419
...
21
Timer & Resistor Assembly, 60 Hz. WPL-696434
...
29
Screw WPL-WP681414
...
31
Harness, Wiring WPL-3391741
...
39
Switch, Push-To-Start WPL-279173
...
48
Timer Knob & Dial Assembly WPL-3391823
...
53
Bracket, Control WPL-3396009
...
54
Panel, Control WPL-3391776
...
62
Clip WPL-WP688805
...
67
Nut WPL-WP689559
...
72
Wire, Ground WPL-69085-3
...
76
Buzzer-Adj WPL-WP694419
...
79
Switch, Rotary (Temperature Selector) WPL-69632-1
...
81
Knob, Push-To-Start WPL-3391829
