Roper EL2020WW0

Model: EL2020WW0

Save Part Not Listed?
product name

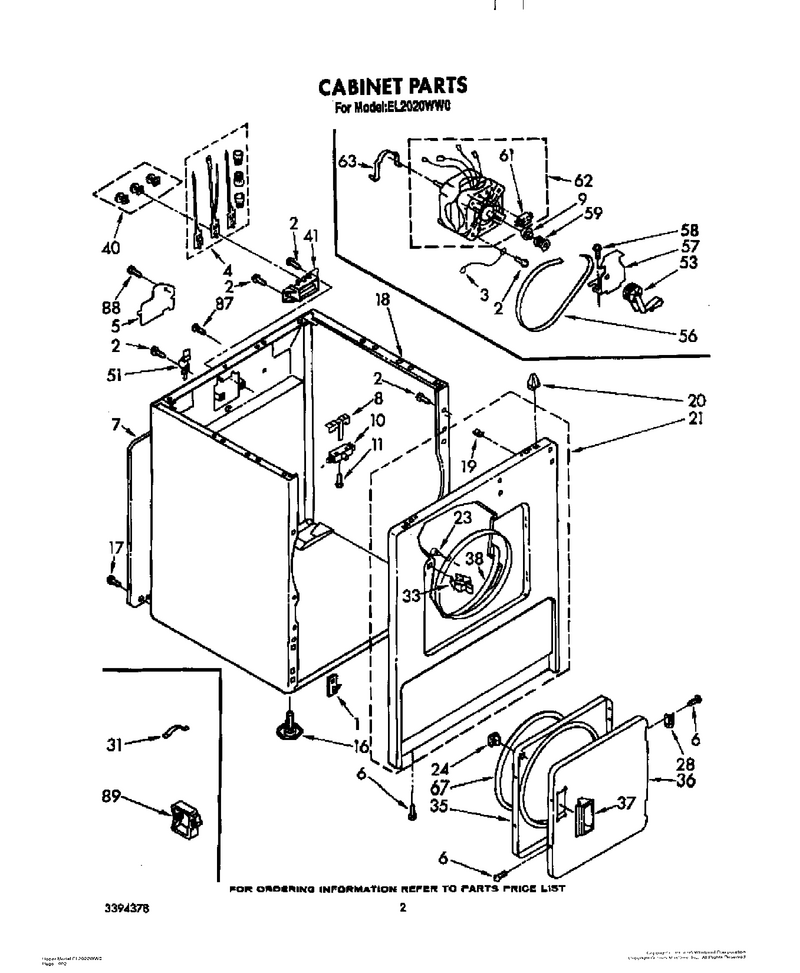

02 - Section

...
...
1
Clip WPL-W10854425
...
2
Screw WPL-WP681414
...
3
Wire, Ground (Motor) WPL-690236
...
4
Terminal, Tinned & Brass (3) (Includes Illus. 40) WPL-279318
...
5
Cover WPL-W11736322
...
6
Screw WPL-WP694091
...
7
Panel, Rear WPL-347736
...
8
Actuator WPL-WP691581
...
9
Rstrnr-Blt WPL-WP3393657
...
10
Switch-Lid WPL-W10820036
...
11
Screw WPL-WP98129
...
16
Feet-Lvlng WPL-49621
...
17
Screw WPL-WP489069
...
18
Cabinet (Includes Illus. No.`s 5,7,16,41, & 57) (White) WPL-3399580
...
19
Nut WPL-WP98234
...
20
Lock WPL-WP18776
...
21
Front Panel (White) WPL-693197
...
23
Clip WPL-279220
...
24
Catch WPL-WP3389441
...
28
Hinge WPL-WP348023
...
31
Clip WPL-WP98997
...
33
Latch WPL-279570
...
35
Door WPL-280077
...
36
Door WPL-WP348205
...
37
Handle WPL-WP686711
...
38
Air Channel Box WPL-279264
...
40
Terminal Screw Kit For Terminal Block WPL-279393
...
41
Block-Term WPL-279320
...
51
Hinge WPL-WP8066217
...
53
Pulley-Idr WPL-WP691366
...
56
Belt, Drive WPL-341241
...
57
Base WPL-WP348780
...
58
Bolt, 5/16-18 X 3/4 WPL-3400500
...
59
Pulley-Mtr WPL-WP8066184
...
61
Motor-Drve WPL-279827
...
62
Motor-Drve WPL-279827
...
63
Clamp WPL-WP660658
...
67
Seal-Door WPL-W11613302
...
87
Screw WPL-WP308685
...
88
Screw WPL-WP693995
...
89
Clip WPL-353253

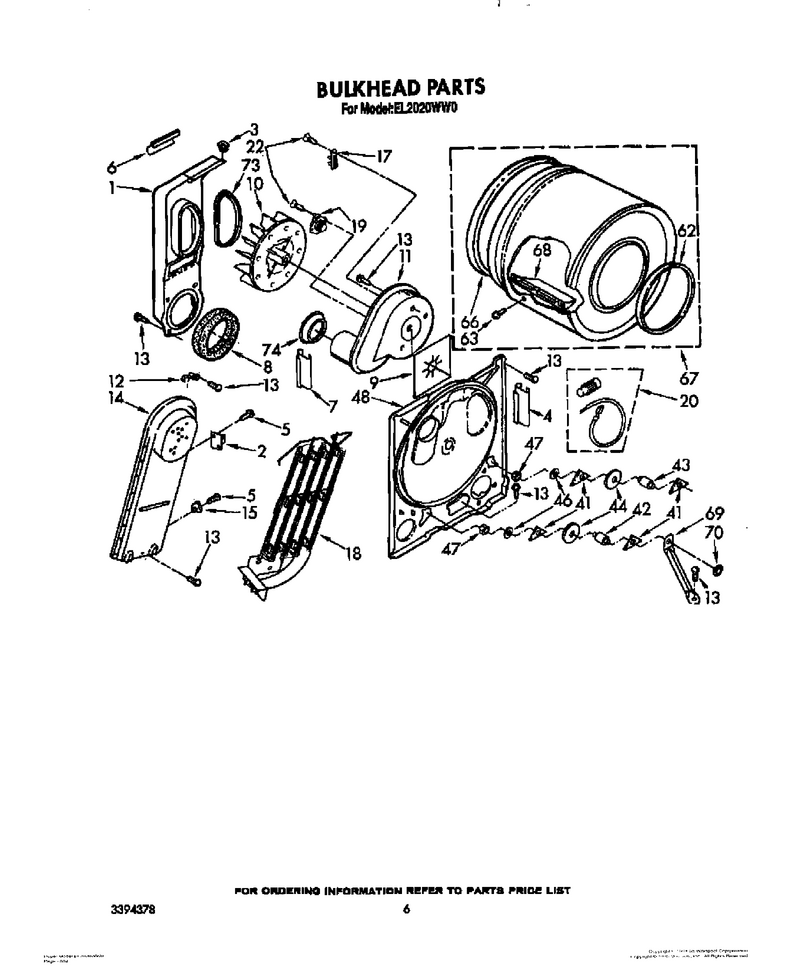

04 - Bulkhead

...
...
1
Chute WPL-279505
...
2
Kit, Thermal Cut-Off (Includes Thermostat) WPL-279769
...
3
Nut, Push-In (2) WPL-98460
...
4
Pad, Cabinet WPL-686889
...
5
Screw WPL-WP90767
...
6
Support Protector WPL-686770
...
7
Pad, Cabinet WPL-686889
...
8
Seal WPL-W11415783
...
9
Seal WPL-WP3394196
...
10
Wheel WPL-WP694089
...
11
Housing WPL-WP8577230
...
12
Clip WPL-279771
...
13
Screw WPL-WP681414
...
14
Box, Heater WPL-695547
...
15
Thrmst-Fix WPL-WP3390291
...
17
Fuse-Thrml WPL-WP3392519
...
18
Element WPL-WP4391960
...
19
Thrmst-Fix WPL-WP694674
...
20
Terminal Wire Kit (For Heater Element Wiring Harness Repair) WPL-279457
...
22
Screw WPL-WP965173
...
41
Ring WPL-WPW10512946
...
42
Shaft WPL-WPW10359270
...
43
Shaft WPL-WPW10359269
...
44
Support WPL-349241T
...
46
Washer WPL-WP348197
...
47
Nut WPL-WP358160
...
48
Bulkhead WPL-685775
...
62
Bearng-Rng WPL-WP3394508
...
63
Screw, 11-16 X 7/8 WPL-690372
...
66
Seal WPL-239087
...
67
Drum Assembly WPL-3396775
...
68
Baffle-Drm WPL-WP342847
...
69
Bracket, Support WPL-3976435
...
70
Clip WPL-WP90296
...
73
Seal WPL-WP339956
...
74
Shield WPL-W11233063

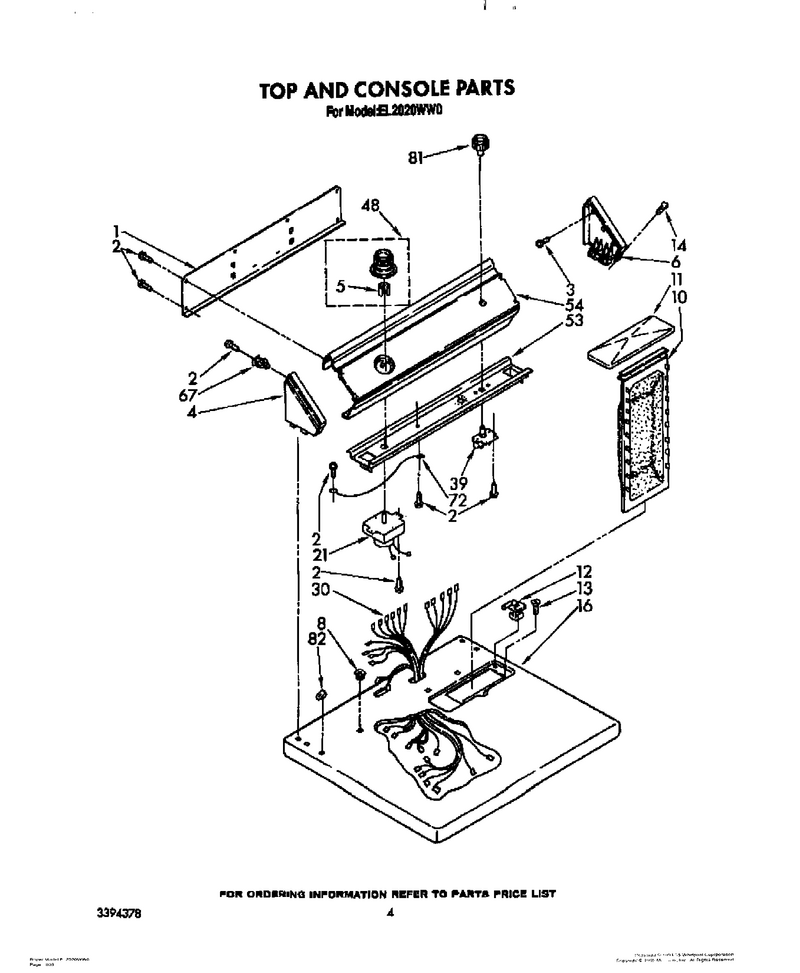

03 - Top And Control

...
...
Paint, Touch-Up (1/2oz. White) WPL-72017
...
1
Panel, Rear Console WPL-386367
...
2
Screw WPL-WP681414
...
3
Screw WPL-304795
...
4
Cap, End (L.h.) (White) WPL-63790
...
5
Clip WPL-WP688805
...
6
Cap, End (R.h.) (White) WPL-63796
...
8
Stop, Push-In (2) WPL-358472
...
10
Screen WPL-339392V
...
11
Cover, Lint Screen (White) WPL-688150
...
12
Hinge WPL-WPW10044480
...
13
Screw WPL-W11693756
...
14
Screw WPL-WP388326
...
16
Top (White) WPL-3393385
...
21
Timer WPL-348318
...
30
Harness WPL-3388068
...
39
Switch, Push-To-Start WPL-279173
...
48
Timer Knob Assembly WPL-695556
...
53
Bracket, Control WPL-3394061
...
54
Panel, Control WPL-3387694
...
67
Nut WPL-WP689559
...
72
Wire, Console Ground WPL-69085-3
...
81
Knob, Push-To-Start WPL-3387894
...
82
Nut WPL-WP358473
