Roper CEX650VW1

Model: CEX650VW1

Save Part Not Listed?
product name

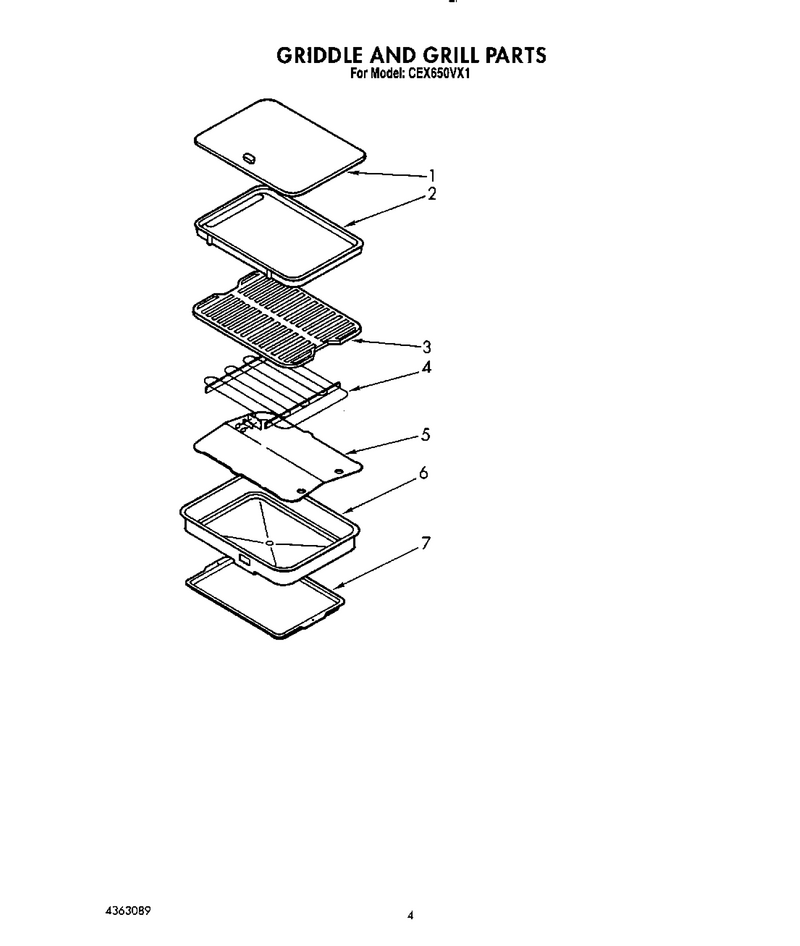

04 - Section

...
...
Wiring Diagram WPL-LIT4320360
...
1
Cover, Chrome WPL-4315610
...
2
Griddle, Teflon WPL-4157610
...
3
Grill WPL-4315599
...
4
Element, Griddle WPL-4315597
...
5
Insert, Griddle Pan WPL-4315605
...
6
Pan, Griddle WPL-4315604
...
7
Pan-Grease WPL-8203515

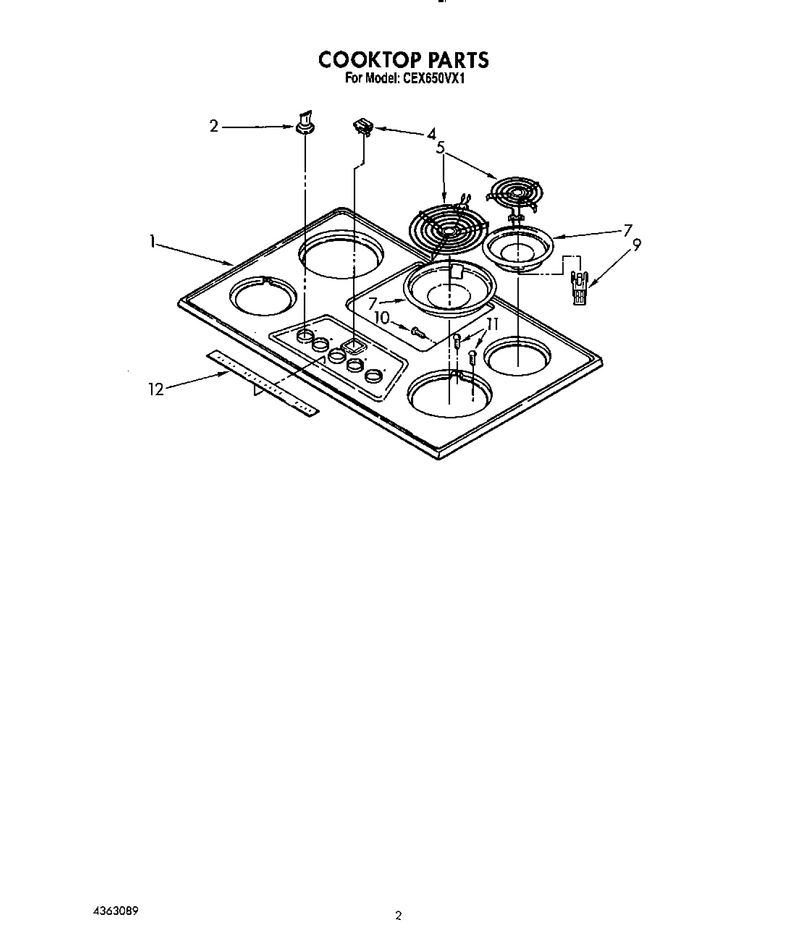

02 - Section

...
...
1
Main Top (Almond) WPL-4315651
...
2
Knob WPL-4363811
...
4
Light, Indicator WPL-4315598
...
5
Elmnt-Surf WPL-WP660533
...
7
Bowl-Drip WPL-W10196406RW
...
9
Receptacle WPL-330031
...
10
Screw WPL-WP965173
...
11
Screw WPL-WP90767
...
12
Insert, Nameplate WPL-4315584

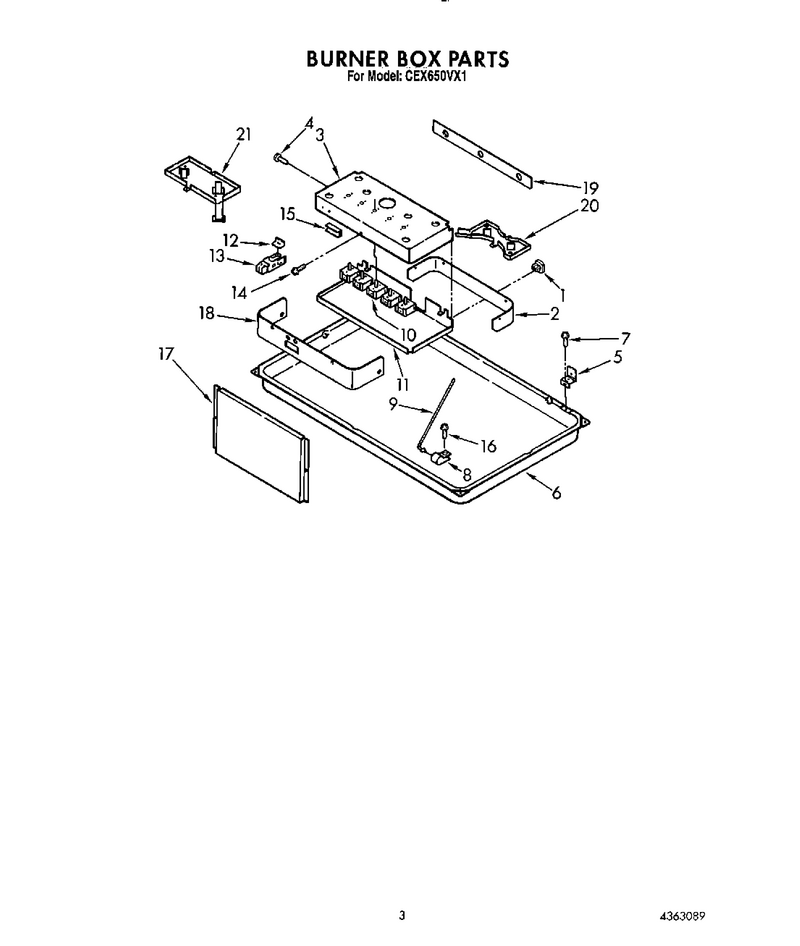

03 - Section

...
...
1
Bushing, Snap WPL-4362820
...
2
Heat Shield WPL-4315606
...
3
Cover, Switch Box WPL-4362506
...
4
Screw, 8-32 X 3/8 Hex Washer Head Slotted Tapping Ground (1) WPL-718178
...
5
Hinge (2) WPL-4157485
...
6
Burner Box WPL-4315591
...
7
Screw WPL-WP90767
...
8
Clamp WPL-WP488366
...
9
Rod, Support WPL-4157408
...
10
Switch-Inf WPL-W10900107
...
11
Switch Box WPL-4362509
...
12
Bracket, Griddle Terminal Block WPL-4315609
...
13
Receptacle WPL-330031
...
14
Screw WPL-WP965173
...
15
Block, Terminal WPL-4315647
...
16
Screw, 8-32 X 7/32 Phlps. Hex Hd. WPL-965194
...
17
Heat Shield, Burner Box WPL-4315601
...
18
Heat Shield, Front WPL-4315600
...
19
Baffle, Heat WPL-4315603
...
20
Wire Cover, Right WPL-4315593
...
21
Wire Cover, Left WPL-4315763
