Roper CEX630VX0

Model: CEX630VX0

Save Part Not Listed?
product name

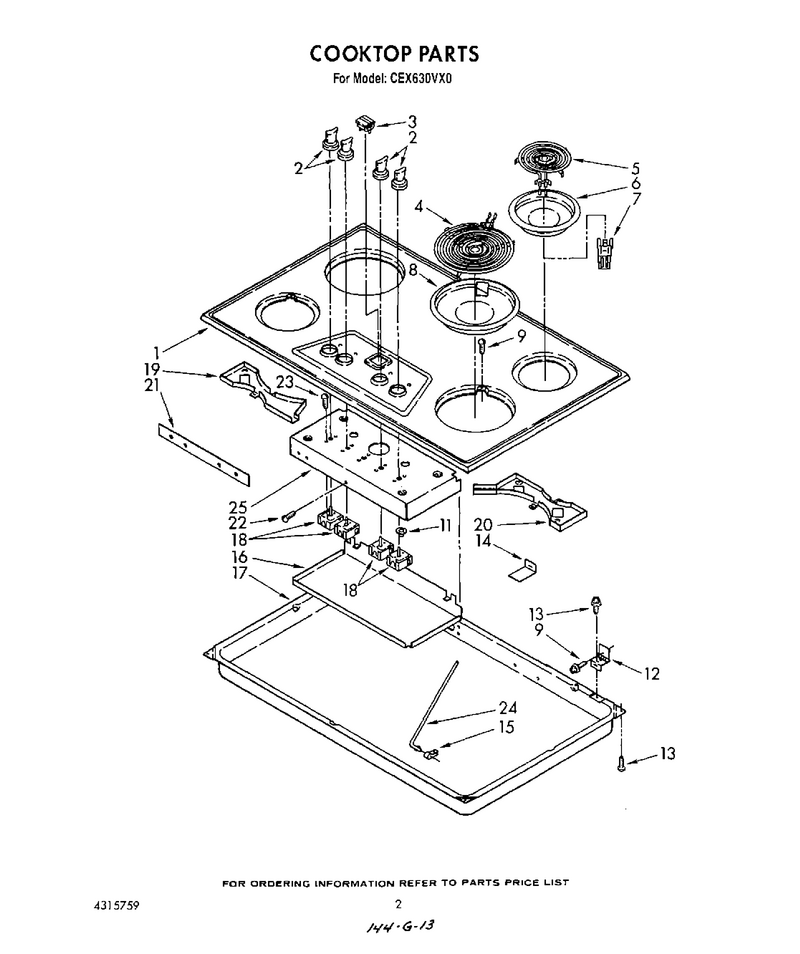

02 - Section

...
...
1
Cooktop (White) WPL-4315655
...
2
Knob WPL-4363811
...
3
Indicator Light WPL-4315595
...
4
Elmnt-Surf WPL-WP660533
...
5
Elmnt-Surf WPL-WP660532
...
6
Bowl-Drip WPL-W10196406RW
...
7
Receptacle WPL-330031
...
8
Bowl-Drip WPL-W10196405RW
...
9
Screw WPL-WP313808
...
11
Nut WPL-4315652
...
12
Hinge (2) WPL-4157485
...
13
Screw WPL-WP965173
...
14
Gasket, Switch WPL-4315286
...
15
Clamp WPL-WP488366
...
16
Cover, Switch Box WPL-4315592
...
17
Burner Box WPL-4315591
...
18
Switch-Inf WPL-W10900107
...
19
Wire Cover, Left WPL-4315596
...
20
Wire Cover, Right WPL-4315593
...
21
Nameplate WPL-4315578
...
22
Screw WPL-WP308685
...
23
Screw, 8-32 X 7/32 Phlps. Hex Hd. WPL-965194
...
24
Rod, Support WPL-4157408
...
25
Installation Guide WPL-4315475
