product name

Roper CEX375VW0

Model: CEX375VW0

Save Part Not Listed?
product name

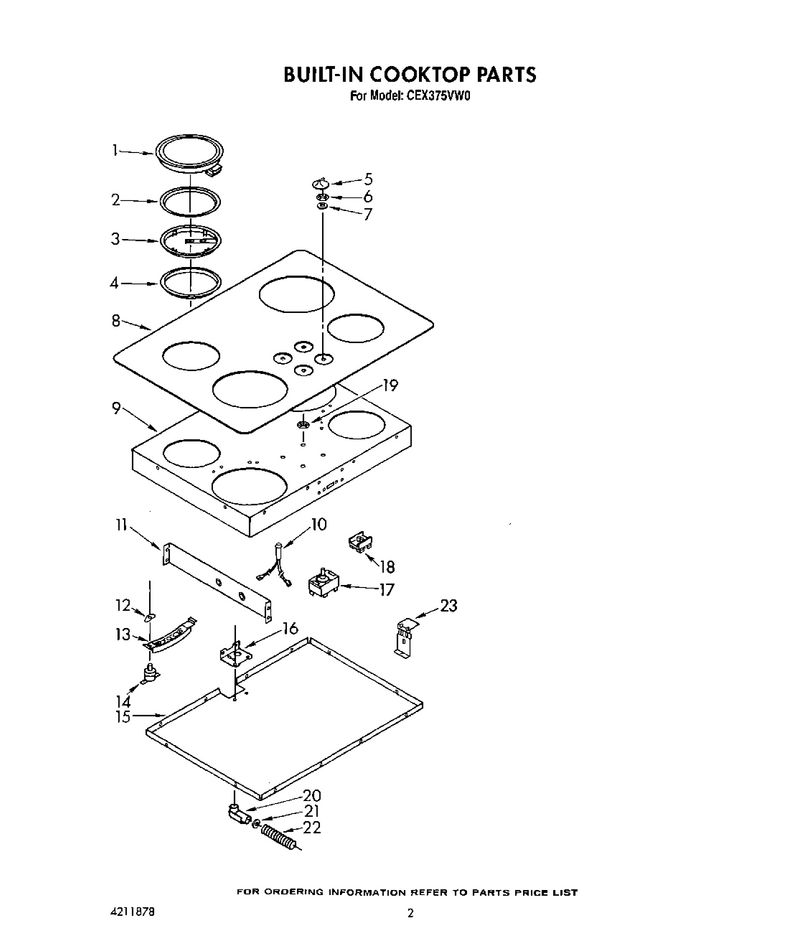

02 - Section

...
...
Installation Instructions WPL-LIT4211867
...
1
Elmnt-Surf WPL-WP3147132
...
2
Ring, Intermediate 8`` Burner (White) WPL-3148489
...
3
Ring, Gasket (Front Burner) WPL-3147187
...
4
Gasket (6``(2)) WPL-4211828
...
5
Knob, Control (Black) WPL-4211876
...
6
Nut WPL-WP422617
...
7
Seal, Shaft (4) WPL-4211860
...
8
Cooktop, Glass (Black) WPL-4211873
...
9
Lock Washer WPL-4159500
...
10
Indicator Light (4) WPL-4211833
...
11
Shield, Infinite Switch (2) WPL-4211808
...
12
Spring, Leaf WPL-3147191
...
13
Nut, Metric WPL-3147190
...
14
Thermostat (2) WPL-3148397
...
15
Screw, 10a X 3/8 (2) WPL-254217
...
16
Screw, 10a X 3/8 (2) WPL-254217
...
17
Switch-Inf WPL-814378
...
18
Screw WPL-486650
...
19
Nut WPL-246172
...
20
90~ Connector WPL-4211815
...
21
Bushing WPL-4211816
...
22
Flex Cable WPL-4211817
...
23
Wire, Yellow 14 Ga. 200~c WPL-242832
