product name

Roper CEX310VW1

Model: CEX310VW1

Save Part Not Listed?
product name

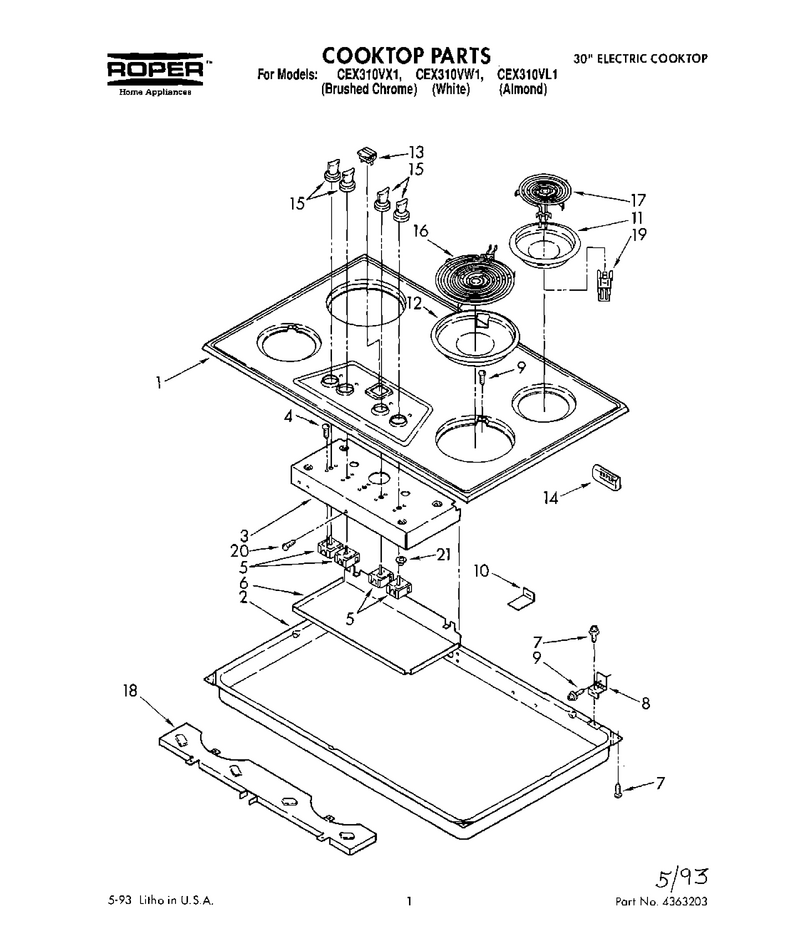

01 - Section

...
...
1
Cooktop (White) WPL-4315627
...
2
Burner Box WPL-4315572
...
3
Switch Box WPL-4315574
...
4
Screw, 8-32 X 7/32 Phlps. Hex Hd. WPL-965194
...
5
Switch-Inf WPL-W10900107
...
6
Cover, Switch Box WPL-4315573
...
7
Screw WPL-WP965173
...
8
Hinge (2) WPL-4157485
...
9
Screw WPL-WP313808
...
10
Gasket, Switch WPL-4315286
...
11
Bowl-Drip WPL-8189501
...
12
Bowl-Drip WPL-WPW10196405
...
13
Indicator Light WPL-4315580
...
14
Nameplate - Roper WPL-4315582
...
15
Knob WPL-4363811
...
16
Elmnt-Surf WPL-WP660533
...
17
Elmnt-Surf WPL-WP660532
...
18
Cover, Wire WPL-4315577
...
19
Receptacle WPL-330031
...
20
Screw, 8-32 X 3/8 Hex Washer Head Slotted Tapping Ground (1) WPL-718178
...
21
Owners Manual WPL-4315474
