Roper C3457X0

Model: C3457X0

Save Part Not Listed?
product name

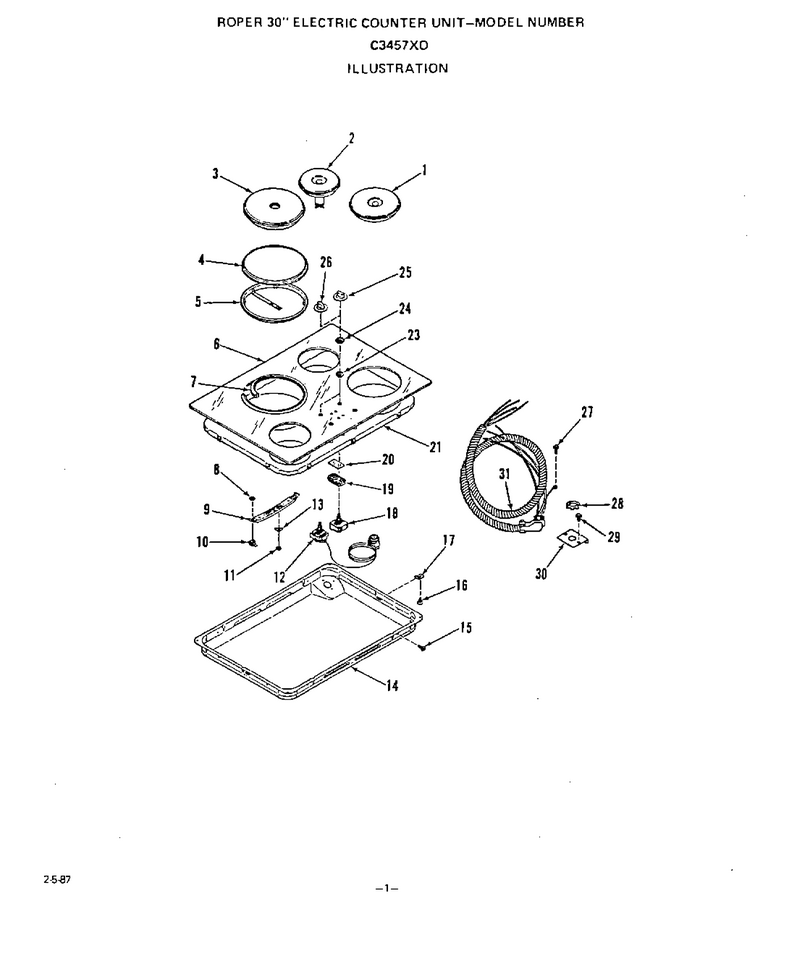

02 - Elec Counter Unit

...
...
1
Large Element (Rt. Front) WPL-329107
...
2
Small Element (Lt. Frt. Or Rt. Rr.) WPL-329106
...
3
Thermal Control Element (Lt. Rear) WPL-334706
...
4
Trim Ring (9`` (Lt. Rear)) WPL-336000
...
5
Gasket Ring (7``) WPL-336002
...
6
Main Top Glass WPL-335991
...
7
Element Seal (7`` (Rt. Front)) WPL-335995
...
8
Nut WPL-334967
...
9
Element Clamp (Lt. Frt. Or Rt. Rr.) WPL-335541
...
10
Thermal Switch WPL-336006
...
11
Nut WPL-329326
...
12
Hob Element Thermostat WPL-336004
...
13
Spring Washer WPL-335997
...
14
Burner Box WPL-335986
...
15
Screw WPL-326974
...
16
Screw 10-32x1`` WPL-299271
...
17
Retainer Clip WPL-335988
...
18
Infinite Control WPL-336005
...
19
Indicator Light WPL-337321
...
20
Indicator Light Lens WPL-299163
...
21
Burner Box Top WPL-335987
...
23
Infinite Control Seal WPL-335992
...
24
Hex Nut WPL-335993
...
25
Infinite Control Knob WPL-336389
...
26
Thermostat Knob WPL-336778
...
27
Screw 10-32x7/16`` WPL-313191
...
28
Nut (For Key 30) WPL-110340
...
29
Screw 10 - 32 X 3/8`` WPL-102429
...
30
Conduit Plate WPL-333487
...
31
Conduit Harness Asm. WPL-336158
