Roper C3408B1

Model: C3408B1

Save Part Not Listed?
product name

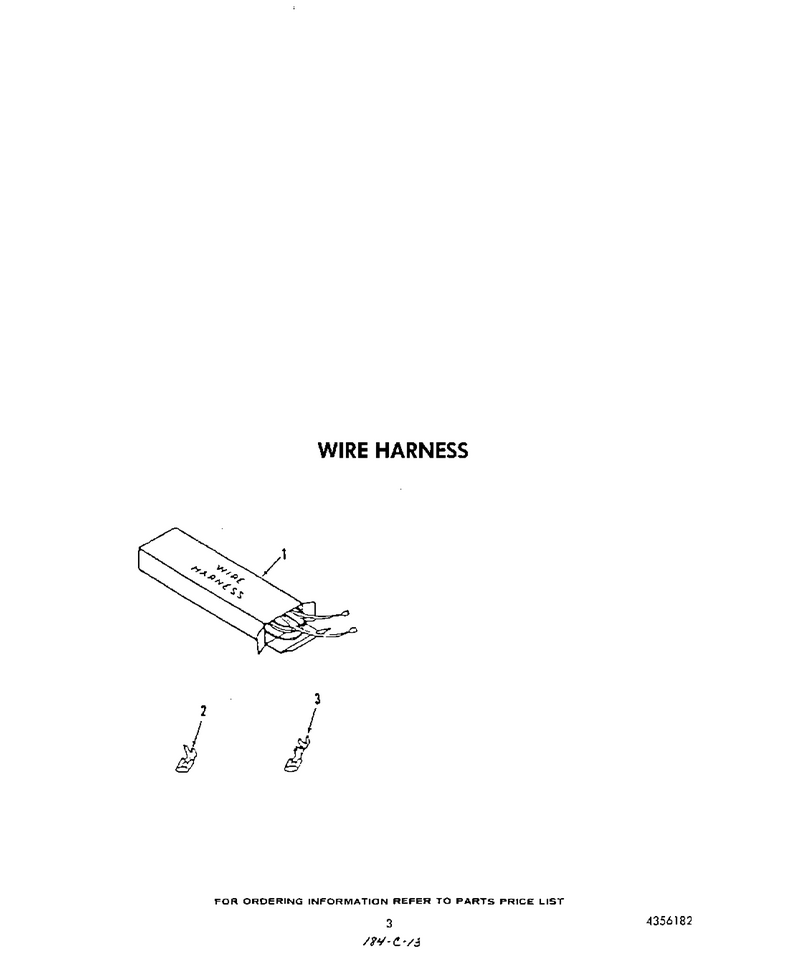

03 - Wire Harness

...
...
1
Harness, Wire (Wire, Main) WPL-4342719
...
2
Terminal WPL-WP90028
...
3
Terminal WPL-WP285432

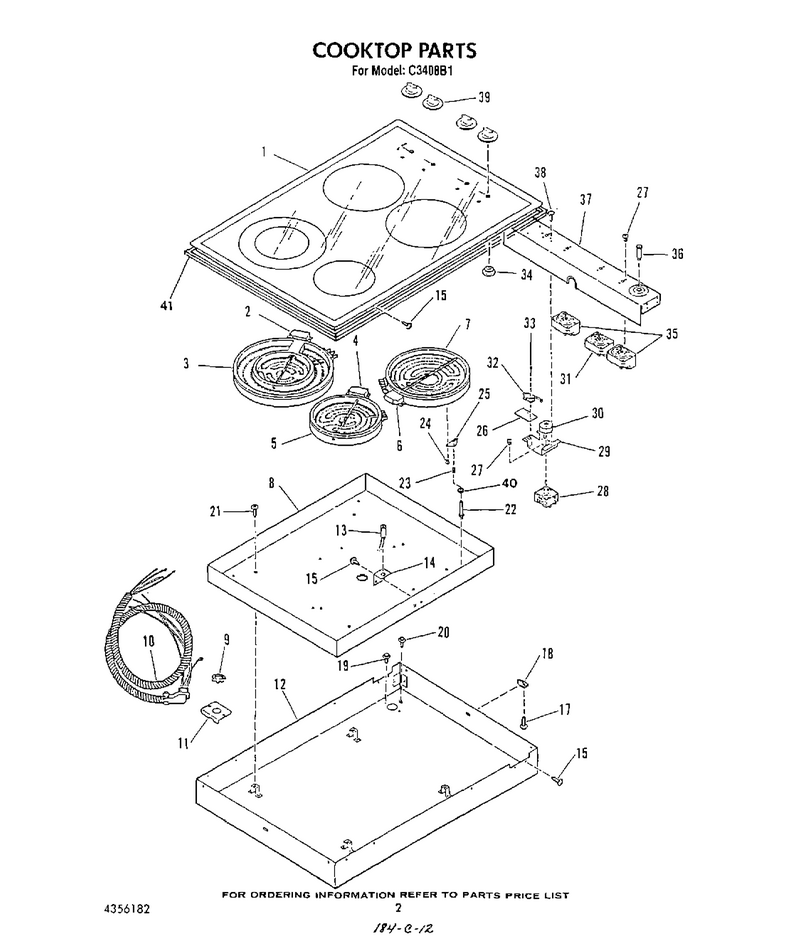

02 - Cooktop

...
...
Xparts Not Shown On Illustration WPL---
...
1
Cooktop, Glass WPL-4342692
...
2
Limit Control WPL-4343093
...
3
Heater, Radiant- Left Rear WPL-4342694
...
4
Limit Control WPL-4343095
...
5
Heater, Radiant- Left Front WPL-4342696
...
6
Limit Control WPL-4343097
...
7
Heater, Radiant- Rt. Rear-Rt. Front WPL-4342698
...
8
Box, Burner WPL-4342699
...
9
Nut, Lock WPL-4324132
...
10
Conduit-Wire Asm. WPL-4342700
...
11
Plate, Conduit WPL-4336991
...
12
Cover, Heater WPL-4342701
...
13
Light, Indicator WPL-4342702
...
14
Bracket, Light WPL-4342703
...
15
Screw WPL-4337728
...
17
Screw No.10-32x1`` (2 Req) WPL-4327903
...
18
Clip, Retainer WPL-4337158
...
19
Screw WPL-W10850756
...
20
Screw, 10-32 X 1/2 Hex Washer Head W/ground Ring WPL-311996
...
21
Screw, No.8-32 X 1/4 WPL-4333569
...
22
Stud, Heater WPL-4342704
...
23
Spring, Heater WPL-4342705
...
24
Screw, (24) WPL-4336235
...
25
Bracket, Heater WPL-4342706
...
26
Insulator WPL-4338222
...
27
Screw, No.8-32 X 1/4 WPL-4350281
...
28
Switch, Infinite WPL-4342865
...
29
Bracket, Infinite Switch WPL-4342708
...
30
Switch, Cam WPL-4342709
...
31
Switch-Inf WPL-W10900107
...
32
Switch, Micro WPL-4342711
...
33
Screw WPL-4335881
...
34
Seal, Infinite Control WPL-4342712
...
35
Switch-Inf WPL-W10900107
...
36
Light, Indicator WPL-4342714
...
37
Mounting, Control Panel WPL-4342715
...
38
Screw WPL-4324445
...
39
Knob, Infinite (4) WPL-4342716
...
40
Screw WPL-486420
...
41
Xowners Manual WPL-4342717
