Roper C3257W0

Model: C3257W0

Save Part Not Listed?
product name

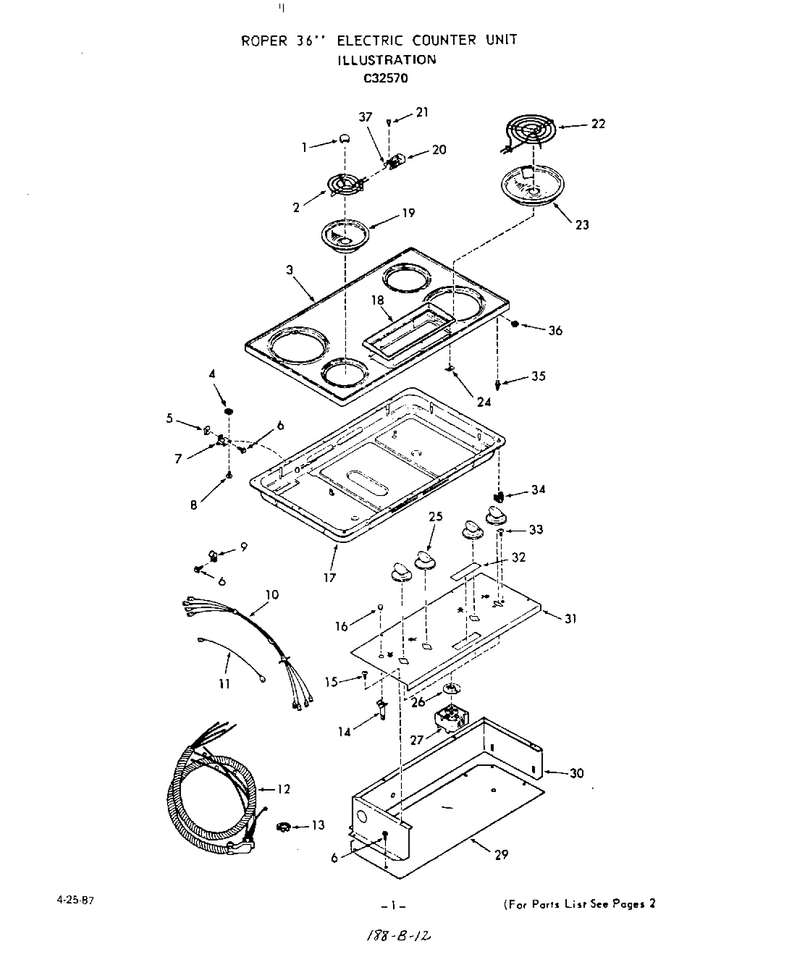

02 - Elec Counter Unit

...
...
Xparts Not Shown On Illustration WPL---
...
1
1 Pc. Hi-L WPL-WFR319704
...
2
6`` Surface Element (Lt. Frt. Or Rt. Rear) WPL-319266
...
3
Main Top (Avocado) WPL-315672
...
4
Keps Nut 8-32 WPL-239764
...
5
Speed Nut 10-24 WPL-24345
...
6
Screw 10 - 32 X 3/8`` WPL-102429
...
7
Hinge (Lt. Or Rt.) WPL-107969
...
8
Screw 8-32x1/4`` WPL-322183
...
9
Clamp (2 Req For Key 10) WPL-97047
...
10
Wire Harness-Elements (Left) WPL-318905
...
11
Wire Lead (Indicator Light To All Infinite Controls) WPL-303232
...
12
Conduit & Harness WPL-298288
...
13
Lock Nut WPL-110340
...
14
Indicator Light WPL-288814
...
15
Screw 6-32x5/16`` WPL-78153
...
16
Lens-Indicator Light WPL-233161
...
17
Burner Box WPL-316339
...
18
Control Bezel WPL-278503
...
19
6`` Chrome Bowl-Lt., Rt. Rear & Lt. Front WPL-296481
...
20
Terminal Block W/wire Leads (4 Req.) WPL-318960
...
21
Screw 7-32x5/16`` WPL-299632
...
22
8`` Surface Element (Rt. Frt. & Lt. Rear) WPL-319268
...
23
8`` Burner Bowl (Rt. Frt. Or Lt. Rr.) WPL-304969
...
24
Speed Nut WPL-24710
...
25
Knob Controls (All 218860 & 218880 Models) WPL-328201
...
26
Seal-Infinite Control (4 Req) WPL-280157
...
27
Infinite Control (Rt. Frt. & Lt. Rr.) WPL-320946
...
29
Shield-Controls WPL-305982
...
30
Control Housing WPL-311702
...
31
Controls Mounting Plate WPL-305986
...
32
Roper Name Plate WPL-303098
...
33
Screw 8-32x1/4`` WPL-70655
...
34
Catch (Rt. Or Lt.) WPL-71003
...
35
Strike (Rt. Or Lt.) WPL-299784
...
36
Keps Nut 8-32 WPL-239764
...
37
Xoperating Guide WPL-309885
