Roper C3157W0

Model: C3157W0

Save Part Not Listed?
product name

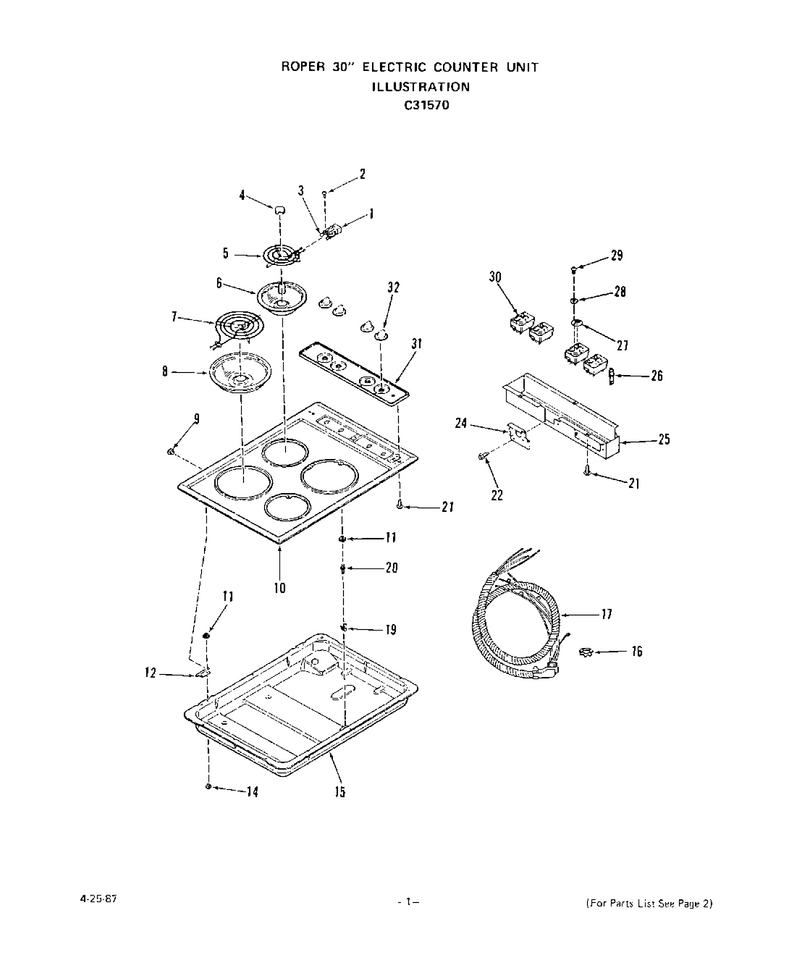

02 - Elec Counter Unit

...
...
1
Terminal Block W/wires WPL-318960
...
2
Screw 7-32x5/16`` WPL-299632
...
3
Terminal Block Clip WPL-318872
...
4
Medallion WPL-318586
...
5
Surface Element 6`` WPL-325510
...
6
Burner Bowl 6`` WPL-296481
...
7
Surface Element 8`` WPL-325506
...
8
Burner Bowl 8`` WPL-304969
...
9
Screw 6-32x1/4`` WPL-72055
...
10
Main Top (Wheat) WPL-330450
...
11
Hex Nut 8-32 WPL-239764
...
12
Hinge-Main Top WPL-330421
...
14
Screw 8-32x1/4`` WPL-322183
...
15
Burner Box WPL-330924
...
16
Nut WPL-110340
...
17
Conduit Harness Asm. WPL-330440
...
19
Catch WPL-71003
...
20
Strike WPL-24668
...
21
Screw 6-32x5/16`` WPL-78153
...
22
Screw 10 - 32 X 3/8`` WPL-102429
...
24
Conduit Mounting Plate WPL-330710
...
25
Wire Cover WPL-330433
...
26
Indicator Light WPL-329931
...
27
Control Seal WPL-280157
...
28
Washer WPL-235110
...
29
Screw 8-32x1/4`` WPL-70655
...
30
Infinite Switch (Right Front & Left Rear) WPL-324609
...
31
Control Panel WPL-330921
...
32
Infinite Knob WPL-330434
