Roper C2557W0

Model: C2557W0

Save Part Not Listed?
product name

Popular Parts

Popular Parts

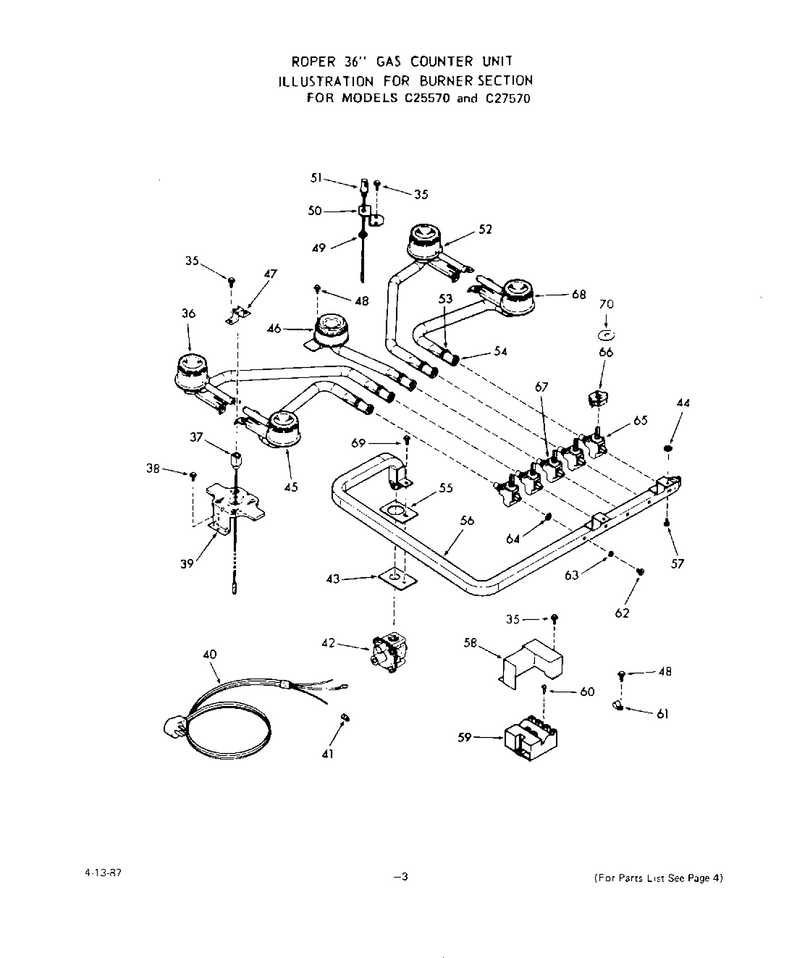

03 - Burner

...
...
Xfixture Wire Lead Spark Igniter Module To Cord W/plug (Blk) WPL---
...
35
Screw 10 - 32 X 3/8`` WPL-102429
...
36
Top Burner Assembly (Lt. Rear) WPL-310301
...
37
Right WPL-312454
...
38
Nut WPL-WP112432
...
39
Right WPL-310290
...
40
Cord W/plug WPL-309854
...
41
Small WPL-66763
...
42
Pressure Regulator WPL-324529
...
43
Seal-Manifold WPL-312735
...
44
Nut 8-32 WPL-239764
...
45
Top Burner Assembly (Lt. Front) WPL-310303
...
46
Griddle Burner Asm. WPL---
...
47
Bracket-Spark Igniter (Lt. Or Rt.) WPL-312453
...
48
Screw 10 - 32 X 7/16`` WPL-295850
...
49
Nut - C25570 Models WPL-304281
...
50
C25570 Models WPL-309996
...
51
Electrode-Spark Igniter (Griddle) WPL---
...
52
Top Burner Asm. (Rt. Rear) WPL-310300
...
53
Adjustment Screw-Air Shutter WPL-301911
...
54
Air Shutter WPL-301910
...
55
Retainer-Manifold Seal WPL-312736
...
56
C25570 Models WPL-323395
...
57
Screw 8-32 X 3/8`` WPL-238833
...
58
Wire Cover-Module WPL-325855
...
59
C27570 Models WPL-321965
...
60
Screw 6-20x3/8`` WPL-327621
...
61
Clamp-Nylon WPL-109266
...
62
Trim, Bottom WPL-3181005
...
63
C25570 Models WPL-304241
...
64
C27570 Models WPL-313563
...
65
Gas Valve (4 Req) WPL-313224
...
66
C25570 Models WPL-311389
...
67
Gas Valve-Griddle-C27570 Models WPL-315190
...
68
Top Burner Asm. (Rt. Front) WPL-310302
...
69
Screw 10 - 32 X 3/8`` WPL-102430
...
70
Shield-Valve WPL---

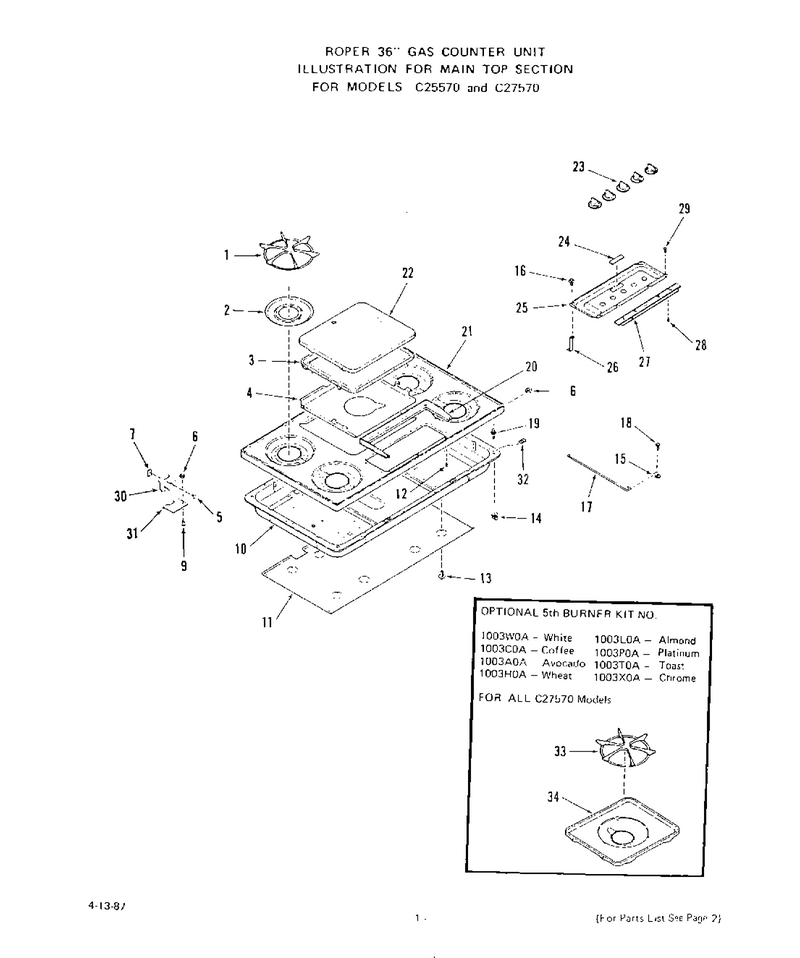

02 - Main Top

...
...
1
Top Grate (4 Req) WPL-316786
...
2
Spill Bowl (4 Req) WPL-310385
...
3
Griddle Plate WPL-321745
...
4
Baffle-Griddle Burner WPL-329771
...
5
Screw 10 - 32 X 3/8`` WPL-102429
...
6
Keps Nut 8-32 WPL-239764
...
7
Speed Nut WPL-24345
...
9
Screw 8-32x1/4`` WPL-322183
...
10
Burner Box WPL-332670
...
11
Shield-Burner Box WPL-323394
...
12
Screw 6-32x1/4`` WPL-97220
...
13
Screw 10-32x3/8`` WPL-239113
...
14
Catch (2 Req) WPL-24667
...
15
Clamp WPL-285945
...
16
Screw 10 - 32 X 1/4`` WPL-105771
...
17
Support Rod-Main Top WPL-315379
...
18
Screw 10-32x3/8`` WPL-239113
...
19
Strike (2 Req) WPL-299784
...
20
Bezel-Controls WPL-302899
...
21
C2757ao Golden Wheat WPL-325564
...
22
Wheat WPL-327870
...
23
Knob-Gas Valve WPL---
...
24
Name Plate WPL-303098
...
25
C2557o WPL-302786
...
26
Bracket-Control Panel (2 Req) WPL-111228
...
27
C2757o WPL-302898
...
28
Screw 7-32x5/16`` WPL-299632
...
29
Screw 6-32x1/4`` WPL-97220
...
30
Upper Leaf-Hinge (Lt. Or Rt.) WPL-323352
...
31
Lower Leaf-Hinge (Lt. Or Rt.) WPL-321869
...
32
Elmnt-Brol WPL-326795
...
33
Top Grate WPL-316786
...
34
Avocado WPL-325415
