Roper BES450WB0

Model: BES450WB0

Save Part Not Listed?
product name

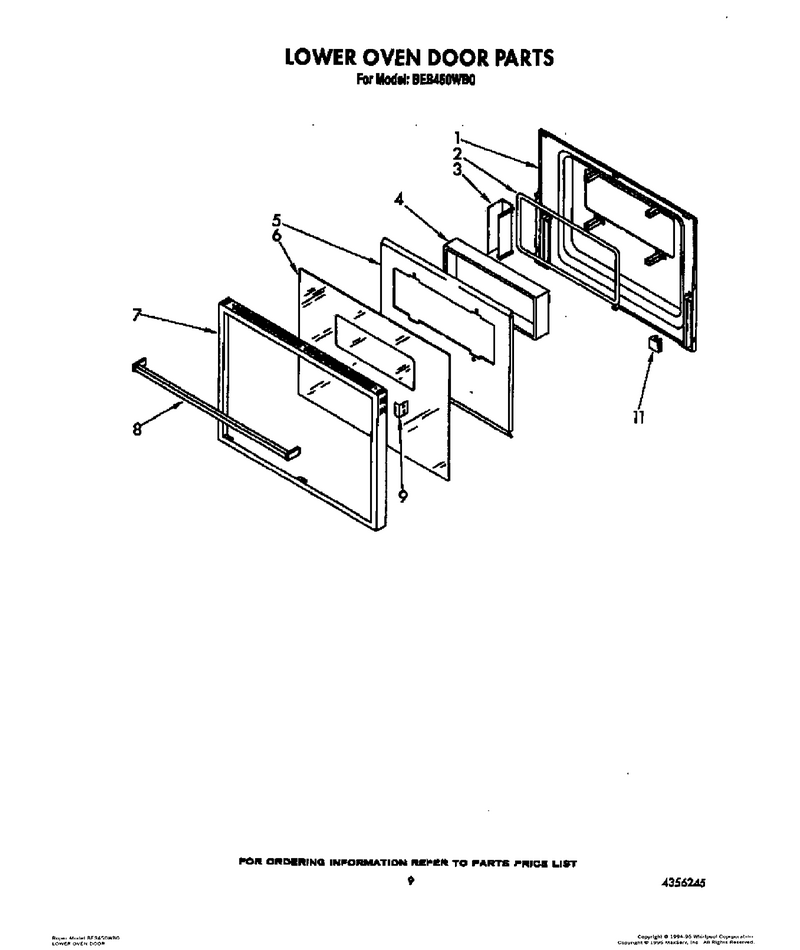

07 - Lower Oven Door

...
...
1
Screw (2) WPL-3178001
...
2
Seal, Window WPL-3185462
...
3
Spacer, Window WPL-3179694
...
4
Window Package WPL-4164235
...
5
Retainer, Insulation WPL-3177719
...
6
Clip, Glass (16) WPL-310706
...
7
Frame, Door WPL-3180635
...
8
Screw (2) WPL-3181924
...
9
Clip (2) WPL-3181850
...
11
Bumper, Door Glass WPL-3181723

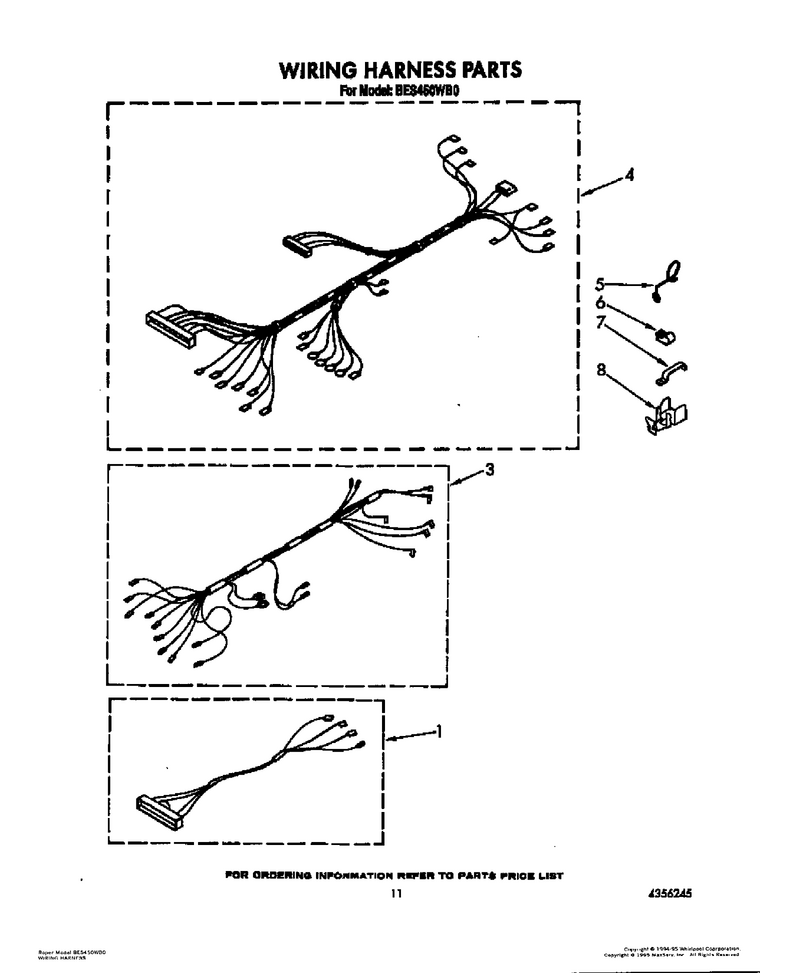

09 - Wiring Harness

...
...
1
Wiring Harness Latch Switch WPL-3181193
...
3
Wiring Harness (Lower Oven) WPL-3180618
...
4
Wiring Harness (Upper Oven) WPL-3180619
...
5
Screw WPL-WP90767
...
6
Clamp WPL-WP308605
...
7
Clamp, Wire 3/4 WPL-7111P002-60
...
8
Screw (4) WPL-309133

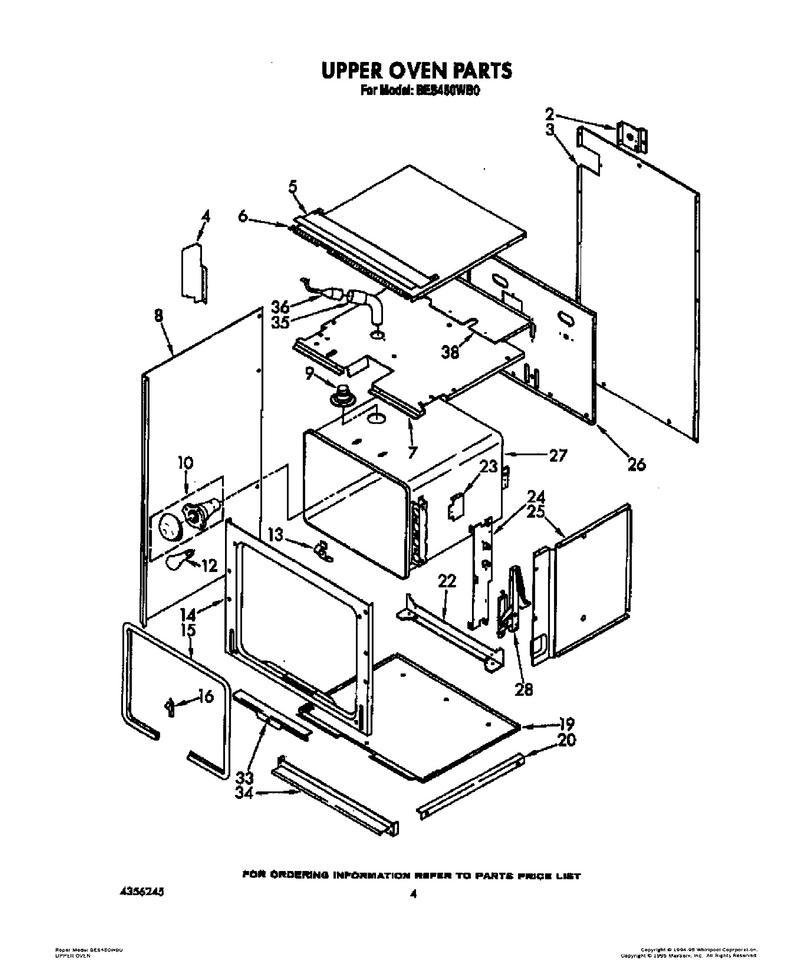

04 - Upper Oven

...
...
2
Screw WPL-WP90767
...
3
Screw WPL-WP90767
...
4
Baffle, End Cap (Right Hand) WPL-3181962
...
5
Baffle, Control Back WPL-3181758
...
6
Cabinet, Top WPL-3178139
...
7
Screw WPL-WP90767
...
8
Screw WPL-WP90767
...
9
Screw (3) WPL-3179117
...
10
Sockt-Lite WPL-W11594027
...
12
Light Bulb WPL-8009
...
13
Clip, Therm Bulb WPL-98005642
...
14
Frame-Frnt WPL-814339
...
15
Seal, Door WPL-3179814
...
16
Clip, Oven Seal WPL-3179848
...
19
Bottom, Module WPL-3177622
...
20
Rail, Support (2) WPL-3179220
...
22
Screw WPL-WP90767
...
23
Screw WPL-WP90767
...
24
Screw WPL-WP90767
...
25
Screw WPL-WP90767
...
26
Screw WPL-WP90767
...
27
Liner, Oven WPL-3177461
...
28
Screw (4) WPL-3179795
...
33
Retainer, Seal WPL-3179587
...
34
Screw (4) WPL-3180022
...
35
Vent, Tube (Upper, Female) WPL-3179922
...
36
Screw WPL-WP90767
...
38
Extension, Shelf WPL-3178133
...
39
Insulation, Wrap WPL-3177865

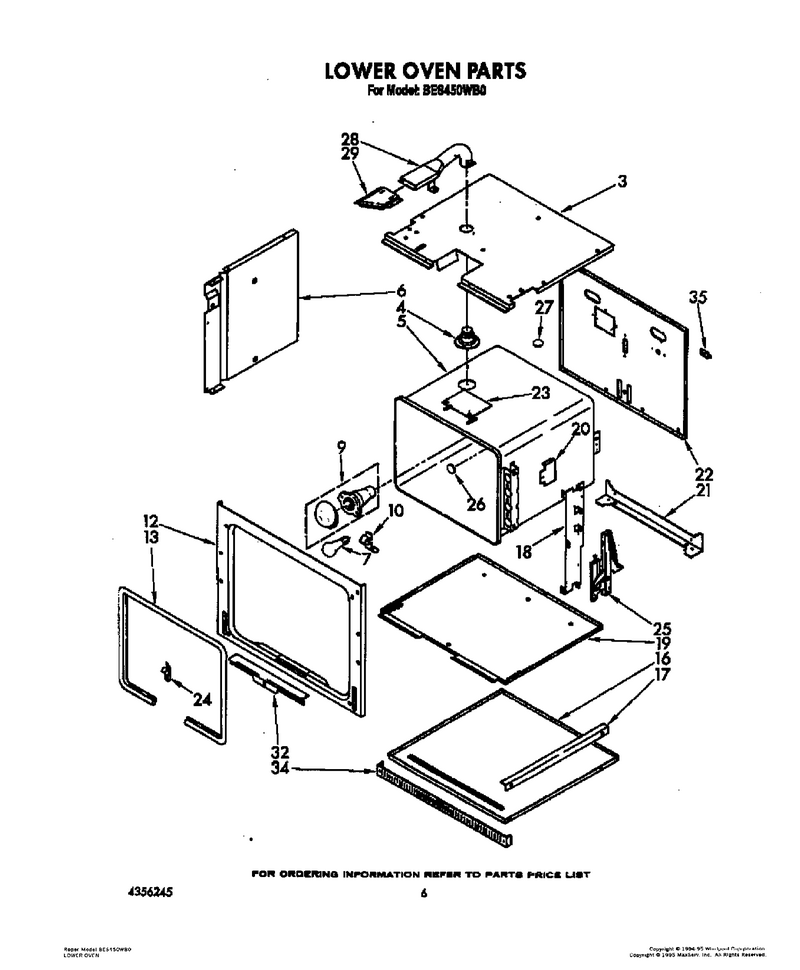

05 - Lower Oven

...
...
3
Top, Module WPL-3177437
...
4
Eliminator, Smoke WPL-3186933
...
5
Liner, Oven WPL-3180803
...
6
Side, Module (R.h. & L.h.) WPL-3177572
...
7
Light Bulb WPL-8009
...
9
Sockt-Lite WPL-W11594027
...
10
Clip, Therm Bulb WPL-98005642
...
12
Frame-Frnt WPL-814337
...
13
Seal, Door WPL-3179814
...
16
Bottom, Oven WPL-3177552
...
17
Rail, Support (2) WPL-3179220
...
18
Screw (6) WPL-3179795
...
19
Bottom, Module WPL-3177622
...
20
Screw WPL-WP90767
...
21
Screw WPL-WP90767
...
22
Screw WPL-WP90767
...
23
Screw (2) WPL-3179117
...
24
Clip, Seal (3) WPL-3179848
...
25
Screw (4) WPL-3179795
...
26
Button, Plug WPL-3185108
...
27
Button, Plug WPL-3185109
...
28
Screw WPL-WP90767
...
29
Tube, Vent WPL-3179944
...
32
Screw WPL-4168863
...
34
Trim, Lower Vent WPL-3177784
...
35
Screw WPL-4159445

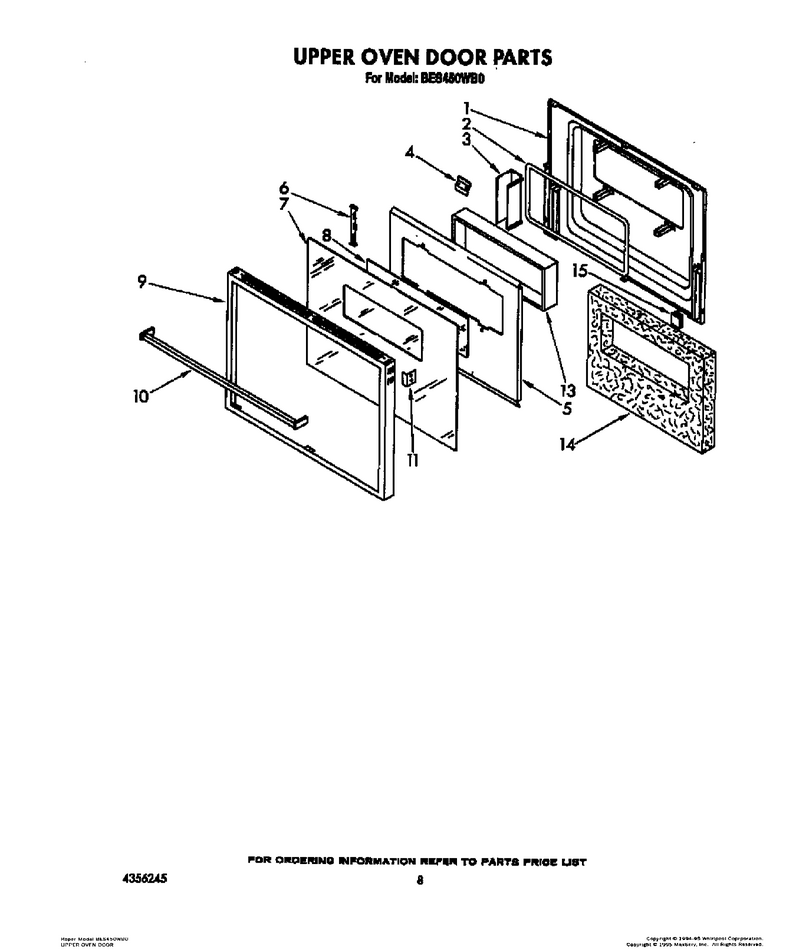

06 - Upper Oven Door

...
...
1
Screw (6) WPL-4168863
...
2
Seal, Window WPL-3185462
...
3
Spacer, Window WPL-3179694
...
4
Screw WPL-WP90767
...
5
Screw WPL-WP90767
...
6
Screw WPL-WP90767
...
7
Glass, Door WPL-3180637
...
8
Glass, Reflective WPL-4164243
...
9
Frame, Door WPL-3180635
...
10
Screw (4) WPL-3181924
...
11
Clip (2) WPL-3181850
...
13
Window Package WPL-4164235
...
14
Insulation, Door WPL-3180094
...
15
Bumper, Door Glass WPL-3181723

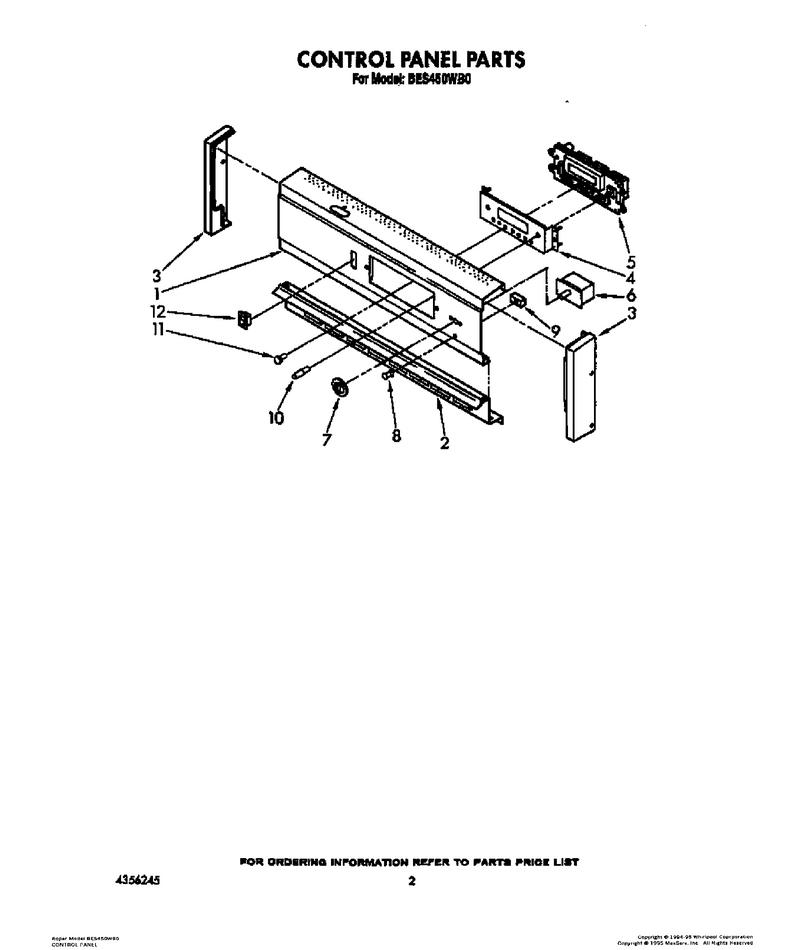

02 - Control Panel

...
...
Repair Parts List WPL-LIT4356245
...
1
Panel, Control WPL-3180707
...
2
Insert, Control Panel WPL-3180643
...
3
Screw WPL-WP3400832
...
4
Glass, Lens WPL-4320852
...
5
Control, Upper Oven WPL-3180745
...
6
Thermostat, Lower Oven WPL-3178284
...
7
Knob, Thermostat WPL-3180949
...
8
Lens, Amber (2) WPL-313101
...
9
Indicator, Light WPL-314031
...
10
Knob, Timer (1) WPL-3149046
...
11
Set Button, Knob WPL-3149780
...
12
Swtch-Lite WPL-WP4314961

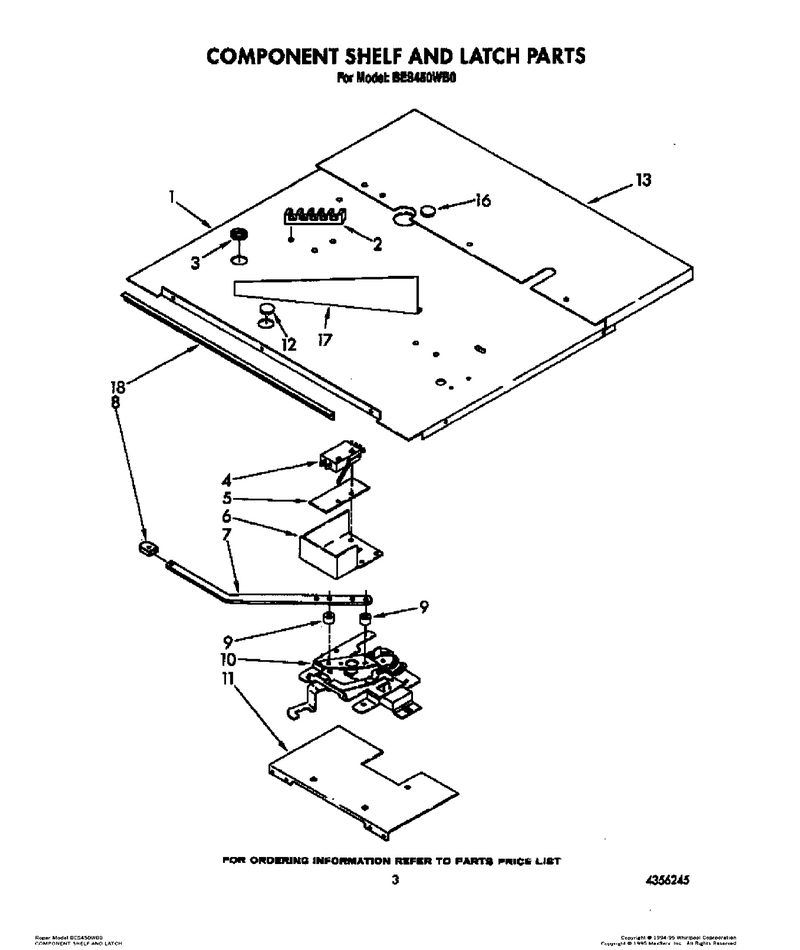

03 - Component Shelf And Latch

...
...
1
Shelf, Component WPL-3178090
...
2
Block-Term WPL-WP8203546
...
3
Bushing WPL-4159035
...
4
Screw, 6-32 X 7/8 WPL-777460
...
5
Insulator, Switch WPL-3178185
...
6
Screw WPL-WP3177991
...
7
Screw (2) WPL-3179950
...
8
Knob, Latch Handle WPL-3184039
...
9
Spacer, Handle WPL-3177986
...
10
Latch, Mechanism WPL-3178410
...
11
Screw WPL-WP90767
...
12
Plug, Button WPL-3179777
...
13
Nut WPL-WP112432
...
17
Baffle, Air WPL-3180693
...
18
Screw WPL-WP3177991

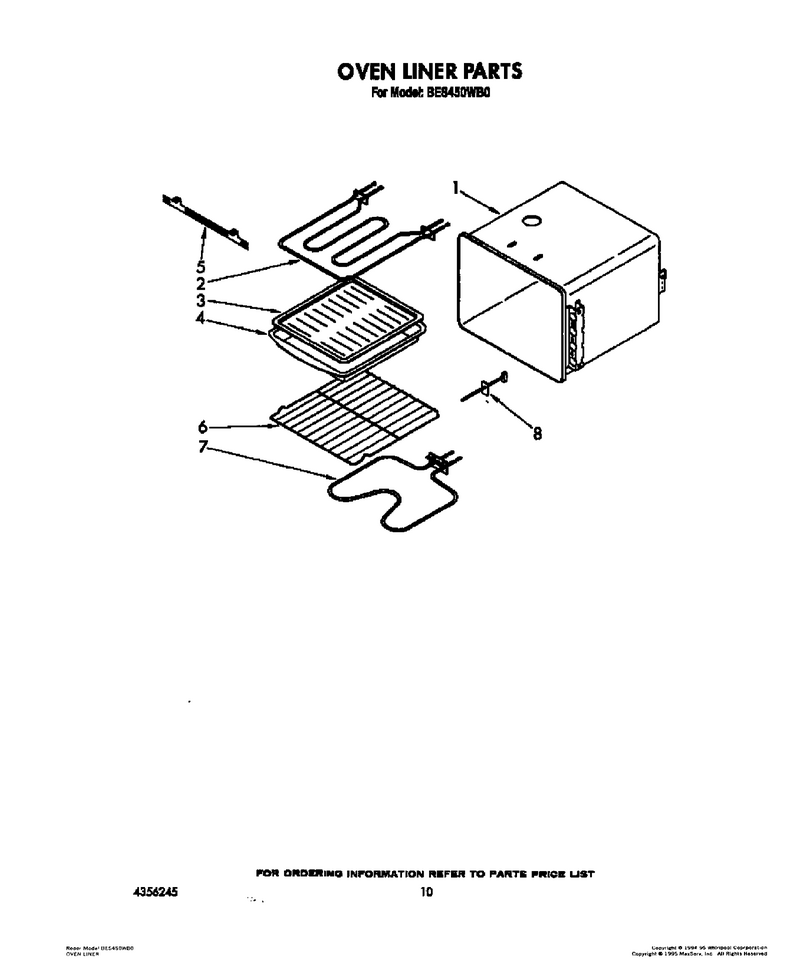

08 - Oven Liner

...
...
1
Liner, Oven (Lower) WPL-3180803
...
2
Element, Broil WPL-3180164
...
3
Procelain Broiler (Pan And Grid) WPL-4396923
...
4
Procelain Broiler (Pan And Grid) WPL-4396923
...
5
Bracket, Element WPL-3180694
...
6
Rack, Oven WPL-3180866
...
7
Screw (2) WPL-3179117
...
8
Sensor WPL-WP8053344
