Roper BEP410WB0

Model: BEP410WB0

Save Part Not Listed?
product name

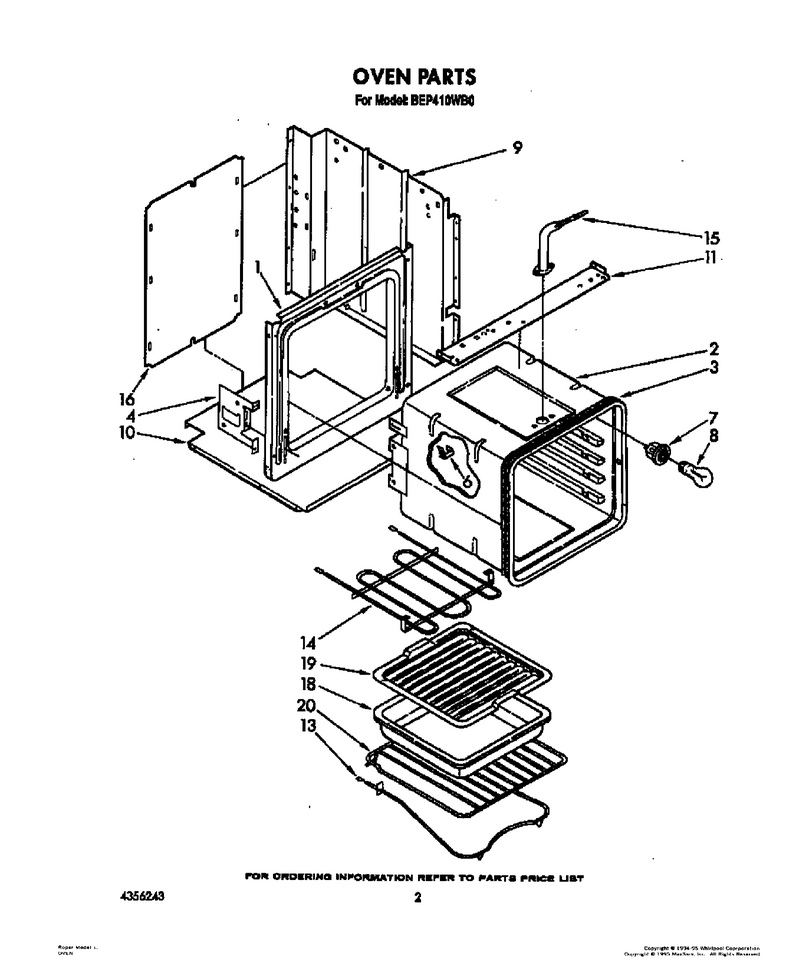

02 - Oven Parts

...
...
Installation Instructions WPL-LIT3180939
...
1
Frame, Front WPL-329050
...
2
Oven (24`` Standard) WPL-3172540
...
3
Clip, Retainer (2) WPL-252893
...
4
Screw WPL-WP33002917
...
6
Clip, Therm Bulb WPL-98005642
...
7
Screw, 10-12 X 7/8 (2) WPL-308043
...
8
Light Bulb WPL-8009
...
9
Side Wrapper (2) WPL-3147849
...
10
Cover (Bottom) WPL-252687
...
11
Screw WPL-681228
...
13
Screw WPL-681228
...
14
Elmnt-Brol WPL-WP660579
...
15
Screw WPL-WP308685
...
16
Screw WPL-WP308685
...
18
Procelain Broiler (Pan And Grid) WPL-4396923
...
19
Procelain Broiler (Pan And Grid) WPL-4396923
...
20
Rack, Oven (2) WPL-254426

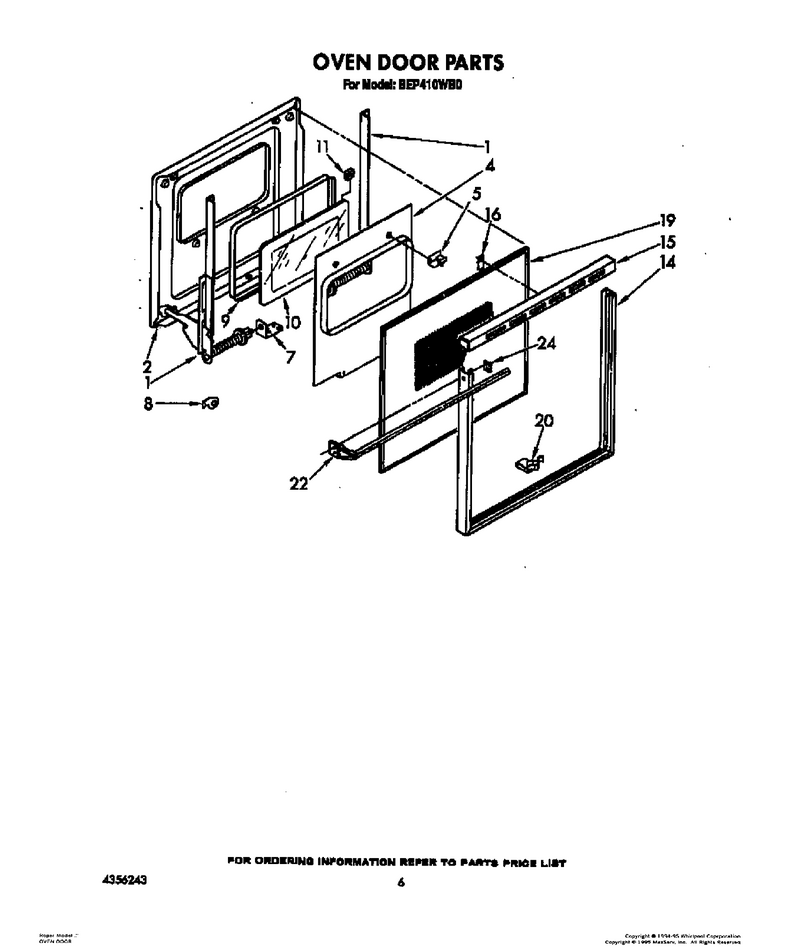

04 - Oven Door

...
...
1
Bar, Torsion (L.h.) WPL-327742
...
2
Liner, Door 24`` WPL-3172551
...
4
Baffle WPL-258991
...
5
Spacer (4) WPL-3170094
...
7
Support, Torsion Bar (2) WPL-258921
...
8
Stop, Door (Washer, Fibre) WPL-229364
...
9
Gaskt-Wind WPL-261763
...
10
Glass, Inner WPL-258989
...
11
Bumper (4) WPL-312783
...
14
Frame, Door WPL-3181010
...
15
Top, Door Frame WPL-311460
...
16
Hold-Down, Glass WPL-310705
...
19
Glass, Outer WPL-311589
...
20
Screw (8) WPL-311056
...
22
Screw, Black (4) WPL-3181987
...
24
Screw, 10a X 1/2 (2) WPL-307748

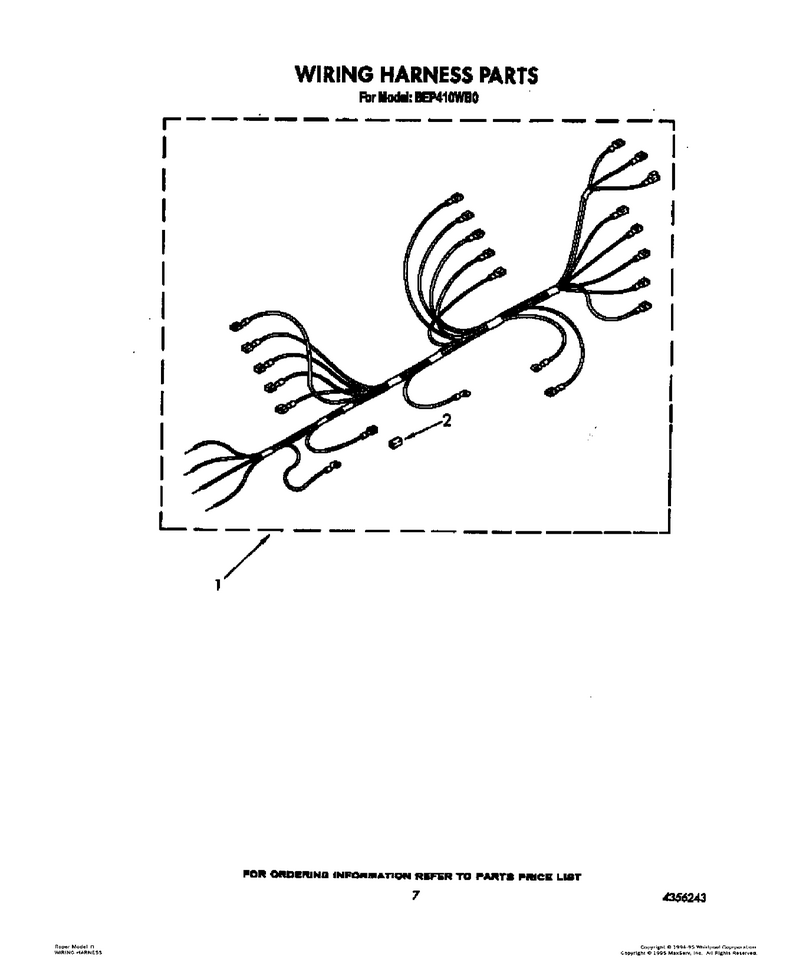

05 - Wiring Harness

...
...
1
Harness, Wire (Main) WPL-311502
...
2
Screw, 10-32 X 5/16 WPL-166681

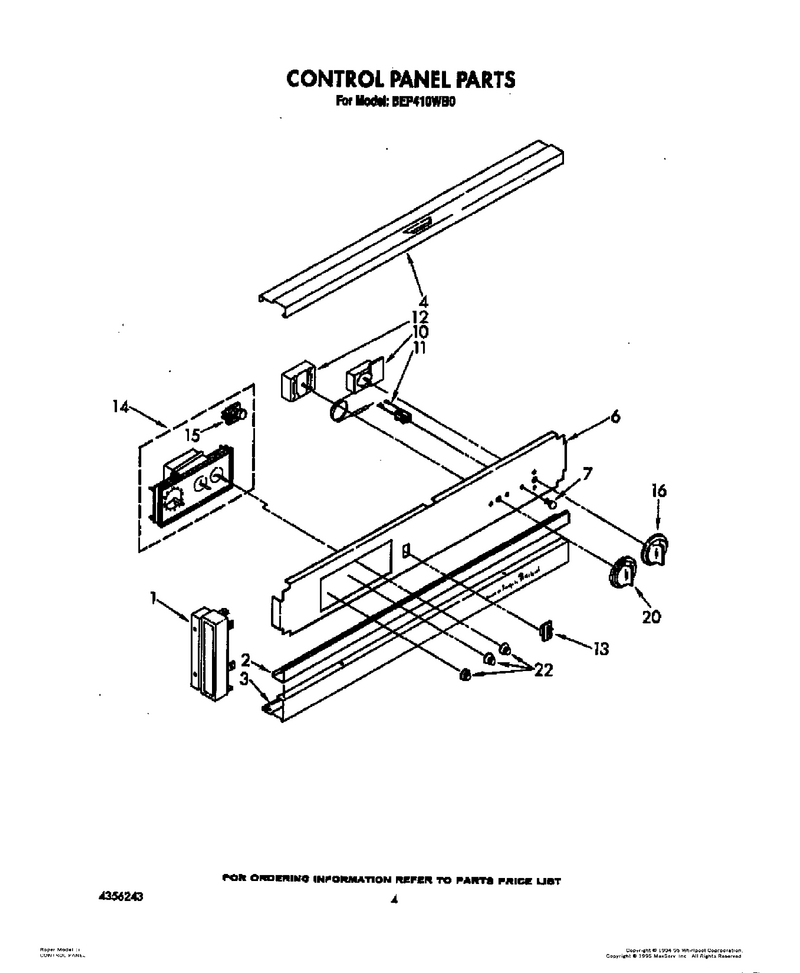

03 - Control Panel

...
...
1
End Cap (Left Side) WPL-3181001
...
2
Trim, Center WPL-3148703
...
3
Screw WPL-WP965173
...
4
Trim, Upper WPL-3181003
...
6
Panel, Control WPL-3180628
...
7
Lens, Amber (2) WPL-313101
...
10
Thermostat WPL-660582
...
11
Indicator Light (250v) WPL-314031
...
12
Screw WPL-WP486579
...
13
Swtch-Lite WPL-WP4314961
...
14
Timer, Automatic (Includes Illus. 15) WPL-3181009
...
15
Motor WPL-256466
...
16
Knob, Thermostat (Adjustable) WPL-3180949
...
20
Knob, Selector WPL-3181006
...
22
Paint, Bulk (1 Qt.) (White (Uncut)) WPL-799344
