Roper B6307X0

Model: B6307X0

Save Part Not Listed?
product name

Popular Parts

Popular Parts

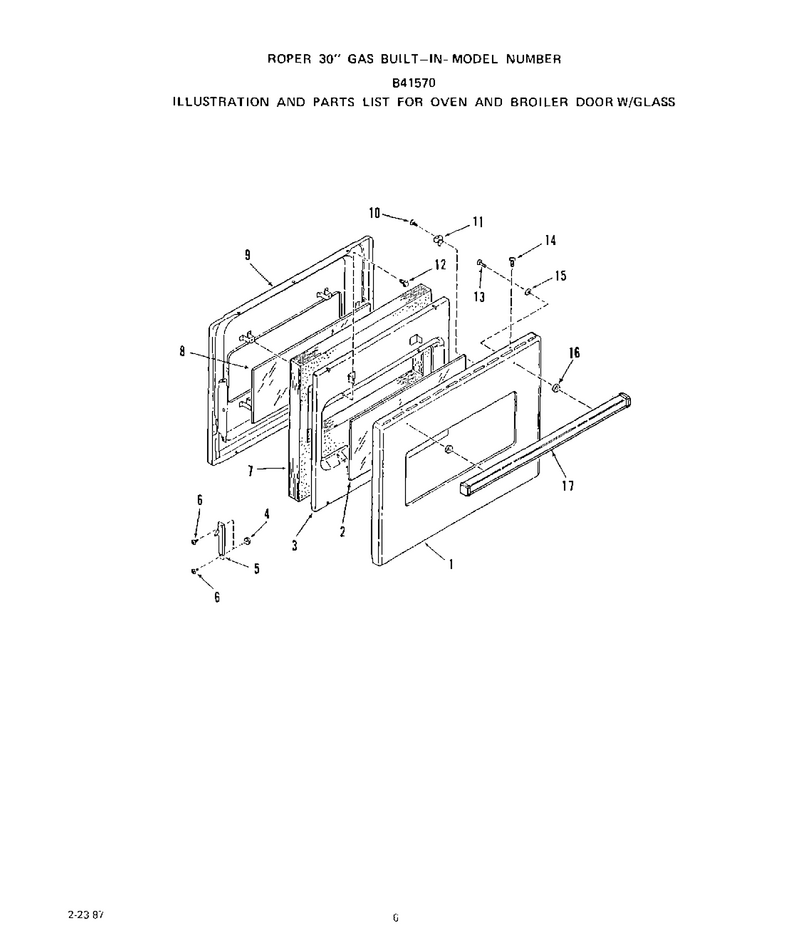

06 - Oven And Broiler Door W/glass

...
...
1
Front Panel-Oven Door W/glass (White) WPL-336904
...
2
Door Glass-Outer (Oven & Broiler) WPL-284626
...
3
Insulation Retainer (Oven Door W/glass) WPL-299549
...
4
Hex Nut 10-32 WPL-097816
...
5
Hinge Arm Guide (Right) WPL-325201
...
6
Shoulder Bolt-Lt. Or Rt. WPL-97709
...
7
Insulation (Oven Door W/glass) WPL-299782
...
8
Inner Glass (Oven Door W/glass) WPL-111887
...
9
Door Lining (Broiler W/glass) WPL-332305
...
10
Screw 10-32x3/8`` WPL-239113
...
11
Retainer-Door Glass (4 Req) WPL-299592
...
12
Nut WPL-WP112432
...
13
Screw 10-32x3/4`` WPL-300864
...
14
Screw WPL-336152
...
15
Lockwasher WPL-69603
...
16
Spacer WPL-107158
...
17
Oven Door Handle (Upper & Lower) WPL-336205

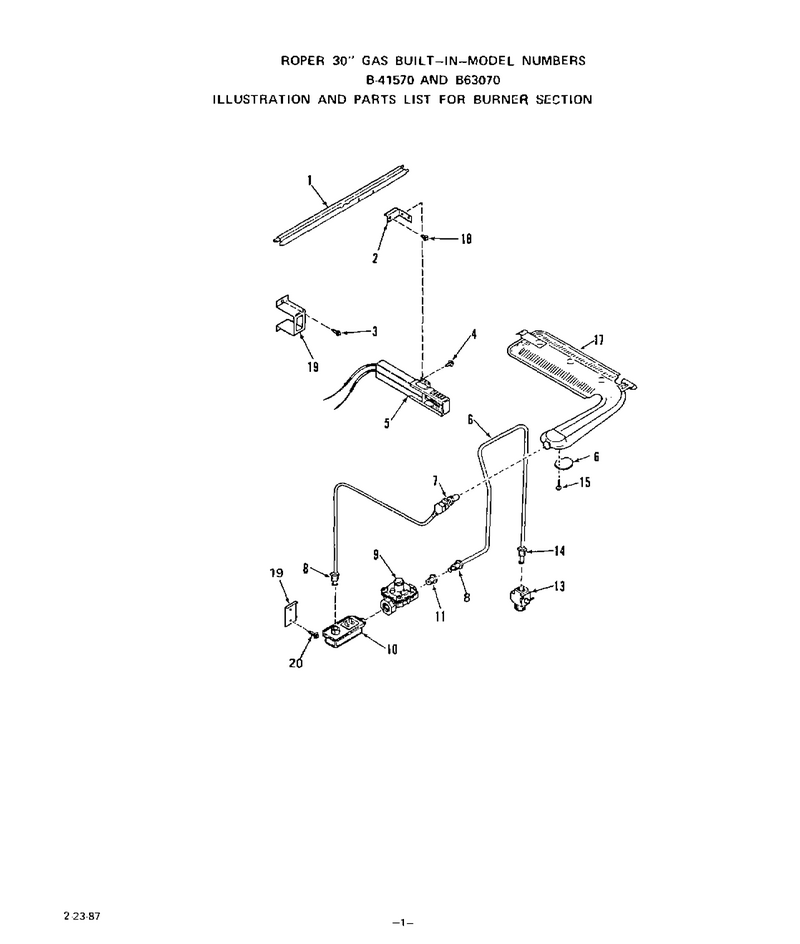

02 - Burner Section

...
...
1
Oven Burner Support WPL-308417
...
2
Igniter Bracket WPL-336649
...
3
Screw WPL-327320
...
4
Screw 8 - 32x3/8`` WPL-97217
...
5
Igniter WPL-336650
...
6
Tubing WPL-279542
...
7
Orfice Tubing W/nut WPL-322338
...
8
Invert Nut 3/8`` WPL-113384
...
9
Pressure Regulator WPL-333671
...
10
Control Valve WPL-336651
...
11
Connector WPL-294391
...
12
Bracket-Control Valve WPL-114660
...
13
Shut-Off Valve Inlet WPL-320479
...
14
Inverted Nut WPL-113384
...
15
Screw WPL-105771
...
16
Air Shutter WPL-323455
...
17
Oven Burner WPL-332304
...
18
Screw 10 - 32 X 1/4`` WPL-105771
...
19
Igniter Support Bracket WPL-336648
...
20
Nut WPL-WP112432

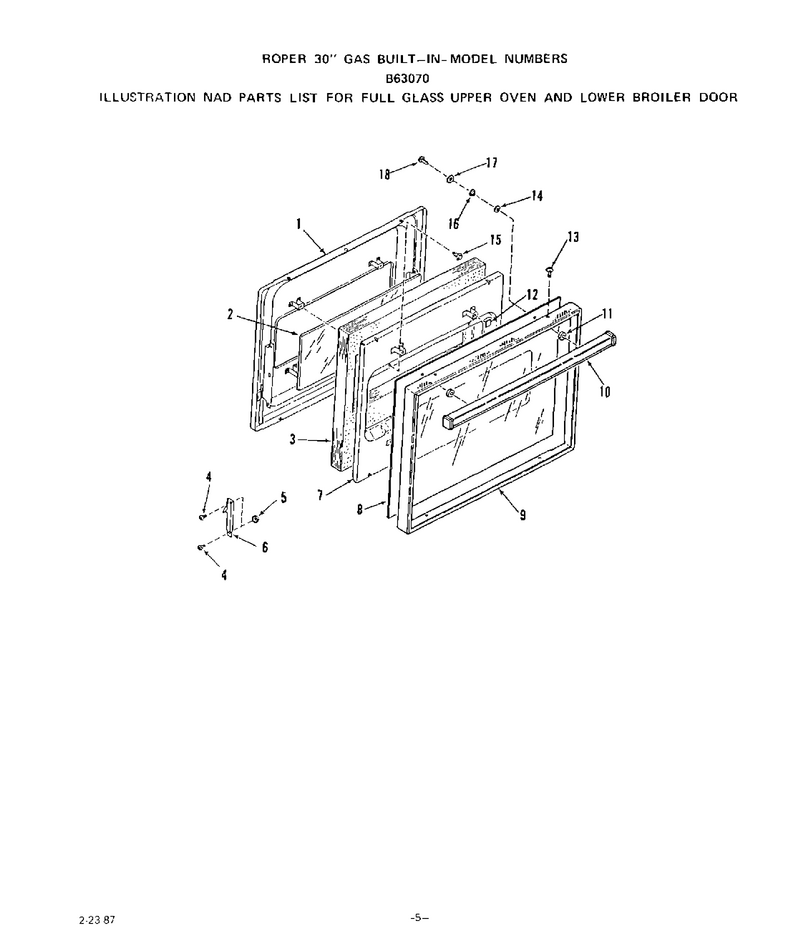

05 - Full Glass Upper Oven And Lower Broiler

...
...
1
Door Lining (Lower) WPL-332305
...
2
Door Glass Inner (Upper & Lower) WPL-111887
...
3
Insulation Oven Door (Upper) WPL-299782
...
4
Screw WPL-97709
...
5
Hex Nut 10-32 WPL-97816
...
6
Hinge Arm Guide (Left) WPL-325203
...
7
Insulation Retainer (Upper) WPL-322095
...
8
Door Glass Outer WPL---
...
9
Door Frame (Upper) WPL-336212
...
10
Door Handle (Upper & Lower) WPL-336205
...
11
Spacer, Door Handle WPL-107158
...
12
Spacer (4 Req.) WPL-299314
...
13
Screw WPL-331704
...
14
Washer-Fiber WPL-333014
...
15
Screw 10-32 X 17/32`` WPL-104520
...
16
Spacer WPL-333015
...
17
Washer WPL-99279
...
18
Screw 10-32x3/4`` WPL-300864

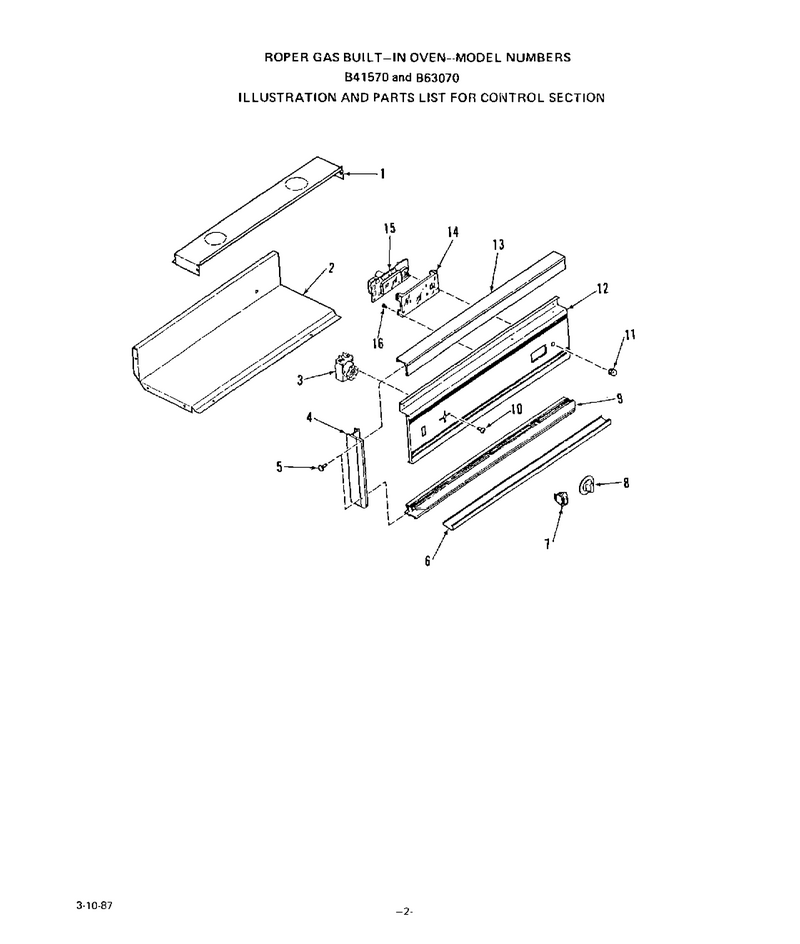

03 - Control Section, Lit/optional

...
...
1
Top Cover (Front) WPL-323572
...
2
Control Cover WPL-323566
...
3
Thermostat WPL-336811
...
4
Side Trim-Control Panel (Left) WPL-336634
...
5
Screw 6-32x1/2`` WPL-336706
...
7
Switch WPL-334649
...
8
Thermostat Knob WPL-336647
...
9
Lower Trim-Control Panel WPL-336635
...
10
Screw 8-32x3/16`` WPL-078565
...
11
Knob-Clock WPL-334961
...
12
Control Panel WPL-336656
...
13
Lamp Shade WPL-336629
...
14
Clock Lens WPL-336943
...
15
Clock WPL-335616

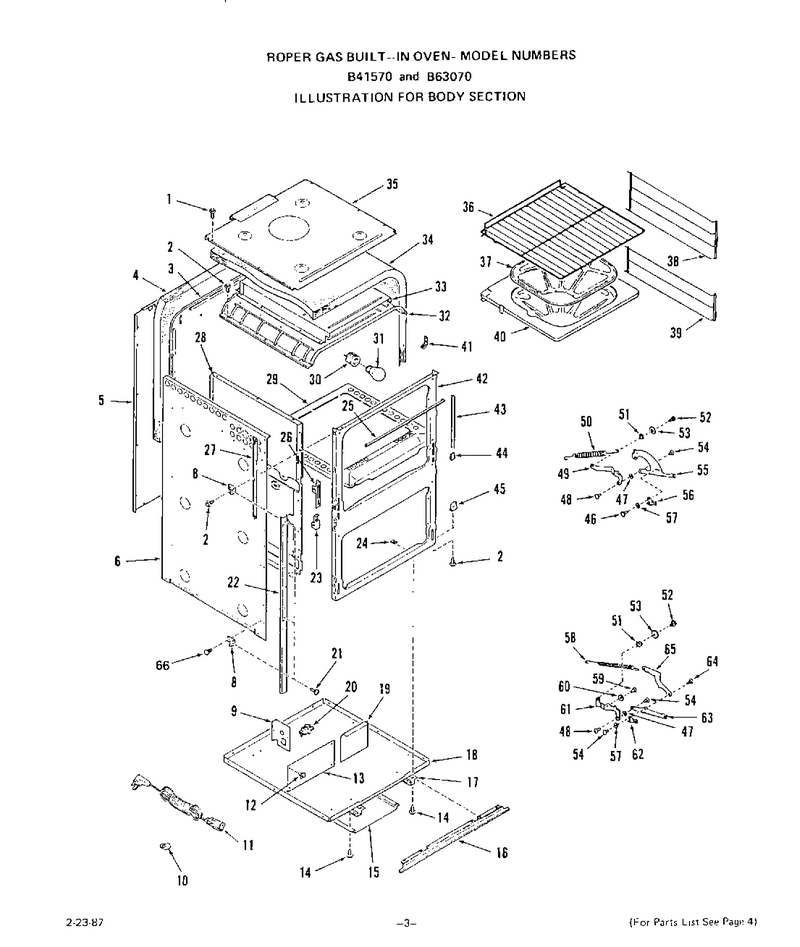

04 - Body Section

...
...
1
Screw 10-16x7/16`` WPL-327320
...
2
Screw 10 - 32 X 17/32`` WPL-102428
...
3
Oven Back (Model B63070) WPL-336591
...
4
Insulation-Oven Back WPL-336638
...
5
Wire Cover-Oven Back WPL-338525
...
6
Body Side (Left) WPL-338526
...
8
Spacer WPL-302862
...
9
Disconnect Plate WPL-327976
...
10
Clip WPL-106767
...
11
Range Service Cord WPL-232132
...
12
Clip WPL-70588
...
13
Left Cover Plate WPL-332302
...
14
Nut WPL-WP112432
...
15
Baffle-Main Bottom WPL-279438
...
16
Lower Trim WPL-336627
...
17
Channel-Bottom (Rt. Or Lt.) WPL-328042
...
18
Main Bottom WPL-338524
...
19
Right Cover Plate WPL-332303
...
20
Disconnect WPL-232150
...
21
Screw 6-32x1/2`` WPL-327320
...
22
Side Trim-Front Frame (Right) WPL-336624
...
23
Bracket-Door Spring (2 Req) WPL-327977
...
24
Speed Nut 10 - 32 WPL-108069
...
25
Endcap WPL-285508
...
26
Support-Oven Door Hinge (Right) WPL-327984
...
27
Channel Trim W/angle (Right) WPL-327972
...
28
Oven Side (Left (Model B63070)) WPL-292291
...
29
Oven Bottom W/baffle (Model B41570) WPL-332351
...
30
Holder-Oven Lamp WPL-87883
...
31
Lamp Bulb-Oven WPL-111257
...
32
Oven Top (Model B41570) WPL-332350
...
33
Vent Box WPL-323487
...
34
Insulation-Oven Top & Sides (1 Piece) WPL-104991
...
35
Oven Cabinet Top WPL-323501
...
36
Oven Rack (2 Req) WPL-279539
...
37
Broiler Pan Grid WPL-331851
...
38
Oven Rack Guide (Rt. Or Lt.) WPL-104702
...
39
Broiler Rack Guide (Right) WPL-232900
...
40
Broiler Pan WPL-332306
...
41
Thermostat Bulb Clip (2 Req) WPL-335535
...
42
Front Frame WPL-332300
...
43
Seal-Oven Door (Rt. Or Lt.) WPL-338210
...
44
Hinge Arm Guide Block (Right) WPL-111480
...
45
Support-Broiler Door Hinge (2 Req) WPL-323446
...
46
Shoulder Rivet WPL-103314
...
47
Washer WPL-97749
...
48
Rivet Sleeve WPL-97717
...
49
Oven Door Hinge (Inc`s Keys 47, 48 & 54) (Right) WPL-324048
...
50
Spring-Oven Door (2 Required) WPL-105825
...
51
Lockwasher WPL-69459
...
52
Bolt 1/4-20x3/8`` WPL-288881
...
53
Washer WPL-323451
...
54
Rivet WPL-97748
...
55
Motor-Drve WPL-299761
...
56
Hinge Stop-Oven Door (Right) WPL-97696
...
57
Washer WPL-103208
...
58
Spring-Broiler Door (2 Req) WPL-307363
...
59
Shoulder Rivet WPL-104735
...
60
Roller WPL-104734
...
61
Broiler Door Hinge (Inc`s Keys 47, 48 & 54) (Left) WPL-324036
...
62
Hinge Latch-Broiler Door (Right) WPL-323456
...
63
Broiler Door Hinge Arm (Inc`s 47, 48 & 54) (Left) WPL-324039
...
64
Hinge Pivot Sleeve WPL-104629
...
65
Spring Link-Broiler Door WPL-323454
...
66
Accordian Rivet WPL-281160
