Roper B4007B1

Model: B4007B1

Save Part Not Listed?
product name

Popular Parts

Popular Parts

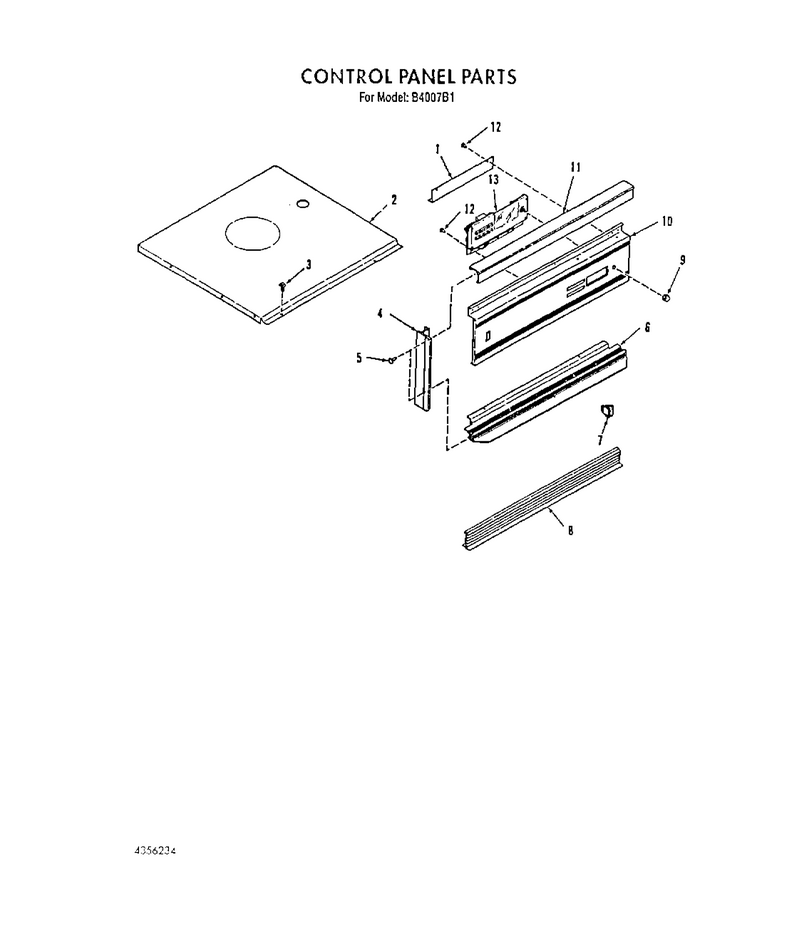

02 - Control Panel

...
...
1
Baffle WPL-4338411
...
2
Retainer, Insulation WPL-4338322
...
3
Screw, No.10-32 X 5/16 WPL-4326322
...
4
End Cap (Left) WPL-4337837
...
5
Screw, 6-32 X 1/2 WPL-489112
...
6
Trim, Bottom WPL-4337838
...
7
Swtch-Lite WPL-WP4314961
...
8
Trim, Vent WPL-4337834
...
9
Knob, Clock WPL-4338513
...
10
Control Panel WPL-4337850
...
11
Lens, Light WPL-4337835
...
12
Screw WPL-4323476
...
13
Control, Clock-Oven, W/lens WPL-4342994

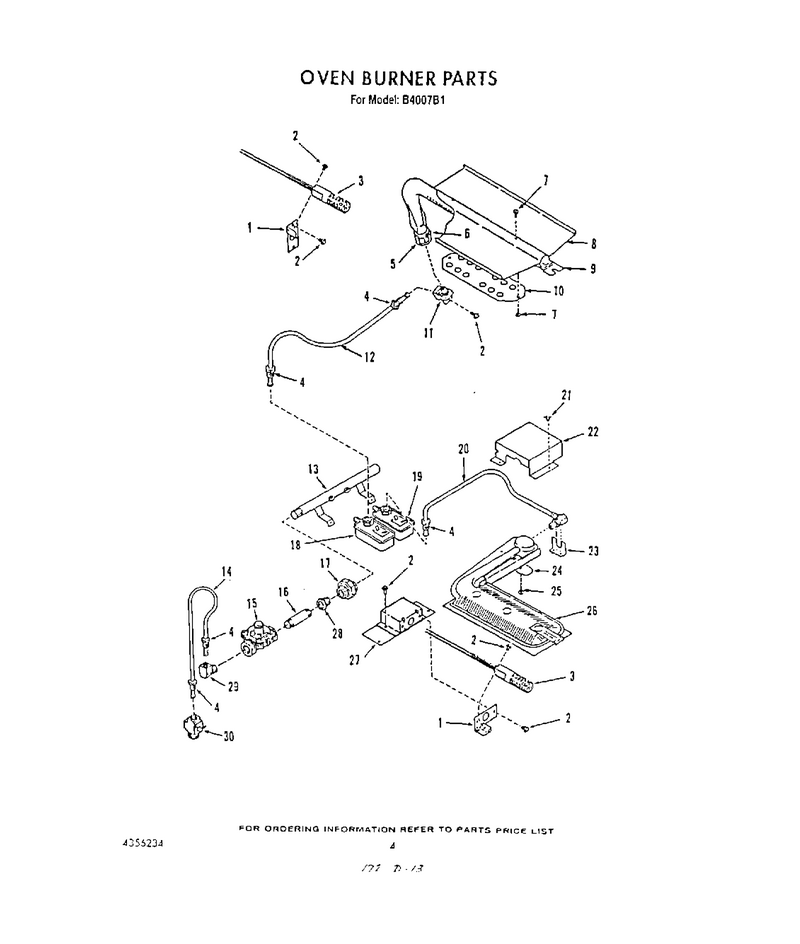

04 - Oven Burner

...
...
1
Bracket, Igniter WPL-4331163
...
2
Screw WPL-W10850756
...
3
Igntr-Oven WPL-4342528
...
4
Nut, Tubing (2) WPL-4389559
...
5
Shutter, Air WPL-4331501
...
6
Screw, Adjustment WPL-4331502
...
7
Screw WPL-WP489128
...
8
Baffl-Brnr WPL-8203514
...
9
Broiler Burner, (Inc`s 5,6,7,8,10) WPL-4329575
...
10
Lower Baffle, Broiler Burner WPL-4325631
...
11
Fitting, Orifice WPL-4331233
...
12
Tubing, 3/8`` (Control Valve To Broiler Orifice) WPL-4343167
...
13
Manifold Pipe, W/ Bracket WPL-4329549
...
14
Tubing, 3/8`` (Shut Off Valve To Regulator) WPL-4343168
...
15
Regulator WPL-4337030
...
16
Fitting, 3/8 X 2 WPL-4328274
...
17
Xunion Fitting 1/2`` WPL---
...
18
Valve-Main WPL-4330639
...
19
Control Valve, Oven WPL-4329741
...
20
Tubing, 3/8`` (Control Valve To Oven Burner) WPL-4331882
...
21
Clip WPL-4323413
...
22
Cover, Venturi WPL-4333972
...
23
Bracket, Orifice Fitting WPL-4325441
...
24
Air Shutter WPL-4333875
...
25
Screw No.10-32x1/4 WPL-4323953
...
26
Oven Burner Asm., (Inc`s 24,25) WPL-4343169
...
27
Support, Igniter WPL-4353472
...
28
Xbushing, Reducer WPL---
...
29
Xfitting, 90o Elbow WPL---
...
30
Shut-Off Valve WPL-4333122

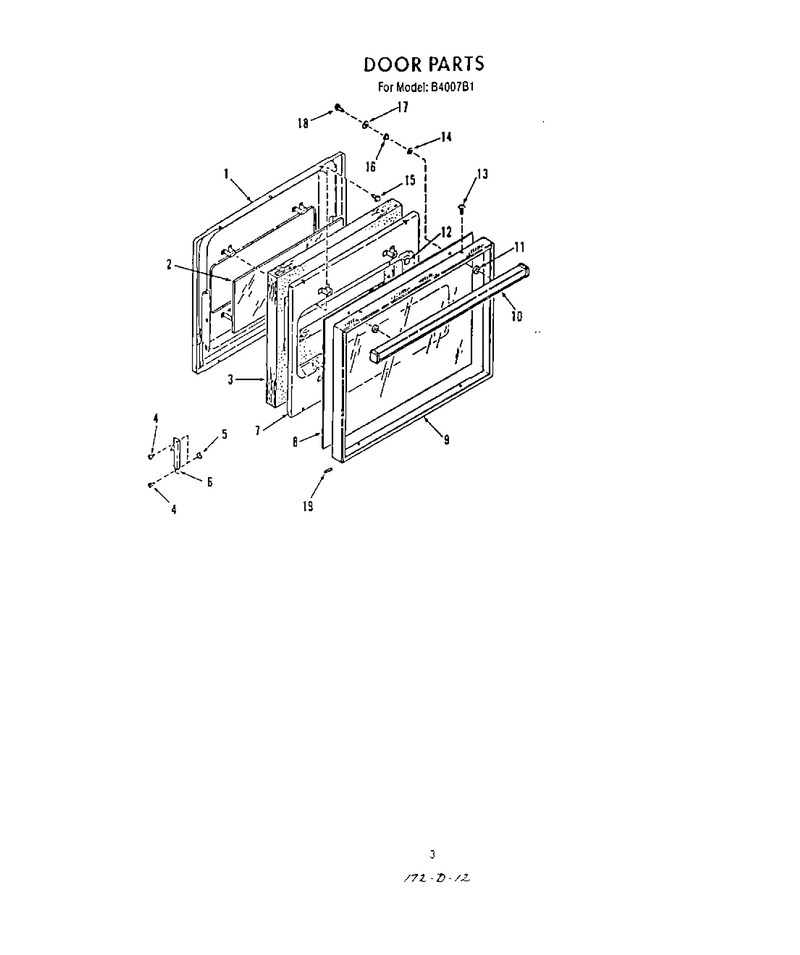

03 - Door

...
...
1
Door Lining WPL-4336669
...
2
Glass-Door WPL-4327281
...
3
Insulation WPL-4328030
...
4
Shoulder Bolt (4) WPL-4323644
...
5
Lockwasher WPL-121801
...
6
Hinge (Right) WPL-4334476
...
7
Retainer WPL-4333546
...
8
Outer Door Glass WPL-4337691
...
9
Door Frame WPL-4337696
...
10
Handle WPL-4337689
...
11
Spacer WPL-241279
...
12
Spacer (4) WPL-4327907
...
13
Screw No.6-20x5/16 WPL-4338183
...
14
Washer, Fiber WPL-4336868
...
15
Screw, No.10-32x17/32`` WPL-4323884
...
16
Spacer-Door Glass WPL-4336869
...
17
Retainer, Glass WPL-4342666
...
18
Screw, No.10-32 X 3/4 WPL-4342665
...
19
Installation Guide WPL-4343236

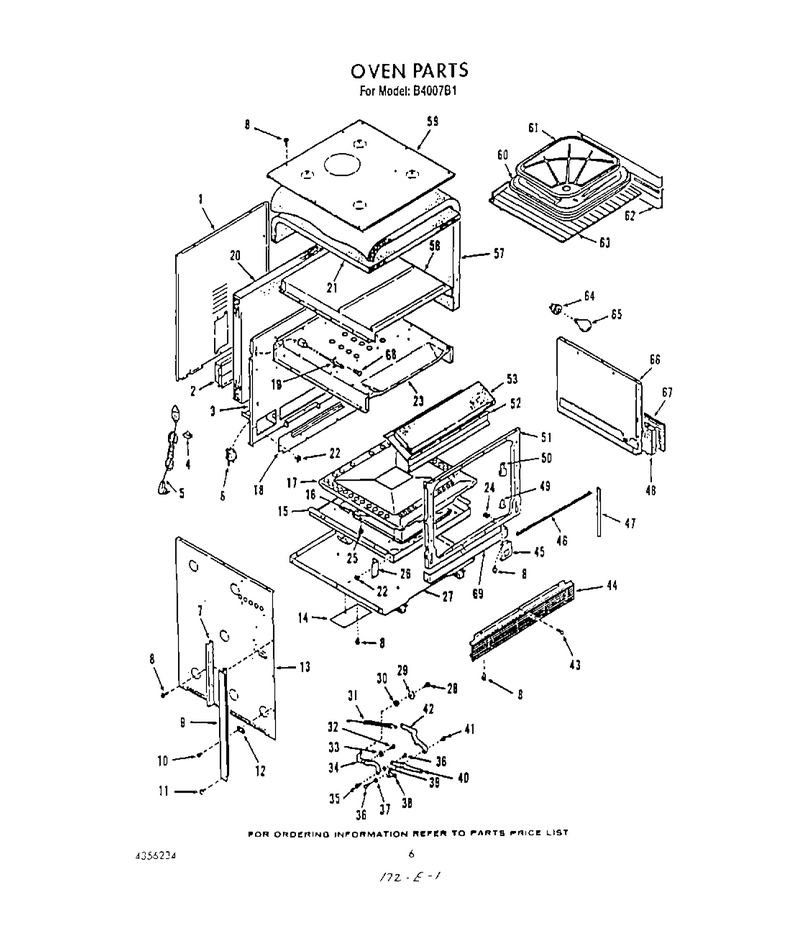

05 - Oven

...
...
1
Rear Cover WPL-4338328
...
2
Cover, Vent WPL-4333969
...
3
Back, Oven WPL-4342762
...
4
Clip (For No.5) WPL-4323620
...
5
Power Cord WPL-4336084
...
6
Disconnect WPL-4324642
...
7
Channel Trim Lt/rt WPL-4332120
...
8
Screw WPL-W10850756
...
9
Side Trim, Frame (Left Front) WPL-4343127
...
10
Rivet WPL-4325611
...
11
Screw, No.6-20 X 3/8 WPL-4336048
...
12
Spacer, Side Trim (2 Req) WPL-4328723
...
13
Side Panel (Right) WPL-4338327
...
14
Cover Plate WPL-4335472
...
15
Burner Box WPL-4333964
...
16
Baffle, Bottom WPL-4325651
...
17
Oven Bottom, W/baffle WPL-4336836
...
18
Cover Plate WPL-4333971
...
19
Sensor WPL-WP8053344
...
20
Insulation WPL-4335412
...
21
Insulation WPL-4335406
...
22
Clip WPL-4323413
...
23
Top, Oven WPL-4333970
...
24
Speed Nut WPL-4324015
...
25
Screw WPL-W10850756
...
26
Shield, Insulation (2) WPL-4335476
...
27
Bottom, Oven WPL-4338325
...
28
Bolt, 1/4-20 X 3/8 WPL-4326674
...
29
Stability Kit WPL-4343111
...
30
Lockwasher WPL-4323388
...
31
Door Spring (2) WPL-4326315
...
32
Rivet, Shoulder WPL-4323895
...
33
Roller WPL-4323894
...
34
Hinge-W/rivet, Sleeve, & Washer (Right (2)) WPL-4334089
...
35
Sleeve WPL-4323645
...
36
Rivet WPL-4323646
...
37
Spring Washer WPL-489203
...
38
Latch, Hinge (Right) WPL-4333876
...
39
Screw WPL-486420
...
40
Arm Assembly W/rivet, Sleeve, Washer (Up/lower) (Right) WPL-4334090
...
41
Sleeve WPL-4323887
...
42
Link, Spring WPL-4333874
...
43
Screw No.6-32x5/16 WPL-4324614
...
44
Lower Trim WPL-4338357
...
45
Bracket (2) Front Frame Support WPL-4352035
...
46
Seal Top-Bottom WPL-4338287
...
47
Seal, Side (Lt-Rt) WPL-4338288
...
48
Insulation WPL-4325192
...
49
Support (2) Hinge WPL-4333868
...
50
Bracket (2) Spring WPL-4335470
...
51
Front Frame (Inc`s 35, 36 & 39) WPL-4336672
...
52
Cover, Broiler WPL-4336664
...
53
Insulation WPL-4335406
...
57
Insulation, Top And Sides (1 Pc) WPL-4354013
...
58
Vent Box WPL-4336668
...
59
Cabinet Top WPL-4337824
...
60
Procelain Broiler (Pan And Grid) WPL-4396923
...
61
Procelain Broiler (Pan And Grid) WPL-4396923
...
62
Guide, Oven Rack (Right) WPL-4325446
...
63
Oven Rack (2) WPL-4325447
...
64
Sockt-Lite WPL-W10856866
...
65
Light Bulb WPL-8009
...
66
Oven Side (Left) WPL-4336674
...
67
Insulation WPL-4335406
...
68
Screw, No.6 X 3/8 WPL-4324445
...
69
Shield, Burner Box WPL-4338263
