Roper B4007B0

Model: B4007B0

Save Part Not Listed?
product name

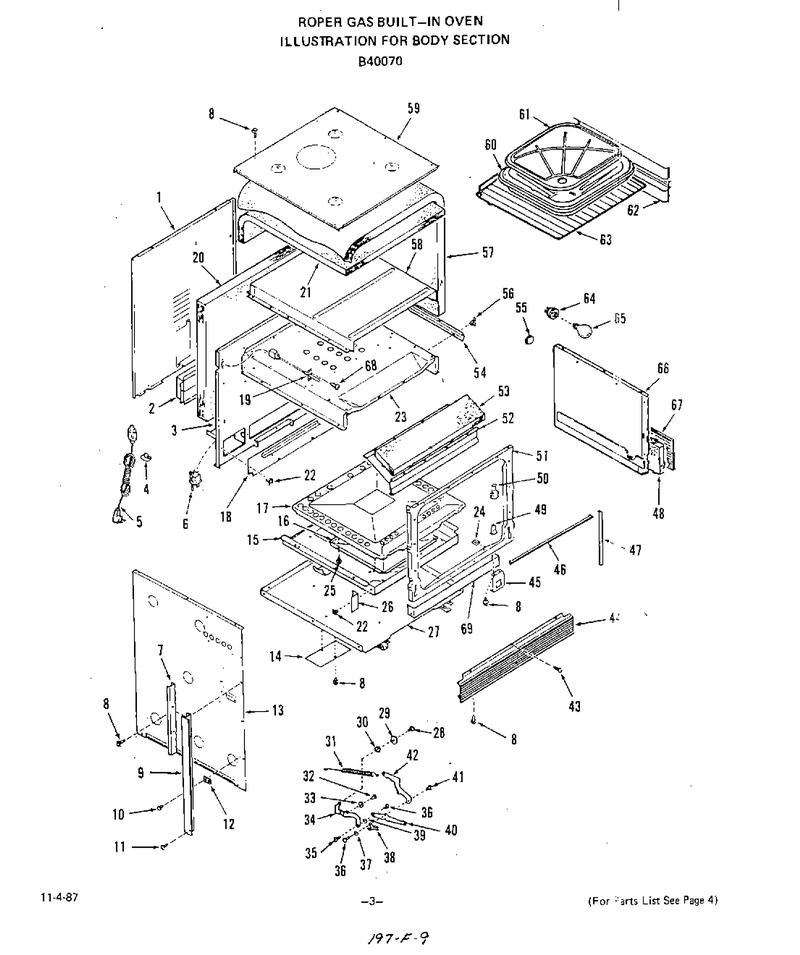

03 - Body

...
...
1
Wire Cover WPL-338363
...
2
Air Chamber Cover WPL-323760
...
3
Oven Back WPL-336592
...
4
Clip (For Key 5) WPL-97047
...
5
Range Service Cord WPL-232132
...
6
Disconnect WPL-232150
...
7
Channel Trim - Lt. Or Rt. WPL-315233
...
8
Nut WPL-WP112432
...
9
Side Trim-Front Frame (Right) WPL-33-6623
...
10
Accordian Rivet WPL-281160
...
11
Screw 6-20x3/8`` WPL-327621
...
12
Spacer-Side Trim (2 Req) WPL-302862
...
13
Body Side (Right) WPL-33-8361
...
14
Cover Plate WPL-327981
...
15
Burner Box WPL-323750
...
16
Baffle-Oven Bottom WPL-281418
...
17
Oven Bottom W/baffle WPL-319446
...
18
Cover Plate WPL-323766
...
19
Sensor WPL-338242
...
20
Insulation-Oven Back WPL-336639
...
21
Insulation-Oven Top & Back (1 Piece) WPL-313321
...
22
Clip WPL-70588
...
23
Oven Top WPL-313359
...
24
Speed Nut 10 - 32 WPL-108069
...
25
Screw 10 - 32 X 3/8`` WPL-102429
...
26
Insulation Shield (2 Req) WPL-327985
...
27
Main Bottom WPL-306501
...
28
Bolt 1/4-20x3/8`` WPL-288881
...
29
Washer WPL-323451
...
30
Lockwasher WPL-69459
...
31
Oven Door Spring (2 Req) WPL-286547
...
32
Shoulder Rivet WPL-104735
...
33
Roller WPL-104734
...
34
Oven Door Hinge (Inc`s. 35, 36 & 39) (Left) WPL-324036
...
35
Hinge Pivot Sleeve WPL-97717
...
36
Rivet WPL-97748
...
37
Washer WPL-103208
...
38
Hinge Latch (Left) WPL-323457
...
39
Washer WPL-97749
...
40
Oven Door Arm (Inc`s. 35, 36 & 39) (Left) WPL-324039
...
41
Hinge Pivot Sleeve WPL-104629
...
42
Spring Link WPL-323454
...
43
Screw 6-32x5/16`` WPL-97221
...
44
Lower Trim-Front Frame WPL-338443
...
45
Bracket-Front Frame Support (2 Req) WPL-279457
...
46
Endcap WPL-285508
...
47
Seal-Side (Rt. Or Lt.) WPL-338210
...
48
Insulation (Rt. Or Lt.) WPL-286448
...
49
Support-Hinge (2 Req) WPL-323446
...
50
Bracket-Door Spring (2 Req) WPL-327977
...
51
Front Frame (Inc`s. 35, 36 & 39) WPL-331856
...
52
Skirt-Broiler Burner WPL-289836
...
53
Insulation WPL-97324
...
54
Raceway-Capillary WPL-294506
...
55
Plug Button WPL-98230
...
56
Clip WPL-70588
...
57
Insulation-Oven Top & Sides (1 Piece) WPL-313324
...
58
Vent Box WPL-313320
...
59
Oven Cabinet Top WPL-336593
...
60
Broiler Pan WPL-331592
...
61
Broiler Pan Grid WPL-326297
...
62
Oven Rack Guide (Left) WPL-279537
...
63
Oven Rack (2 Req) WPL-279539
...
64
Holder-Oven Lamp WPL-87883
...
65
Oven Lamp Bulb WPL-111257
...
66
Oven Side (Left) WPL-331858
...
67
Insulation-Door Spring (2 Req) WPL-279470
...
68
Screw WPL-336152
...
69
Burner Box Bottom WPL-338136

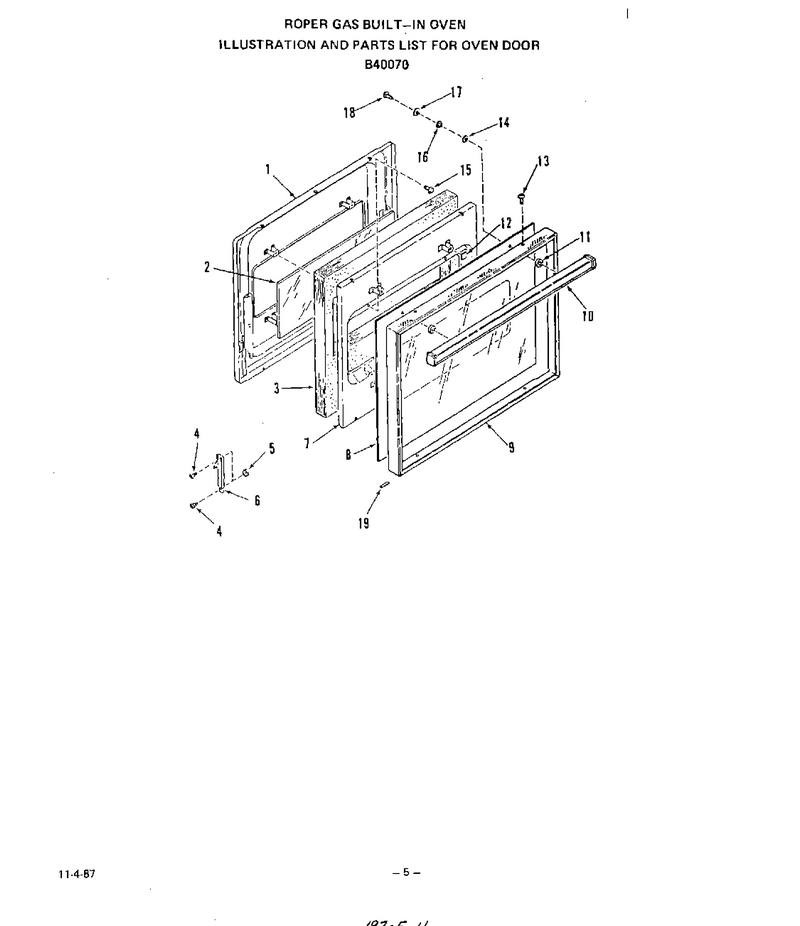

05 - Oven Door

...
...
1
Door Lining-Upper Or Lower Door WPL-311853
...
2
Door Glass-Inner WPL-111887
...
3
Insulation - Upper Or Lower Door WPL-299782
...
4
Shoulder Bolt (4 Req) WPL-97709
...
5
Hex Nut 10-32 WPL-97816
...
6
Hinge Arm Guide (Right) WPL-325201
...
7
Insulation Retainer - Upper Or Lower Door WPL-322096
...
8
Door Glass-Outer-Upper Or Lower Door WPL-336207
...
9
Door Frame-Upper Or Lower Door WPL-336212
...
10
Door Handle WPL-336205
...
11
Spacer, Door Handle WPL-107158
...
12
Spacer (4 Req.) WPL-299314
...
13
Screw 6-20x3/8`` WPL-327621
...
14
Washer-Fiber WPL-333014
...
15
Screw 10-32 X 17/32`` WPL-104520
...
16
Spacer-Door Glass WPL-333015
...
17
Washer WPL-99279
...
18
Screw 10-32x3/4`` WPL-300864
...
19
Cushion-Door Glass WPL-112370

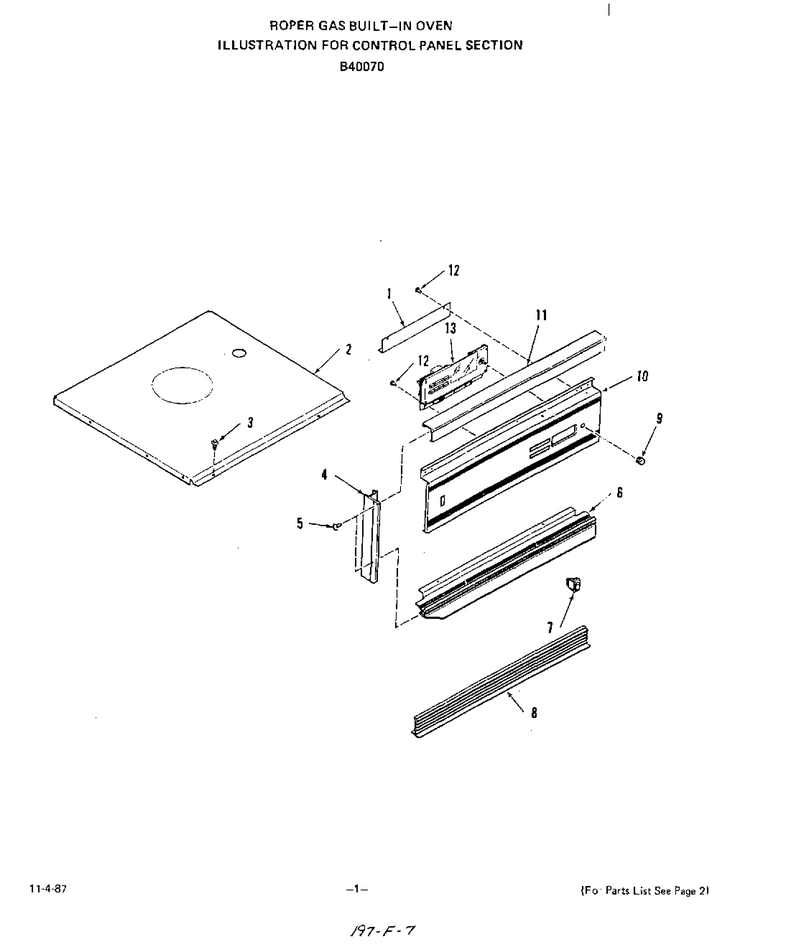

02 - Control Panel

...
...
1
Baffle WPL-338697
...
2
Insulation Retainer WPL-338355
...
3
Screw 10-32x5/16`` WPL-286628
...
4
Control Panel Side Trim (Left) WPL-336631
...
5
Screw 6-32x1/2`` WPL-336706
...
6
Control Panel Lower Trim WPL-336632
...
7
Switch WPL-334649
...
8
Trim Vent WPL-336628
...
9
Knob-Clock WPL-334961
...
10
Control Panel WPL-336655
...
11
Lamp Shade WPL-336629
...
12
Screw WPL-78153
...
13
Seal WPL-W11415783

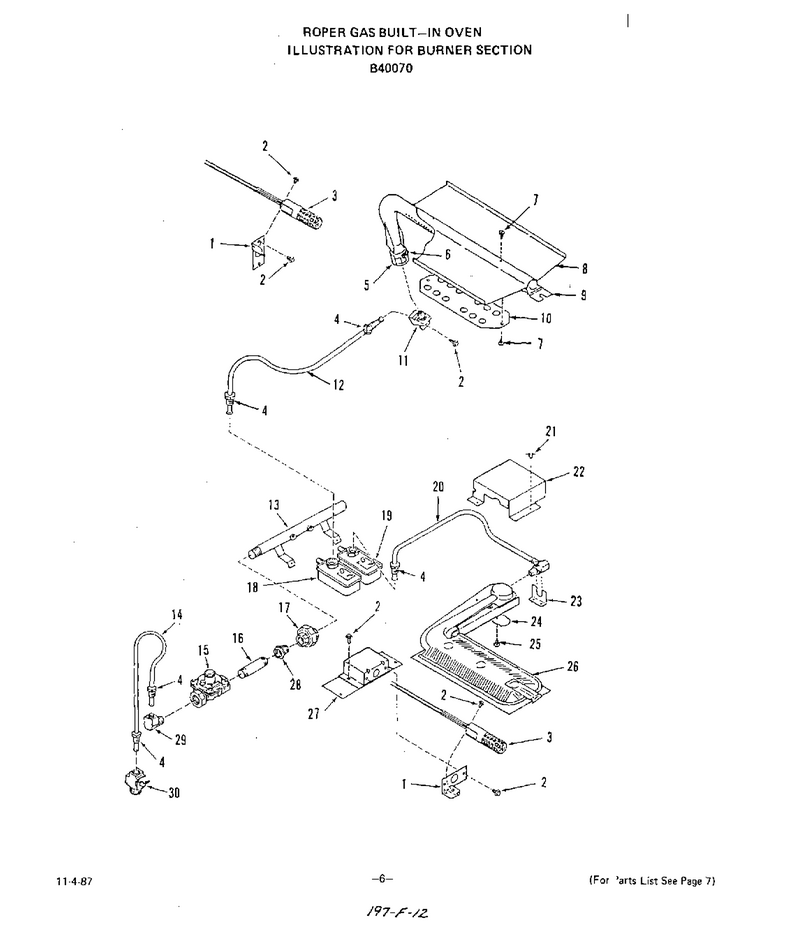

04 - Burner

...
...
1
Bracket-Igniter WPL-311689
...
2
Nut WPL-WP112432
...
3
Igniter WPL-337263
...
4
Inverted Nut 3/8`` WPL-142433
...
5
Air Shutter WPL-239267
...
6
Adjustment Screw-Air Shutter WPL-239268
...
7
Screw 8-32x3/8`` (4 Req) WPL-97217
...
8
Upper Baffle - Broiler Burner WPL-325271
...
9
Broiler Burner (Inc`s. 5, 6, 7, 8, 10) WPL-306497
...
10
Lower Baffle-Broiler Burner WPL-281279
...
11
Broiler Orifice Fitting WPL-311981
...
12
Tubing 3/8`` (Control Valve To Broiler Orifice) WPL-315075
...
13
Manifold Pipe W/bracket WPL-306365
...
14
Tubing 3/8`` (Shut Off Valve To Pressure Regulator) WPL-113397
...
15
Pressure Regulator WPL-295270
...
16
Nipple 3/8`` X 2`` WPL-300967
...
17
Union 1/2`` WPL-295269
...
18
Control Valve-Broiler WPL-306467
...
19
Control Valve-Oven WPL-307006
...
20
Tubing 3/8`` (Control Valve To Oven Burner) WPL-314398
...
21
Clip WPL-70588
...
22
Cover Box-Venturi WPL-323768
...
23
Bracket-Orifice Fitting WPL-279490
...
24
Air Shutter WPL-323455
...
25
Screw 10 - 32 X 1/4`` WPL-105771
...
26
Oven Burner (Inc`s. 24, 25) WPL-311305
...
27
Support-Igniter WPL-307161
...
28
30" Round WPL-WFR102221
...
29
Elbow WPL-295271
...
30
Shut-Off Valve WPL-320479
