Roper 8963L30

Model: 8963L30

Save Part Not Listed?
product name

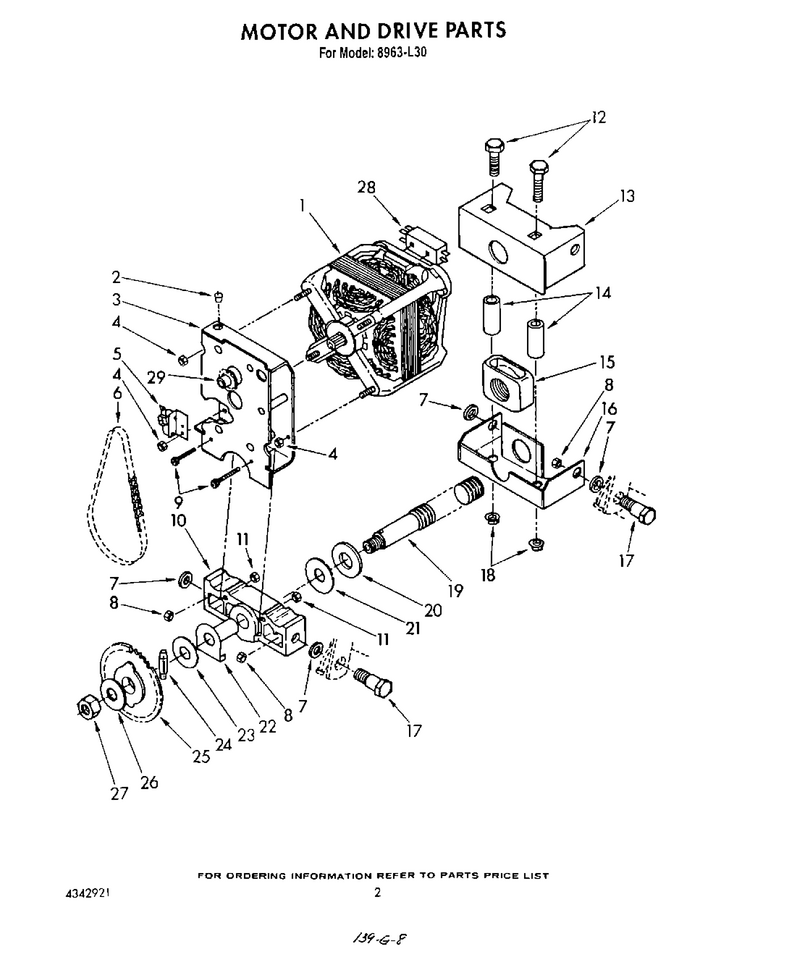

02 - Motor And Drive

...
...
1
Motor (Includes Switch) WPL-4342901
...
2
Bushing, Wire WPL-4342902
...
3
Gear Box Assembly WPL-4342903
...
4
Nut, 10-32 WPL-4342147
...
5
Switch, Limit And Bracket WPL-4342904
...
6
Chain, Endless WPL-4341922
...
7
Washer-Spacer WPL-4342905
...
8
Nut, Lock WPL-4341897
...
9
Screw, 10-32 X 1/2 WPL-4341880
...
10
Motor Trunnion WPL-4341903
...
11
Nut, Hex 10-32 WPL-4341896
...
12
Bolt, 3/8 X 2-1/4 (2) WPL-4342908
...
13
Trunnion, Upper WPL-4341814
...
14
Spacer (2) WPL-4341939
...
15
Trunnion, Nut WPL-4341856
...
16
Trunnion, Lower WPL-4341815
...
17
Bolt, 7/16-20 X 1-5/8 WPL-4342906
...
18
Nut, Flange WPL-4341895
...
19
Screw, Main Drive WPL-4341911
...
20
Washer WPL-4341883
...
21
Bearing, Thrust Reverse WPL-4341923
...
22
Bearing, Trunnion WPL-4341857
...
23
Washer, Thrust WPL-4341886
...
24
Pin, Drive WPL-4341916
...
25
Sprocket, 50 Tooth WPL-4341852
...
26
Washer WPL-4341884
...
27
Nut, 5/8-18 Semifin Jam WPL-4341887
...
28
Switch, Motor WPL-4342907
...
29
Gear Box Assembly WPL-4342903

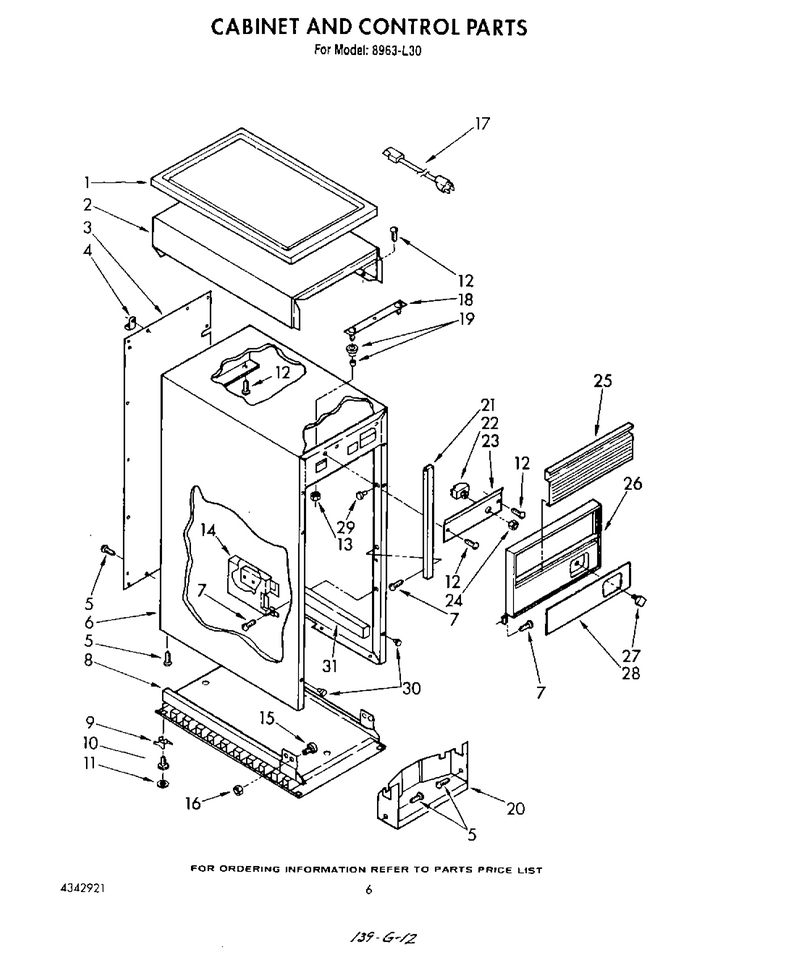

04 - Cabinet And Control

...
...
1
Cutting Board (Optonal - Order Kit No. WPL-4342923
...
2
Compartment, Storage WPL-4341839
...
3
Panel, Back WPL-4341780
...
4
Clamp, Cord WPL-4342160
...
5
Screw, 10-16 X 3-1/2 (23) WPL-4341871
...
6
Cabinet (Includes No.18 And No.42) WPL-4341801
...
7
Screw, 8-18 X 1/2 (19) WPL-4341872
...
8
Bottom Assembly (Includes No.15 And No.16) WPL-4341789
...
9
Nut, Snap-In Tee (4) WPL-4341921
...
10
Leg, Level (4) WPL-4341827
...
11
Pad, Leg Level (4) WPL-4341855
...
12
Screw, 10-24 X 3/8 (5) WPL-4341874
...
13
Nut, Lock (4) WPL-4342911
...
14
Switch And Latch Assembly WPL-4341771
...
15
Roller (4) WPL-4341925
...
16
Nut, Whizlock (4) WPL-4341891
...
17
Cord, Power WPL-4341946
...
18
Strip, Stud Mounting (2) WPL-4342924
...
19
Grommet And Spacer (Pkg. Of 4) WPL-4341803
...
20
Tray, Air Scentry WPL-4341859
...
21
Cover, Wire WPL-4341825
...
22
Switch, Key WPL-4341842
...
23
Bracket, Control Panel WPL-4341838
...
24
Nut, Hex WPL-4341893
...
25
Door, Storage WPL-4341865
...
26
Panel, Control WPL-4341947
...
27
Key, Knob Type WPL-4341854
...
28
Insert, Control Panel WPL-4341849
...
29
Guide, Button (2) WPL-4341853
...
30
Bumper (4) WPL-4341850
...
31
Filler, Track (2) WPL-4341940

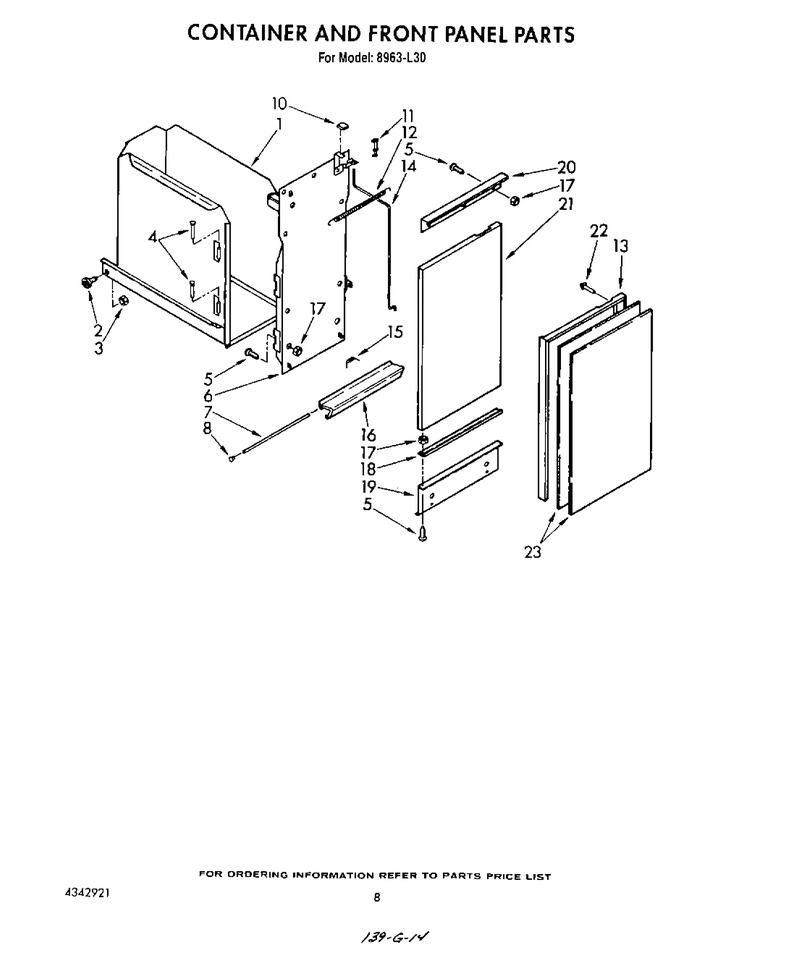

05 - Container And Front Panel , Lit/optional

...
...
List, Repair Parts WPL-LIT4342921
...
1
Drawer Assembly (Includes No.19 And No.14) WPL-4341788
...
2
Roller (4) WPL-4341925
...
3
Nut, Whizlock (4) WPL-4341891
...
4
Pin, Hinge WPL-4341920
...
5
Screw, 8-18 X 1/2 (19) WPL-4341872
...
6
Liner, Door (Includes No.11, No.12 And No.14) WPL-4341785
...
7
Pin, Hinge (Foot Pedal) WPL-4341927
...
8
Retainer, Foot Pedal (2) WPL-4341863
...
10
Knob, Latch Lever WPL-4341908
...
11
Clip, Link Rod WPL-4341919
...
12
Spring, Latch WPL-4342128
...
13
Trim, Door WPL-4341930
...
14
Latch, Link Rod WPL-4341926
...
15
Spring, Foot Pedal WPL-4341869
...
16
Foot Pedal And Push Rod Assembly WPL-4341787
...
17
Nut WPL-4341894
...
18
Trim, Door Bottom WPL-4341931
...
19
Space Cover, Toe WPL-4341862
...
20
Handle WPL-4341910
...
21
Door WPL-4341840
...
22
Rivet, Pop (6) WPL-4341882
...
23
Harness, Wiring WPL-4341802

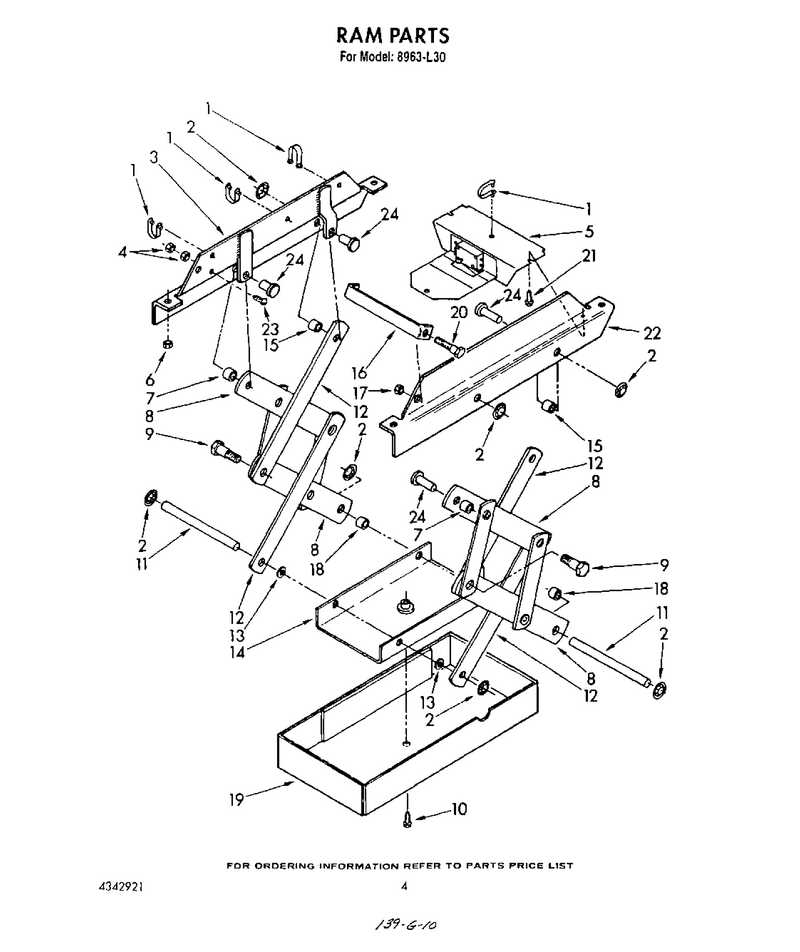

03 - Ram

...
...
1
Clamp, Wire (4) WPL-4341900
...
2
Retainer, Push-On (8) WPL-4341889
...
3
Rail, Top (Right) WPL-4342909
...
4
Nut, Kep 10-32 WPL-4342147
...
5
Switch, Top Limit And Bracket WPL-4342910
...
6
Nut (4) WPL-4342911
...
7
Spacer, Rear (2) WPL-4342912
...
8
Link, Peened (4) WPL-4341767
...
9
Bolt, 7/16-20 X 1-5/8 WPL-4342906
...
10
Screw, Hex WPL-4341878
...
11
Shaft, Lower (2) WPL-4342913
...
12
Link, Main (4) WPL-4341805
...
13
Spacer, Ram Rear (2) WPL-4342914
...
14
Channel, Mounting WPL-4341793
...
15
Spacer, Front WPL-4342915
...
16
Strap, Rail Support Drawer WPL-4342916
...
17
Nut WPL-4342156
...
18
Spacer, Front (2) WPL-4342917
...
19
Ram WPL-4342918
...
20
Bolt, 1/4-20 X 1/2 WPL-4342919
...
21
Screw, 12-24 X 5/16 WPL-4341875
...
22
Rail, Top (Left) WPL-4342920
...
23
Screw, 10-32 X 1-1/2 WPL-4341876
...
24
Harness, Wiring WPL-4341802
