Roper 8624W0A

Model: 8624W0A

Save Part Not Listed?
product name

Popular Parts

Popular Parts

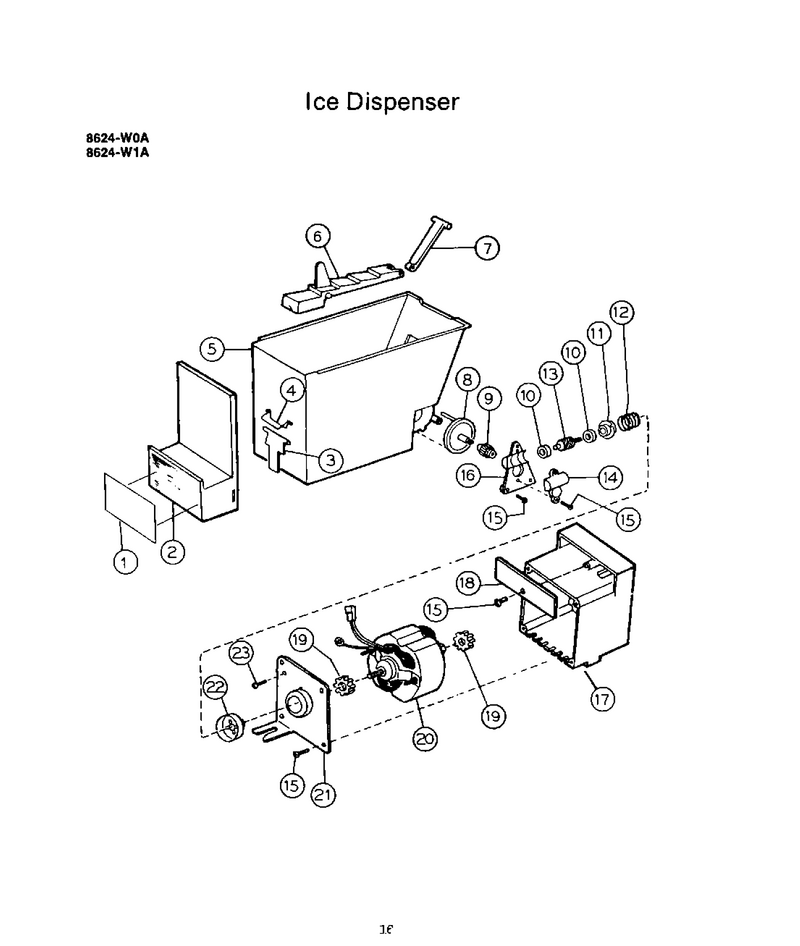

08 - Ice Dispenser

...
...
1
Label - Ice Container WPL-790587
...
2
Front - Ice Container WPL-790588
...
3
Door - Ice Container WPL-790589
...
4
Spring - Door WPL-790590
...
5
Container - Ice WPL-790591
...
6
Ram - Ice Dispenser WPL-790592
...
7
Deflector - Ice Dispenser WPL-790593
...
8
Disc - Ice Ram Drive WPL-790595
...
9
Gear - Ice Ram Drive WPL-790596
...
10
Bearing - Front & Rear (2) WPL-790597
...
11
Coupling - Ice Dispenser Container WPL-790598
...
12
Spring - Motor Drive WPL-790599
...
13
Gear - Ice Ram Drive WPL-790600
...
14
Cover - Housing WPL-790601
...
15
Screw - Housing (5) WPL-790602
...
16
Housing - Ice Ram Drive WPL-790603
...
17
Housing - Motor WPL-790604
...
18
Cover - Housing WPL-790605
...
19
Mount - Ice Dispenser Motor WPL-790606
...
20
Motor - Ice Ram Drive WPL-790607
...
21
Bracket - Motor WPL-790609
...
22
Coupling - Ice Dispenser Motor WPL-790610
...
23
Screw - Bracket WPL-790339

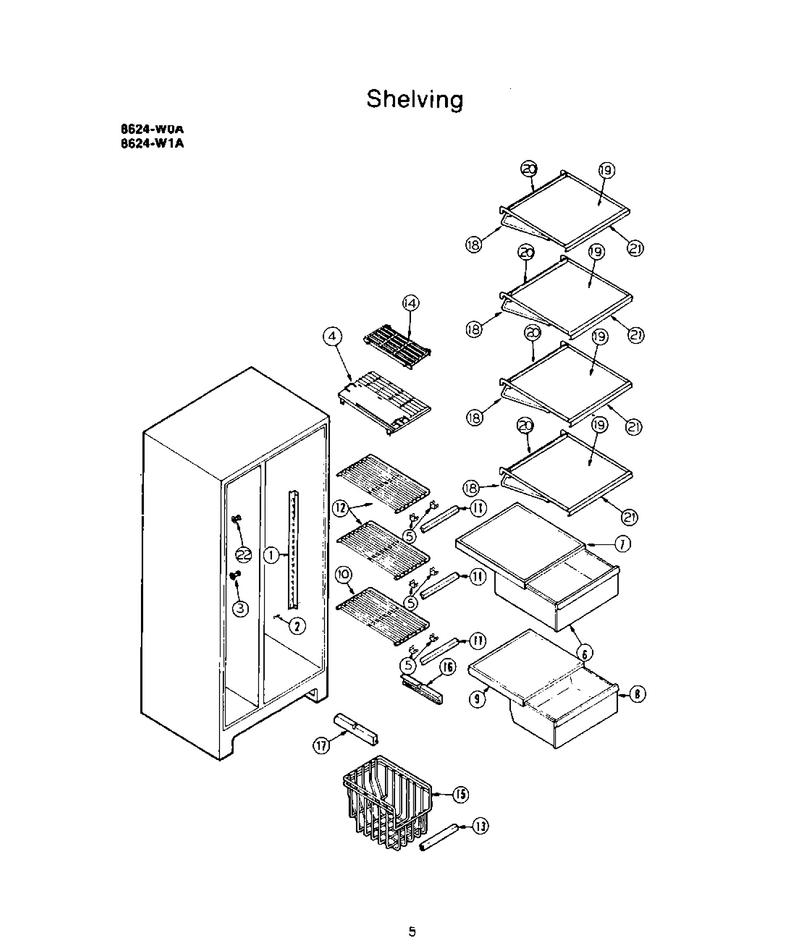

04 - Shelving

...
...
1
Channel - Shelf Mounting (2) WPL-790420
...
2
Screw - No.8 (A) X 5/8 (8) WPL-790421
...
3
Spacer, Door Glass (Blk) WPL-74003986
...
5
Brlr-Bottm WPL-2205M028-19
...
6
Pan - Storage Upper WPL-790423
...
7
Cover - Crisper Upper WPL-790424
...
8
Pan Storage Lower WPL-790425
...
9
Cover - Crisper Lower WPL-790428
...
10
Shelf- Bottom Freezer WPL-790429
...
11
Trim - Shelf (3) WPL-790430
...
12
Fitting, Burner WPL-74006351
...
13
Trim - Basket WPL-790433
...
14
Shelf - Half - Upper WPL-790434
...
15
Basket - Sliding WPL-790436
...
16
Hanger - Basket R.h. WPL-790437
...
17
Hanger - Basket L.h. WPL-790438
...
18
Frame - Cantilever Shelf (4) WPL-790439
...
19
Shelf - Glass (4) WPL-790440
...
20
Trim - Rear Shelf (4) WPL-790441
...
21
Trim - Front Shelf (4) WPL-790442
...
22
Screw - Support (2) WPL-790444

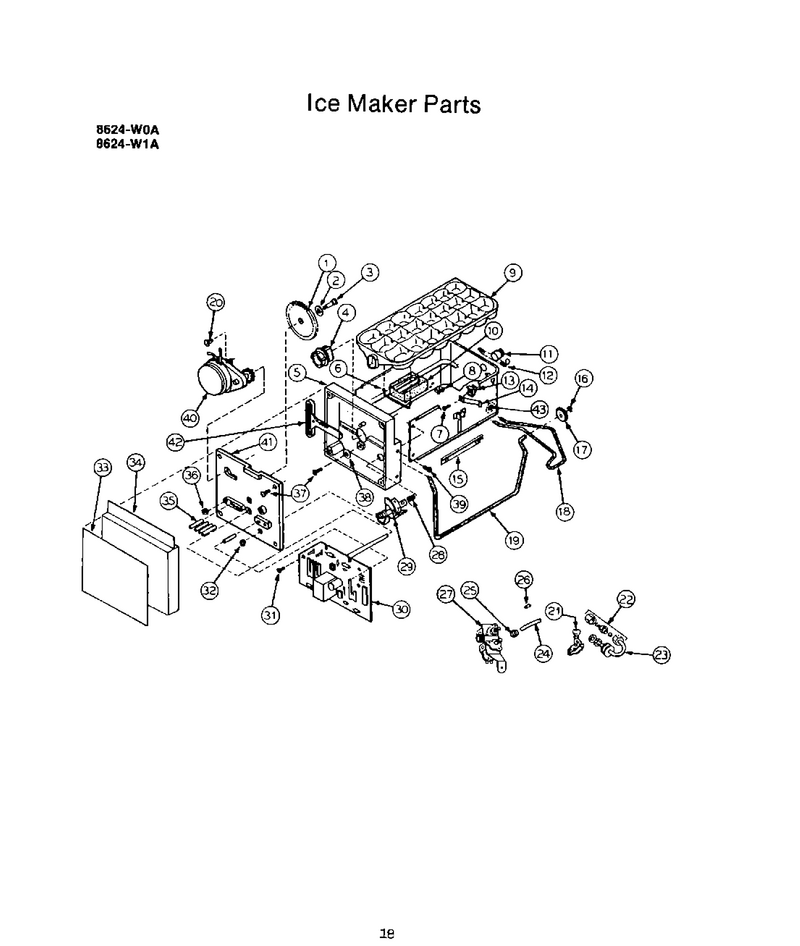

09 - Ice Maker

...
...
1
Gear - Crank WPL-790611
...
2
Washer - Crank Gear Shaft WPL-790612
...
3
Shaft - Crank Gear WPL-790613
...
4
Gear - Sliding Spur WPL-790614
...
5
Housing - Mechanism WPL-790615
...
6
Retainer - Insulator WPL-790616
...
7
Screw - Spring WPL-790617
...
8
Retainer - Shut Off Wire (2) WPL-790618
...
9
Tray - Ice WPL-790619
...
10
Insulator - Thermostat WPL-790620
...
11
Pivot - Tray WPL-790621
...
12
Spring - Tray Return WPL-790622
...
13
Nut - Push In WPL-790623
...
14
Spring - Tray Restrainer WPL-790624
...
15
Extension - Frame WPL-790625
...
16
Ring - Retaining WPL-790626
...
17
Bearing - Gauge Arm WPL-790627
...
18
Wire - Automatic Shut Off WPL-790628
...
19
Arm - Sensing WPL-790629
...
20
Screw - Motor To Plate (2) WPL-790630
...
21
Saddle Valve WPL-790258
...
22
Union - 1/4`` WPL-790631
...
23
Seal- Door WPL-WP7212P007-60
...
24
Tube - Water Inlet Fill Valve To Icemaker, Fill Valve To Tank, Tank To Elbow, Elbow To Dispenser. WPL-790633
...
25
Nut - Fill Tube To Valve (3) WPL-790247
...
26
Sleeve - Water Tubing WPL-790634
...
27
Water Valve - Dual Solenoid WPL-790635
...
28
Spring - Sensing Arm WPL-790636
...
29
Cam - Ice Level WPL-790637
...
30
Circuit Board WPL-790638
...
31
Screw - Board To Plate (3) WPL-790639
...
32
Clip - Ice Level Cam WPL-790640
...
33
Label Ice Maker WPL-790641
...
34
Front Ice Maker WPL-790642
...
35
Follower Cam (5) WPL-790643
...
36
Nut - Mounting Plate WPL-790644
...
37
Screw - Plate To Housing (5) WPL-790645
...
38
Washer Flat (2) WPL-790646
...
39
Screw - Housing To Frame (4) WPL-790647
...
40
Motor WPL-790648
...
41
Plate - Mounting WPL-790649
...
42
Rack - Gear WPL-790650
...
43
Frame - Icemaker WPL-790651

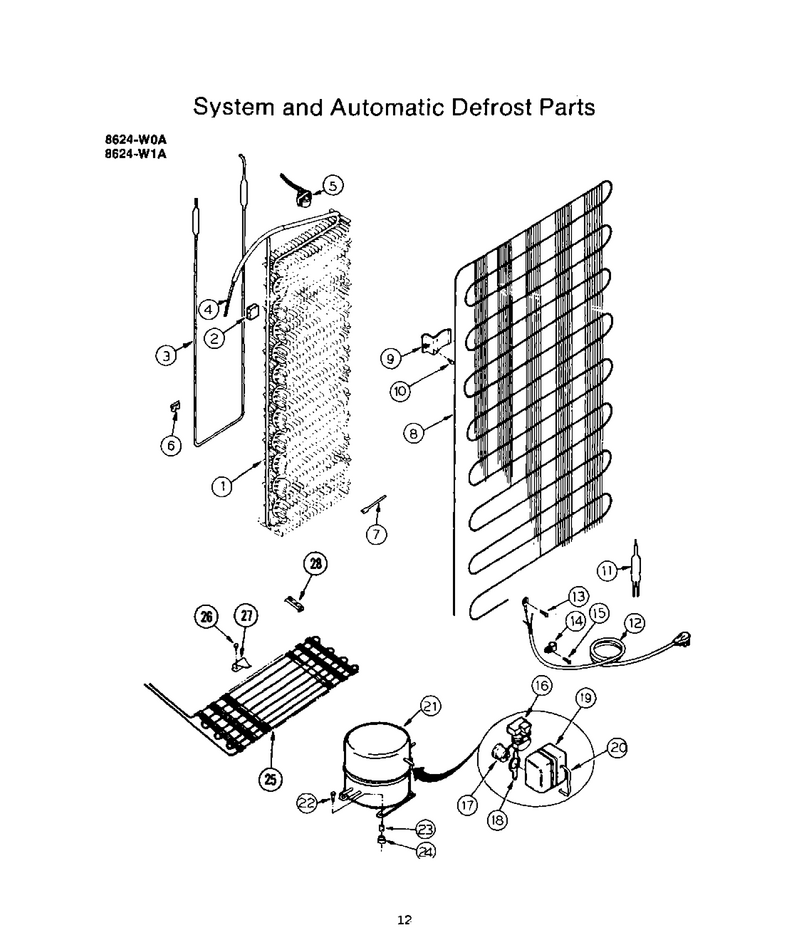

06 - System And Automatic Defrost

...
...
1
Evaporator Only WPL-790524
...
2
Block Coil (2) WPL-790525
...
3
Heater-Defrost WPL-790526
...
4
Capillary & Suction Line Assembly WPL-790527
...
5
Thermostat-Defrost WPL-790528
...
6
Support - Defrost Heater WPL-790529
...
7
Strap Evaporator WPL-790100
...
8
Condenser WPL-790530
...
9
Bracket-Condenser Mounting (4) WPL-790314
...
10
Screw - No.8-32 X 1/2 (9) WPL-790082
...
11
Drier WPL-790531
...
12
Activator, Monitor WPL-Y02030117
...
13
Screw-Ground WPL-790382
...
14
Clamp-Service Cord WPL-790532
...
15
Screw - Clamp Mounting WPL-790382
...
16
Relay WPL-790533
...
17
Overload WPL-790534
...
18
Clip-Overload WPL-790535
...
19
Cover-Terminal WPL-790536
...
20
Strap - Bale WPL-790537
...
21
Compressor WPL-790538
...
22
Screw - 1/4 - 20 (3) WPL-790539
...
23
Sleeve-Compressor (3) WPL-790540
...
24
Grommet-Compressor (3) WPL-790541
...
25
Condenser - Condensate WPL-790542
...
26
Screw - Bracket (2) WPL-790008
...
27
Bracket - Defrost Pan WPL-790053
...
28
Bracket - Defrost Plate (4) WPL-790544

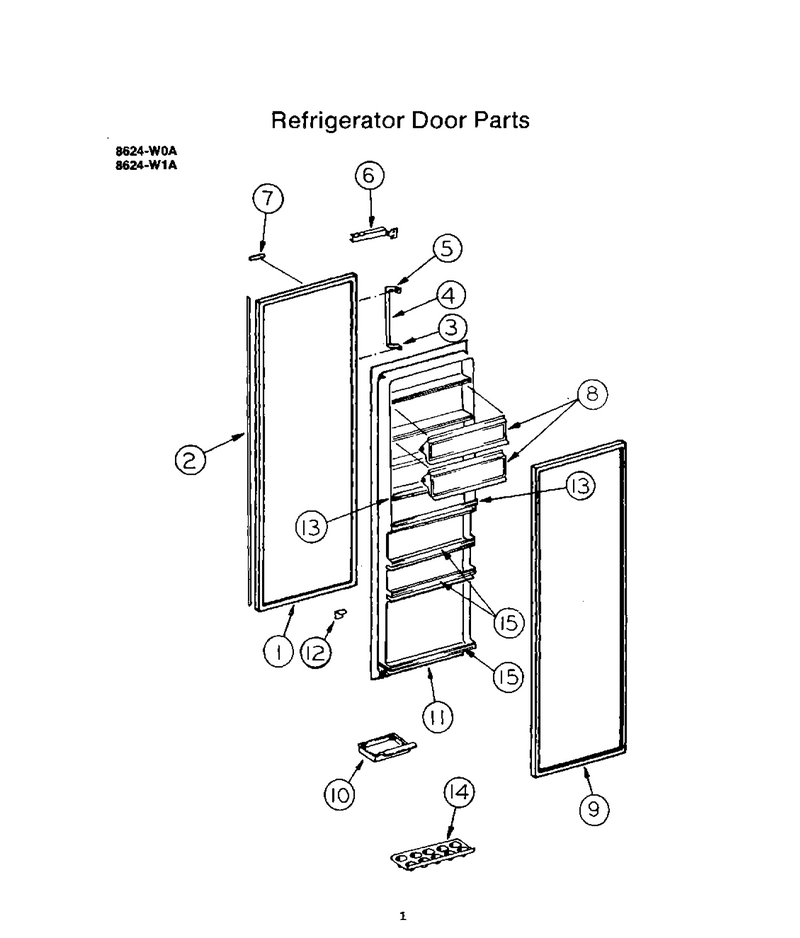

02 - Refrigerator Door

...
...
1
Exterior Panel-Refrigerator-Platinum (8624-X1a) WPL-790698
...
2
Trim - Refrigerator Door WPL-790397
...
3
Screw-Handle Ends (4) WPL-790004
...
4
Grip-Handle WPL-790399
...
5
Kit, Tubing W/loxit (3/8``) WPL-12001100
...
6
Igniter Kit WPL-12400035
...
7
Frame-Nameplate WPL-790403
...
8
Back, Main WPL-74001988
...
9
Gasket-Refrigerator Door WPL-790406
...
10
Procelain Broiler (Pan And Grid) WPL-4396923
...
11
Procelain Broiler (Pan And Grid) WPL-4396923
...
12
Screw - Bumper To Door WPL-790382
...
13
Support Top Rack - R.h. (2) WPL-790412
...
14
Tray - Eggs WPL-790413
...
15
Rack - Refrigerator Door Lower (3) WPL-790414

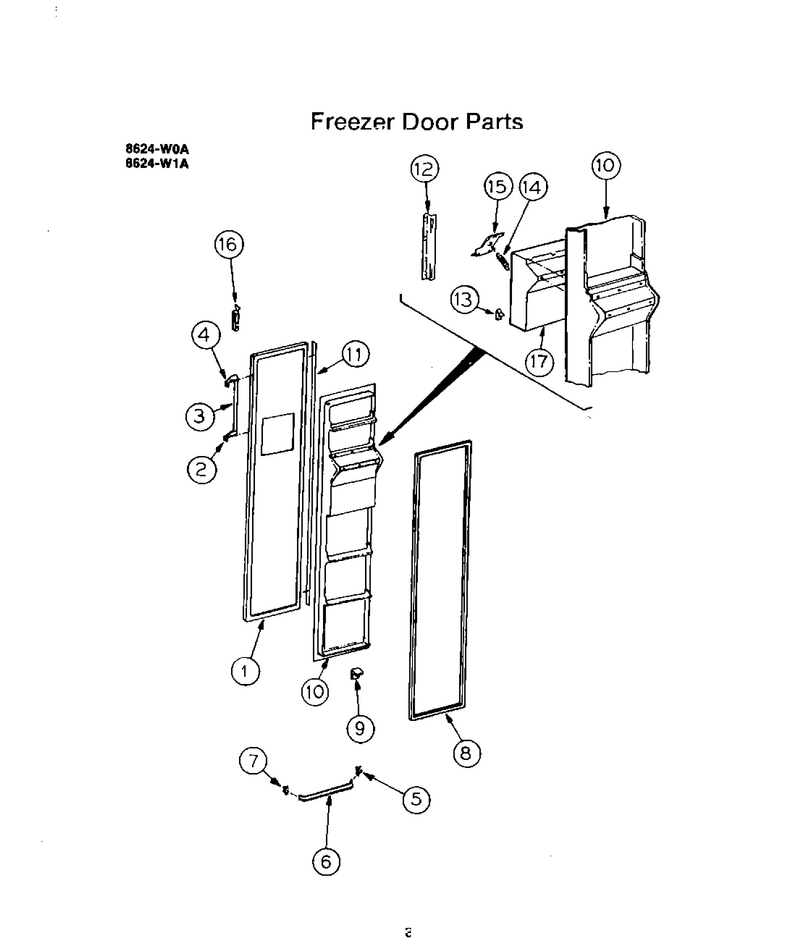

03 - Freezer Door

...
...
1
Bearing-Hinge WPL-790372
...
2
End-Handle Bottom WPL-790373
...
3
Grip-Handle WPL-790374
...
4
End - Handle Top WPL-790375
...
5
Support - Rack R.h. (5) WPL-790376
...
6
Rack - Freezer Door (5) WPL-790377
...
7
Support - Rack L.h. (5) WPL-790379
...
8
Gasket - Door WPL-790380
...
9
Bumper - Light Switch WPL-790381
...
10
Interior Panel - Freezer Door WPL-790383
...
11
Trim - Freezer Door WPL-790384
...
12
Shield - Wire WPL-790385
...
13
Nut - Push (8) WPL-790387
...
14
Pin - Ice Door WPL-790389
...
15
Plug - Housing WPL-790391
...
16
Closer - Door WPL-790392
...
17
Insulation - Door Housing WPL-790394

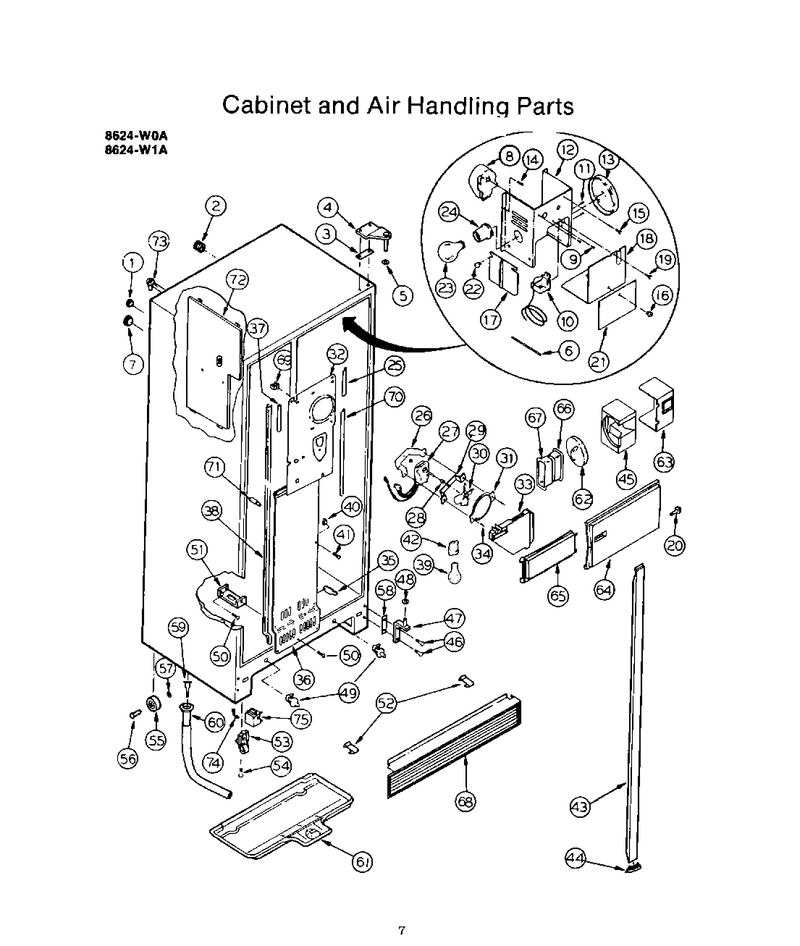

05 - Cabinet And Air Handling

...
...
1
Ferrule - Outer WPL-790038
...
2
Tube - Rubber WPL-790076
...
3
Pin, Hinge WPL-7113P002-60
...
4
Screw WPL-WP7101P126-60
...
5
Washer - Upper Hinge WPL-790027
...
6
Screw WPL-WP98008545
...
7
Ferrule - Inner WPL-790037
...
8
Timer - Defrost WPL-790449
...
9
Screw - Timer To Bracket (2) WPL-790078
...
10
Control - Cold WPL-790450
...
11
Screw - Control To Bracket (2) WPL-790051
...
12
Bracket - Control Mounting WPL-790451
...
13
Knob - Cold Control WPL-790452
...
14
Screw - Bracket Mounting (8) WPL-790453
...
15
Screw - Control Grounding WPL-790082
...
16
Stud - Plastic (2) WPL-790454
...
17
Bracket - Control Capillary Mtg. WPL-790455
...
18
Cover - Control Bracket WPL-790456
...
19
Screw - Cover Mounting (2) WPL-790382
...
20
Support - Refrigerator Light Shield (4) WPL-790457
...
21
Cover - Capillary Tube WPL-790458
...
22
Stud Plastic WPL-790454
...
23
Bulb - Light - Refrigerator WPL-790459
...
24
Socket - Light - Refrigerator WPL-790460
...
25
Gasket - Coil Cover (2) WPL-790461
...
26
Seal- Door WPL-WP7212P006-60
...
27
Motor - Blower WPL-790061
...
28
Bushing - Motor Mounting (2) WPL-790084
...
29
Bracket - Front Motor Mounting WPL-790060
...
30
Blade - Fan WPL-790462
...
31
Ring - Fan Orifice WPL-790062
...
32
Nut - Anchor (2) WPL-790063
...
33
Cover - Fan WPL-790464
...
34
Screw - Fan Cover Mounting WPL-790053
...
35
Screw - Damper Mounting WPL-790053
...
36
Cover - Lower Coil WPL-790466
...
37
Gasket - Coil Cover L.h. WPL-790467
...
38
Gasket - R & L Cover (2) WPL-790468
...
39
Bulb - Light Freezer WPL-790469
...
40
Clip - Clip Grounding WPL-790470
...
41
Screw - Cover Mounting (4) WPL-790339
...
42
Socket - Light Freezer WPL-790471
...
43
Clip (3) WPL-790474
...
44
Trim - Mullion - Toast (8624-X1a) WPL-790674
...
45
Deflector - Air WPL-790478
...
46
Screw - Lower Hinges (4) WPL-790479
...
47
Bracket - Lower Hinge L.h. WPL-790481
...
48
Washer Nylon (2) WPL-790485
...
49
Switch - Light (2) WPL-790486
...
50
Screw - No.8 X 5/8 (2) WPL-790487
...
51
Bracket - Cover Mounting WPL-790488
...
52
Clip - Grille (2) WPL-790489
...
53
Roller Assembly - Adjustable Front (2) WPL-790490
...
54
Bolt - Roller Mounting (2) WPL-790491
...
55
Roller - Rear (2) WPL-790492
...
56
Pin - Roller (2) WPL-790493
...
57
Nut - Push (2) WPL-790047
...
58
Shim - Lower Hinge (3) WPL-790494
...
59
Conductor - Heat WPL-790495
...
60
Drain - Outlet And Tube WPL-790496
...
61
Pan - Defrost WPL-790497
...
62
Knob - Damper Control WPL-790498
...
63
Box - Damper Control WPL-790499
...
64
Light Shield - Refrigerator WPL-790500
...
65
Light Shield - Freezer WPL-790501
...
66
Ferrule - Outer WPL-790502
...
67
Ferrule - Inner WPL-790503
...
68
Kickplate WPL-790504
...
69
Support - Coil Cover - Upper WPL-790021
...
70
Gasket - Coil Cover R.h. WPL-790505
...
71
Support - Coil Cover - Lower (4) WPL-790506
...
72
Support Special Screw Mtg. WPL-790513
...
73
Tube - Extension WPL-790510
...
74
Nut - Elbow WPL-790247
...
75
Instruction Book WPL-790515

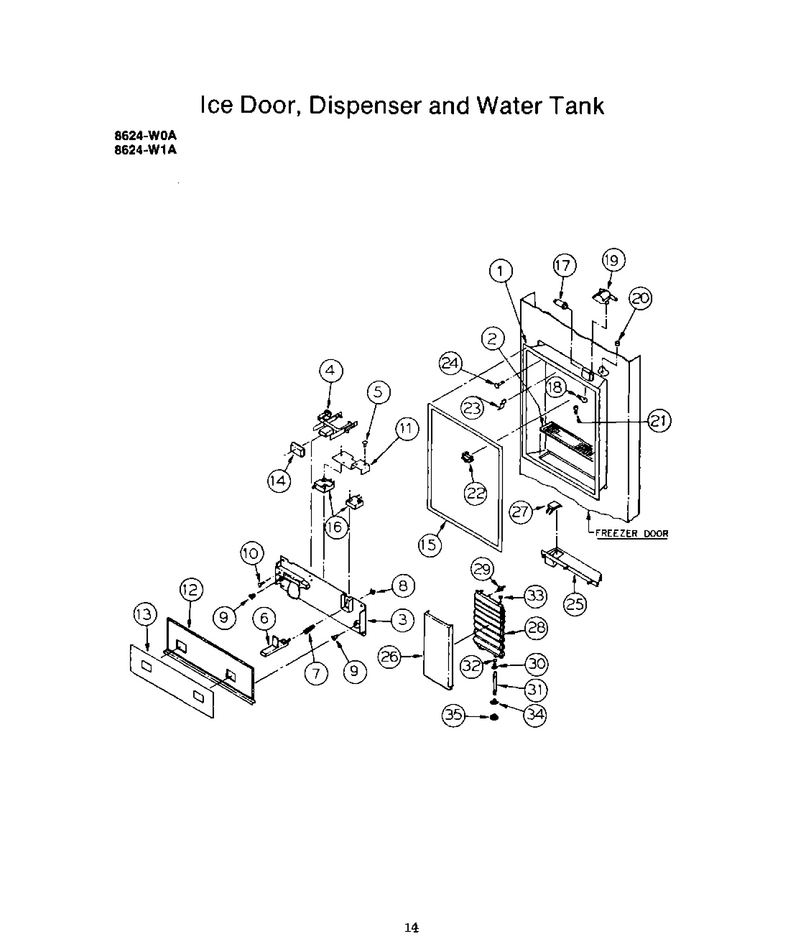

07 - Ice Door, Dispenser And Water Tank

...
...
1
Housing - Freezer Door Panel (8624-W0a) WPL-790545
...
2
Grid - Water Spill WPL-790546
...
3
Plate - Mounting Switches WPL-790547
...
4
Actuator And Cup (4) WPL-790548
...
5
Screw - Switches WPL-790549
...
6
Actuator - Water WPL-790550
...
7
Spring - Water Actuator WPL-790551
...
8
Clip - Water Actuator WPL-790552
...
9
Anchor Stud - Plate (2) WPL-790553
...
10
Screw - Actuator And Cup WPL-790554
...
11
Shield - Actuator Switch WPL-790555
...
12
Panel - Decorative Front WPL-790556
...
13
Label - Decorative Panel (8624-W0a) WPL-790557
...
14
Button - Actuator WPL-790558
...
15
Label - Housing WPL-790559
...
16
Switch - Solenoid (8624-W0a) WPL-790560
...
17
Socket - Dispenser Light WPL-790561
...
18
Bulb - Light WPL-790562
...
19
Cover - Light WPL-790563
...
20
Grommet - Water Tube WPL-790564
...
21
Clamp - Water Tube WPL-790565
...
22
Switch - Slide (8624-W0a) WPL-790566
...
23
Nut - Compression WPL-790247
...
24
Screw - Housing (7) WPL-790567
...
25
Cover - Door Panel Trim WPL-790568
...
26
Cover - Water Tank WPL-790569
...
27
Door - Ice WPL-790570
...
28
Connector - Tube (8624-W1a) (2) WPL-790583
...
29
Support - Water Tank (3) WPL-790572
...
30
Sleeve - Tube Insert WPL-790573
...
31
Tube - Water Inlet WPL-790574
...
32
Ring - Seal (3) WPL-790575
...
33
Cap - Seal WPL-790576
...
34
Heater - Door Housing WPL-790580
