Roper 8617W0B

Model: 8617W0B

Save Part Not Listed?
product name

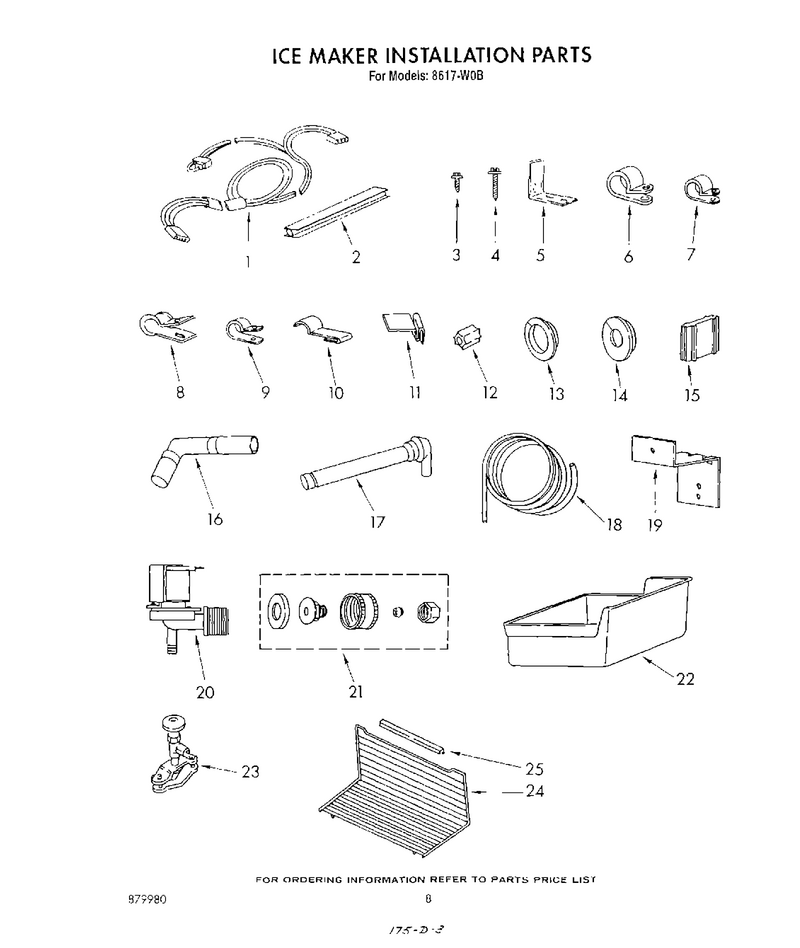

05 - Ice Maker Installation

...
...
Part List WPL-LIT879980
...
1
Wiring Harness WPL-4339654
...
2
Strip, Sealing WPL-4339655
...
3
Screw WPL-WPW10141625
...
4
Screw, Ice Maker Mounting WPL-4339656
...
5
Clamp, Harness Mounting WPL-4339529
...
6
Clamp, Wiring Harness WPL-4339657
...
7
Clamp, Harness & Inlet Tube WPL-4339501
...
8
Clamp, Tube WPL-4339659
...
9
Clamp, Inlet Tube WPL-4339660
...
10
Clip, Harness Location WPL-4339661
...
11
Clip, Filler Tube WPL-4339662
...
12
Nut WPL-WP627018
...
13
Bushing, Coil Cover WPL-4339664
...
14
Plug, Rear Panel WPL-4339665
...
15
Adapter, Plug WPL-4339666
...
16
Tube, Water Fill WPL-4339667
...
17
Tube, Water Inlet WPL-4339668
...
18
Tube-Water WPL-W10823511
...
19
Bracket, Valve To Rear Panel WPL-4339670
...
20
Valve-Inlt WPL-4318047
...
21
Adapter WPL-2165477
...
22
Pan-Ice WPL-W11625904
...
23
Saddle Valve Kit WPL-4339674
...
24
Support Shelf WPL-4339676
...
25
Button, Plug Water Tube Hole WPL-4339510

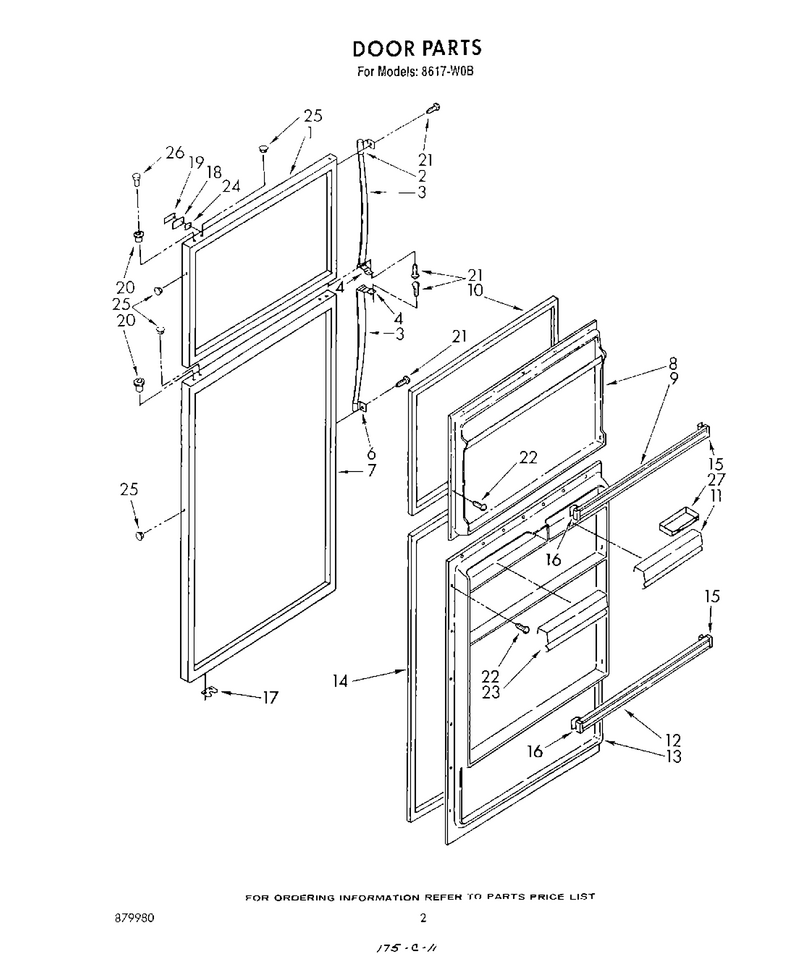

02 - Door

...
...
1
Freezer Door (Toast) WPL-4339620
...
2
End Cap (Top) WPL-4339562
...
3
Handle Center Freezer WPL-4339424
...
4
Endcap-Hdl WPL-981170
...
6
End Cap (Bottom) WPL-4339563
...
7
Refrigerator Door (Toast) WPL-4339626
...
8
Interior Door Panel (Freezer) WPL-4339565
...
9
Freezer Door Trim WPL-4339566
...
10
Gasket-Dor WPL-WP2188456A
...
11
Door, (Butter) WPL-4339567
...
12
Refrigerator Door Trim WPL-4355119
...
13
Interior Door Panel Refrigerator WPL-4339569
...
14
Refrigerator Door Gasket WPL-4339570
...
15
End Cap Door Trim (L.h) WPL-4339571
...
16
End Cap Door Trim (R.h) WPL-4339572
...
17
Door Stop WPL-4339573
...
18
Nameplate WPL-4339436
...
19
Insert, Nameplate WPL-4339434
...
20
Bearing Door Hinge (8) WPL-4339422
...
21
Handle, Screw (8) WPL-4339425
...
22
Screw, No.8 X 1/2 WPL-4339429
...
23
Door Compartment WPL-4339568
...
24
Tape WPL-4339435
...
25
Hole Plug, Handle Door (Almond) WPL-4339591
...
26
Hole Plug, Bearing Hinge (Coffee) WPL-4339594
...
27
Butter Dish WPL-4339516

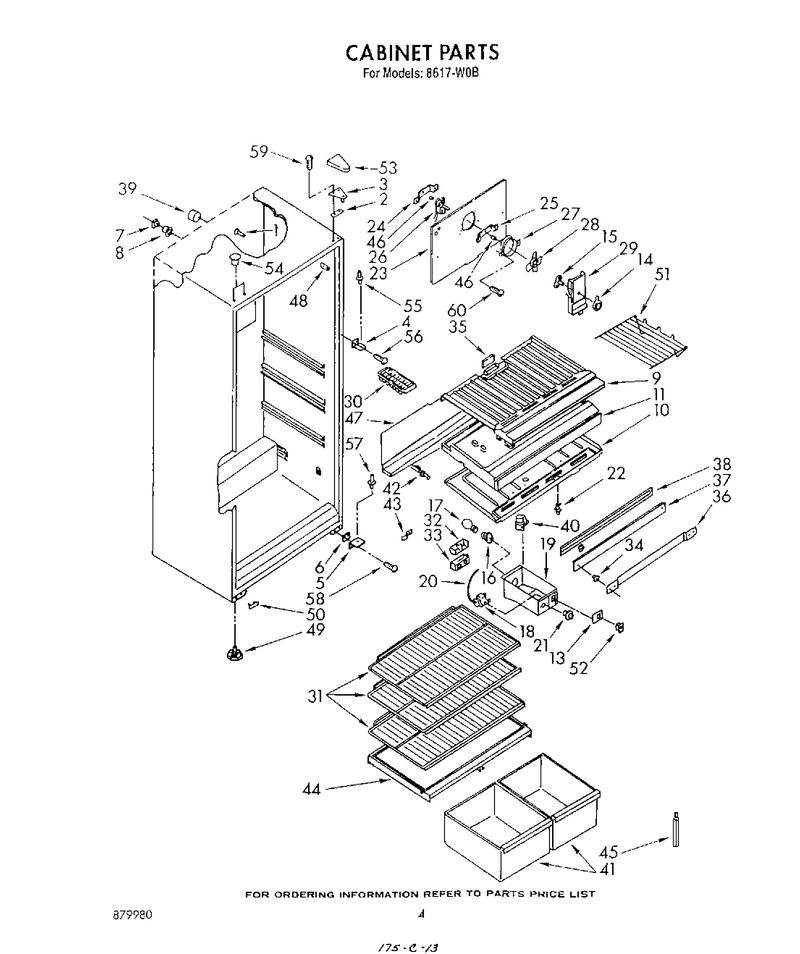

03 - Cabinet

...
...
1
Support, Coil Cover WPL-4339441
...
2
Bracket, Hinge Top WPL-4339442
...
3
Shim, Upper Hinge WPL-4339448
...
4
Bracket, Center Hinge WPL-4339449
...
5
Hinge-Door WPL-4343255
...
6
Shim, Lower Hinge WPL-4339456
...
7
Ferrule, Inner WPL-4339457
...
8
Ferrule, Outer WPL-4339458
...
9
Bottom, Freezer WPL-4339542
...
10
Top, Freezer WPL-4339543
...
11
Divider, Compartment WPL-4339544
...
13
Insert, Control Box WPL-4339464
...
14
Knob, Damper Control WPL-4339465
...
15
Damper, Fan Cover WPL-4339466
...
16
Light Socket WPL-439468
...
17
Bulb, Light WPL-4339469
...
18
Thermostat WPL-4342851
...
19
Control Box WPL-4339472
...
20
Tube, Plastic WPL-4339474
...
21
Knob, Control WPL-4339475
...
22
Switch Light WPL-4342856
...
23
Evaporator Cover WPL-4339477
...
24
Bracket, Rear Motor WPL-4339479
...
25
Bracket, Front Motor WPL-4339480
...
26
Motor, Evap. Fan WPL-4343415
...
27
Ring, Motor Orfice WPL-4339482
...
28
Fan Blade WPL-4339484
...
29
Cover Fan WPL-4339547
...
30
Tray WPL-WP841180A
...
31
Shelf, Sliding WPL-4339548
...
32
Deflector, Air WPL-4339488
...
33
Cover, Air Deflector WPL-4339489
...
34
Spacer, Mullion Mounting WPL-4342855
...
35
Pan, Foam WPL-4339492
...
36
Clamp, Mullion Mounting WPL-4339493
...
37
Mullion (Harvest) WPL-4339643
...
38
Heater Mullion WPL-4339495
...
39
Tube, In Ferrule WPL-4339496
...
40
Timer-Def WPL-W10822278
...
41
Pan-Crispr WPL-2147424
...
42
Tube, Defrost Drain WPL-4339552
...
43
Clamp WPL-4339522
...
44
Cover, Crisper WPL-4339555
...
45
Support, Crisper Cover WPL-4339556
...
46
Bushing, Motor Mounting WPL-4339504
...
47
Trough, Drain WPL-4339557
...
48
Corner Cabinet Trim (Toast) WPL-4339652
...
49
Leveler WPL-W11117769
...
50
Buttom Plug, Lower Hinge Hole WPL-4339507
...
51
Shelf, Freezer WPL-4339560
...
52
Switch, Slide WPL-4339486
...
53
Hinge Cover (Platinum) WPL-4339639
...
54
Hole Plug, Top Hinge (Toast) WPL-4339640
...
55
Pin, Center Hinge WPL-4339450
...
56
Screw, Center Hinge WPL-4339451
...
57
Pin, Lower Hinge WPL-4339454
...
58
Screw, Lower Hinge WPL-4339444
...
59
Screw, Top Hinge WPL-4339461
...
60
Screw, Front Motor Mounting WPL-4339473

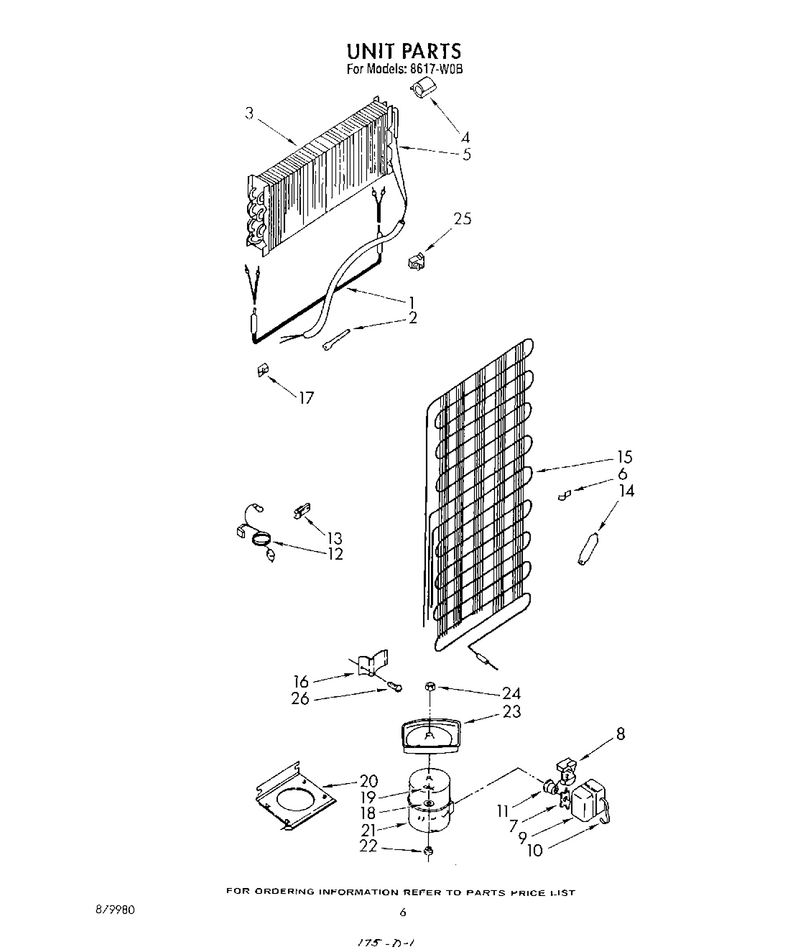

04 - Unit

...
...
1
Heater, Defrost WPL-4339575
...
2
Clip, Heater WPL-4339518
...
3
Evaporator WPL-4339576
...
4
Defrost, Bi-Metal WPL-4339520
...
5
Heat, Exchanger WPL-4339577
...
6
Clamp Tube WPL-4339522
...
7
Clip, Overload WPL-4339523
...
8
Relay WPL-4342852
...
9
Cover, Terminal WPL-4342792
...
10
Clamp Cover WPL-4339526
...
11
Overload WPL-4342854
...
12
Cord Service WPL-4339528
...
13
Clamp, Cable WPL-4339529
...
14
Drier-Tube WPL-W10843121
...
15
Condenser WPL-4339531
...
16
Bracket, Condenser Mounting WPL-4339532
...
17
Block, Evaporator (R.h) WPL-4339541
...
18
Washer, Compressor Mounting WPL-4339534
...
19
Clip, Compressor Mounting WPL-4339535
...
20
Plate, Compressor Mounting WPL-4339578
...
21
Compressor WPL-W10439652
...
22
Tray-Evap WPL-WP2176668
...
23
Defrost Pan WPL-4339579
...
24
Nut, Lock WPL-4339540
...
25
Block, Evaporator WPL-4339533
...
26
Screw WPL-WPW10141625

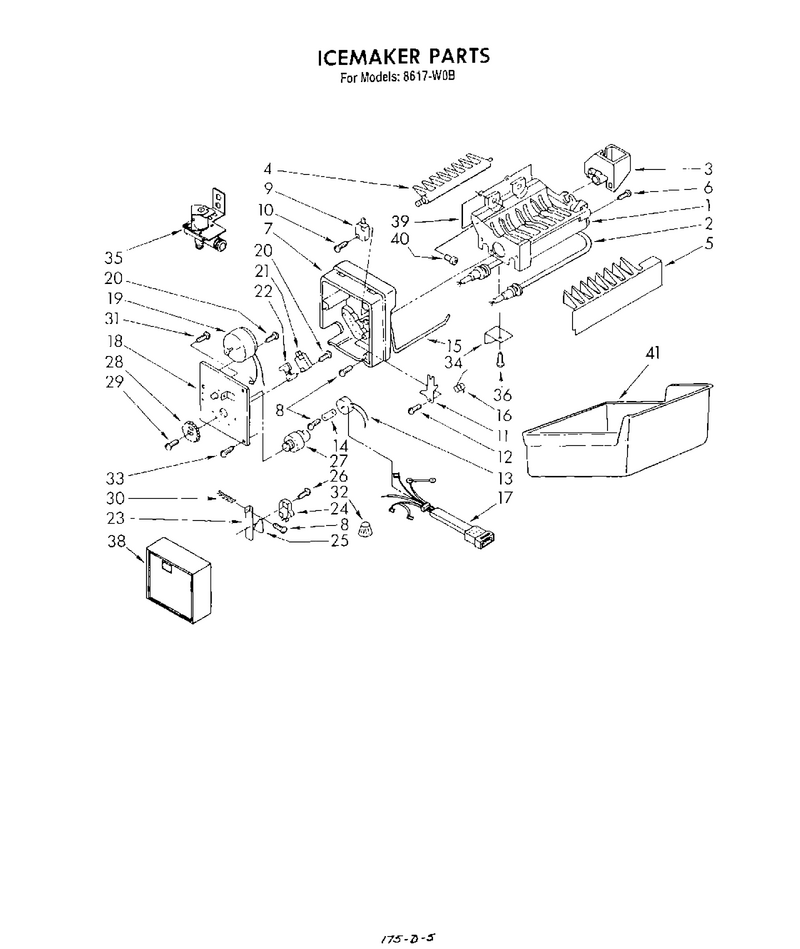

06 - Ice Maker

...
...
1
Mold & Heater Assembly (Includes Illus. 27) WPL-627170
...
2
Heatr-Mold WPL-625893
...
3
Inlet Kit WPL-833593
...
4
Arm-Ejectr WPL-WP627843
...
5
Stripper, Ice WPL-627753
...
6
Screw, 8-16 X 3/8 WPL-4339684
...
7
Support WPL-625827
...
8
Screw WPL-488372
...
9
Switch, S.p.d.t. WPL-4339687
...
10
Screw WPL-488360
...
11
Lever Arm WPL-625830
...
12
Shoulder Screw WPL-4339690
...
13
Thermostat WPL-627047
...
14
Clamp WPL-625829
...
15
Arm, Shut-Off WPL-627003
...
16
Spring-Arm WPL-480855
...
17
Harns-Wire WPL-627974
...
18
Plate, Mounting WPL-627782
...
19
Motor-Ice WPL-798654
...
20
Screw WPL-488361
...
21
Switch, S.p.d.t. WPL-4339699
...
22
Spacer WPL-WP625834
...
23
Plate, Valve Switch WPL-4339701
...
24
Switch, S.p.s.t. WPL-625947
...
25
Insulator, Switch (2) WPL-984683
...
26
Screw, 4-40 X 3/4 WPL-488362
...
27
Cam WPL-625913
...
28
Gear WPL-WP628210
...
29
Screw, Gear WPL-4339707
...
30
Spring WPL-627163
...
31
Screw, 8-32 X 1/4 WPL-4339709
...
32
Connector, Wire WPL-227991
...
33
Screw WPL-WP488787
...
34
Bracket WPL-WP2256087
...
35
Valve-Inlt WPL-4318047
...
36
Screw, 8-16 X 3/8 WPL-4339684
...
38
No Longer Available WPL-833873
...
39
Wiring Shield WPL-4339714
...
40
Eyelet WPL-4339554
...
41
Pan-Ice WPL-W11625904
