Roper 8575L10

Model: 8575L10

Save Part Not Listed?
product name

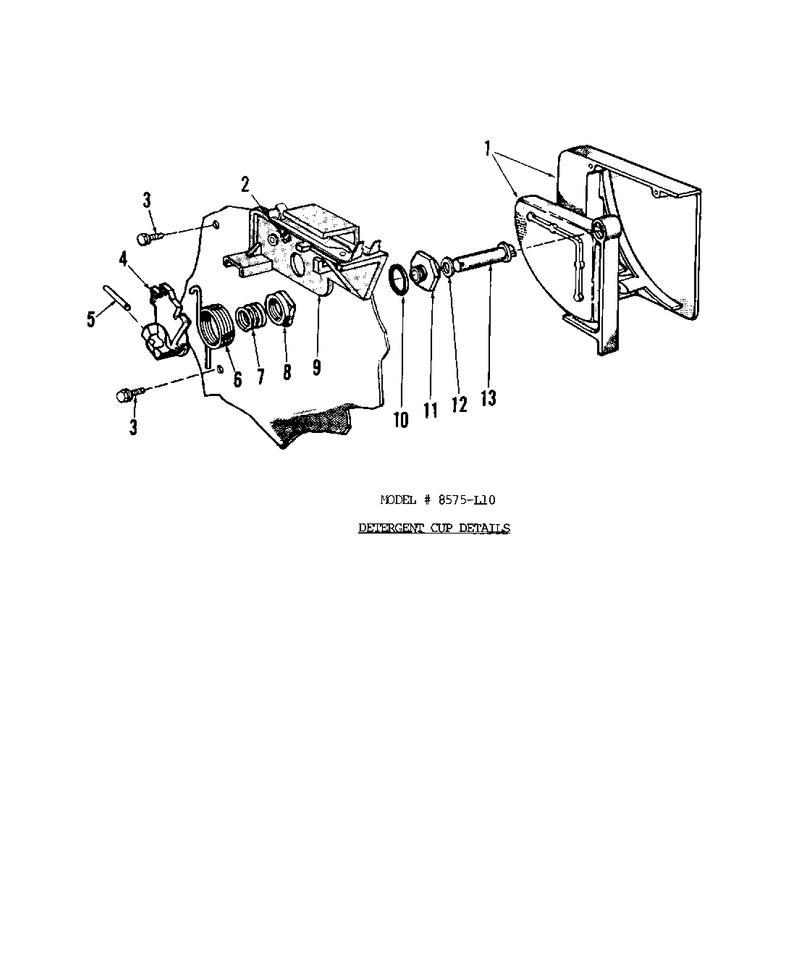

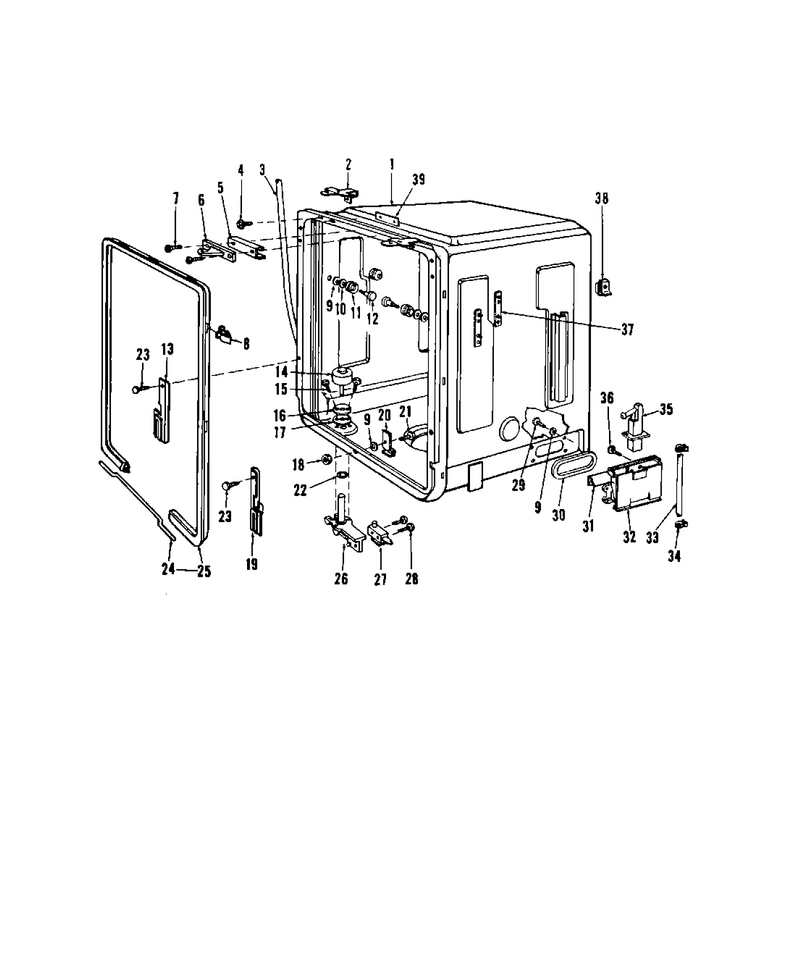

05 - Detergent Cup

...
...
1
Tub & Gasket Assembly WPL-808725
...
2
Attach Clip WPL-808289
...
3
Drain Hose WPL-806089
...
4
Screw 8x7/16 Lg. C.r. Truss Hd. St. St. WPL-806976
...
5
Shim WPL-807073
...
6
Xdoor Strike WPL-807015
...
7
Assembly, Precooler Formed WPL-SCREW
...
8
Xtub Gasket Clip Kit (Includes Key No. 20) WPL-805763
...
9
Sealing Washer WPL-805776
...
10
Washer WPL-803367
...
11
Tub Roller WPL-807180
...
12
Screw & Washer Kit (Includes Key Nos. 9 & 10) WPL-808564
...
13
Guide, Counterbalance, L.h. WPL-Y0807470
...
14
Float WPL-Y0804630
...
15
Screw 10x1 Lg. Hex Washer Hd. St. St. WPL-807268
...
16
Plate - Float Tube WPL-808064
...
17
Gasket - Float Tube WPL-808063
...
18
Nut WPL-803346
...
19
Counterbalance Arm Guide R.h. WPL-807471
...
20
Dam Clip WPL-808115
...
21
Assembly, Precooler Formed WPL-SCREW
...
22
``o`` Ring WPL-807759
...
23
Screw 10-24x7/8 Lg. Acorn Hex Washer Hd. WPL-806539
...
24
Gasket Junction Wire WPL-808344
...
25
Gasket Kit WPL-809034K
...
26
Float Assy WPL-Y0809859
...
27
Float Switch WPL-Y0807680
...
28
Screw 4-40x5/8`` Lg. Hex Hd. Cad. Pl. WPL-804594
...
29
Screw 8 X 5/8 Lg. C.r. Hex Washer Hd. St. St. WPL-806901
...
30
Blower Housing Gasket WPL-806797
...
31
Tapping Plate WPL-808705
...
32
Xvent Stack WPL-808706
...
33
Water Inlet Tubing (Includes Key No. 34) WPL-807891
...
34
Clamp WPL-807813
...
35
Water Inlet Nozzle WPL-808707
...
36
Screw 8 X 1/2 Lg. C.r. Flat Hd. Cad. Pl. WPL-808818
...
37
Tapping Plate WPL-807038
...
38
Cage Nut WPL-806291
...
39
Latch Tapping Plate WPL-808868

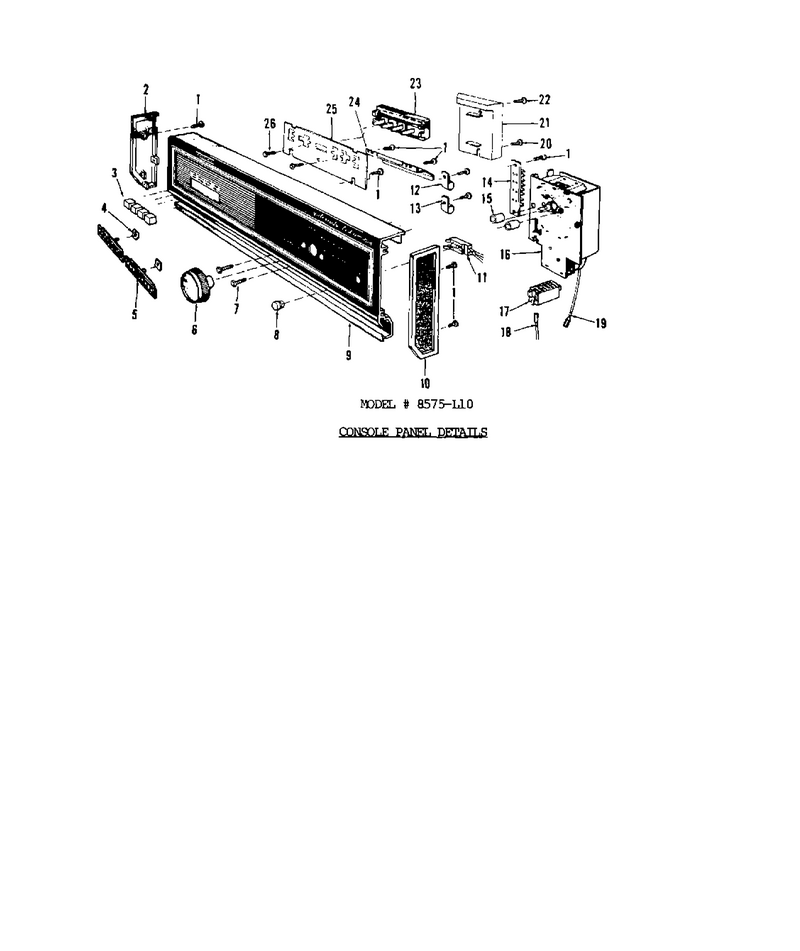

02 - Motor, Heater, And Spray Arm

...
...
1
Screw 8x7/16 Lg. C.r. Pan Hd. Cad. Pl. WPL-806943
...
2
End Cap-L.h. (Black) WPL-808694
...
3
Xpushbutton WPL-807273
...
4
Speednut WPL-808475
...
5
Vent Grille WPL-808477--
...
6
Xtimer Knob WPL-808812
...
7
Screw 10-32x1 17/64 Lg. C.r. Truss Hd. Zinc Pl. WPL-808422
...
8
Lens-Red WPL-805664
...
9
Console Panel (Includes Key Nos. 4 & 5) WPL-808941
...
10
End Cap-R.h. (Black) WPL-808693
...
11
Xlight Assembly WPL-808610
...
12
Clamp WPL-808442
...
13
Clamp WPL-W10833902
...
14
Spacer WPL-808424
...
15
Timer Housing (Black) WPL-808231
...
16
Housing Terminal WPL-808333
...
17
Terminal - Timer WPL-808334
...
18
Xtimer WPL-808686
...
19
Screw 6-30 X 3/8 Lg. Pan Hd Cad. Pl. WPL-807141
...
20
Screw 8x3/8 Lg. C.r. Binding Hd. Cad. Pl. WPL-803416
...
21
Screw 8 X 5/16 Lg. C.r. Truss Hd. St. St. WPL-806894
...
22
Splash Pan WPL-807425
...
23
Xswitch WPL-807281
...
24
Shield - Vent Slot WPL-808398
...
25
Switch Mounting Bracket WPL-808814

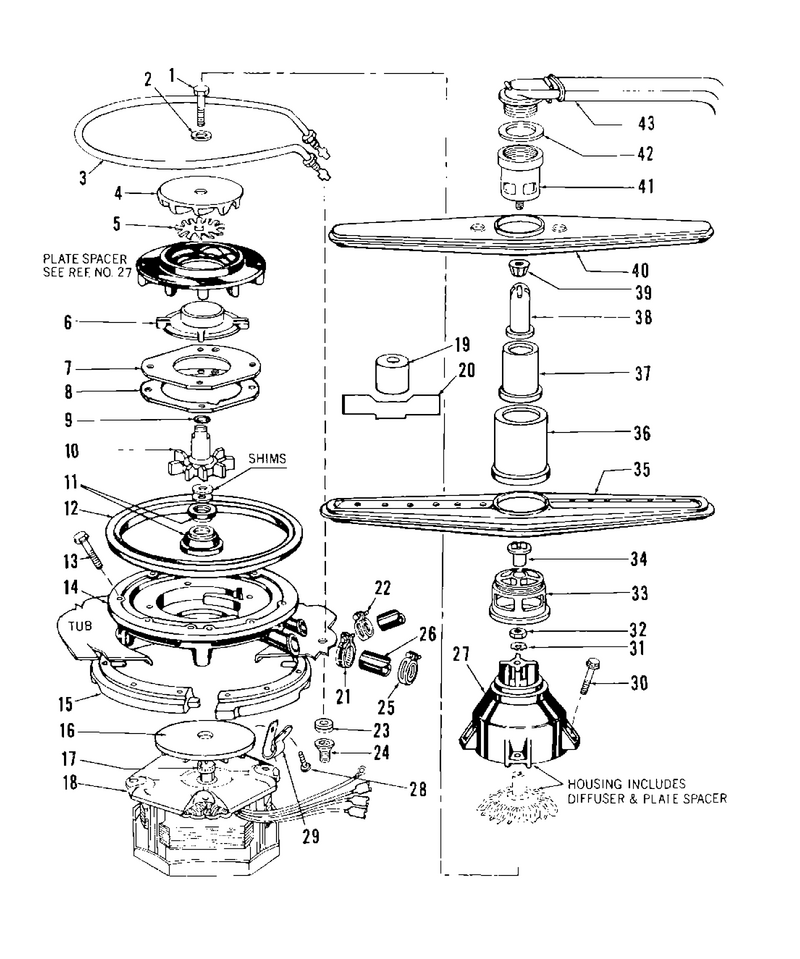

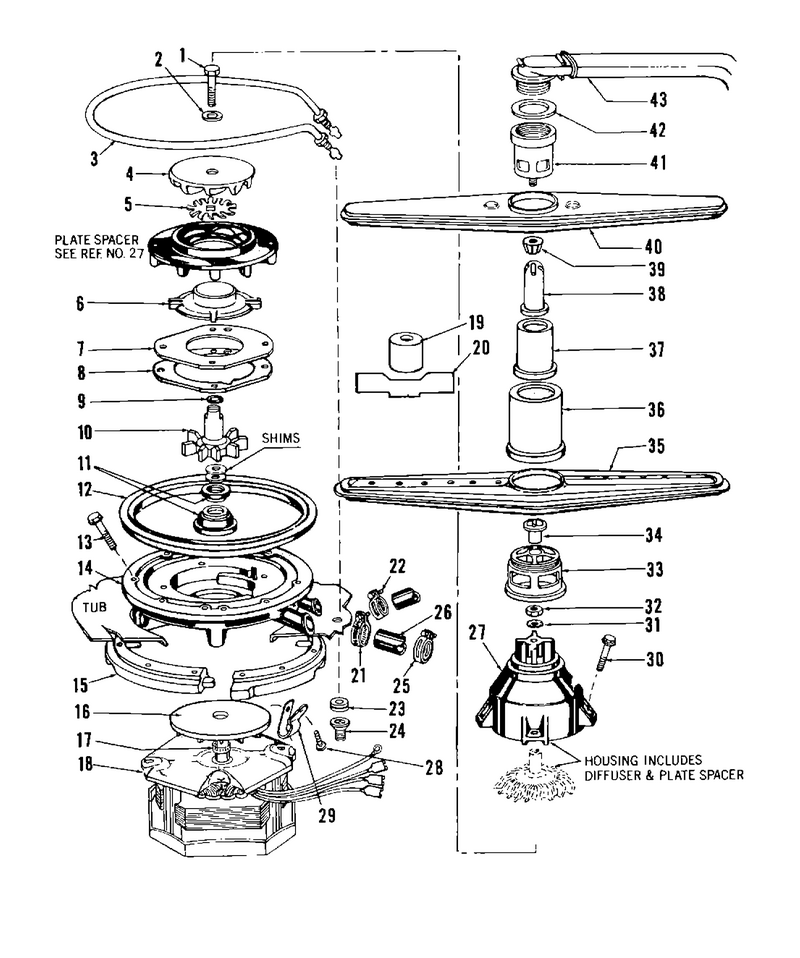

13 - Detergent Cup

...
...
1
Screw 10-32x2 1/4 Lg. Hex Hd. St. St. WPL-806353
...
2
Washer WPL-803367
...
3
Xheater (Includes Key Nos. 23 & 24) WPL-806864
...
4
Xupper Impeller WPL-808041
...
5
Blade - Macerator WPL-808075
...
6
Shroud - Impeller WPL-806267
...
7
Plate - Pump WPL-807884
...
8
Xpump Gasket WPL-807709
...
9
``o`` Ring WPL-Y0806521
...
10
Xpump Seal Kit (Includes Key Nos. 2,4,5,9,11 & 20) WPL-808042
...
11
Water Seal WPL-803903
...
12
Pump Gasket WPL-809008
...
13
Screw 10x1 Lg. Hex Washer Hd. St. St. WPL-807268
...
14
Pump Housing WPL-809102
...
15
Xclamp Ring (2) WPL-807712
...
16
Watershield Fan (Includes Key No. 17) WPL-808899
...
17
Tolerance Ring WPL-808898
...
18
Motor Assembly WPL-Y0806300
...
19
Xseal Installation Tool WPL-803923
...
20
Gage - Seal Shim WPL-807077
...
21
Clamp WPL-WP285655
...
22
Drain Hose Clamp WPL-806090
...
23
Grommet - Heater WPL-806833
...
24
Heater Nut 1/2 20 Brass WPL-806834
...
25
Hose Clamp WPL-805495
...
26
Hose WPL-805674
...
27
Pump Housing Kit (Includes Key Nos. 6 & 7) WPL-80-6978
...
28
Screw 8 X 5/8 Lg. C.r. Truss Hd. Cad. Pl. WPL-807270
...
29
Clamp WPL-808442
...
30
Screw 10 X 1 3/4 Lg. Hex Hd. St. St. WPL-807359
...
31
Lockwasher WPL-804526
...
32
Nut WPL-804527
...
33
Bearing WPL-80-8175
...
34
Xspray Arm Nut WPL-80-8176
...
35
Xspray Arm Assembly WPL-808177
...
36
Xtower Base WPL-80-8178
...
37
Xtower Section WPL-80-8179
...
38
Xtower Tip WPL-80-8180
...
39
Nut, Spray Arm WPL-Y0808181
...
40
Xupper Spray Arm Assembly WPL-808259
...
41
Distributor WPL-808183
...
42
Gasket WPL-808184--
...
43
Elbow & Tube Assembly WPL-808185

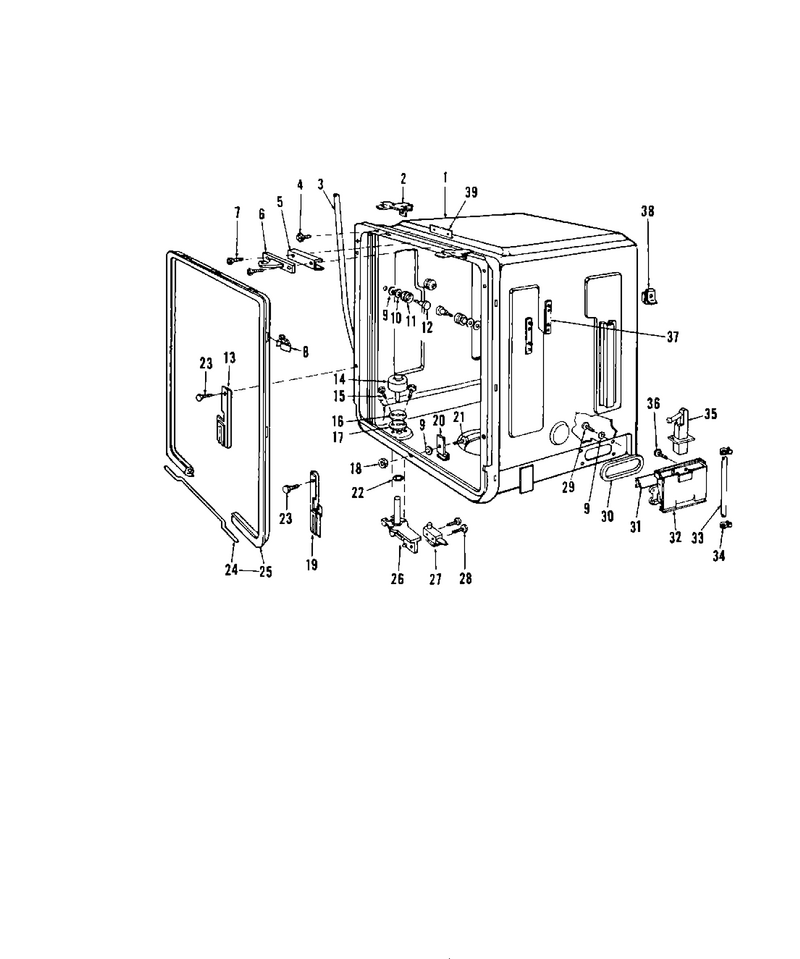

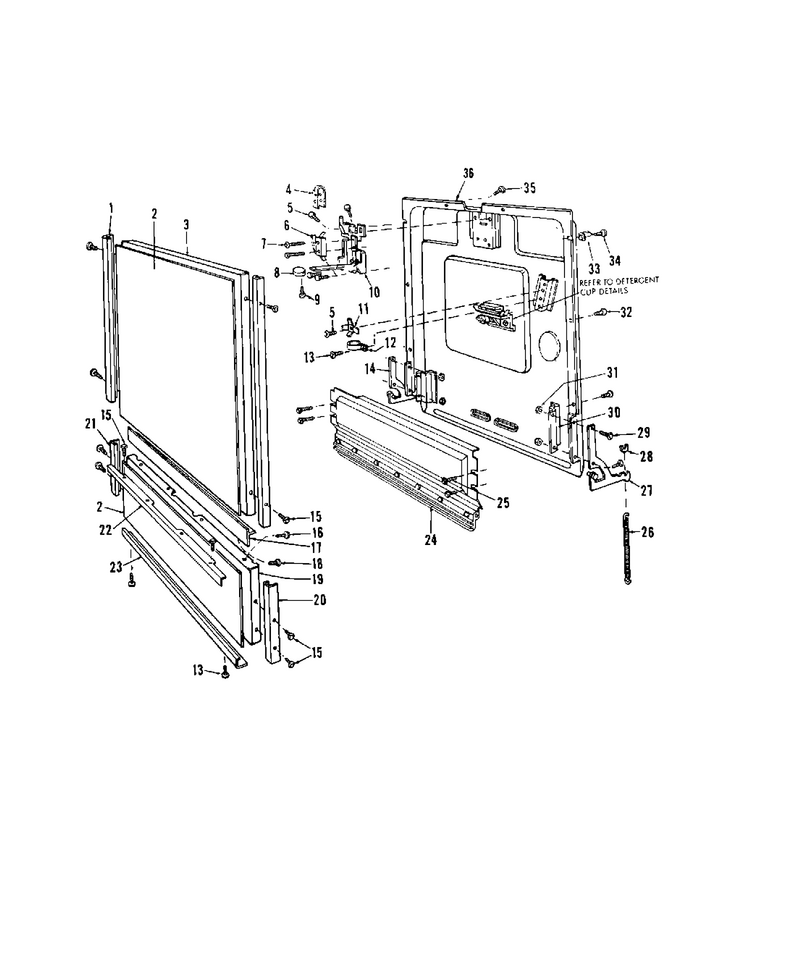

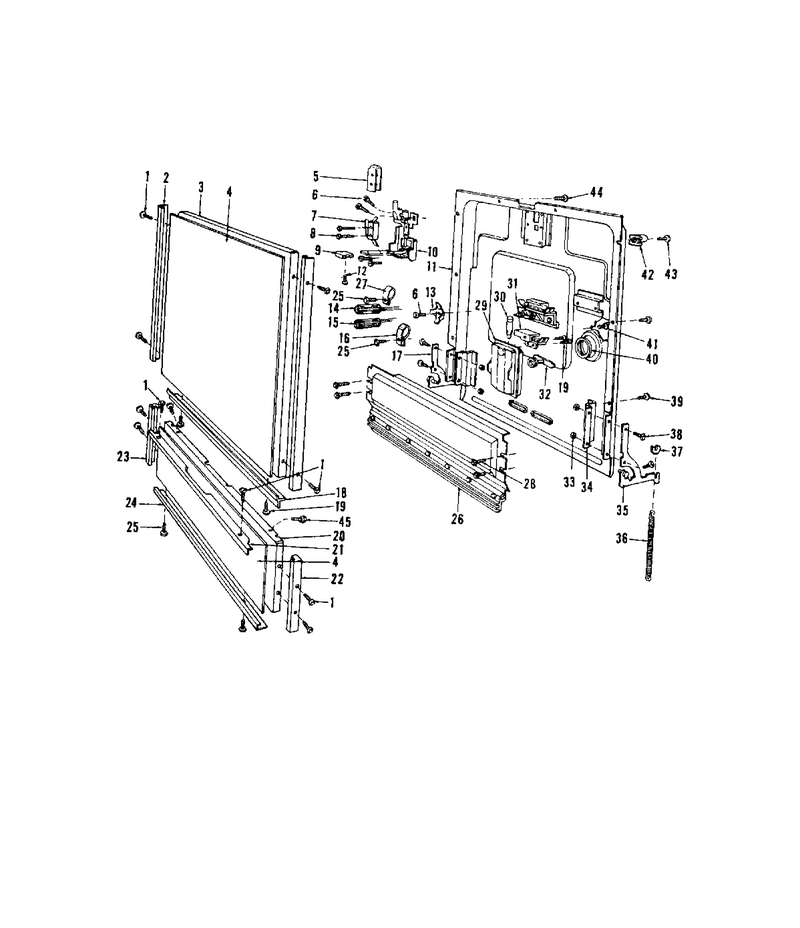

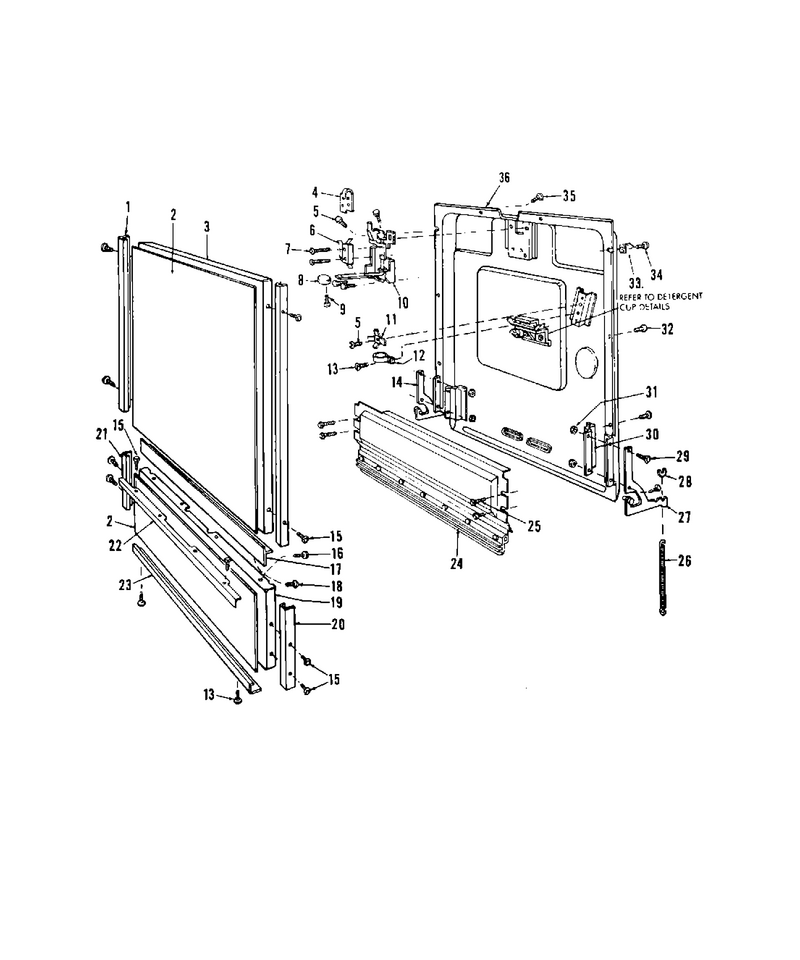

20 - Tub

...
...
1
Assembly, Precooler Formed WPL-SCREW
...
2
Door Panel Trim-Side WPL-808026
...
3
Door Panel (White) WPL-807262
...
4
Door & Access Insert Panels (Almond/black) WPL-808404
...
5
Cover - Switch WPL-807450
...
6
Screw 8-32x5/16 Lg. C.r. Hex Hd. Cad. Pl. WPL-806830
...
7
Xswitch WPL-807043
...
8
Screw 6-32x1``lg. Hex Hd. Cad. Pl. WPL-808618
...
9
Xlatch Knob WPL-806398
...
10
Xlatch Assembly WPL-807016
...
11
Porcelain Weld Assembly WPL-807194
...
12
Screw 8-32x5/16 Lg. Hex Hd. Cad. Pl. WPL-808715
...
13
Grounding Terminal WPL-807213
...
14
Xthermostat (High Limit) WPL-808485
...
15
Xthermostat (Water Heat) WPL-808646
...
16
Clamp WPL-808442
...
17
Xcounterbalance Arm Assembly-L.h. WPL-805682
...
18
Door Panel Trim-Bottom WPL-807347
...
19
Screw 8x1/2 Lg. C.r. Truss Hd. Chrome Pl. WPL-807501
...
20
Access Panel - White WPL-807257
...
21
Access Panel Trip - Top WPL-808346
...
22
Access Panel Trim-R.h. WPL-808028
...
23
Access Panel Trim - L.h. WPL-808029
...
24
Access Panel Trim-Bottom WPL-808027
...
25
Screw 8x3/ad. Pl. WPL-803416
...
26
Xvent Plate Assembly WPL-80-8369
...
27
Clamp WPL-808495
...
28
Screw 8x3/8 Lg. C.r. Round Hd. St. St. WPL-806810
...
29
Body Dispenser, Wetting Agent WPL-Y0806753
...
30
Xplunger WPL-806757
...
31
Bracket Assembly WPL-806756
...
32
Fill Plug WPL-Y0807673
...
33
Nut WPL-M0282009
...
34
Arm Bracket WPL-Y0806717
...
35
Xcounterbalance Arm Assem.r.h. WPL-805681
...
36
Xdoor Spring (Includes Key No. 37) WPL-80-5683
...
37
Spring Pad WPL-805884
...
38
Screw 10-24x5/8 Lg. C.r. Truss Hd. Chr. Pl. WPL-803311
...
39
Screw 8x1/2 Lg. C.r. Truss Hd. St. St. WPL-806967
...
40
Grommet - Dispenser WPL-805631
...
41
Screw 10x3/8 Lg. Truss Washer Hd. St. St. WPL-806863
...
42
Guide - Door WPL-807449
...
43
Screw 8x5/8 Lg. C.r. Truss Hd. St. St. WPL-808749
...
44
Screw 8x5/16 Lg. C.r. Hd. St. St. WPL-806894
...
45
Screw WPL-WP90767

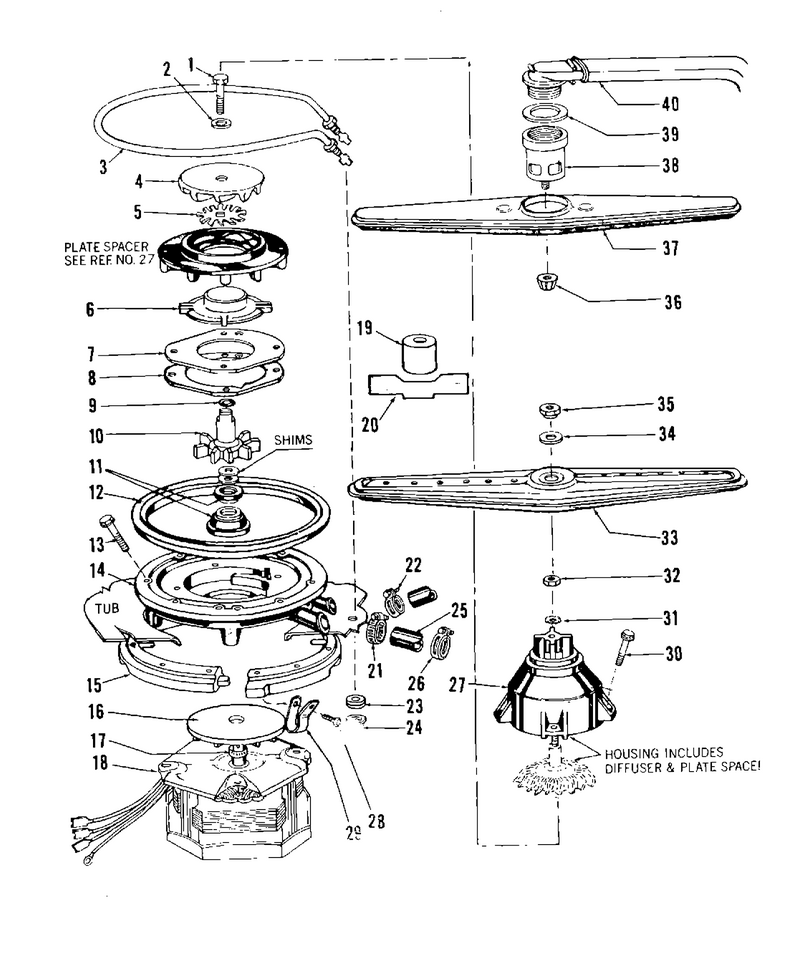

03 - Door

...
...
1
Screw 10-32x2 1/4 Lg. Hex Hd. St. St. WPL-806353
...
2
Washer WPL-803367
...
3
Xheater (Includes Key Nos. 23 & 24) WPL-806864
...
4
Xupper Impeller WPL-808041
...
5
Blade - Macerator WPL-808075
...
6
Shroud - Impeller WPL-806267
...
7
Plate - Pump WPL-807884
...
8
Xpump Gasket WPL-807709
...
9
``o`` Ring WPL-Y0806521
...
10
Xpump Seal Kit (Includes Key Nos. 2,4,5,9,11 & 20) WPL-808042
...
11
Water Seal WPL-803903
...
12
Pump Gasket WPL-809008
...
13
Screw 10x1 Lg. Hex Washer Hd. St. St. WPL-807268
...
14
Pump Housing WPL-809102
...
15
Xclamp Ring (2) WPL-807712
...
16
Watershield Fan (Includes Key No. 17) WPL-808899
...
17
Tolerance Ring WPL-808898
...
18
Motor Assembly WPL-Y0806300
...
19
Xseal Installation Tool WPL-803923
...
20
Gage - Seal Shim WPL-807077
...
21
Clamp WPL-WP285655
...
22
Drain Hose Clamp WPL-806090
...
23
Grommet - Heater WPL-806833
...
24
Heater Nut 1/2 20 Brass WPL-806834
...
25
Hose WPL-805674
...
26
Hose Clamp WPL-805495
...
27
Xpump Housing WPL-808700
...
28
Screw 8 X 5/8 Lg. C.r. Truss Hd. Cad. Pl. WPL-807270
...
29
Clamp WPL-808442
...
30
Screw 10 X 1 3/4 Lg. Hex Hd. St. St. WPL-807359
...
31
Lockwasher WPL-804526
...
32
Nut WPL-804527
...
33
Xspray Arm Assembly WPL-80-5577
...
34
Washer WPL-807590
...
35
Nut WPL-804473
...
36
Nut, Spray Arm WPL-Y0808181
...
37
Xupper Spray Arm Assembly WPL-808259
...
38
Distributor WPL-808183
...
39
Gasket WPL-808184--
...
40
Elbow & Tube Assembly WPL-808185

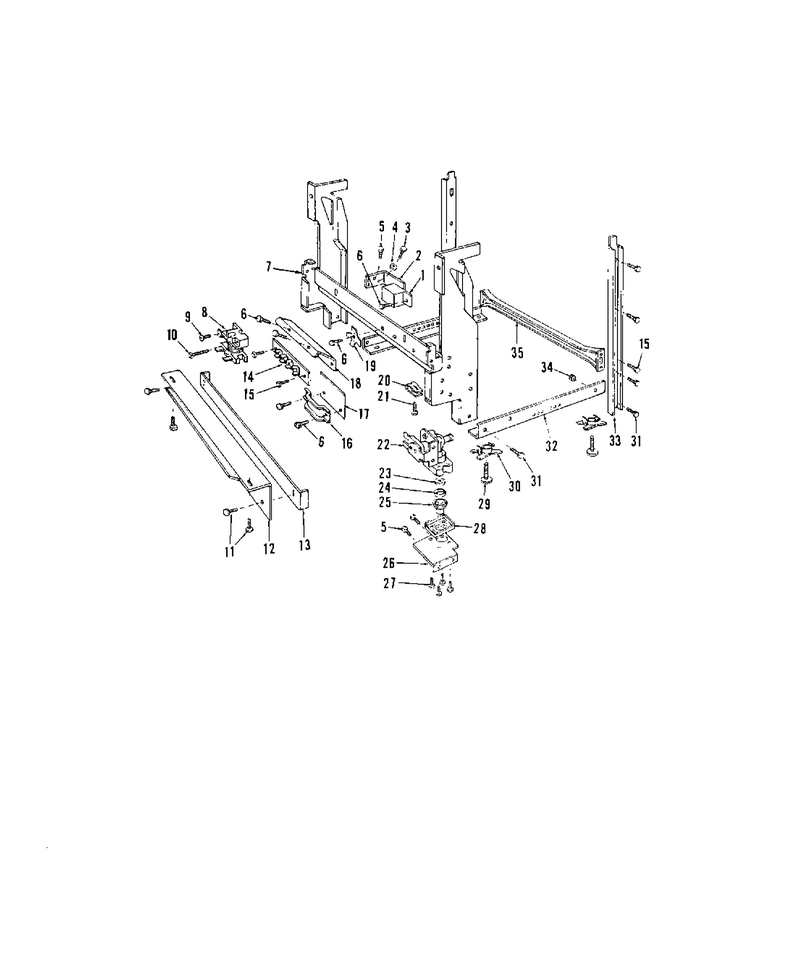

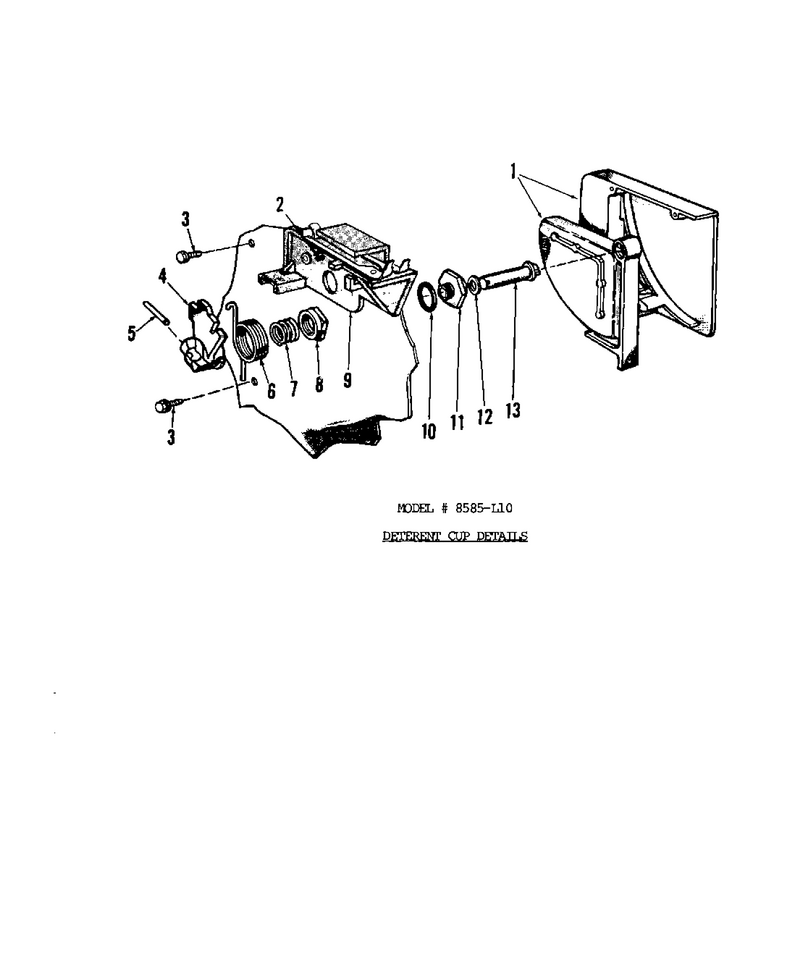

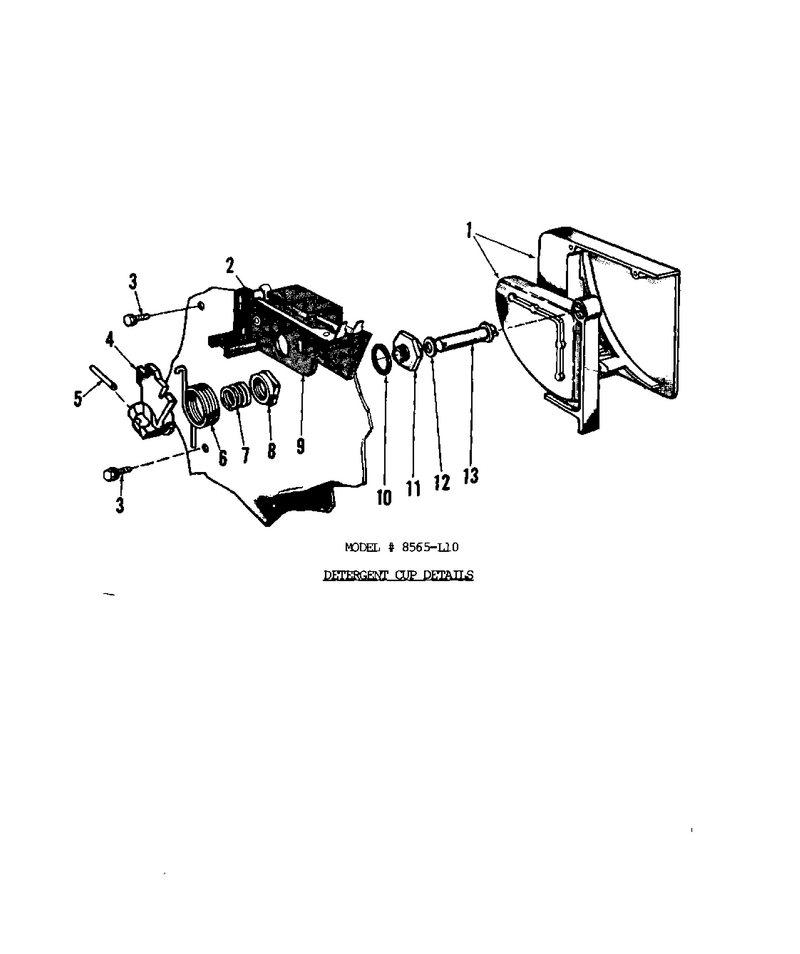

14 - Frame

...
...
1
Xdetergent Cup & Cover WPL-807261
...
2
``o`` Ring WPL-808210
...
3
Screw 8x5/8 Lg. Hex Washer Hd. St. St. WPL-806565
...
4
Cam WPL-806566
...
5
Spirol Pin WPL-Y0808827
...
6
Spring - Cam WPL-805227
...
7
Spring-Cam Compression WPL-806567
...
8
Detergent Cup Nut WPL-806568
...
9
Bi-Metal Assembly Kit (Includes Key No. 11) WPL-808507
...
10
Washer WPL-802836
...
11
Bushing WPL-805626
...
12
O-Ring WPL-WP912510

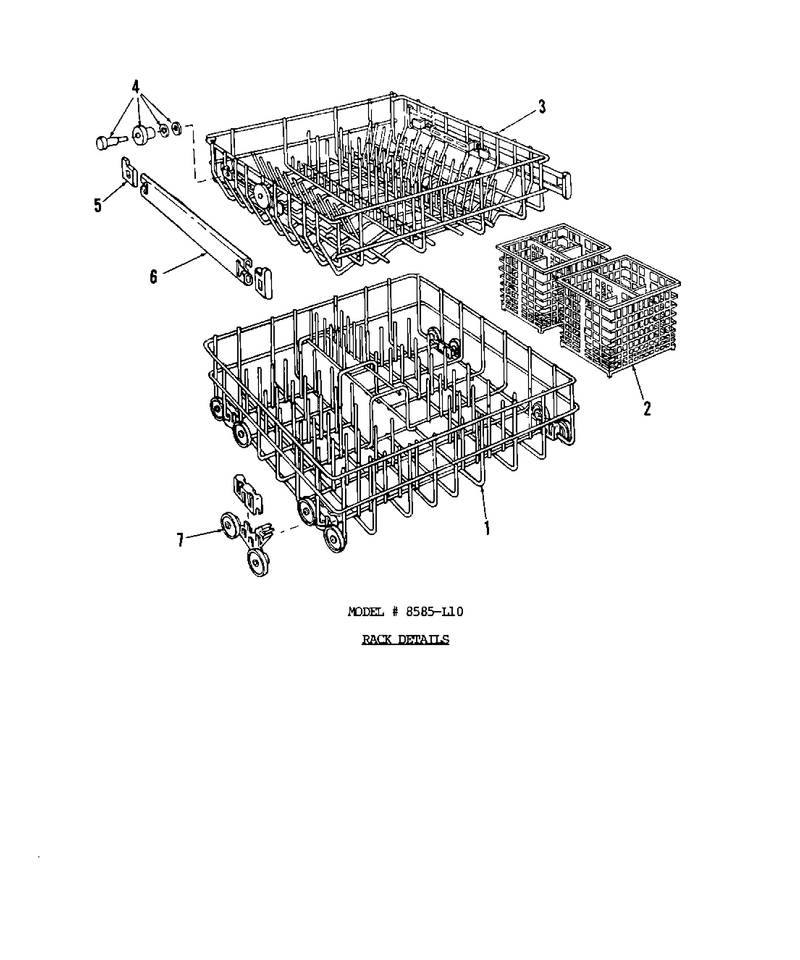

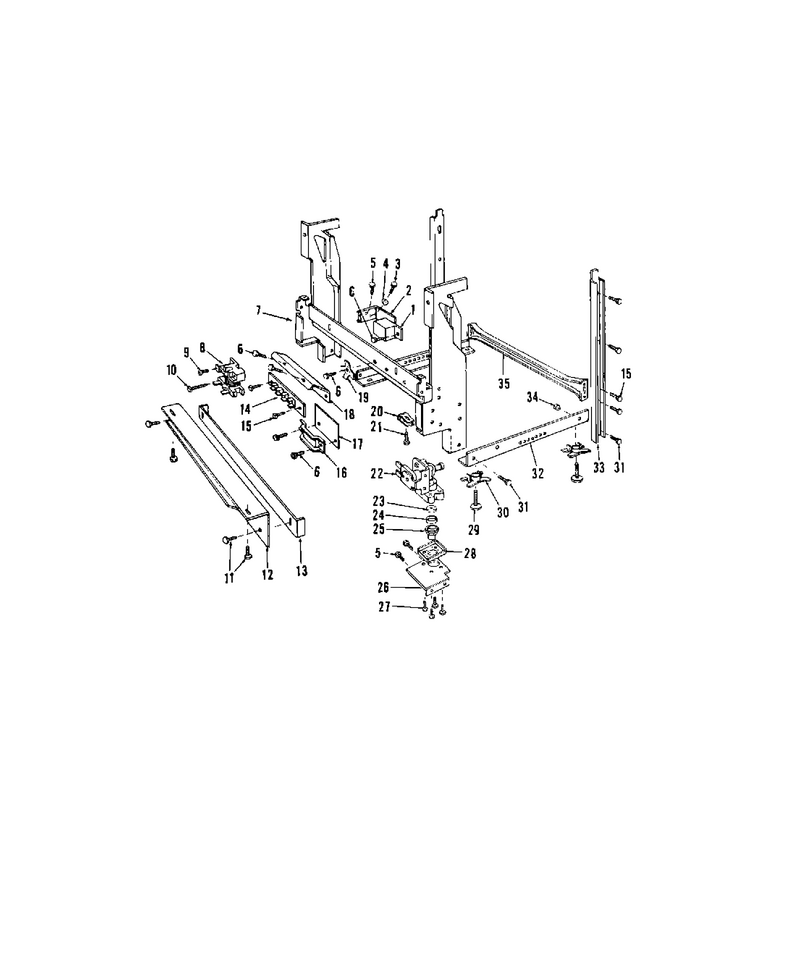

15 - Rack

...
...
1
Junction Box Cover WPL-800222
...
2
Junction Box Bracket WPL-807019
...
3
Screw 10-32x1/2 C.r. Hex Washer Hd. Cad. Pl. WPL-807951
...
4
Washer WPL-807373
...
5
Screw 10bx1/2 Lg. Hex Slot Hd. Cad. Pl. WPL-807950
...
6
Screw WPL-WP90767
...
7
Hinge Weld Assembly WPL-807848
...
8
Xmotor Relay WPL-805255
...
9
Assembly, Precooler Formed WPL-SCREW
...
10
Screw 8-32x1 1/4 Lg. C.r. Oval Hd. Cad. Pl. WPL-804672
...
11
Screw 1/4-20x1/2 Lg. Hex Washer Slotted Hd.black WPL-807001
...
12
Xtoeplate WPL-807850
...
13
Adjustable Toeplate WPL-806295
...
14
Terminal Block Assembly WPL-807486
...
15
Screw 8x1/2 Lg. C.r. Truss Hd. Chrome Pl. WPL-807501
...
16
Clamp - Wiring WPL-806723
...
17
Wire Shield WPL-808013
...
18
Terminal Board Bracket WPL-807849
...
19
Grounding Terminal WPL-807213
...
20
Speednut WPL-808170
...
21
Screw 1/4-20x3/4 Lg. Hex Washer Slotted Hd. Black WPL-807002
...
22
Xwater Valve Kit (Includes Key Nos. 23 & 24) WPL-808668
...
23
Flow Washer WPL-808457
...
24
Gasket WPL-Y0806100
...
25
Xinlet Fitting WPL-808337
...
26
Valve Mounting Bracket WPL-807613
...
27
Screw 8-18bx5/8 Lg. Hex Hd. Zinc Pl. WPL-808368
...
28
Inlet Fitting Retaining Plate WPL-808458
...
29
Xleveler WPL-807672
...
30
Xsnap-In Teenut WPL-807671
...
31
Screw 1/4-20x15/32 Lg. Hex Washer Hd. Black WPL-806889
...
32
Side Angle WPL-807851
...
33
Support Channel WPL-808670
...
34
Nut K WPL-M0282005
...
35
Rear Brace WPL-807852

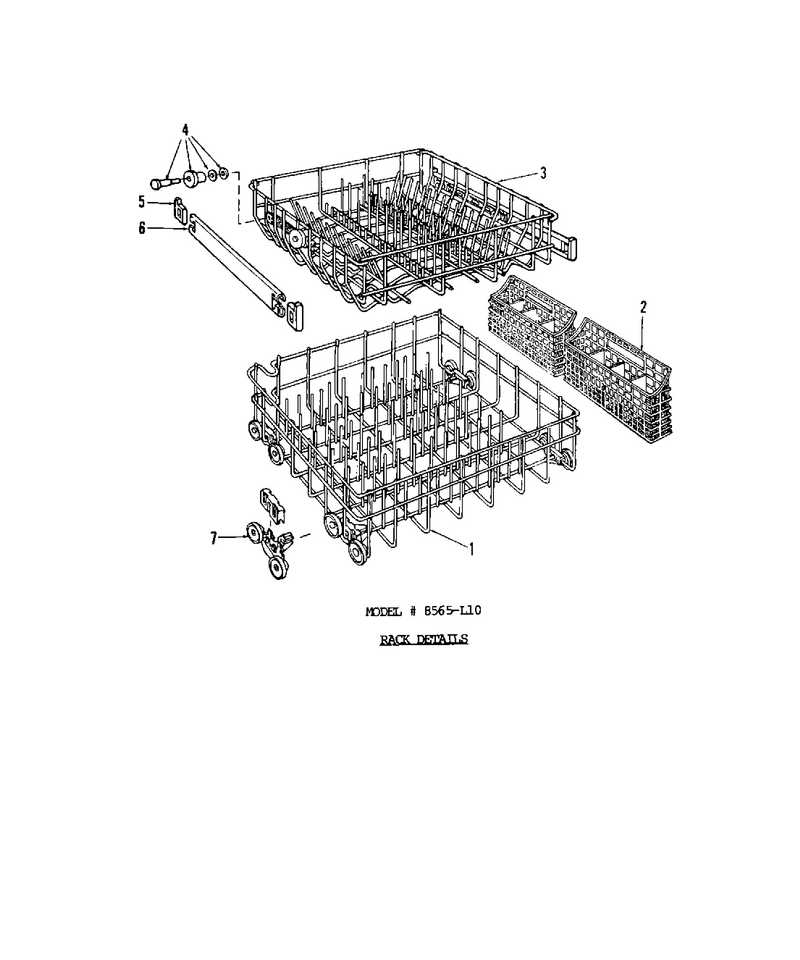

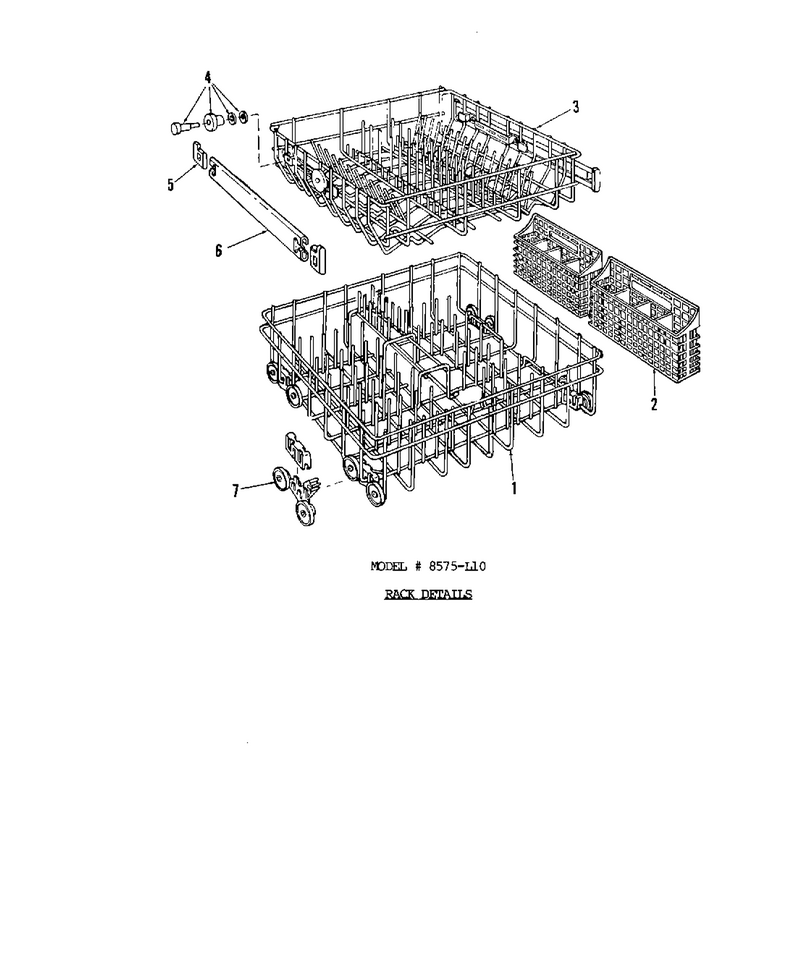

06 - Rack

...
...
1
Xdetergent Cup & Cover WPL-807261
...
2
``o`` Ring WPL-808210
...
3
Screw 8x5/8 Lg. Hex Washer Hd. St. St. WPL-806565
...
4
Cam WPL-806566
...
5
Spirol Pin WPL-Y0808827
...
6
Spring - Cam WPL-805227
...
7
Spring-Cam Compression WPL-806567
...
8
Detergent Cup Nut WPL-806568
...
9
Bi-Metal Assembly Kit (Includes Key No. 11) WPL-808507
...
10
Washer WPL-802836
...
11
Bushing WPL-805626
...
12
O-Ring WPL-WP912510

08 - Wiring Diagram

...
...
1
Junction Box Cover WPL-800222
...
2
Junction Box Bracket WPL-807019
...
3
Screw 10-32x1/2 C.r. Hex Washer Hd. Cad. Pl. WPL-807951
...
4
Washer WPL-807373
...
5
Screw 10bx1/2 Lg. Hex Slot Hd. Cad. Pl. WPL-807950
...
6
Screw WPL-WP90767
...
7
Hinge Weld Assembly WPL-807848
...
8
Xmotor Relay WPL-805255
...
9
Assembly, Precooler Formed WPL-SCREW
...
10
Screw 8-32x1 1/4 Lg. C.r. Oval Hd. Cad. Pl. WPL-804672
...
11
Screw 1/4-20x1/2 Lg. Hex Washer Slotted Hd.black WPL-807001
...
12
Xtoeplate WPL-807850
...
13
Adjustable Toeplate WPL-806295
...
14
Terminal Block Assembly WPL-807486
...
15
Screw 8x1/2 Lg. C.r. Truss Hd. Chrome Pl. WPL-807501
...
16
Clamp - Wiring WPL-806723
...
17
Wire Shield WPL-808013
...
18
Terminal Board Bracket WPL-807849
...
19
Grounding Terminal WPL-807213
...
20
Speednut WPL-808170
...
21
Screw 1/4-20x3/4 Lg. Hex Washer Slotted Hd. Black WPL-807002
...
22
Xwater Valve Kit (Includes Key Nos. 23 & 24) WPL-808668
...
23
Flow Washer WPL-808457
...
24
Gasket WPL-Y0806100
...
25
Xinlet Fitting WPL-808337
...
26
Valve Mounting Bracket WPL-807613
...
27
Screw 8-18bx5/8 Lg. Hex Hd. Zinc Pl. WPL-808368
...
28
Inlet Fitting Retaining Plate WPL-808458
...
29
Xleveler WPL-807672
...
30
Xsnap-In Teenut WPL-807671
...
31
Screw 1/4-20x15/32 Lg. Hex Washer Hd. Black WPL-806889
...
32
Side Angle WPL-807851
...
33
Support Channel WPL-808670
...
34
Nut K WPL-M0282005
...
35
Rear Brace WPL-807852

23 - Frame

...
...
1
Lower Rack Assy WPL-Y0808874
...
2
Silverware Basket WPL-Y0808845

04 - Tub

...
...
1
Door Panel Trim-Side WPL-808026
...
2
Door & Access Insert Panels (Almond/black) WPL-808404
...
3
Door Panel (White) WPL-807262
...
4
Cover - Switch WPL-807450
...
5
Screw 8-32x5/16 Lg. C.r. Hex Hd. Cad. Pl. WPL-806830
...
6
Xswitch WPL-807043
...
7
Screw 6x1 Lg. C.r. Round Hd. Zinc Pl. WPL-808425
...
8
Xlatch Knob WPL-806398
...
9
Screw 8-32x5/16 Lg. Hex Hd. Cad. Pl. WPL-808715
...
10
Xlatch Assembly WPL-807016
...
11
Grounding Terminal WPL-807213
...
12
Clamp WPL-808442
...
13
Screw 8x3/8 Lg. C.r. Binding Hd. Cad. Pl. WPL-803416
...
14
Xcounterbalance Arm Assembly-L.h. WPL-805682
...
15
Assembly, Precooler Formed WPL-SCREW
...
16
Screw WPL-WP90767
...
17
Door Panel Trim-Bottom WPL-807347
...
18
Screw 8x1/2 Lg. C.r. Truss Hd. Chrome Pl. WPL-807501
...
19
Access Panel - White WPL-807257
...
20
Access Panel Trim-R.h. WPL-808028
...
21
Access Panel Trim - L.h. WPL-808029
...
22
Access Panel Trip - Top WPL-808346
...
23
Sub 808027 Trim, Access WPL-Y0809994
...
24
Xvent Plate Assembly WPL-80-8369
...
25
Screw 8x3/8 Lg. C.r. Round Hd. St. St. WPL-806810
...
26
Xdoor Spring (Includes Key No. 28) WPL-80-5683
...
27
Xcounterbalance Arm Assembly R.h. WPL-805681
...
28
Spring Pad WPL-805884
...
29
Screw 10-24x5/8 Lg. C.r. Truss Hd. Chr. Pl. WPL-803311
...
30
Arm Bracket WPL-Y0806717
...
31
Nut WPL-M0282009
...
32
Screw 8x1/2 Lg. C.r. Truss Hd. St. St. WPL-806967
...
33
Guide - Door WPL-807449
...
34
Screw 8x5/8 Lg. C.r. Truss Hd. St. St. WPL-808749
...
35
Screw 8 X 5/16 Lg. C.r. Truss Hd. St. St. WPL-806894
...
36
Weld & Finish Assembly WPL-807191

11 - Tub

...
...
1
Door Panel Trim-Side WPL-808026
...
2
Door & Access Insert Panels (Almond/black) WPL-808404
...
3
Door Panel (White) WPL-807262
...
4
Cover - Switch WPL-807450
...
5
Screw 8-32x5/16 Lg. C.r. Hex Hd. Cad. Pl. WPL-806830
...
6
Xswitch WPL-807043
...
7
Screw 6x1 Lg. C.r. Round Hd. Zinc Pl. WPL-808425
...
8
Xlatch Knob WPL-806398
...
9
Screw 8-32x5/16 Lg. Hex Hd. Cad. Pl. WPL-808715
...
10
Xlatch Assembly WPL-807016
...
11
Grounding Terminal WPL-807213
...
12
Clamp WPL-808442
...
13
Screw 8x3/8 Lg. C.r. Binding Hd. Cad. Pl. WPL-803416
...
14
Xcounterbalance Arm Assembly-L.h. WPL-805682
...
15
Assembly, Precooler Formed WPL-SCREW
...
16
Screw WPL-WP90767
...
17
Door Panel Trim-Bottom WPL-807347
...
18
Screw 8x1/2 Lg. C.r. Truss Hd. Chrome Pl. WPL-807501
...
19
Access Panel - White WPL-807257
...
20
Access Panel Trim-R.h. WPL-808028
...
21
Access Panel Trim - L.h. WPL-808029
...
22
Access Panel Trip - Top WPL-808346
...
23
Sub 808027 Trim, Access WPL-Y0809994
...
24
Xvent Plate Assembly WPL-80-8369
...
25
Screw 8x3/8 Lg. C.r. Round Hd. St. St. WPL-806810
...
26
Xdoor Spring (Includes Key No. 28) WPL-80-5683
...
27
Xcounterbalance Arm Assembly R.h. WPL-805681
...
28
Spring Pad WPL-805884
...
29
Screw 10-24x5/8 Lg. C.r. Truss Hd. Chr. Pl. WPL-803311
...
30
Arm Bracket WPL-Y0806717
...
31
Nut WPL-M0282009
...
32
Screw 8x1/2 Lg. C.r. Truss Hd. St. St. WPL-806967
...
33
Guide - Door WPL-807449
...
34
Screw 8x5/8 Lg. C.r. Truss Hd. St. St. WPL-808749
...
35
Screw 8 X 5/16 Lg. C.r. Truss Hd. St. St. WPL-806894
...
36
Weld & Finish Assembly WPL-807191

18 - Motor, Heater, Spray Arm

...
...
1
Screw 8x7/16 Lg. C.r. Pan Hd. Cad. Pl. WPL-806943
...
2
End Cap - L.h. (Chrome) WPL-808811
...
3
Xpushbutton WPL-807273
...
4
Vent Grille WPL-808477--
...
5
Speednut WPL-808475
...
6
Screw 10-32x1 17/64 Lg. C.r. Truss Hd. Zinc Pl. WPL-808422
...
7
Xtimer Knob WPL-808812
...
8
Xrocker Switch WPL-807737
...
9
Lens-Red WPL-805664
...
10
Console Panel (Includes Key Nos. 4 & 5) WPL-808817
...
11
End Cap-R.h. (Chrome) WPL-808810
...
12
Xlight Assembly WPL-808736
...
13
Clamp WPL-808442
...
14
Clamp WPL-W10833902
...
15
Terminal Board Assembly WPL-808483
...
16
Spacer WPL-808424
...
17
Timer WPL-Y0808682
...
18
Timer Housing (Black) WPL-808231
...
19
Housing Terminal WPL-808333
...
20
Terminal - Timer WPL-808334
...
21
Screw 6-30 X 3/8 Lg. Pan Hd Cad. Pl. WPL-807141
...
22
Screw 8x3/8 Lg. C.r. Binding Hd. Cad. Pl. WPL-803416
...
23
Screw 8 X 5/16 Lg. C.r. Truss Hd. St. St. WPL-806894
...
24
Splash Pan WPL-807425
...
25
Xlight Assembly WPL-808711
...
26
Xswitch WPL-808744
...
27
Shield - Vent Slot WPL-808398
...
28
Switch Mounting Bracket WPL-808814

16 - Wiring Diagram

...
...
1
Lower Rack Assy WPL-Y0808874
...
2
Silverware Basket WPL-Y0807512
...
3
Upper Rack Assembly WPL-807902
...
4
Xcomplete Wheel Assembly WPL-807957
...
5
Xend Cap Rack Slide WPL-807853
...
6
Xrack Slide WPL-807854
...
7
Wheel & Bracket Assembly (4) WPL-80-7008

07 - Frame

...
...
1
Lower Rack Assembly WPL-808876
...
2
Silverware Basket WPL-Y0807512
...
3
Upper Rack Assembly WPL-807902
...
4
Xcomplete Wheel Assembly WPL-807957
...
5
End Cap Rack Slide WPL-807853

22 - Rack

...
...
1
Xdetergent Cup & Cover WPL-807261
...
2
``o`` Ring WPL-808210
...
3
Screw 8x5/8 Lg. Hex Washer Hd. St. St. WPL-806565
...
4
Cam WPL-806566
...
5
Spirol Pin WPL-Y0808827
...
6
Spring - Cam WPL-805227
...
7
Spring-Cam Compression WPL-806567
...
8
Xdetergent Cup Nut WPL-806568
...
9
Bi-Metal Assembly Kit (Includes Key No. 11) WPL-808507
...
10
Washer WPL-802836
...
11
Bushing WPL-805626
...
12
O-Ring WPL-WP912510

10 - Door

...
...
1
Screw 8x7/16 Lg. C.r. Pan Hd. Cad. Pl. WPL-806943
...
2
End Cap - L.h. (Chrome) WPL-808811
...
3
Xpushbutton WPL-807273
...
4
Speednut WPL-808475
...
5
Vent Grille WPL-808477--
...
6
Xtimer Knob WPL-808812
...
7
Screw 10-32x1 17/64 Lg. C.r. Truss Hd. Zinc Pl. WPL-808422
...
8
Lens-Red WPL-805664
...
9
Console Panel (Includes Key Nos. 4 & 5) WPL-808942
...
10
End Cap-R.h. (Chrome) WPL-808810
...
11
Xlight Assembly WPL-808711
...
12
Clamp WPL-W10833902
...
13
Clamp WPL-808442
...
14
Terminal Board Assembly WPL-808483
...
15
Spacer WPL-808424
...
16
Xtimer WPL-808671
...
17
Timer Housing (Black) WPL-808231
...
18
Housing Terminal WPL-808333
...
19
Terminal - Timer WPL-808334
...
20
Screw 8x3/8 Lg. C.r. Binding Hd. Cad. Pl. WPL-803416
...
21
Splash Pan WPL-807425
...
22
Screw 8 X 5/16 Lg. C.r. Truss Hd. St. St. WPL-806894
...
23
Xswitch WPL-808407
...
24
Shield - Vent Slot WPL-808398
...
25
Switch Mounting Bracket WPL-808814
...
26
Screw 6-30 X 3/8 Lg. Pan Hd Cad. Pl. WPL-807141

12 - Motor, Heater, And Spray Arm

...
...
1
Tub & Gasket Assembly WPL-808725
...
2
Attach Clip WPL-808289
...
3
Drain Hose WPL-806089
...
4
Screw 8x7/16 Lg. C.r. Truss Hd. St. St. WPL-806976
...
5
Shim WPL-807073
...
6
Xdoor Strike WPL-807015
...
7
Assembly, Precooler Formed WPL-SCREW
...
8
Tub Gasket Clip Kit (Includes Key No. 20) WPL-805763
...
9
Sealing Washer WPL-805776
...
10
Washer WPL-803367
...
11
Tub Roller WPL-807180
...
12
Screw & Washer Kit (Includes Key Nos. 9 & 10) WPL-808564
...
13
Guide, Counterbalance, L.h. WPL-Y0807470
...
14
Float WPL-Y0804630
...
15
Screw 10x1 Lg. Hex Washer Hd. St. St. WPL-807268
...
16
Plate - Float Tube WPL-808064
...
17
Gasket - Float Tube WPL-808063
...
18
Nut WPL-803346
...
19
Counterbalance Arm Guide R.h. WPL-807471
...
20
Dam Clip WPL-808115
...
21
Assembly, Precooler Formed WPL-SCREW
...
22
``o`` Ring WPL-807759
...
23
Screw 10-24 X 7/8 Lg. Acorn Hex Washer Hd. Chr. Pl. WPL-806539
...
24
Gasket Junction Wire WPL-808344
...
25
Gasket Kit WPL-809034K
...
26
Float Assy WPL-Y0809859
...
27
Float Switch WPL-Y0807680
...
28
Screw 4-40x5/8`` Lg. Hex Hd. Cad. Pl. WPL-804594
...
29
Screw 8 X 5/8 Lg. C.r. Hex Washer Hd. St. St. WPL-806901
...
30
Blower Housing Gasket WPL-806797
...
31
Tapping Plate WPL-808705
...
32
Xvent Stack WPL-808706
...
33
Water Inlet Tubing (Includes Key No. 34) WPL-807891
...
34
Clamp WPL-807813
...
35
Water Inlet Nozzle WPL-808707
...
36
Screw 8 X 1/2 Lg. C.r. Flat Hd. Cad. Pl. WPL-808818
...
37
Tapping Plate WPL-807038
...
38
Cage Nut WPL-806291
...
39
Latch Tapping Plate WPL-808868

19 - Door

...
...
1
Screw 10-32x2 1/4 Lg. Hex Hd. St. St. WPL-806353
...
2
Washer WPL-803367
...
3
Xheater (Includes Key Nos. 23 & 24) WPL-806864
...
4
Xupper Impeller WPL-808041
...
5
Blade - Macerator WPL-808075
...
6
Shroud - Impeller WPL-806267
...
7
Plate - Pump WPL-807884
...
8
Xpump Gasket WPL-807709
...
9
``o`` Ring WPL-Y0806521
...
10
Xpump Seal Kit (Includes Key Nos. 2,4,5,9,11 & 20) WPL-808042
...
11
Water Seal WPL-803903
...
12
Pump Gasket WPL-809008
...
13
Screw 10x1 Lg. Hex Washer Hd. St. St. WPL-807268
...
14
Pump Housing WPL-809102
...
15
Xclamp Ring (2) WPL-807712
...
16
Watershield Fan (Includes Key No. 17) WPL-808899
...
17
Tolerance Ring WPL-808898
...
18
Motor Assembly WPL-Y0806300
...
19
Xseal Installation Tool WPL-803923
...
20
Gage - Seal Shim WPL-807077
...
21
Clamp WPL-WP285655
...
22
Drain Hose Clamp WPL-806090
...
23
Grommet - Heater WPL-806833
...
24
Heater Nut 1/2 20 Brass WPL-806834
...
25
Hose Clamp WPL-805495
...
26
Hose WPL-805674
...
27
Xpump Housing Kit (Includes Key Nos. 6 & 7) WPL-80-6978
...
28
Screw 8 X 5/8 Lg. C.r. Truss Hd. Cad. Pl. WPL-807270
...
29
Clamp WPL-808442
...
30
Screw 10 X 1 3/4 Lg. Hex Hd. St. St. WPL-807359
...
31
Lockwasher WPL-804526
...
32
Nut WPL-804527
...
33
Bearing WPL-80-8175
...
34
Xspray Arm Nut WPL-80-8176
...
35
Xspray Arm Assembly WPL-808177
...
36
Xtower Base WPL-80-8178
...
37
Xtower Section WPL-80-8179
...
38
Xtower Tip WPL-80-8180
...
39
Nut, Spray Arm WPL-Y0808181
...
40
Upper Spray Arm Assembly WPL-808259
...
41
Distributor WPL-808183
...
42
Gasket WPL-808184--
...
43
Elbow & Tube Assembly WPL-808185

21 - Detergent Cup

...
...
1
Tub & Gasket Assembly WPL-808725
...
2
Attach Clip WPL-808289
...
3
Drain Hose WPL-806089
...
4
Screw 8x7/16 Lg. C.r. Truss Hd. St. St. WPL-806976
...
5
Shim WPL-807073
...
6
Xdoor Strike WPL-807015
...
7
Assembly, Precooler Formed WPL-SCREW
...
8
Xtub Gasket Clip Kit (Includes Key No. 20) WPL-805763
...
9
Sealing Washer WPL-805776
...
10
Washer WPL-803367
...
11
Tub Roller WPL-807180
...
12
Screw & Washer Kit (Includes Key Nos. 9 & 10) WPL-808564
...
13
Guide, Counterbalance, L.h. WPL-Y0807470
...
14
Float WPL-Y0804630
...
15
Screw 10x1 Lg. Hex Washer Hd. St. St. WPL-807268
...
16
Gasket - Float Tube WPL-808063
...
18
Nut WPL-803346
...
19
Counterbalance Arm Guide R.h. WPL-807471
...
20
Dam Clip WPL-808115
...
21
Assembly, Precooler Formed WPL-SCREW
...
22
``o`` Ring WPL-807759
...
23
Screw 10-24 X 7/8 Lg. Acorn Hex Washer Hd. Chr. Pl. WPL-806539
...
24
Gasket Junction Wire WPL-808344
...
25
Gasket Kit WPL-809034K
...
26
Float Assy WPL-Y0809859
...
27
Float Switch WPL-Y0807680
...
28
Screw 4-40x5/8`` Lg. Hex Hd. Cad. Pl. WPL-804594
...
29
Screw 8 X 5/8 Lg. C.r. Hex Washer Hd. St. St. WPL-806901
...
30
Blower Housing Gasket WPL-806797
...
31
Tapping Plate WPL-808705
...
32
Xvent Stack WPL-808706
...
33
Water Inlet Tubing (Includes Key No. 34) WPL-807891
...
34
Clamp WPL-807813
...
35
Water Inlet Nozzle WPL-808707
...
36
Screw 8x1/2 Lg. C.r. Flat 17 Hd. Cad. Pl. WPL-808818
...
37
Tapping Plate WPL-807038
...
38
Cage Nut WPL-806291
...
39
Latch Tapping Plate WPL-808868
Schematic Image Zoomed
Scroll to zoom • Drag to pan • Click to close
Press Esc or click background to close Pinch to zoom • Tap to close
Shopper Approved
USA Today Champions 2025
BBB Accredited
Newsweek Best Online Shops 2025
Google Reviews
Processing
