Roper 8567L10

Model: 8567L10

Save Part Not Listed?
product name

Popular Parts

Popular Parts

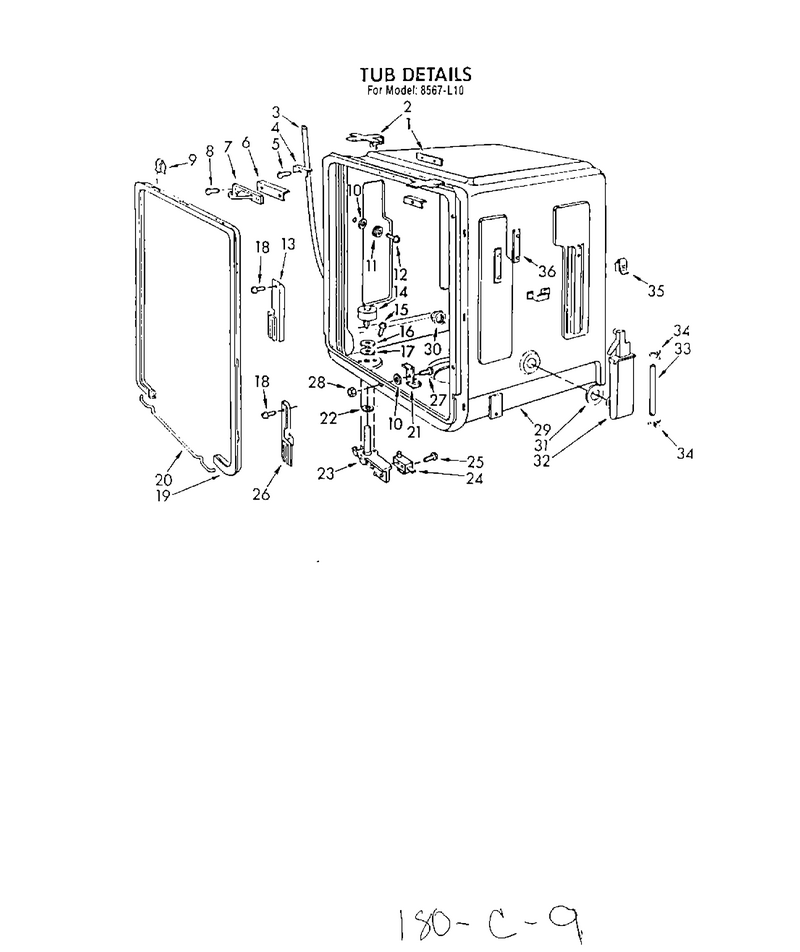

06 - Tub

...
...
1
Latch Plate WPL-965313
...
2
Attach Clip (2) WPL-965210
...
3
Drain Hose WPL-965314
...
4
Clip Shim WPL-4340871
...
5
Screw, No.8 X 7/16 WPL-4340330
...
6
Shim WPL-4340875
...
7
Strike WPL-965213
...
8
Screw, 10-16 X 3/4 WPL-489003
...
9
Tub Gasket Clip Kit (Includes Key No. 21) WPL-4340183
...
10
Washer WPL-4340836
...
11
Tub Roller WPL-4340379
...
12
Screw & Washer Kit (Includes Key 10) WPL-4340681
...
13
Counterbalance Arm Guide (L.h) WPL-4340426
...
14
Float WPL-965221
...
15
Screw, 10 X 1 Hex Wash. Hd. St. Stl. (6) WPL-965222
...
16
Float Tube Plate WPL-965224
...
17
Float Tube Gasket WPL-965225
...
18
Screw, No.10-24 X 7/8 WPL-4340255
...
19
Gasket & Wire Assembly (Includes Keys 9 & 20) WPL-4340834
...
20
Gasket Junction Wire WPL-4340889
...
21
Gasket Clip WPL-965228
...
22
``o`` Ring WPL-965230
...
23
Float Assembly (Includes Items 16, 17, 22, 27 & 28) WPL-965234
...
24
Switch-Wl WPL-4169178
...
25
Screw, No.4-40 X 5/8 WPL-4342581
...
26
Counterbalance Arm Guide (R.h) WPL-4340427
...
27
Screw, 8-32 X 1/2 WPL-965229
...
28
Nut WPL-WP486255
...
29
Tub-Dishwr WPL-4340860
...
30
Nut WPL-965341
...
31
Gasket, Inlet WPL-965342
...
32
Water Inlet WPL-965343
...
33
Tubing, Inlet (Includes Item 34) WPL-965241
...
34
Clamp, Hose WPL-4161505
...
35
Cage Nut WPL-4340231
...
36
Tapping Plate (4) WPL-965246

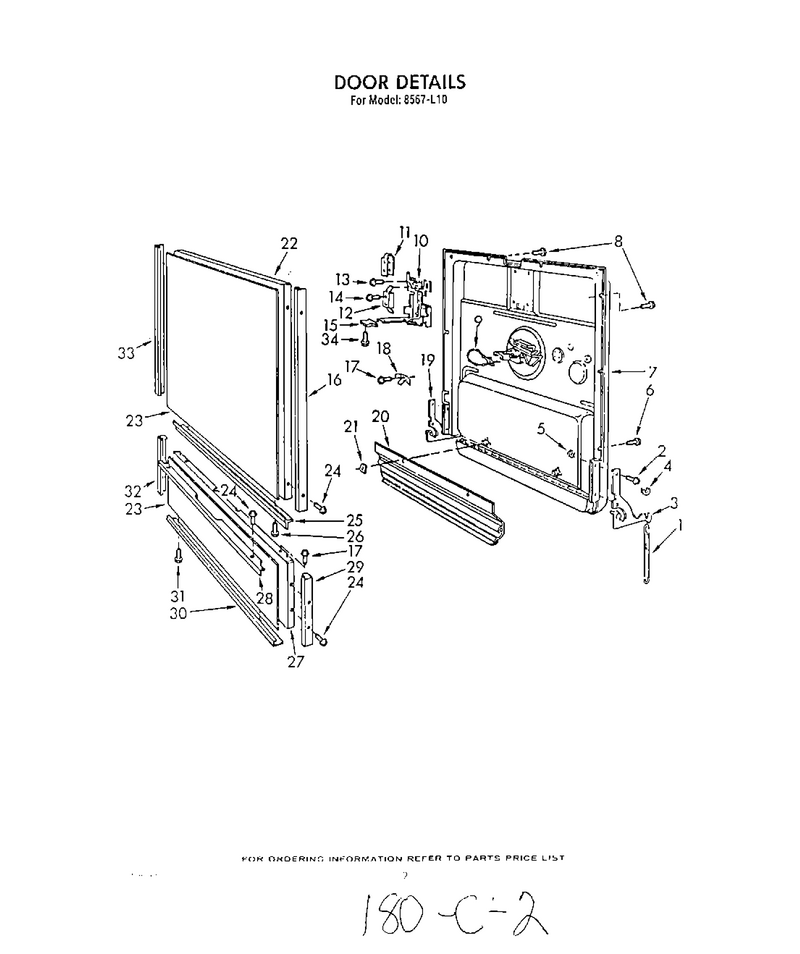

02 - Door

...
...
1
Door Spring WPL-4340177
...
2
Screw, No.10-24 X 5/8 WPL-4340094
...
3
Counterbal, Arm Assembly (R.h) WPL-4340175
...
4
Spring Pad (2) WPL-965181
...
5
Nut WPL-W10080180
...
6
Screw, 8 X 7/16 WPL-4340841
...
7
Door, Assembly WPL-4340839
...
8
Screw WPL-W11693756
...
9
Tie-Wire WPL-WPW10339879
...
10
Latch Assembly WPL-965163
...
11
Switch Cover WPL-965165
...
12
Switch WPL-965167
...
13
Screw, 8 X 5/8 WPL-4340832
...
14
Screw, No.6-32 X 1 WPL-4340692
...
15
Latch Knob WPL-965169
...
16
Door Panel Trim (R.h) WPL-4340808
...
17
Screw, No.8 X 3/8 WPL-4340701
...
18
Grounding Terminal WPL-4340385
...
19
Counterbalance Arm Assembly (L.h) WPL-4340176
...
20
Baffle Seal WPL-4340829
...
21
Speednut WPL-4340830
...
22
Door Panel (White) WPL-4340395
...
23
Door & Access Panel Inserts (Almond) WPL-4340786
...
24
Screw, No.6 X 1/4 WPL-4340403
...
25
Door Panel Trim (Bottom) WPL-4340409
...
26
Screw WPL-WP488729
...
27
Access Panel (White) WPL-4340850
...
28
Access Panel Trim (Top) WPL-4340617
...
29
Access Panel Trim (R.h) WPL-4340525
...
30
Access Panel Trim (Bottom) WPL-4340524
...
31
Screw WPL-WP965173
...
32
Access Panel Trim (R.h) WPL-4340526
...
33
Door Panel Trim (L.h) WPL-4340809
...
34
Screw, No.8-32 X 1/16 WPL-4340864

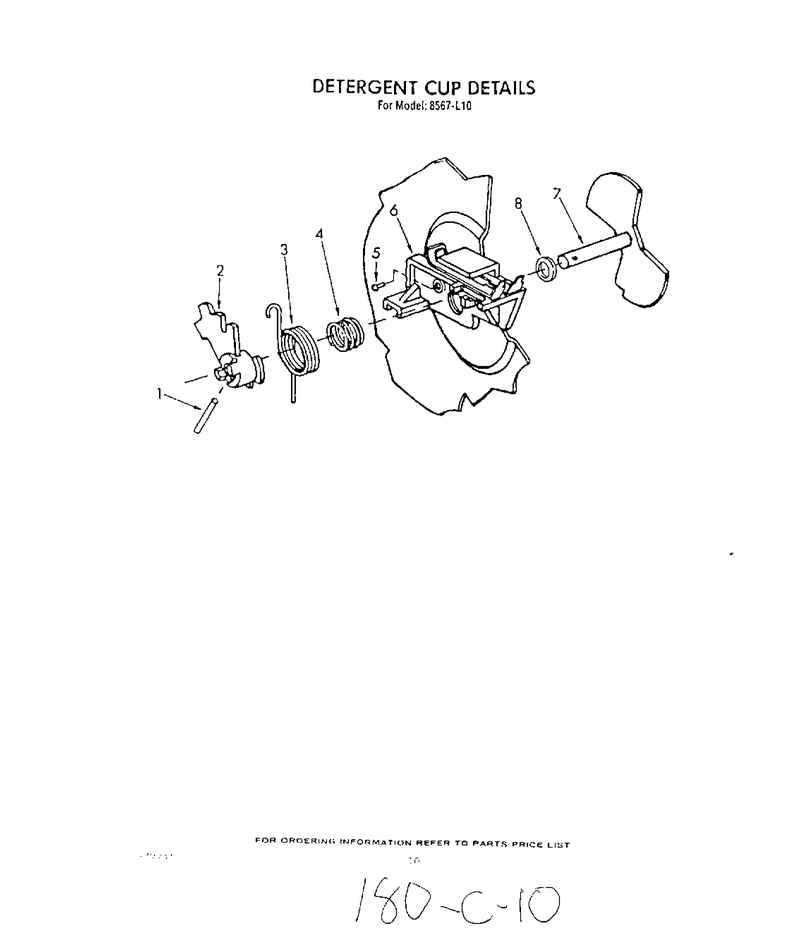

07 - Detergent Cup

...
...
1
Spiral Pin WPL-965312
...
2
Cam WPL-965199
...
3
Cam Spring WPL-4340147
...
4
Spring, Cam Compression WPL-965202
...
5
Screw, 8 X 5/8 WPL-4340832
...
6
Bi-Metal Assembly WPL-4340844
...
7
Dispenser Lid WPL-4340831
...
8
Det-Cup WPL-965446

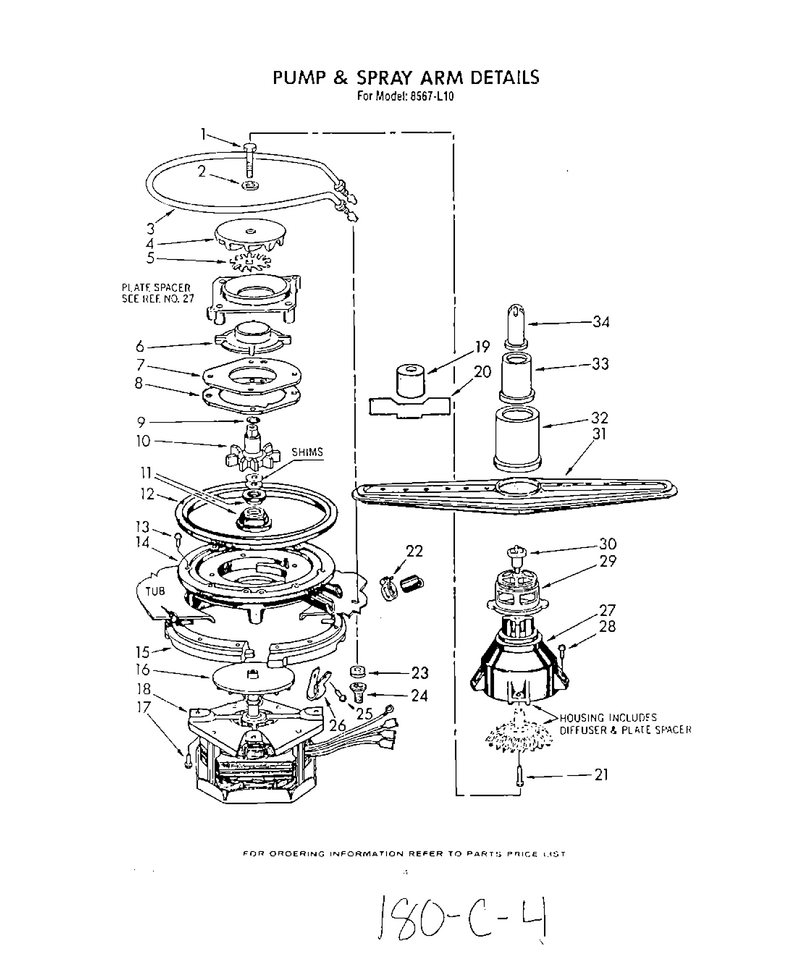

03 - Pump And Spray Arm

...
...
1
Screw, No.10-32 X 2 1/4 WPL-4340235
...
2
Washer WPL-4340098
...
3
Heater (Includes Illus. 10 & 11) WPL-965319
...
4
Upper Impeller WPL-4340815
...
5
Macerator Blade WPL-4340535
...
6
Impeller Shroud WPL-4340225
...
7
Pump Plate WPL-4340510
...
8
Pump Gasket WPL-4340487
...
9
O-Ring WPL-4340254
...
10
Pump Seal Kit (Includes Keys 2 4, 5, 9, 11 & 20) WPL-4340855
...
11
Water Seal WPL-4340106
...
12
Gasket, Pump WPL-965320
...
13
Screw, 10 X 1 Hex Wash. Hd. St. Stl. (6) WPL-965222
...
14
Housing, Pump WPL-965386
...
15
Clamp Ring Half (2) WPL-965287
...
16
Watershield Assembly WPL-4340897
...
17
Screw, 10 X 1 WPL-4340828
...
18
Motor-Pump WPL-965564
...
19
Seal Installation Tool WPL-4340107
...
20
Seal Shim Gage WPL-4340362
...
21
Screw WPL-4340141
...
22
Hose Clamp WPL-4340572
...
23
Heater Grommet WPL-4340295
...
24
Heater Nut 1/2-20 WPL-4340296
...
25
Screw WPL-W11693756
...
26
Clamp WPL-4340643
...
27
Impeller Housing Kit (Includes Keys 6 & 7) WPL-4340856
...
28
Screw, No.10 X 1 3/4 WPL-4340412
...
29
Bearing, Spray Arm WPL-965322
...
30
Nut, Spray Arm WPL-965323
...
31
Spray Arm Assembly WPL-4340564
...
32
Tower Base WPL-965277
...
33
Tower Section WPL-965276
...
34
Tower Tip WPL-4340567

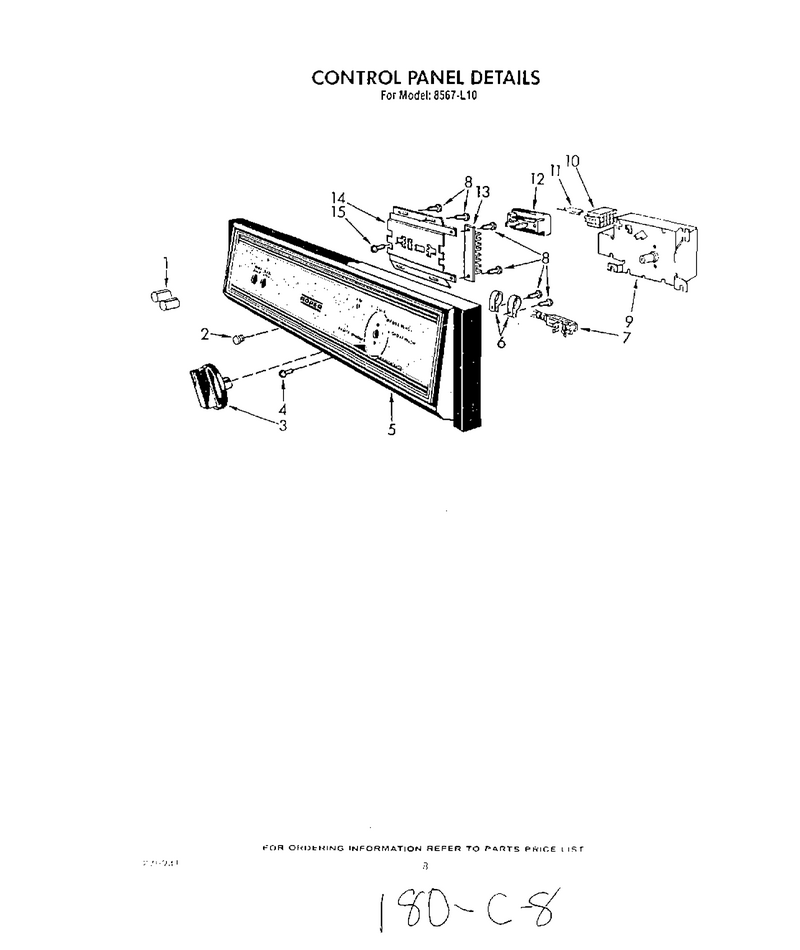

05 - Control Panel

...
...
1
Push Buttons WPL-4340899
...
2
Lens WPL-4340835
...
3
Cycle Indicator Knob WPL-4342579
...
4
Screw, No.10-32 X 27/32 WPL-4340153
...
5
Control Panel WPL-4340901
...
6
Clamp WPL-4340643
...
7
Light Assembly WPL-4340888
...
8
Screw, No.8 X 7/16 WPL-4340865
...
9
Timer WPL-4342596
...
10
Timer Terminal Housing WPL-4340884
...
11
Housing Terminal WPL-4340607
...
12
Switch WPL-4340402
...
13
Terminal Board WPL-965151
...
14
Switch Mounting Bracket WPL-4340887
...
15
Screw, 6-30 X 3/8 WPL-4340369

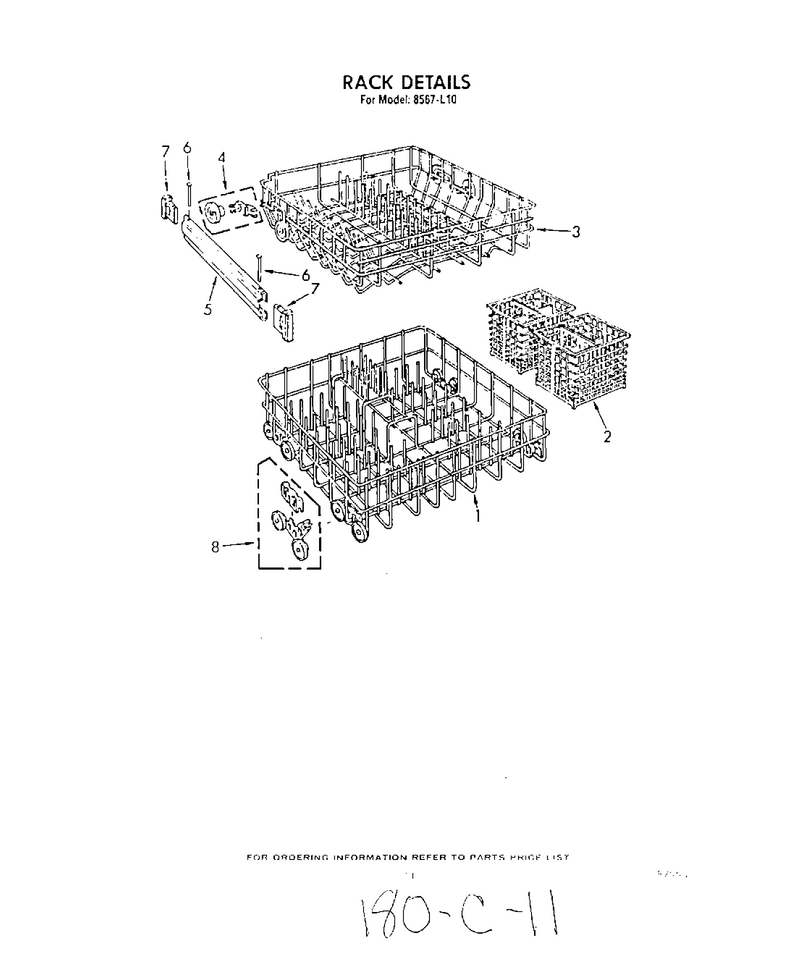

08 - Rack

...
...
1
Lower Rack Assembly WPL-4340902
...
2
Silverware Basket WPL-965290
...
3
Dishrack WPL-965588
...
4
Wheel & Bracket Kit WPL-4342586
...
5
Rack Slide WPL-4342589
...
6
Pin, Slide Cap WPL-4342587
...
7
Slide Cap WPL-4342588
...
8
Wheel WPL-965565

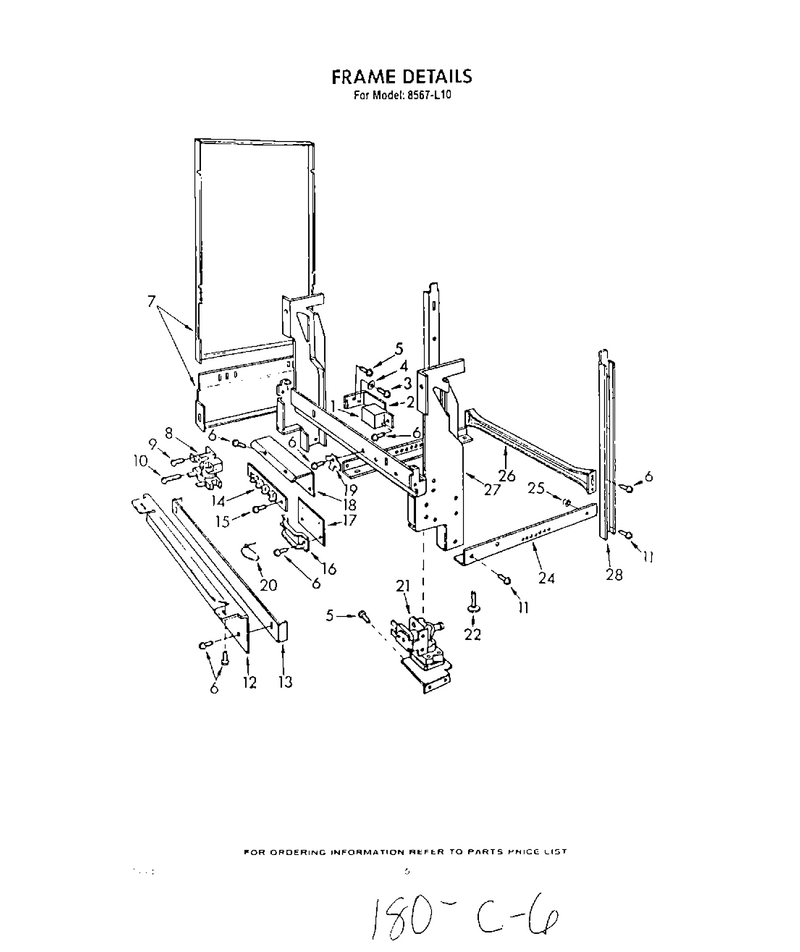

04 - Frame

...
...
Parts List WPL-LIT879941
...
1
Cover, Junction Box WPL-965271
...
2
Bracket, Junction Box WPL-965272
...
3
Screw, No.10-32 X 1/2 WPL-4340517
...
4
Washer WPL-4340414
...
5
Screw WPL-WP681414
...
6
Screw, No.8 X 3/8 WPL-4340701
...
7
Side Panel Kit (R.h) Or (L.h) (Wheat) WPL-4340777
...
8
Motor Relay WPL-965254
...
9
Screw WPL-WP486579
...
10
Screw, No.8-32 X 1/4 WPL-4340123
...
11
Screw, 1/4-20 X 1/2 WPL-488849
...
12
Toeplate WPL-4340886
...
13
Adjustable Toeplate WPL-4340885
...
14
Terminal Board WPL-965151
...
15
Screw WPL-WP488729
...
16
Clamp, Wiring WPL-965248
...
17
Shield, Wire WPL-4340862
...
18
Terminal Bracket WPL-965334
...
19
Grounding Terminal WPL-4340385
...
20
Clip, Harness (2) WPL-3391249
...
21
Valve, Inlet WPL-965466
...
22
Leveler WPL-4342591
...
24
Side Angle Kit WPL-4342592
...
25
Nut WPL-4342593
...
26
Rear Brace WPL-4340506
...
27
Hinge Weld Assembly WPL-4340502
...
28
Channel, Side (2) WPL-965269
