Roper 8565L00

Model: 8565L00

Save Part Not Listed?
product name

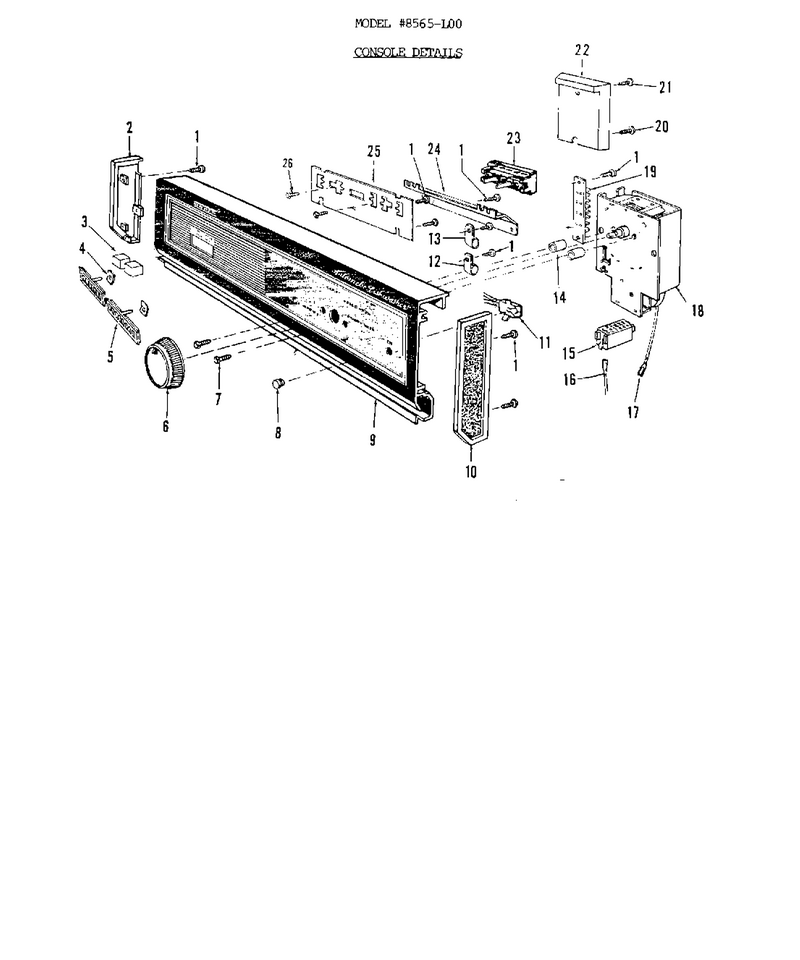

02 - Console

...
...
1
Screw No.8x7/16``lg. C.r. Pan Hd. Cad. Pl. WPL-806943
...
2
End Cap L.h. WPL-808694
...
3
Pushbutton WPL-807273
...
4
Speednut WPL-808475
...
5
Vent Grille WPL-808477--
...
6
Timer Knob WPL-808812
...
7
Screw No.10-32x1-17/64``lg. C.r. Truss Hd. Cad. Pl. WPL-808422
...
8
Lens-Red WPL-805664
...
9
Console Panel WPL-808815
...
10
End Cap R.h. WPL-808693
...
11
Light Assembly-Pilot WPL-808711
...
12
Clamp WPL-808442
...
13
Clamp WPL-W10833902
...
14
Spacer WPL-808424
...
15
Housing - Timer Terminal WPL-808231
...
16
Housing Terminal WPL-808333
...
17
Terminal - Timer WPL-808334
...
18
Timer WPL-808681
...
19
Terminal Board Assembly WPL-808483
...
20
Screw No.8x3/8`` Lg. C.r. Binding Hd. Cad. Pl. WPL-803416
...
21
Screw No.8bx5/16``lg. C.r. Truss Hd. Cad. Pl. WPL-806894
...
22
Splash Pan WPL-807425
...
23
Switch WPL-807281
...
24
Shield - Vent Slot WPL-808398
...
25
Switch - Bracket WPL-808814
...
26
Screw No.6-30ax3/8``lg. Pan Hd. Cad. Pl. WPL-807141

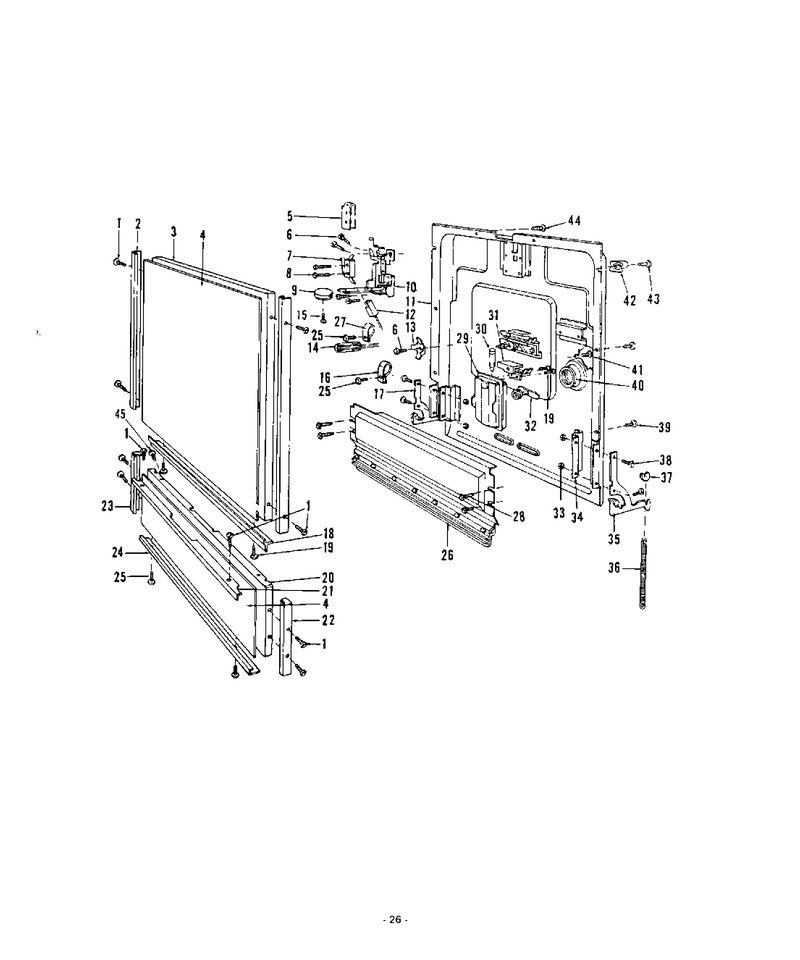

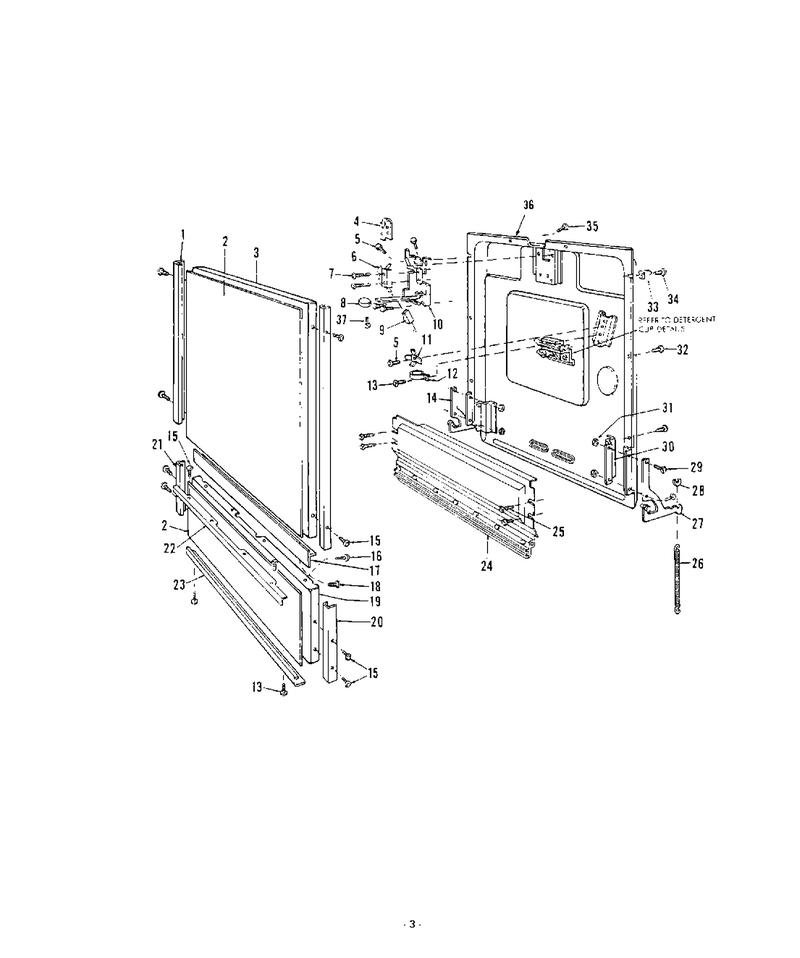

03 - Door

...
...
1
Door Trim - Side WPL-808026
...
2
Door & Access Panel - Inserts (Almond & Black) WPL-808404
...
3
Door Panel WPL-807262
...
4
Cover - Switch WPL-807450
...
5
Screw No.8-32x3/8``lg. C.r. Hex Hd. Cad. Pl. WPL-806830
...
6
Switch - Latch WPL-807043
...
7
Screw No.6 Type ``a``x1``lg. C.r. Hex Hd. Cad. Pl. WPL-808425
...
8
Latch Knob WPL-806398
...
9
Terminal - Insulator WPL-806846
...
10
Latch Assembly WPL-807016
...
11
Terminal-Grounding WPL-807213
...
12
Clamp WPL-808442
...
13
Screw No.8 Type ``a`` C.r. Binding Hd. Cad. Pl. WPL-803416
...
14
Arm Assembly - Counterbalance L.h. WPL-805682
...
15
Assembly, Precooler Formed WPL-SCREW
...
16
Screw WPL-WP90767
...
17
Trim - Door Bottom WPL-807347
...
18
Screw No.8 Type ``a`` C.r. Binding Hd. Cad. Pl. WPL-807501
...
19
Access Panel Assembly WPL-807257
...
20
Trim Access Panel R.h. Side WPL-808028
...
21
Trim Access Panel L.h. Side WPL-808029
...
22
Access Panel Trip - Top WPL-808346
...
23
Sub 808027 Trim, Access WPL-Y0809994
...
24
Vent Plate WPL-80-8369
...
25
Screw No.8-24x3/8`` Lg. C.r. Round Hd. St. St. WPL-806810
...
26
Counterbalance Arm Spring WPL-80-5683
...
27
Counterbalance Arm Assembly - R.h. WPL-805681
...
28
Spring Pad WPL-805884
...
29
Screw No.10-24x5/8``lg. C.r. Truss Hd. Chrome Pl. WPL-803311
...
30
Arm Bracket WPL-Y0806717
...
31
Nut WPL-M0282009
...
32
Screw No.8 Type ``b``x1/2`` Lg.c.r. Truss Hd. St. St. WPL-806967
...
33
Guide - Door WPL-807449
...
34
Screw No.8x5/8``lg. C.r. Truss Hd. St. St. WPL-808749
...
35
Screw No.8bx5/16`` Lg.c.r. Truss Hd. St. St. WPL-806894
...
36
Door Porcelain Weld Assembly WPL-807191
...
37
Screw No.8-32x7/32`` Lg. C.r. Truss Hd. Cad. Pl. WPL-808715

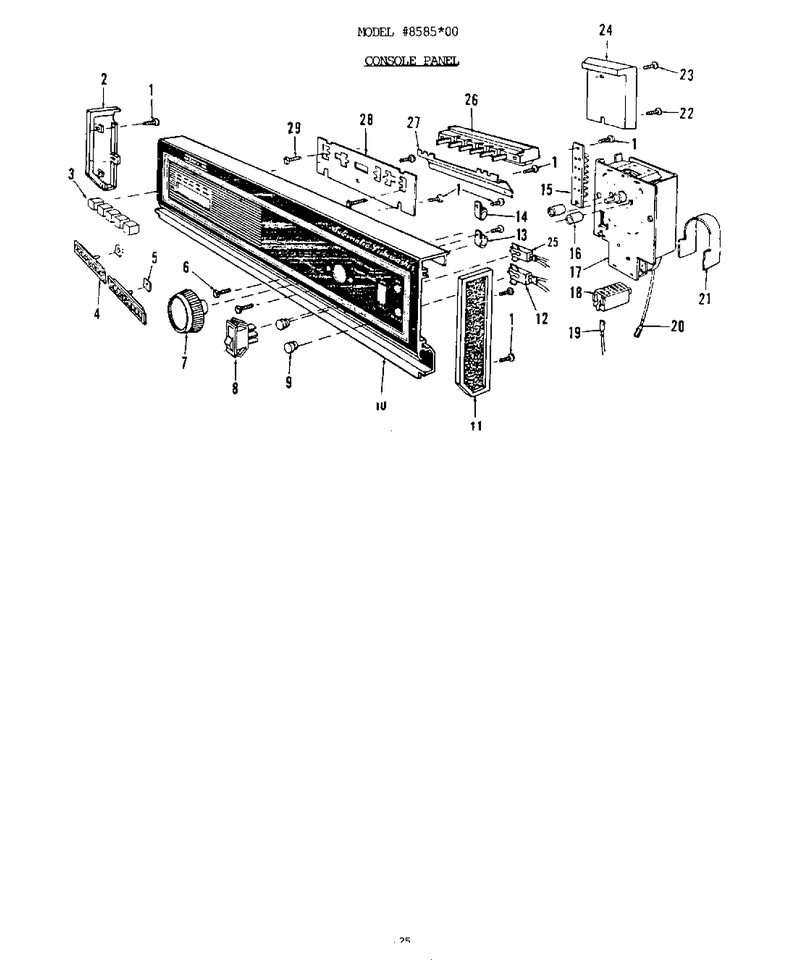

17 - Console

...
...
1
Screw No.8x7/16``lg. C.r. Pan Hd. Cad. Pl. WPL-806943
...
2
End Cap L.h. WPL-808811
...
3
Pushbutton WPL-807273
...
4
Vent Grille WPL-808477--
...
5
Speednut WPL-808475
...
6
Screw No.10-32x1-17/64``lg. C.r. Truss Hd. Cad. Pl. WPL-808422
...
7
Timer Knob WPL-808812
...
8
Rocker Switch WPL-807737
...
9
Lens-Red WPL-805664
...
10
Console Panel WPL-808817
...
11
End Cap R.h. WPL-808810
...
12
Light Assemb. - Delay WPL-808736
...
13
Clamp WPL-808442
...
14
Clamp WPL-W10833902
...
15
Terminal Board Assembly WPL-808483
...
16
Spacer WPL-808424
...
17
Timer WPL-Y0808682
...
18
Housing - Timer Terminal WPL-808231
...
19
Housing Terminal WPL-808333
...
20
Terminal - Timer WPL-808334
...
21
Insulator - Timer WPL-808664
...
22
Screw No.8x3/8`` Lg. C.r. Binding Hd. Cad. Pl. WPL-803416
...
23
Screw No.8bx5/16``lg. C.r. Truss Hd. Cad. Pl. WPL-806894
...
24
Splash Pan WPL-807425
...
25
Light Assembly - Pilot WPL-808484
...
26
Switch WPL-808744
...
27
Shield - Vent Slot WPL-808398
...
28
Switch - Bracket WPL-808814
...
29
Screw No.6-30ax3/8``lg. Pan Hd. Cad. Pl. WPL-807141

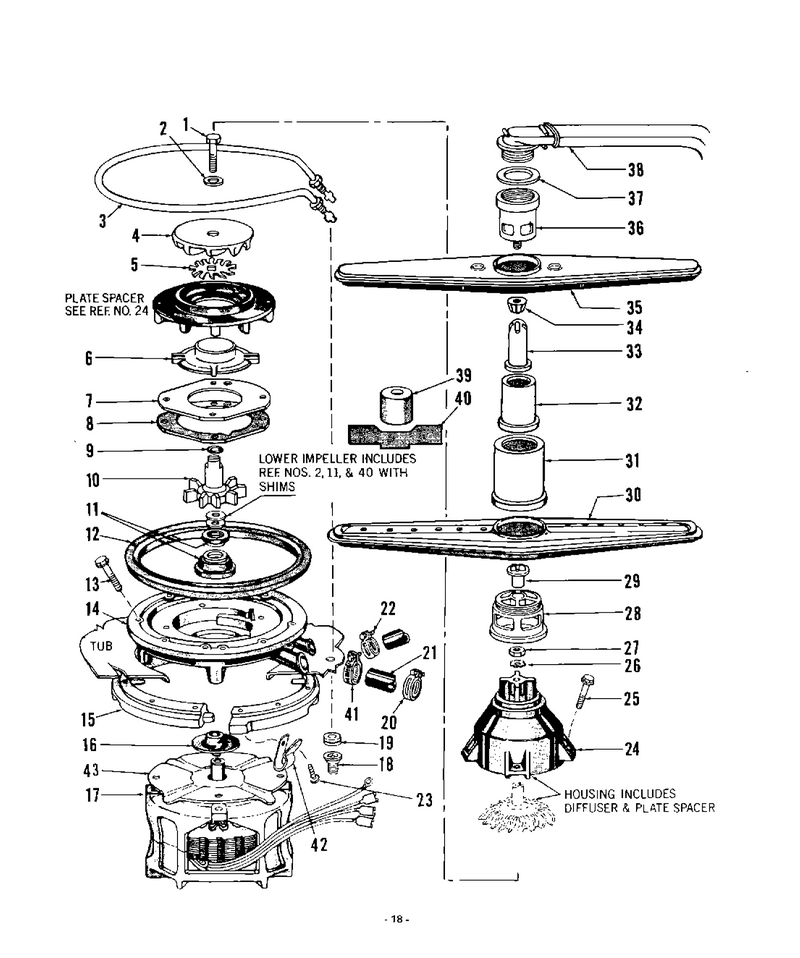

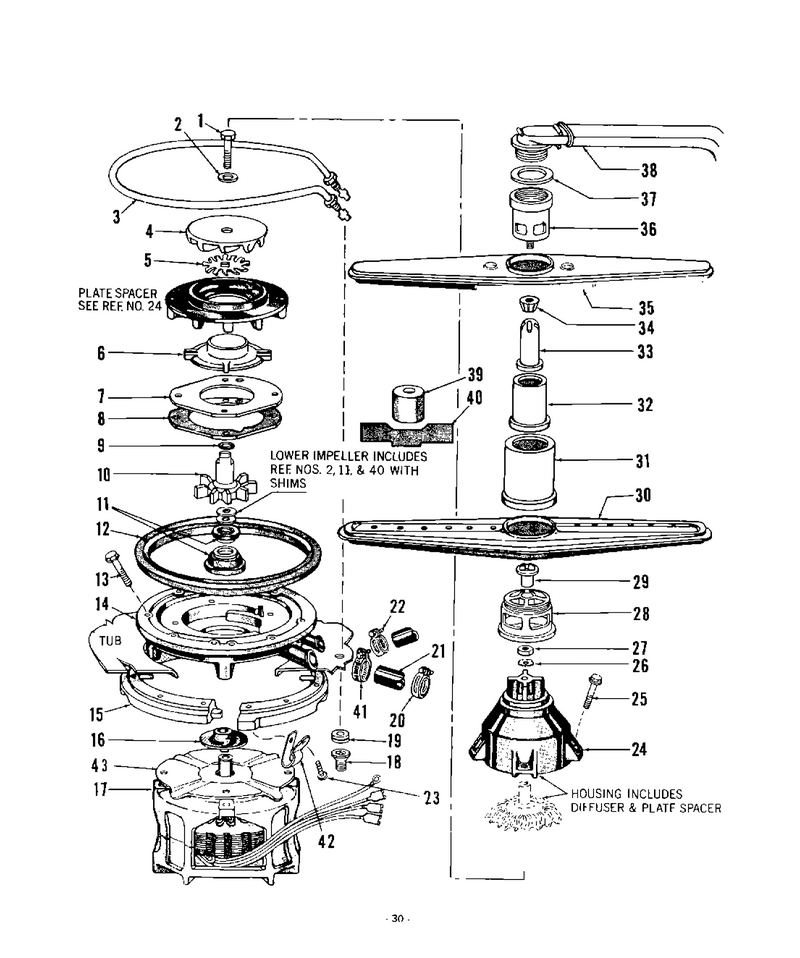

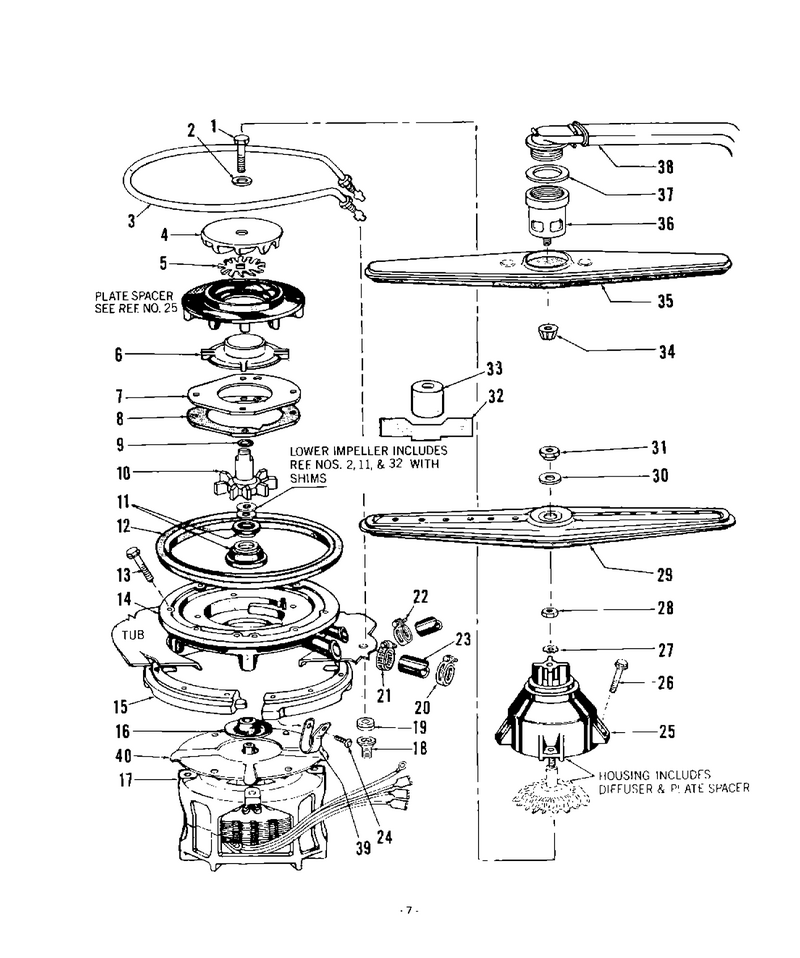

20 - Motor, Heater, Spray Arm

...
...
1
Screw No.10-32x2-1/4`` Lg. Hex Hd. St. St. WPL-806353
...
2
Washer WPL-803367
...
3
Heater Kit WPL-806864
...
4
Impeller - Upper WPL-808041
...
5
Blade - Macerator WPL-808075
...
6
Shroud - Impeller WPL-806267
...
7
Plate - Pump WPL-807884
...
8
Gasket - Pump WPL-807709
...
9
``o`` Ring WPL-Y0806521
...
10
Impeller-Lower Kit (Includes Ref. No. 11, Seal; Ref. No. 40, Gage - Seal Shim; Ref. No.9, ``o`` Ring WPL-808042
...
11
Seal WPL-803903
...
12
Pump Gasket WPL-809008
...
13
Screw No.10-Type30x1``lg. Hex Washer Hd. St. St., WPL-807268
...
14
Pump Housing WPL-809102
...
15
Clamp Ring (Includes Both Halves) WPL-807712
...
16
Slinger WPL-808561
...
17
Motor Assembly WPL-Y0806300
...
18
Nut 1/2`` 20 Brass WPL-806834
...
19
Grommet - Heater WPL-806833
...
20
Clamp - Hose WPL-805495
...
21
Hose - Connector WPL-808174
...
22
Clamp WPL-806090
...
23
Screw 5/8``lg. C.r. Truss Hd Cad. Pl. WPL-807270
...
24
Housing Pump (Includes Diffuser & Plate Spacer) WPL-80-6978
...
25
Screw No.10x1 3/4``lg. Hex Hd. St. St. WPL-807359
...
26
Lockwasher WPL-804526
...
27
Nut WPL-804527
...
28
Bearing WPL-80-8175
...
29
Nut WPL-80-8176
...
30
Spray Arm Assembly WPL-808177
...
31
Tower Base WPL-80-8178
...
32
Tower Section WPL-80-8179
...
33
Tower Tip WPL-80-8180
...
34
Nut, Spray Arm WPL-Y0808181
...
35
Spray Arm - Upper WPL-808259
...
36
Distributor WPL-808183
...
37
Gasket WPL-808184--
...
38
Elbow & Tube Assembly WPL-808185
...
39
Seal Installation Tool WPL-803923
...
40
Gage - Seal Shim WPL-807077
...
41
Clamp WPL-WP285655
...
42
Clamp WPL-808442
...
43
Motor Shield WPL-808435

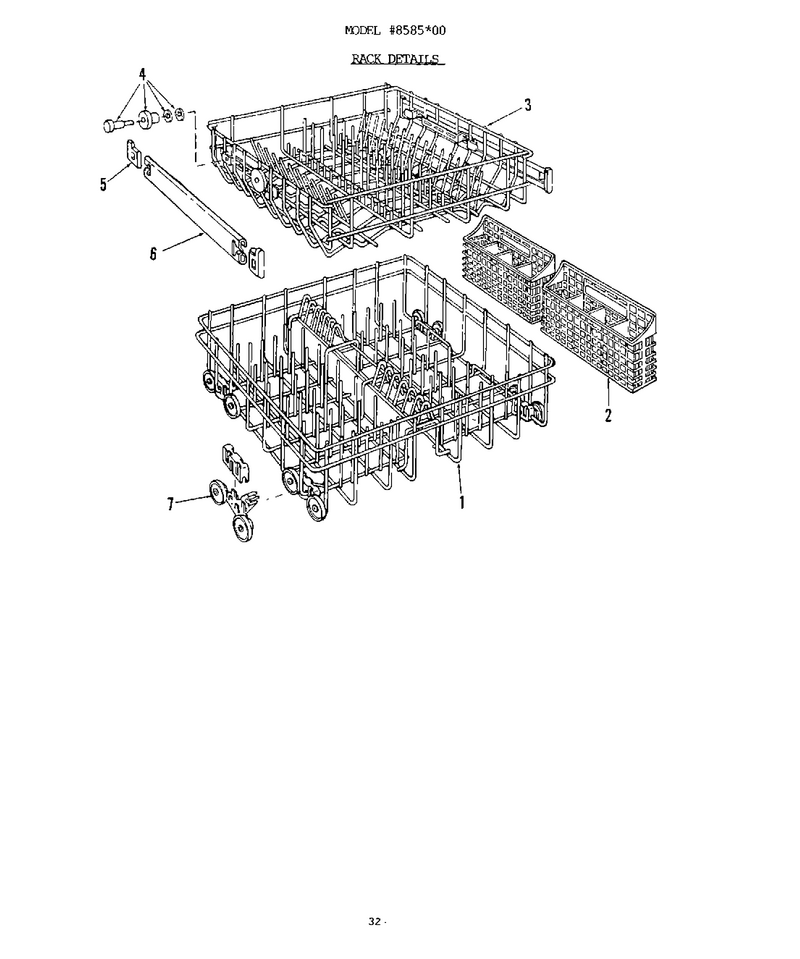

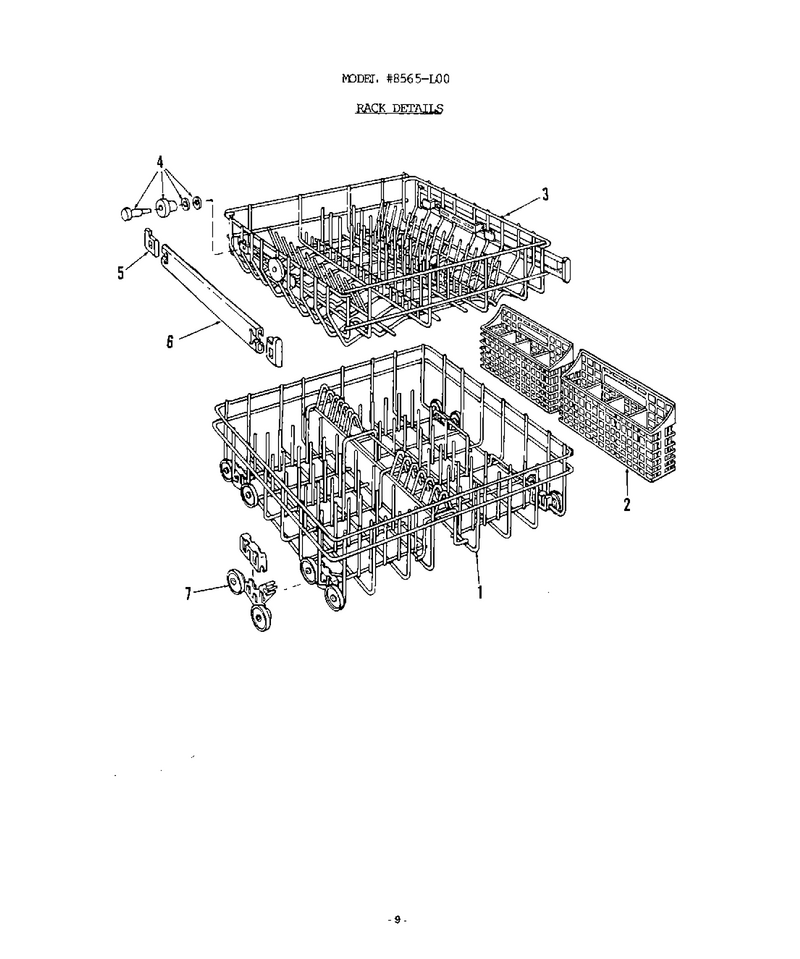

06 - Rack

...
...
1
Lower Rack Assembly WPL-808669
...
2
Silverware Basket WPL-Y0807512
...
3
Upper Rack Assembly WPL-807902
...
4
Wheel Assembly-Complete WPL-807957
...
5
End Cap Rack Slide WPL-807853
...
6
Rack Slide WPL-807854
...
7
Cap - Wheel Bracket WPL-80-7008

13 - Rack

...
...
1
Lower Rack Assembly WPL-808684
...
2
Silverware Basket WPL-Y0807512
...
3
Upper Rack Assembly WPL-807902
...
4
Wheel Assembly-Complete WPL-807957
...
5
End Cap Rack Slide WPL-807853
...
6
Rack Slide WPL-807854
...
7
Cap - Wheel Bracket WPL-80-7008

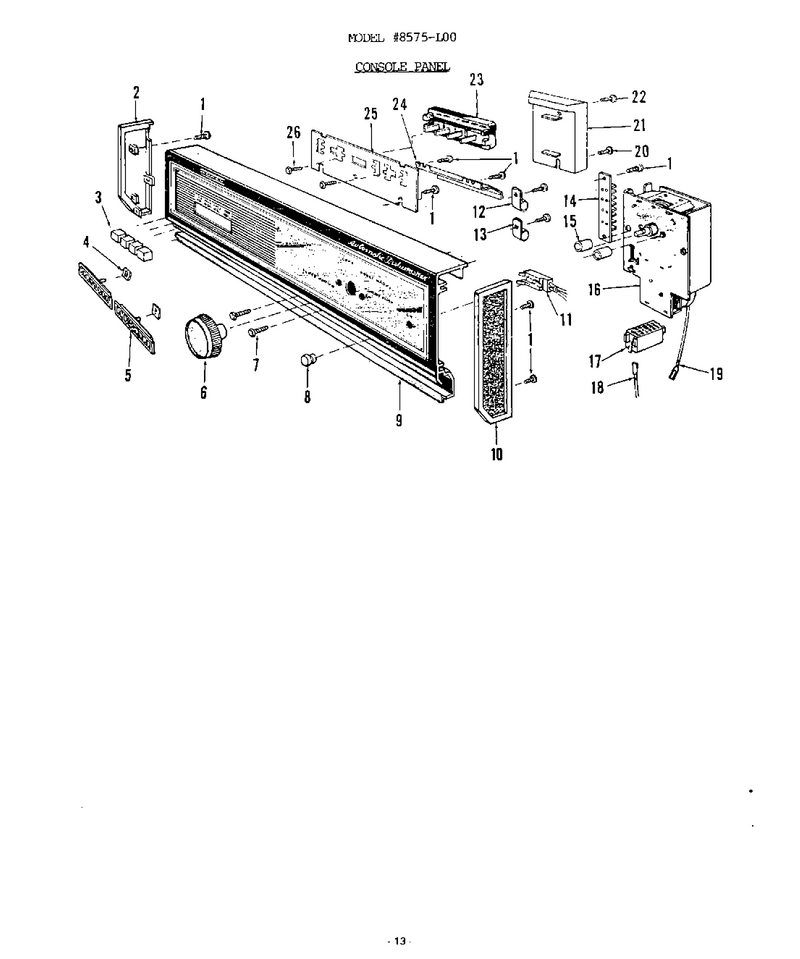

09 - Console

...
...
1
Screw No.8x7/16``lg. C.r. Pan Hd. Cad. Pl. WPL-806943
...
2
End Cap L.h. WPL-808811
...
3
Pushbutton WPL-807273
...
4
Speednut WPL-808475
...
5
Vent Grille WPL-808477--
...
6
Timer Knob WPL-808812
...
7
Screw No.10-32x1-17/64``lg. C.r. Truss Hd. Cad. Pl. WPL-808422
...
8
Lens-Red WPL-805664
...
9
Console Panel WPL-808813
...
10
End Cap R.h. WPL-808810
...
11
Light Assembly-Pilot WPL-808711
...
12
Clamp WPL-W10833902
...
13
Clamp WPL-808442
...
14
Terminal Board Assembly WPL-808483
...
15
Spacer WPL-808424
...
16
Timer WPL-808681
...
17
Housing - Timer Terminal WPL-808231
...
18
Housing Terminal WPL-808333
...
19
Terminal - Timer WPL-808334
...
20
Screw No.8x3/8`` Lg. C.r. Binding Hd. Cad. Pl. WPL-803416
...
21
Splash Pan WPL-807425
...
22
Screw No.8bx5/16``lg. C.r. Truss Hd. Cad. Pl. WPL-806894
...
23
Switch WPL-808407
...
24
Shield - Vent Slot WPL-808398
...
25
Bracket - Switch WPL-808814
...
26
Screw No.6-30ax3/8``lg. Pan Hd. Cad. Pl. WPL-807141

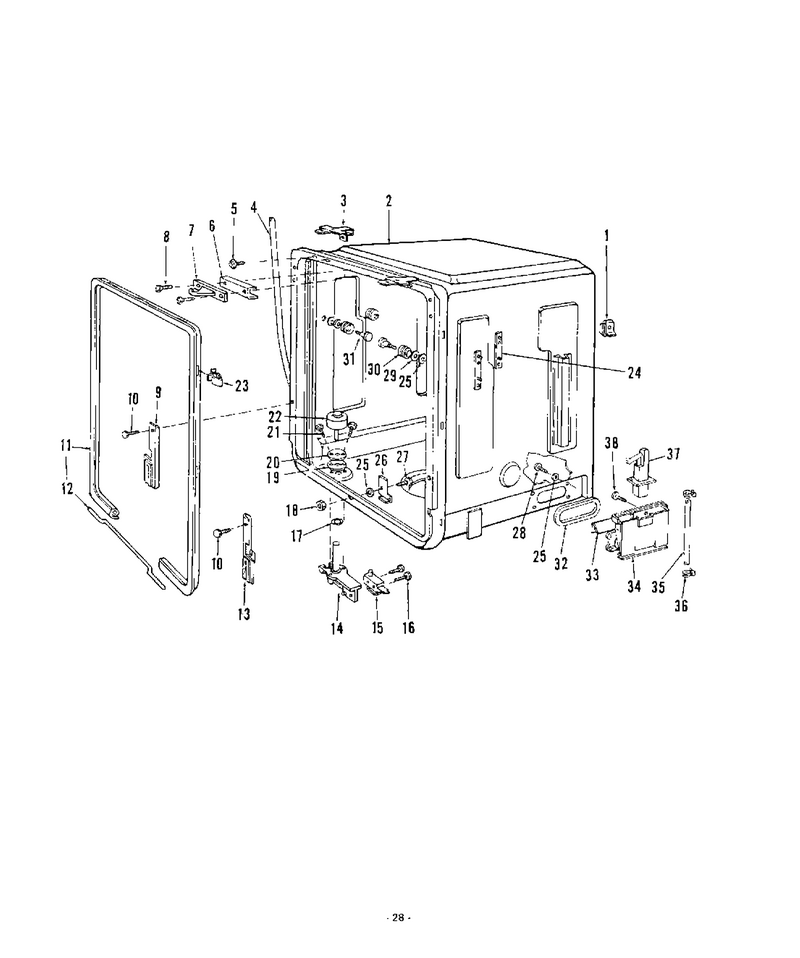

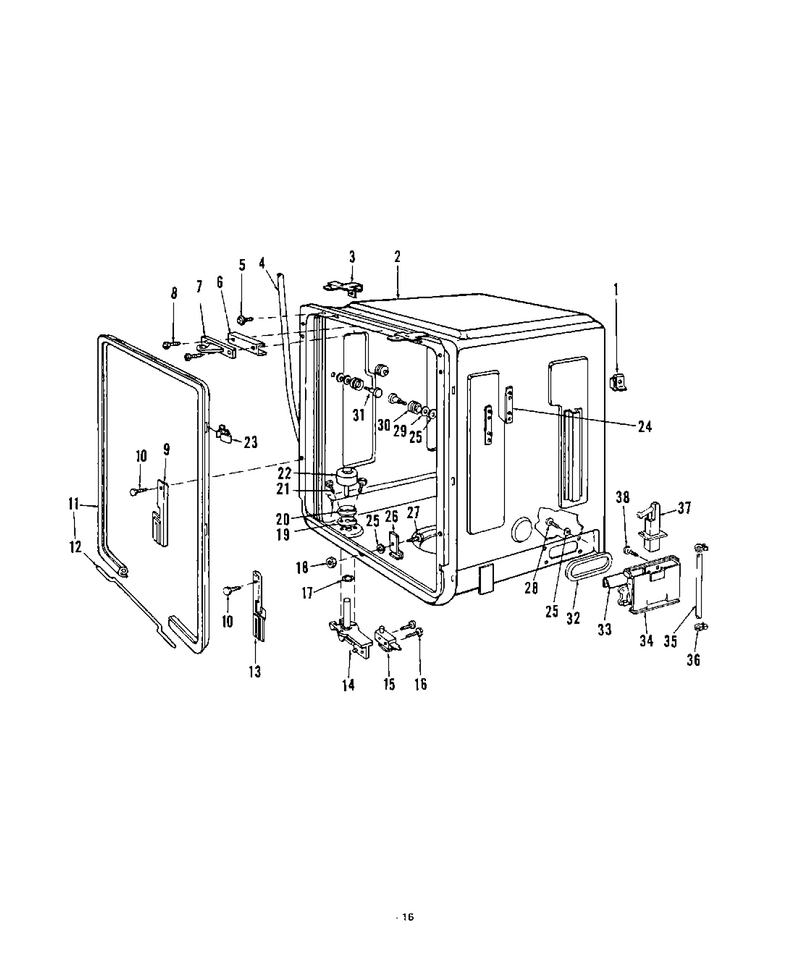

11 - Tub

...
...
1
Cage Nut WPL-806291
...
2
Tub & Gasket Assembly WPL-808725
...
3
Attach Clip WPL-808289
...
4
Drain Hose WPL-806089
...
5
Screw No.10-24x5/8``lg. Acorn Hex Hd. Chrome Pl. WPL-807036
...
6
Shim - Strike WPL-807073
...
7
Strike WPL-807015
...
8
Assembly, Precooler Formed WPL-SCREW
...
9
Guide, Counterbalance, L.h. WPL-Y0807470
...
10
Screw No.10-24x7/8``lg. Acorn Hex Hd. Chrome Pl. WPL-806539
...
11
Gasket Kit WPL-809034K
...
12
Wire - Gasket Junction WPL-808344
...
13
Counterbalance Arm Guide R.h. WPL-807471
...
14
Float Assy WPL-Y0809859
...
15
Float Switch WPL-Y0807680
...
16
Screw No.4x5/8``lg. Sl. Hex Hd. Cad. Pl. WPL-804594
...
17
``o`` Ring WPL-807759
...
18
Nut WPL-803346
...
19
Gasket - Float Tube WPL-808063
...
20
Plate - Float Tube WPL-808064
...
21
Screw No.10-32a X 1`` Lg. WPL-807268
...
22
Float WPL-Y0804630
...
23
Gasket Clip WPL-805763
...
24
Tapping Plate WPL-807038
...
25
Sealing Washer WPL-805776
...
26
Clip - Gasket WPL-808115
...
27
Assembly, Precooler Formed WPL-SCREW
...
28
Screw No.8x5/8``lg. C.r. Hex Hd. St. St. WPL-806901
...
29
Washer WPL-803367
...
30
Roller WPL-807180
...
31
Shoulder Screw WPL-807181
...
32
Gasket WPL-806797
...
33
Tapping Plate WPL-808705
...
34
Vent Stack WPL-808706
...
35
Tubing - Inlet WPL-807891
...
36
Clamp WPL-807813
...
37
Inlet Nozzle WPL-808707
...
38
Screw No.8ax1/2``lg. C.r. Flat Hd. Cad. Pl. WPL-808818

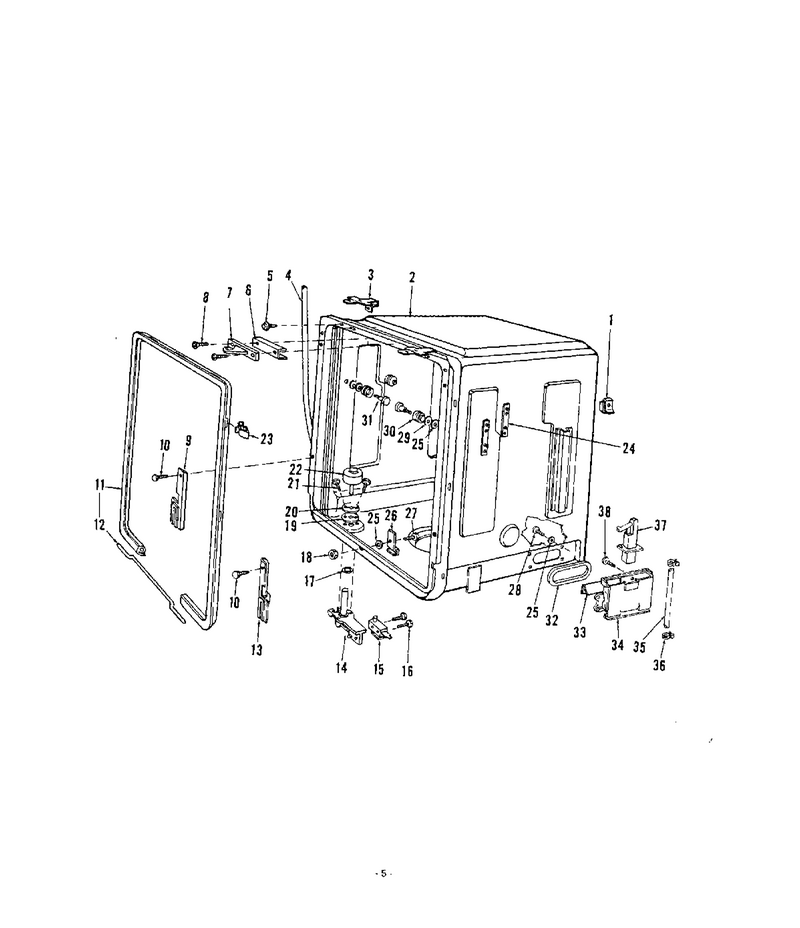

04 - Tub

...
...
1
Cage Nut WPL-806291
...
2
Tub & Gasket Assembly WPL-808725
...
3
Attach Clip WPL-808289
...
4
Drain Hose WPL-806089
...
5
Screw No.10-24x5/8``lg. Acorn Hex Hd. Chrome Pl. WPL-807036
...
6
Shim - Strike WPL-807073
...
7
Strike WPL-807015
...
8
Assembly, Precooler Formed WPL-SCREW
...
9
Guide, Counterbalance, L.h. WPL-Y0807470
...
10
Screw No.10-24x7/8``lg. Acorn Hex Hd. Chrome Pl. WPL-806539
...
11
Gasket Kit WPL-809034K
...
12
Wire - Gasket Junction WPL-808344
...
13
Counterbalance Arm Guide R.h. WPL-807471
...
14
Float Assy WPL-Y0809859
...
15
Float Switch WPL-Y0807680
...
16
Screw No.4x5/8``lg. Sl. Hex Hd. Cad. Pl. WPL-804594
...
17
``o`` Ring WPL-807759
...
18
Nut WPL-803346
...
19
Gasket - Float Tube WPL-808063
...
20
Plate - Float Tube WPL-808064
...
21
Screw No.10-32a X 1`` Lg. WPL-807268
...
22
Float WPL-Y0804630
...
23
Gasket Clip WPL-805763
...
24
Tapping Plate WPL-807038
...
25
Sealing Washer WPL-805776
...
26
Clip - Gasket WPL-808115
...
27
Assembly, Precooler Formed WPL-SCREW
...
28
Screw No.8x5/8``lg. C.r. Hex Hd. St. St. WPL-806901
...
29
Washer WPL-803367
...
30
Roller WPL-807180
...
31
Shoulder Screw WPL-807181
...
32
Gasket WPL-806797
...
33
Tapping Plate WPL-808705
...
34
Vent Stack WPL-808706
...
35
Tubing - Inlet WPL-807891
...
36
Clamp WPL-807813
...
37
Inlet Nozzle WPL-808707
...
38
Screw No.8ax1/2``lg. C.r. Flat Hd. Zinc Pl. WPL-808818

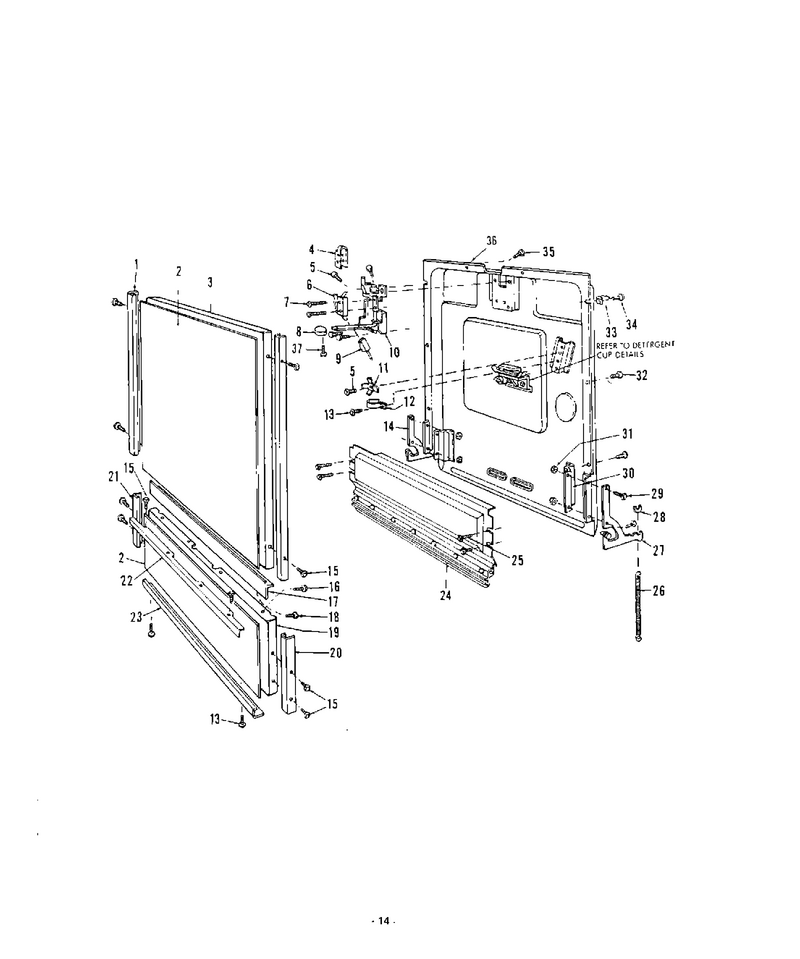

18 - Door

...
...
1
Assembly, Precooler Formed WPL-SCREW
...
2
Trim - Door Side WPL-808026
...
3
Door Panel WPL-807262
...
4
Panel Insert-Door & Access (Almond & Black) WPL-808404
...
5
Cover - Switch WPL-807450
...
6
Screw No.8x3/8`` Lg. C.r. Pan Hd. Chrome Pl. WPL-806830
...
7
Switch WPL-807043
...
8
Screw No.6-32x1``lg. Hex Hd. Cad. Pl. WPL-808618
...
9
Latch Knob WPL-806398
...
10
Latch Assembly WPL-807016
...
11
Porcelain Weld Assembly - Inner Door WPL-807194
...
12
Terminal - Insulator WPL-806846
...
13
Terminal-Grounding WPL-807213
...
14
Thermostat WPL-808646
...
15
Screw No.8-32x7/32`` Lg. C.r. Truss Hd. Cad. Pl. WPL-808715
...
16
Wire Clamp WPL-808442
...
17
Arm Assembly - Counterbalance L.h. WPL-805682
...
18
Trim - Door Bottom WPL-807347
...
19
Screw No.8ax1/2`` Lg. C.r. Truss Hd. Chrome Pl. WPL-807501
...
20
Access Panel Assembly WPL-807257
...
21
Access Panel Trip - Top WPL-808346
...
22
Trim-Access-Side R.h. WPL-808028
...
23
Trim-Access Side L.h. WPL-808029
...
24
Sub 808027 Trim, Access WPL-Y0809994
...
25
Screw No.8x3/8`` Lg. C.r. Binding Hd. Cad. Pl. WPL-803416
...
26
Vent Plate Assembly WPL-80-8369
...
27
Clamp - Thermostat WPL-808495
...
28
Screw No.8x3/8``lg C.r. Round Hd. St. St. WPL-806810
...
29
Body Dispenser, Wetting Agent WPL-Y0806753
...
30
Plunger WPL-806757
...
31
Bracket Assembly WPL-806756
...
32
Fill Plug WPL-Y0807673
...
33
Nut WPL-M0282009
...
34
Arm Bracket WPL-Y0806717
...
35
Counterbalance Arm R.h. WPL-805681
...
36
Door Spring WPL-80-5683
...
37
Spring Pad WPL-805884
...
38
Screw No.10-24x5/8``lg. C.r. Truss Hd. Chrome Pl. WPL-803311
...
39
Screw No.8 Type ``b``x1/2`` Lg.c.r. Truss Hd. St. St. WPL-806967
...
40
Grommet - Dispenser WPL-805631
...
41
Screw No.10x3/8`` Lg. Truss Washer Hd. St. St. WPL-806863
...
42
Guide - Door WPL-807449
...
43
Screw No.8x5/8``lg. C.r. Truss Hd. St. St. WPL-808749
...
44
Screw No.8bx5/16`` Lg.c.r. Truss Hd. St. St. WPL-806894
...
45
Screw WPL-WP90767

19 - Tub

...
...
1
Cage Nut WPL-806291
...
2
Tub & Gasket Assembly WPL-808725
...
3
Attach Clip WPL-808289
...
4
Drain Hose WPL-806089
...
5
Screw No.8-7/16`` Lg. C.r. Truss Hd. St. St. WPL-806976
...
6
Shim - Strike WPL-807073
...
7
Strike WPL-807015
...
8
Assembly, Precooler Formed WPL-SCREW
...
9
Guide, Counterbalance, L.h. WPL-Y0807470
...
10
Screw No.10-24x7/8``lg. Acorn Hex Hd. Chrome Pl. WPL-806539
...
11
Gasket Kit WPL-809034K
...
12
Wire - Gasket Junction WPL-808344
...
13
Counterbalance Arm Guide R.h. WPL-807471
...
14
Float Assy WPL-Y0809859
...
15
Float Switch WPL-Y0807680
...
16
Screw No.4x5/8``lg. Sl. Hex Hd. Cad. Pl. WPL-804594
...
17
``o`` Ring WPL-807759
...
18
Nut WPL-803346
...
19
Gasket - Float Tube WPL-808063
...
20
Plate - Float Tube WPL-808064
...
21
Screw No.10-32a X 1`` Lg. WPL-807268
...
22
Float WPL-Y0804630
...
23
Gasket Clip WPL-805763
...
24
Tapping Plate WPL-807038
...
25
Sealing Washer WPL-805776
...
26
Clip - Gasket WPL-808115
...
27
Assembly, Precooler Formed WPL-SCREW
...
28
Screw No.8x5/8``lg. C.r. Hex Hd. St. St. WPL-806901
...
29
Washer WPL-803367
...
30
Roller WPL-807180
...
31
Shoulder Screw WPL-807181
...
32
Gasket WPL-806797
...
33
Tapping Plate WPL-808705
...
34
Vent Stack WPL-808706
...
35
Tubing - Inlet WPL-807891
...
36
Clamp WPL-807813
...
37
Inlet Nozzle WPL-808707
...
38
Screw No.8ax1/2``lg. C.r. Flat Hd. Cad. Pl. WPL-808818

05 - Motor, Pump, Spray Arm

...
...
1
Screw No.10-32x2-1/4`` Lg. Hex Hd. St. St. WPL-806353
...
2
Washer WPL-803367
...
3
Heater Kit WPL-806864
...
4
Impeller - Upper WPL-808041
...
5
Blade - Macerator WPL-808075
...
6
Shroud - Impeller WPL-806267
...
7
Plate - Pump WPL-807884
...
8
Gasket - Pump WPL-807709
...
9
``o`` Ring WPL-Y0806521
...
10
Lower Impeller Kit (Includes Ref. No. 11, Seal; Ref. No.32, Gage - Seal Shim; Ref.no.9, ``o`` Ring; WPL-808042
...
11
Seal WPL-803903
...
12
Pump Gasket WPL-809008
...
13
Screw No.10-Type30x1``lg. Hex Washer Hd. St. St., WPL-807268
...
14
Pump Housing WPL-809102
...
15
Clamp Ring (Includes Both Halves) WPL-807712
...
16
Slinger WPL-808561
...
17
Motor Assembly WPL-Y0806300
...
18
Nut 1/2`` 20 Brass WPL-806834
...
19
Grommet - Heater WPL-806833
...
20
Clamp - Hose WPL-805495
...
21
Clamp WPL-WP285655
...
22
Clamp WPL-806090
...
23
Hose - Connector WPL-808174
...
24
Screw 5/8``lg. C.r. Truss Hd Cad. Pl. WPL-807270
...
25
Pump Housing (Includes Diffuser & Plate Spacer) WPL-80-6978
...
26
Screw No.10x1 3/4``lg. Hex Hd. St. St. WPL-807359
...
27
Lockwasher WPL-804526
...
28
Nut WPL-804527
...
29
Spray Arm Assembly-Lower WPL-80-5577
...
30
Washer WPL-807590
...
31
Nut - Spray Arm Lower WPL-804473
...
32
Gage - Seal Shim WPL-807077
...
33
Seal Installation Tool WPL-803923
...
34
Nut, Spray Arm WPL-Y0808181
...
35
Spray Arm Assembly - Upper WPL-808259
...
36
Distributor WPL-808183
...
37
Gasket WPL-808184--
...
38
Elbow & Tube Assembly WPL-808185
...
39
Clamp WPL-808442
...
40
Water Shield WPL-808435

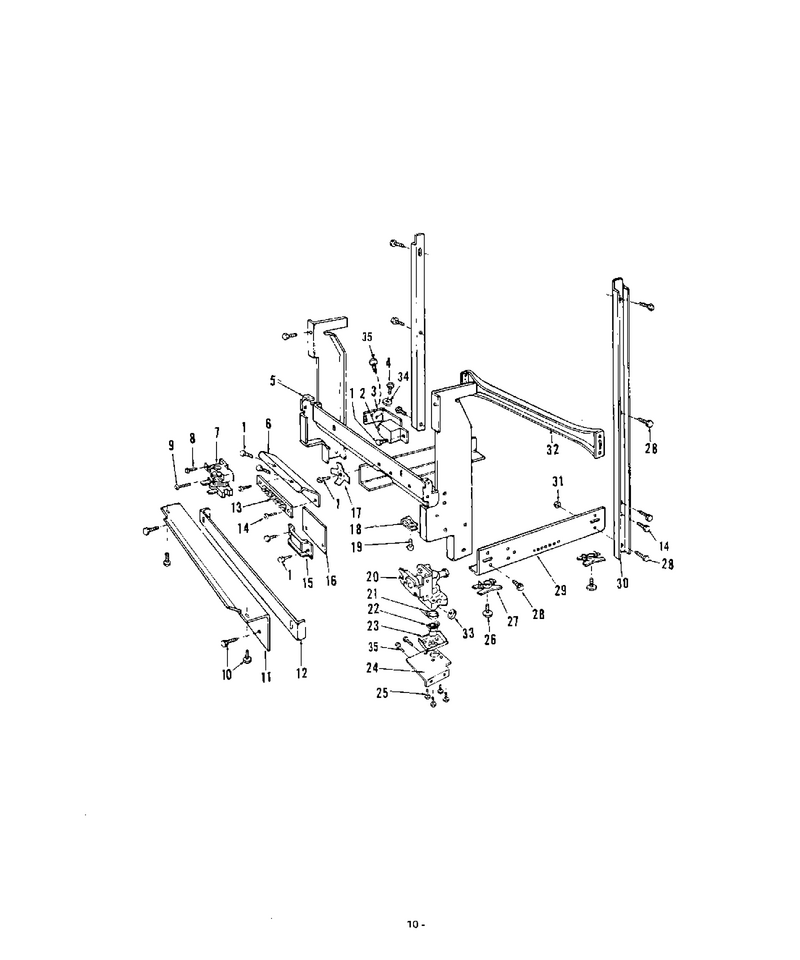

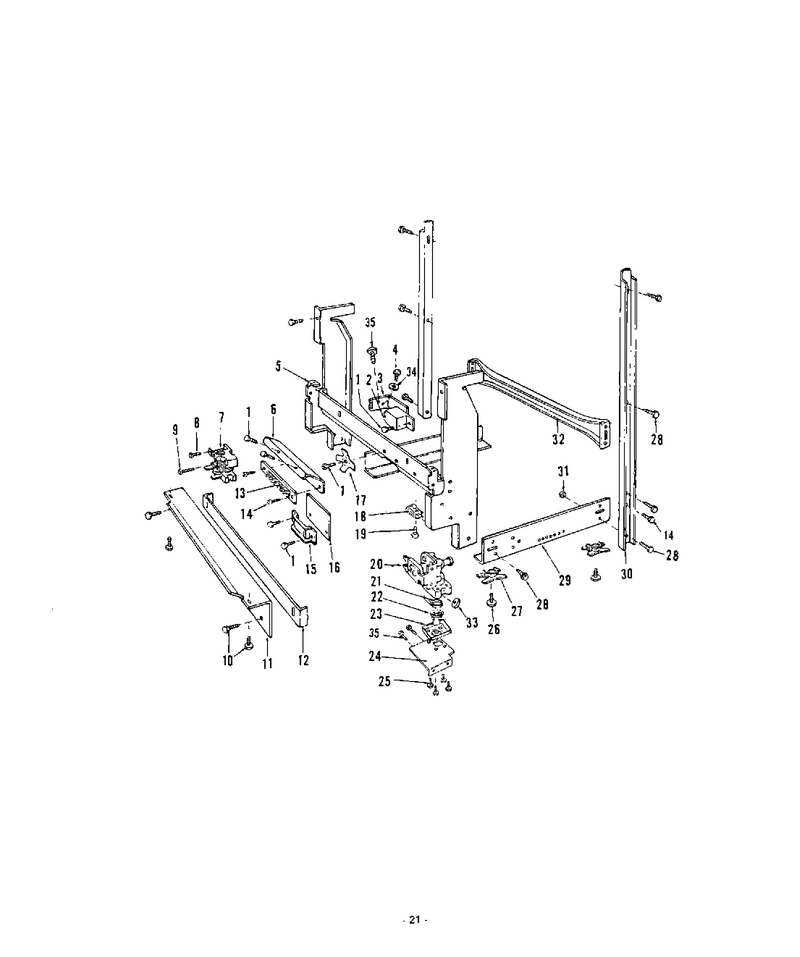

07 - Frame

...
...
1
Screw WPL-WP90767
...
2
Junction Box Cover WPL-800222
...
3
Junction Box Bracket WPL-807019
...
4
Screw No.10-32x1/2`` Hex Washer Hd. Cad. Pl. WPL-807951
...
5
Hinge Weld Assembly WPL-807848
...
6
Terminal Bracket WPL-807849
...
7
Relay - Motor WPL-806121
...
8
Assembly, Precooler Formed WPL-SCREW
...
9
Screw No.8-32x1 1/4``lg. C.r. Oval Hd Cad. Pl. WPL-804672
...
10
Screw No.1/4-20x1/2`` Lg. C.r. Hex Hd. Cad. Pl. WPL-807001
...
11
Toeplate WPL-807850
...
12
Adjustable Toeplate WPL-806295
...
13
Terminal Block Assembly WPL-807486
...
14
Screw No.8ax1/2`` Lg. C.r. Truss Hd. Chrome Pl. WPL-807501
...
15
Clamp - Wiring WPL-806723
...
16
Wire Shield WPL-808013
...
17
Terminal-Grounding WPL-807213
...
18
Speednut WPL-808170
...
19
Screw No.1/4-20x3/4`` Lg. Hex Washer Slot Hd.cad.pl. WPL-807002
...
20
Valve - Water Inlet WPL-808556
...
21
Gasket WPL-Y0806100
...
22
Fitting - Inlet WPL-808337
...
23
Fitting - Retainer WPL-808458
...
24
Valve Bracket WPL-807613
...
25
Screw No.8-Type``b``x5/8``lg. Hex Hd. Cad. Pl. WPL-808368
...
26
Leveler WPL-807672
...
27
Teenut - Snap- In WPL-807671
...
28
Screw 1/4-20x1/2`` Lg Hex Washer Hd. Cad. Pl. WPL-806889
...
29
Side Angle WPL-807851
...
30
Support Channel WPL-808670
...
31
Nut K WPL-M0282005
...
32
Brace - Rear WPL-807852
...
33
Flow Washer WPL-808432
...
34
Washer WPL-807373
...
35
Screw No.10bx1/2``lg. Hex Slotted Hd. Cad. Pl. WPL-807950

10 - Door

...
...
1
Door Trim - Side WPL-808026
...
2
Door & Access Panel - Inserts (Almond & Black) WPL-808404
...
3
Door Panel WPL-807262
...
4
Cover - Switch WPL-807450
...
5
Screw No.8-32x3/8``lg. C.r. Hex Hd. Cad. Pl. WPL-806830
...
6
Switch - Latch WPL-807043
...
7
Screw No.6-32x1``lg. Hex Hd. Cad. Pl. WPL-808618
...
8
Latch Knob WPL-806398
...
9
Terminal - Insulator WPL-806846
...
10
Latch Assembly WPL-807016
...
11
Terminal-Grounding WPL-807213
...
12
Clamp WPL-808442
...
13
Screw No.8 Type ``a`` C.r. Binding Hd. Cad. Pl. WPL-803416
...
14
Arm Assembly - Counterbalance L.h. WPL-805682
...
15
Assembly, Precooler Formed WPL-SCREW
...
16
Screw WPL-WP90767
...
17
Trim - Door Bottom WPL-807347
...
18
Screw No.8 Type ``a`` C.r. Binding Hd. Cad. Pl. WPL-807501
...
19
Access Panel Assembly WPL-807257
...
20
Trim Access Panel R.h. Side WPL-808028
...
21
Trim Access Panel L.h. Side WPL-808029
...
22
Access Panel Trip - Top WPL-808346
...
23
Sub 808027 Trim, Access WPL-Y0809994
...
24
Vent Plate WPL-80-8369
...
25
Screw No.8-24x3/8`` Lg. C.r. Round Hd. St. St. WPL-806810
...
26
Counterbalance Arm Spring WPL-80-5683
...
27
Counterbalance Arm Assembly - R.h. WPL-805681
...
28
Spring Pad WPL-805884
...
29
Screw No.10-24x5/8``lg. C.r. Truss Hd. Chrome Pl. WPL-803311
...
30
Arm Bracket WPL-Y0806717
...
31
Nut WPL-M0282009
...
32
Screw No.8 Type ``b``x1/2`` Lg.c.r. Truss Hd. St. St. WPL-806967
...
33
Guide - Door WPL-807449
...
34
Screw No.8x5/8``lg. C.r. Truss Hd. St. St. WPL-808749
...
35
Screw No.8bx5/16`` Lg.c.r. Truss Hd. St. St. WPL-806894
...
36
Door Porcelain Weld Assembly WPL-807191
...
37
Screw No.8-32x7/32`` Lg. C.r. Truss Hd. Cad. Pl. WPL-808715

12 - Motor, Heater, Spray Arm

...
...
1
Screw No.10-32x2-1/4`` Lg. Hex Hd. St. St. WPL-806353
...
2
Washer WPL-803367
...
3
Heater Kit WPL-806864
...
4
Impeller - Upper WPL-808041
...
5
Blade - Macerator WPL-808075
...
6
Shroud - Impeller WPL-806267
...
7
Plate - Pump WPL-807884
...
8
Gasket - Pump WPL-807709
...
9
``o`` Ring WPL-Y0806521
...
10
Impeller-Lower Kit (Includes Ref. No. 11, Seal; Ref. No.40, Gage - Seal Shim; Ref.no.9, ``o`` Ring An WPL-808042
...
11
Seal WPL-803903
...
12
Pump Gasket WPL-809008
...
13
Screw No.10-Type30x1``lg. Hex Washer Hd. St. St., WPL-807268
...
14
Pump Housing WPL-809102
...
15
Clamp Ring (Includes Both Halves) WPL-807712
...
16
Slinger WPL-808561
...
17
Motor Assembly WPL-Y0806300
...
18
Nut 1/2`` 20 Brass WPL-806834
...
19
Grommet - Heater WPL-806833
...
20
Clamp - Hose WPL-805495
...
21
Hose - Connector WPL-808174
...
22
Clamp WPL-806090
...
23
Screw 5/8``lg. C.r. Truss Hd Cad. Pl. WPL-807270
...
24
Housing Pump (Includes Diffuser & Plate Spacer) WPL-80-6978
...
25
Screw No.10x1 3/4``lg. Hex Hd. St. St. WPL-807359
...
26
Lockwasher WPL-804526
...
27
Nut WPL-804527
...
28
Bearing WPL-80-8175
...
29
Nut WPL-80-8176
...
30
Spray Arm Assembly WPL-808177
...
31
Tower Base WPL-80-8178
...
32
Tower Section WPL-80-8179
...
33
Tower Tip WPL-80-8180
...
34
Nut, Spray Arm WPL-Y0808181
...
35
Spray Arm - Upper WPL-808259
...
36
Distributor WPL-808183
...
37
Gasket WPL-808184--
...
38
Elbow & Tube Assembly WPL-808185
...
39
Seal Installation Tool WPL-803923
...
40
Gage - Seal Shim WPL-807077
...
41
Clamp WPL-WP285655
...
42
Clamp WPL-808442
...
43
Motor Shield WPL-808435

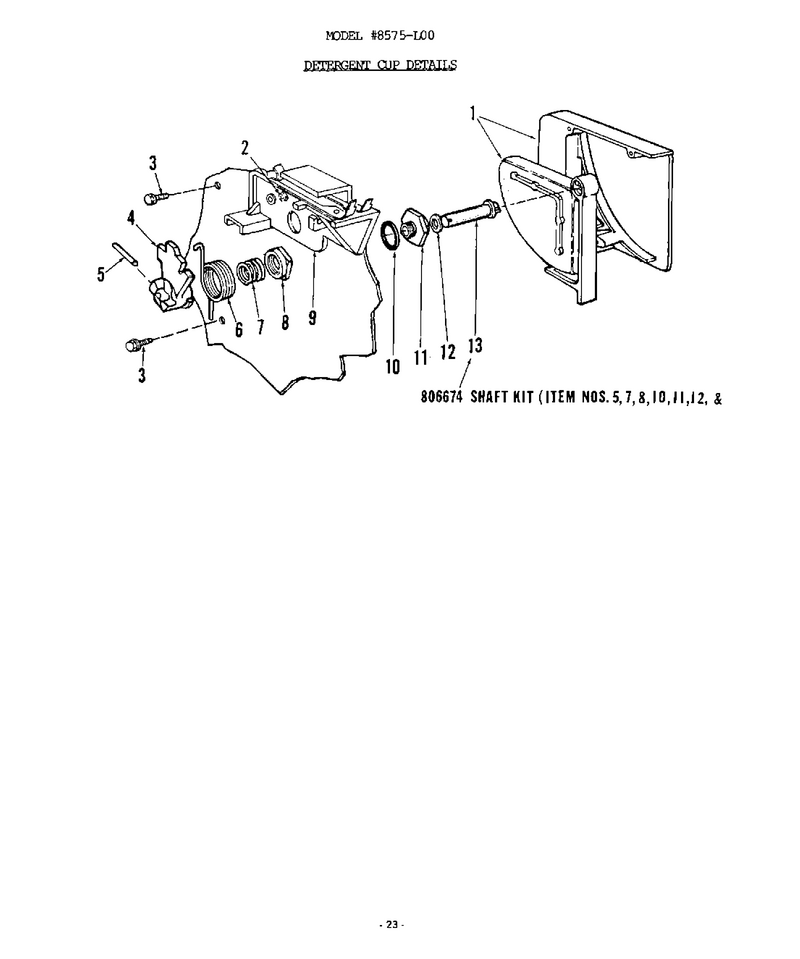

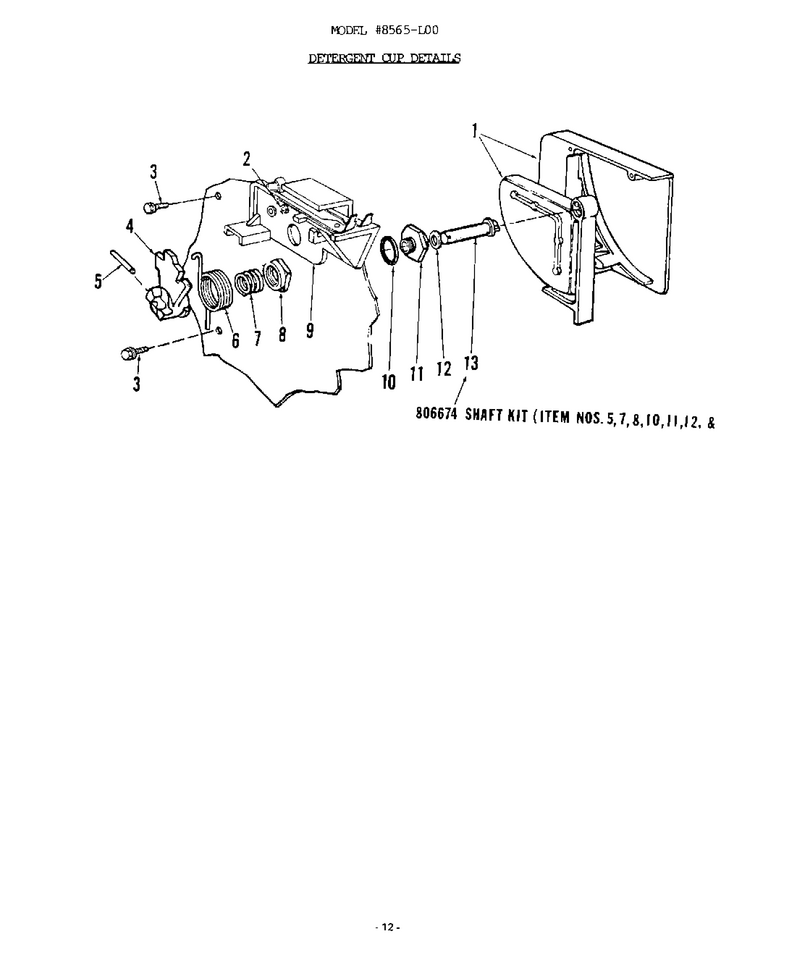

08 - Detergent Cup

...
...
1
Detergent Cup & Cover Kit WPL-807261
...
2
``o`` Ring WPL-808210
...
3
Screw No.8x5/8`` Lg. Hex Washer Hd. St. St. WPL-808209
...
4
Cam WPL-806566
...
5
Rollpin - Cam WPL-804734
...
6
Spring - Cam WPL-805227
...
7
Spring-Cam Compression WPL-806567
...
8
Nut WPL-806568
...
9
Trigger Assembly WPL-808507
...
10
Washer WPL-802836
...
11
Bushing WPL-805626
...
12
O-Ring WPL-WP912510
...
13
Shaft Kit WPL-806674
...
14
Shaft Kit (Includes Items 5, 8, 10, 11, 12 & 13) WPL-806674

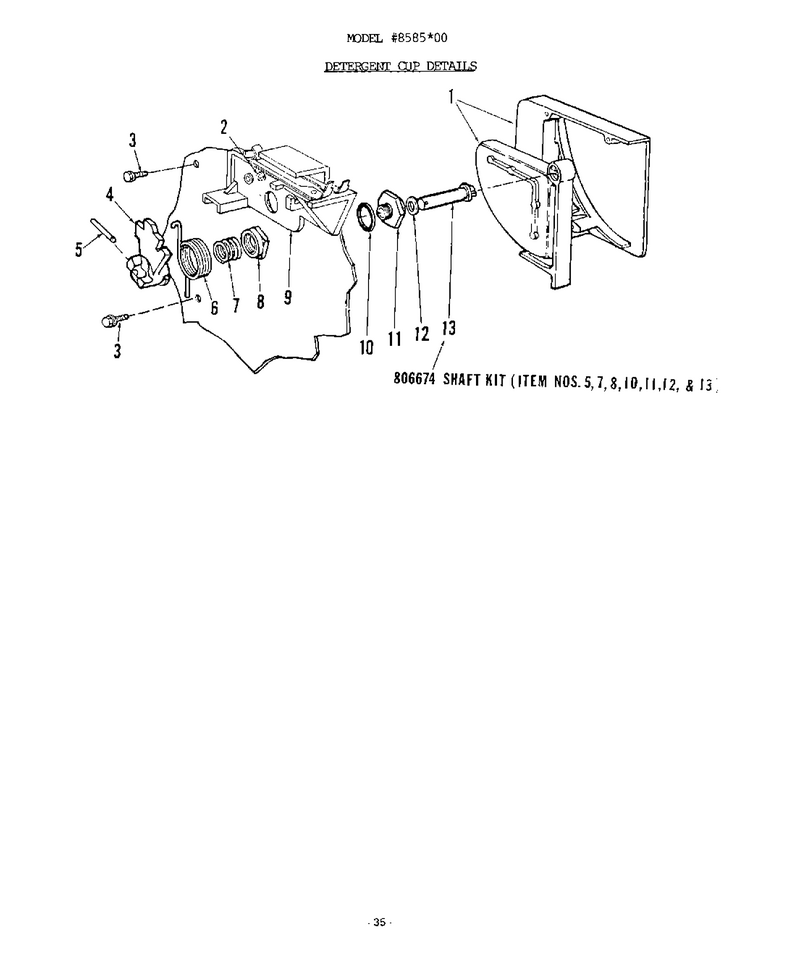

15 - Detergent Cup

...
...
1
Detergent Cup & Cover Kit WPL-807261
...
2
``o`` Ring WPL-808210
...
3
Screw No.8x5/8`` Lg. Hex Washer Hd. St. St. WPL-808209
...
4
Cam WPL-806566
...
5
Rollpin - Cam WPL-804734
...
6
Spring - Cam WPL-805227
...
7
Spring-Cam Compression WPL-806567
...
8
Nut WPL-806568
...
9
Trigger Assembly WPL-808507
...
10
Washer WPL-802836
...
11
Bushing WPL-805626
...
12
O-Ring WPL-WP912510
...
13
Shaft Kit WPL-806674
...
14
Shaft Kit (Includes Items 5, 8, 10, 11, 12 & 13) WPL-806674

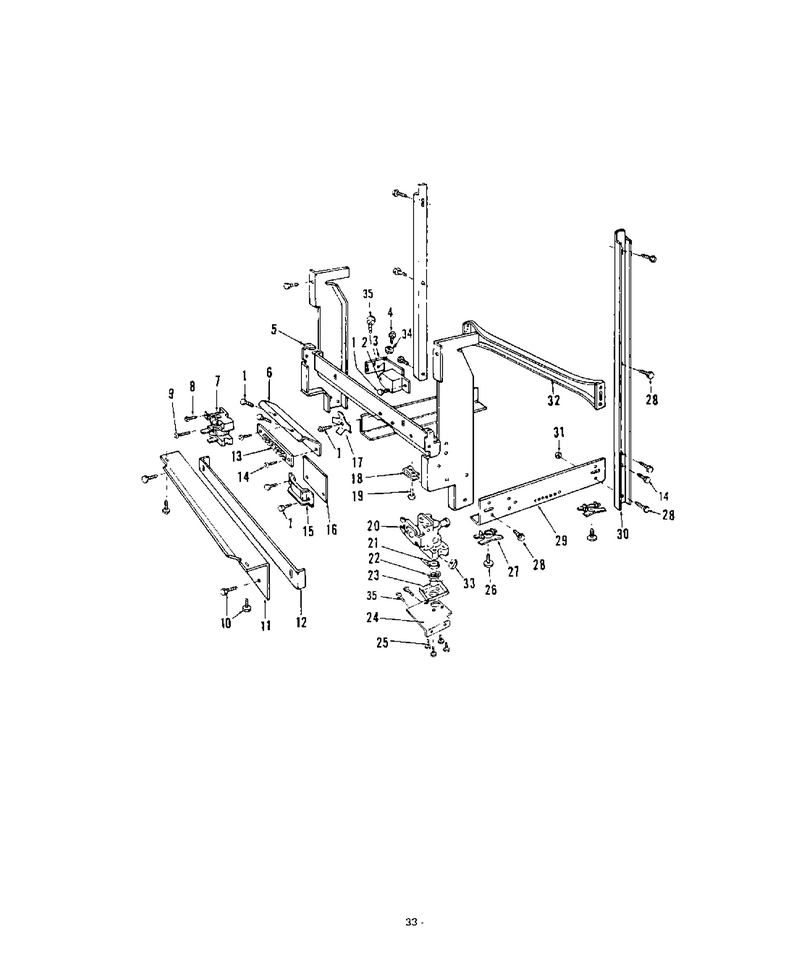

22 - Frame

...
...
1
Screw WPL-WP90767
...
2
Junction Box Cover WPL-800222
...
3
Junction Box Bracket WPL-807019
...
4
Screw No.10-32x1/2`` Hex Washer Hd. Cad. Pl. WPL-807951
...
5
Hinge Weld Assembly WPL-807848
...
6
Terminal Bracket WPL-807849
...
7
Relay - Motor WPL-806121
...
8
Assembly, Precooler Formed WPL-SCREW
...
9
Screw No.8-32x1 1/4``lg. C.r. Oval Hd Cad. Pl. WPL-804672
...
10
Screw No.1/4-20x1/2`` Lg. C.r. Hex Hd. Cad. Pl. WPL-807001
...
11
Toeplate WPL-807850
...
12
Adjustable Toeplate WPL-806295
...
13
Terminal Block Assembly WPL-807486
...
14
Screw No.8ax1/2`` Lg. C.r. Truss Hd. Chrome Pl. WPL-807501
...
15
Clamp - Wiring WPL-806723
...
16
Wire Shield WPL-808013
...
17
Terminal-Grounding WPL-807213
...
18
Speednut WPL-808170
...
19
Screw No.1/4-20x3/4`` Lg. Hex Washer Slot Hd.cad.pl. WPL-807002
...
20
Valve - Water Inlet WPL-808556
...
21
Gasket WPL-Y0806100
...
22
Fitting - Inlet WPL-808337
...
23
Fitting - Retainer WPL-808458
...
24
Valve Bracket WPL-807613
...
25
Screw No.8-Type``b``x5/8``lg. Hex Hd. Cad. Pl. WPL-808368
...
26
Leveler WPL-807672
...
27
Teenut - Snap- In WPL-807671
...
28
Screw 1/4-20x1/2`` Lg Hex Washer Hd. Cad. Pl. WPL-806889
...
29
Side Angle WPL-807851
...
30
Support Channel WPL-808670
...
31
Nut K WPL-M0282005
...
32
Brace - Rear WPL-807852
...
33
Flow Washer WPL-808432
...
34
Washer WPL-807373
...
35
Screw No.10x1/2`` Lg. Hex Slotted Hd. St.st. WPL-807950

14 - Frame

...
...
1
Screw WPL-WP90767
...
2
Junction Box Cover WPL-800222
...
3
Junction Box Bracket WPL-807019
...
4
Screw No.10-32x1/2`` Hex Washer Hd. Cad. Pl. WPL-807951
...
5
Hinge Weld Assembly WPL-807848
...
6
Terminal Bracket WPL-807849
...
7
Relay - Motor WPL-806121
...
8
Assembly, Precooler Formed WPL-SCREW
...
9
Screw No.8-32x1 1/4``lg. C.r. Oval Hd Cad. Pl. WPL-804672
...
10
Screw No.1/4-20x1/2`` Lg. C.r. Hex Hd. Cad. Pl. WPL-807001
...
11
Toeplate WPL-807850
...
12
Adjustable Toeplate WPL-806295
...
13
Terminal Block Assembly WPL-807486
...
14
Screw No.8ax1/2`` Lg. C.r. Truss Hd. Chrome Pl. WPL-807501
...
15
Clamp - Wiring WPL-806723
...
16
Wire Shield WPL-808013
...
17
Terminal-Grounding WPL-807213
...
18
Speednut WPL-808170
...
19
Screw No.1/4-20x3/4`` Lg. Hex Washer Slot Hd.cad.pl. WPL-807002
...
20
Valve - Water Inlet WPL-808556
...
21
Gasket WPL-Y0806100
...
22
Fitting - Inlet WPL-808337
...
23
Fitting - Retainer WPL-808458
...
24
Valve Bracket WPL-807613
...
25
Screw No.8-Type``b``x5/8``lg. Hex Hd. Cad. Pl. WPL-808368
...
26
Leveler WPL-807672
...
27
Teenut - Snap- In WPL-807671
...
28
Screw 1/4-20x1/2`` Lg Hex Washer Hd. Cad. Pl. WPL-806889
...
29
Side Angle WPL-807851
...
30
Support Channel WPL-808670
...
31
Nut K WPL-M0282005
...
32
Brace - Rear WPL-807852
...
33
Flow Washer WPL-808432
...
34
Washer WPL-807373
...
35
Screw No.10bx1/2``lg. Hex Slotted Hd. Cad. Pl. WPL-807950

21 - Rack

...
...
1
Lower Rack Assembly WPL-808684
...
2
Silverware Basket WPL-Y0807512
...
3
Upper Rack Assembly WPL-807902
...
4
Wheel Assembly-Complete WPL-807957
...
5
End Cap Rack Slide WPL-807853
...
6
Rack Slide WPL-807854
...
7
Cap - Wheel Bracket WPL-80-7008

23 - Detergent Cup

...
...
1
Detergent Cup & Cover Kit WPL-807261
...
2
``o`` Ring WPL-808210
...
3
Screw No.8x5/8`` Lg. Hex Washer Hd. St. St. WPL-808209
...
4
Cam WPL-806566
...
5
Rollpin - Cam WPL-804734
...
6
Spring - Cam WPL-805227
...
7
Spring-Cam Compression WPL-806567
...
8
Nut WPL-806568
...
9
Trigger Assembly WPL-808507
...
10
Washer WPL-802836
...
11
Bushing WPL-805626
...
12
O-Ring WPL-WP912510
...
13
Shaft Kit WPL-806674
...
14
Shaft Kit (Includes Items 5, 8, 10, 11, 12 & 13) WPL-806674
Schematic Image Zoomed
Scroll to zoom • Drag to pan • Click to close
Press Esc or click background to close Pinch to zoom • Tap to close
Shopper Approved
USA Today Champions 2025
BBB Accredited
Newsweek Best Online Shops 2025
Google Reviews
Processing
