product name

Roper 8518L30

Model: 8518L30

Save Part Not Listed?
product name

03 - Tub

...
...
1
Latch Assembly WPL-807016
...
2
Screw No.8-32x5/16``lg. C.r. Hex Hd. Cad. Pl. WPL-806830
...
3
Cover - Switch WPL-807450
...
4
Screw No.6-32x1``lg. Hex Hd. Cad. Pl. WPL-808618
...
5
Switch WPL-807043
...
6
Terminal - Insulator WPL-806846
...
7
Latch Knob WPL-806398
...
8
Screw No.8x3/8`` Lg. C.r. Binding Hd. Cad. Pl. WPL-803416
...
9
Clamp WPL-808442
...
10
Terminal-Grounding WPL-807213
...
11
Arm, L.h. WPL-Y0807539
...
12
Screw No.8x3/8``lg C.r. Round Hd. St. St. WPL-806810
...
13
Vent Plate WPL-808370
...
14
Porcelain Weld Assembly-Door WPL-808578
...
15
Nut WPL-M0282009
...
16
Arm Bracket WPL-Y0806717
...
17
Counterbalance Arm R.h. WPL-807538
...
18
Door Spring WPL-Y0807534
...
19
Screw No.10-24x5/8``lg. C.r. Truss Hd. Chrome Pl. WPL-803311
...
20
Spring Pad WPL-805884
...
21
Guide - Door WPL-807537
...
22
Screw No.8x7/16``lg. C.r. Truss Hd. St. St. WPL-806976
...
23
Screw No.8bx5/16`` Lg.c.r. Truss Hd. St. St. WPL-806894
...
24
Door Panel Assembly WPL-808298
...
25
Trim - Door Side WPL-808106
...
26
Assembly, Precooler Formed WPL-SCREW
...
27
Door Panel Insert (Almond & G. Wheat) & Access Insert Screw WPL-808299
...
28
Screw WPL-807501
...
29
Trim-Access Panel L.h. Side WPL-808104
...
30
Door Trim-Bottom WPL-808323
...
31
Trim Access Bottom WPL-808303
...
32
Trim - Access Panel R.h. Side WPL-808103
...
33
Access Panel Assembly WPL-808304

06 - Frame

...
...
1
Rack Assembly-Lower WPL-807683
...
2
Silverware Basket WPL-Y0807512
...
3
Rack Assembly-Upper WPL-807684
...
4
Wheel Assembly-Complete WPL-807245
...
5
Rack Slide - End Cap WPL-807234
...
6
Rack Slide WPL-807568
...
7
Cap-Wheel Bracket (4) WPL-80-7008

02 - Door

...
...
1
Screw No.8x7/16`` Lg. C.r. Pan Ext.washer Hd.cad.pl. WPL-806943
...
2
End Cap L.h. WPL-806407
...
3
Switch Button WPL-807091
...
4
Speednut WPL-808475
...
5
Vent Grille WPL-808477--
...
6
Timer Knob WPL-Y0808482
...
7
Lens-Red WPL-805664
...
8
Screw No.10-32x27/32`` Lg. C.r. Truss Hd.cad.pl. WPL-805324
...
9
Console Panel WPL-808701
...
10
End Cap R.h. WPL-806406
...
11
Shield - Vent Slot WPL-808574
...
12
Timer Guard L.h. WPL-808293
...
13
Light Assembly-Pilot WPL-805866
...
14
Spacer-Timer WPL-805523
...
15
Timer WPL-808549
...
16
Guard-Timer R.h. WPL-808292
...
17
Screw No.8x3/8`` Lg. C.r. Binding Hd. Cad. Pl. WPL-803416
...
18
Screw No.8bx5/16`` Lg.c.r. Truss Hd. St. St. WPL-806894
...
19
Splash Pan WPL-807425
...
20
Switch WPL-808401
...
21
Bracket-Switch WPL-806594
...
22
Screw No.6x3/8``lg. Pan Hd. Cad. Pl. WPL-807141

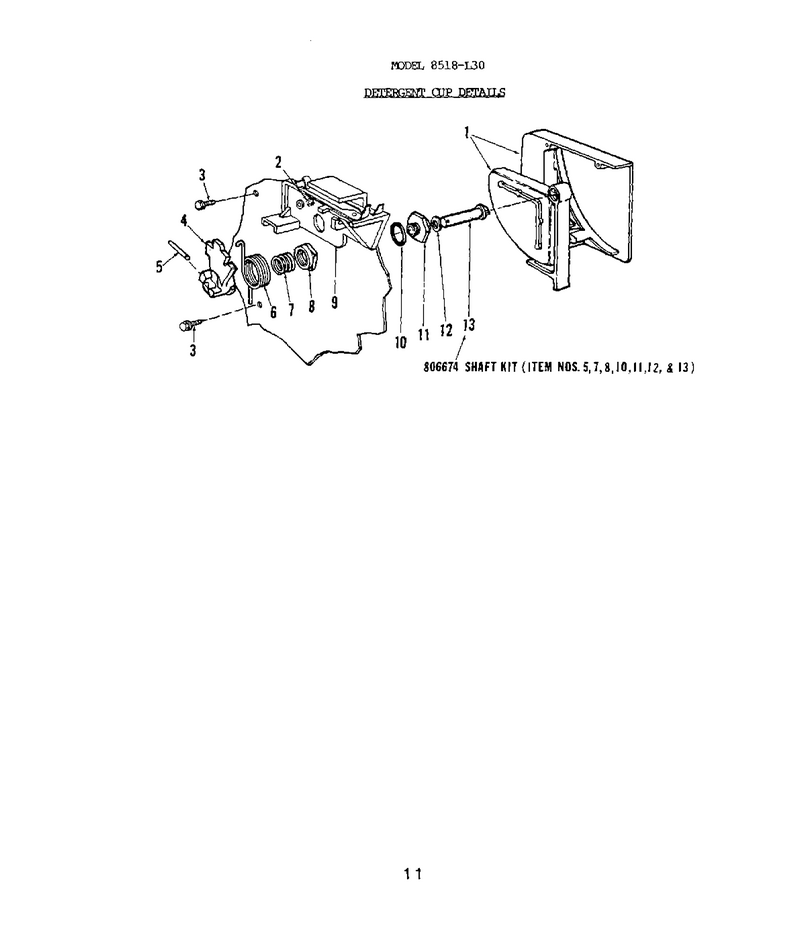

08 - Detergent Cup

...
...
1
Detergent Cup & Cover Kit WPL-807261
...
2
``o`` Ring WPL-808210
...
3
Screw No.8x5/8`` Lg. Hex Washer Hd. St. St. WPL-808209
...
4
Cam WPL-806566
...
5
Rollpin - Cam WPL-804734
...
6
Spring - Cam WPL-805227
...
7
Spring-Cam Compression WPL-806567
...
8
Nut WPL-806568
...
9
Trigger Assembly WPL-808507
...
10
Washer WPL-802836
...
11
Bushing WPL-805626
...
12
O-Ring WPL-WP912510
...
13
Shaft Kit WPL-806674
...
14
Shaft Kit (Includes Items 5, 8, 10, 11, 12 & 13) WPL-806674

04 - Motor, Heater And Spray Arm

...
...
1
Attach Clip WPL-808289
...
2
Screw No.8bx5/16`` Lg.c.r. Truss Hd. St. St. WPL-806894
...
3
Drain Hose WPL-807524
...
4
Shim WPL-807073
...
5
Strike WPL-807015
...
6
Assembly, Precooler Formed WPL-SCREW
...
7
Gasket Clip WPL-805763
...
8
Sealing Washer WPL-805776
...
9
Washer WPL-803367
...
10
Roller WPL-807180
...
11
Shoulder Screw WPL-807181
...
12
Plastic Water Inlet Nut WPL-805669
...
13
Float WPL-Y0804630
...
14
Screw No.10x1``lg. Hex Washer Hd. St. St. WPL-807268
...
15
Tub Assembly WPL-808351
...
16
Plate - Float Tube WPL-808064
...
17
Gasket - Float Tube WPL-808063
...
18
Counterbalance Guide-L.h. WPL-807599
...
19
Nut WPL-803346
...
20
Gasket Clip WPL-808115
...
21
Assembly, Precooler Formed WPL-SCREW
...
22
``o`` Ring WPL-807759
...
23
Counterbalance Arm Guide R.h. WPL-807600
...
24
Wire-Gasket Junction WPL-808118
...
25
Tub Gasket & Wire Assembly (Includes Key Nos. 8 & 27) WPL-809003
...
26
Float Assy WPL-Y0809859
...
27
Float Switch WPL-Y0807680
...
28
Screw 4-40x5/8`` Lg. Hex Hd. Cad. Pl. WPL-804594
...
29
Gasket-Water Inlet WPL-803573
...
30
Water Inlet Assembly WPL-806470
...
31
Clamp WPL-807813
...
32
Tubing-Inlet WPL-807842
...
33
Cage Nut WPL-806291
...
34
Tapping Plate WPL-807038
...
35
Shim-Clip WPL-808702

05 - Rack

...
...
1
Screw No.10-32x2``lg. Hex Hd. St. St. WPL-806353
...
2
Washer WPL-803367
...
3
Heater Kit WPL-806864
...
4
Impeller - Upper WPL-808041
...
5
Blade - Macerator WPL-808075
...
6
Shroud - Impeller WPL-806267
...
7
Plate - Pump WPL-807884
...
8
Gasket - Pump WPL-807709
...
9
``o`` Ring WPL-Y0806521
...
10
Impeller-Lower Kit WPL-808042
...
11
Seal WPL-803903
...
12
Pump Gasket WPL-809008
...
13
Screw No.10-Type30x1``lg. Hex Washer Hd. St. St., WPL-807268
...
14
Pump Housing WPL-809102
...
15
Clamp Ring (Includes Both Halves) WPL-807712
...
16
Slinger WPL-808561
...
17
Motor Assembly WPL-Y0806300
...
18
Nut 1/2`` 20 Brass WPL-806834
...
19
Grommet - Heater WPL-806833
...
20
Gasket - Delivery Arm WPL-808014
...
21
Baffle Plate WPL-808380
...
22
Clamp WPL-806090
...
23
Gage - Seal Shim WPL-807077
...
24
Seal Installation Tool WPL-803923
...
25
Water Shield WPL-808435
...
26
Pump Housing (Includes Diffuser & Plate Spacer) WPL-80-6978
...
27
Screw No.10-30ax3/4``lg. Hex Hd. St. St. WPL-807359
...
28
Lockwasher No.10 External Teeth WPL-804526
...
29
Nut WPL-804527
...
30
Spray Arm WPL-Y0808848
...
31
Washer-Spray Arm WPL-807590
...
32
Nut WPL-804473
...
33
Clamp WPL-805495
...
34
Elbow & Tube Assembly WPL-807592
...
35
``o`` Ring WPL-808210
...
36
Assembly, Precooler Formed WPL-SCREW
...
37
Spray Arm Assembly WPL-807591
...
38
Spray Arm WPL-Y0807593
...
39
Spindle - Spray Arm WPL-807598
...
40
Cotter Pin K WPL-M1200004

07 - Detergent Cup

...
...
1
Suds Deflector WPL-807558
...
2
Clamp - Wiring WPL-806723
...
3
Terminal-Grounding WPL-807213
...
4
Screw No.8x32x5/16``lg. C.r.hex Hd. Cad. Pl. WPL-806830
...
5
Toeplate WPL-807559
...
6
Angle Base WPL-807564
...
7
Wire Shield WPL-808013
...
8
Screw WPL-807501
...
9
Channel-Side WPL-806290
...
10
Bracket-Terminal WPL-807675
...
11
Screw No.8 Type ``a``x1/2`` Lg. C.r.truss Hd. Chrome Pl. WPL-807501
...
12
Block Assembly-Terminal WPL-807175
...
13
Screw 1/4-20x1/2`` Lg.hex Washer Slotted Hd.cad. WPL-807001
...
14
Assembly, Precooler Formed WPL-SCREW
...
15
Screw No.8-32x1-1/4``lg. C.r. Fillister Hd. Cad.pl. WPL-804672
...
16
Relay WPL-806121
...
17
Flow Washer WPL-808469
...
18
Screw No.10 Type Zx1/2``lg. Slotted Hex Hd. Cad. Pl. WPL-804518
...
19
Junction Box Bracket WPL-807019
...
20
Hinge Weld Assembly WPL-807674
...
21
Mounting Bracket WPL-807613
...
22
Valve Assembly - Inlet WPL-808468
...
23
Fitting - Retainer WPL-808458
...
24
Junction Box Cover WPL-800222
...
25
Rear Brace WPL-807566
...
26
Levelers WPL-807672
...
27
Teenut - Snap- In WPL-807671
...
28
Nut K WPL-M0282005
...
29
Screw 1/4-20x1/2`` Lg Hex Washer Hd. Cad. Pl. WPL-806889
...
30
Suds Deflector R.h. WPL-807563
...
31
Clamp-Wire WPL-808442
...
32
Fitting - Inlet WPL-808337
...
33
Gasket WPL-Y0806100
...
34
Screw No.8-Type``b``x5/8``lg. Hex Hd. Cad. Pl. WPL-808368
