Roper 8517L10

Model: 8517L10

Save Part Not Listed?
product name

Popular Parts

Popular Parts

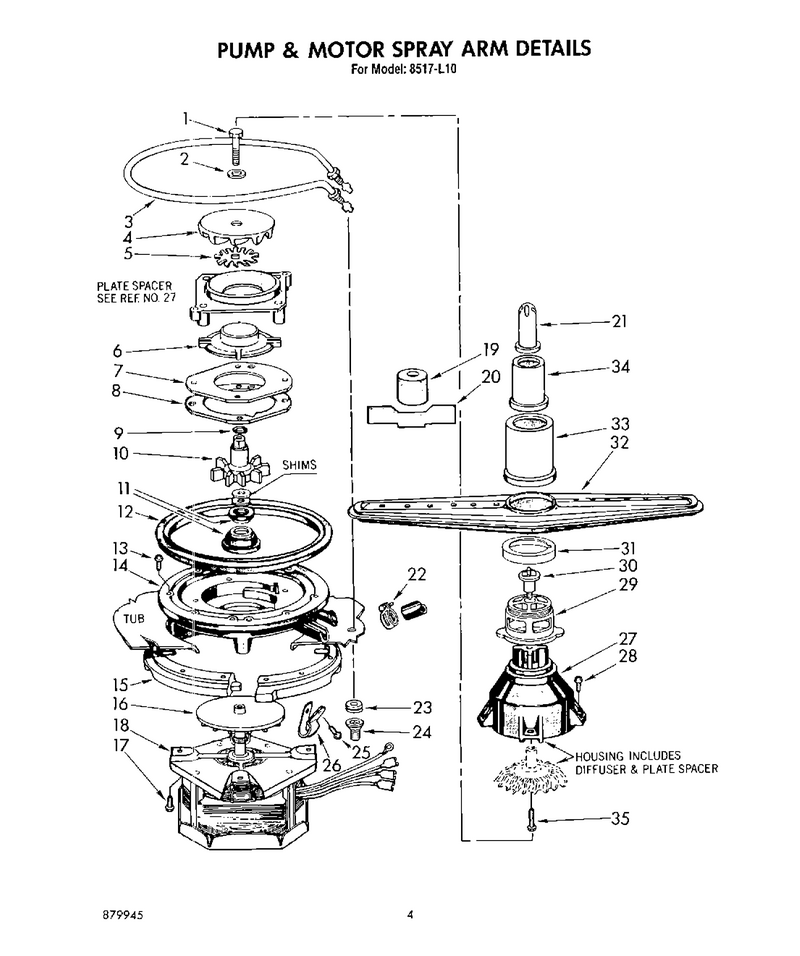

03 - Pump And Motor Spray Arm Detail

...
...
1
Screw, No.10-32 X 2 1/4 WPL-4340235
...
2
Washer WPL-4340098
...
3
Heater (Includes Illus. 10 & 11) WPL-965319
...
4
Upper Impeller WPL-4340815
...
5
Macerator Blade WPL-4340535
...
6
Impeller Shroud WPL-4340225
...
7
Pump Plate WPL-4340510
...
8
Pump Gasket WPL-4340487
...
9
O-Ring WPL-4340254
...
10
Pump Seal Kit (Includes Keys 2 4, 5, 9, 11 & 20) WPL-4340855
...
11
Water Seal WPL-4340106
...
12
Gasket, Pump WPL-965320
...
13
Screw, 10 X 1 Hex Wash. Hd. St. Stl. (6) WPL-965222
...
14
Housing, Pump WPL-965386
...
15
Clamp Ring Half (2) WPL-965287
...
16
Watershield Assembly WPL-4340897
...
17
Screw, 10 X 1 WPL-4340828
...
18
Motor-Pump WPL-965564
...
19
Seal Installation Tool WPL-4340107
...
20
Seal Shim Gage WPL-4340362
...
21
Tower Tip WPL-965275
...
22
Clamp WPL-WP285655
...
23
Heater Grommet WPL-4340295
...
24
Heater Nut 1/2-20 Brass WPL-4340296
...
25
Screw WPL-W11693756
...
26
Clamp WPL-4340643
...
27
Impeller Housing Kit (Includes Keys 6 & 7) WPL-4340856
...
28
Screw, No.10 X 3/4 WPL-4340412
...
29
Bearing, Spray Arm WPL-965322
...
30
Nut, Spray Arm WPL-965323
...
31
Shield, Bearing WPL-965324
...
32
Spray Arm WPL-965278
...
33
Bearing, Spray Arm WPL-965280
...
34
Tower Section WPL-965276
...
35
Screw WPL-4340141

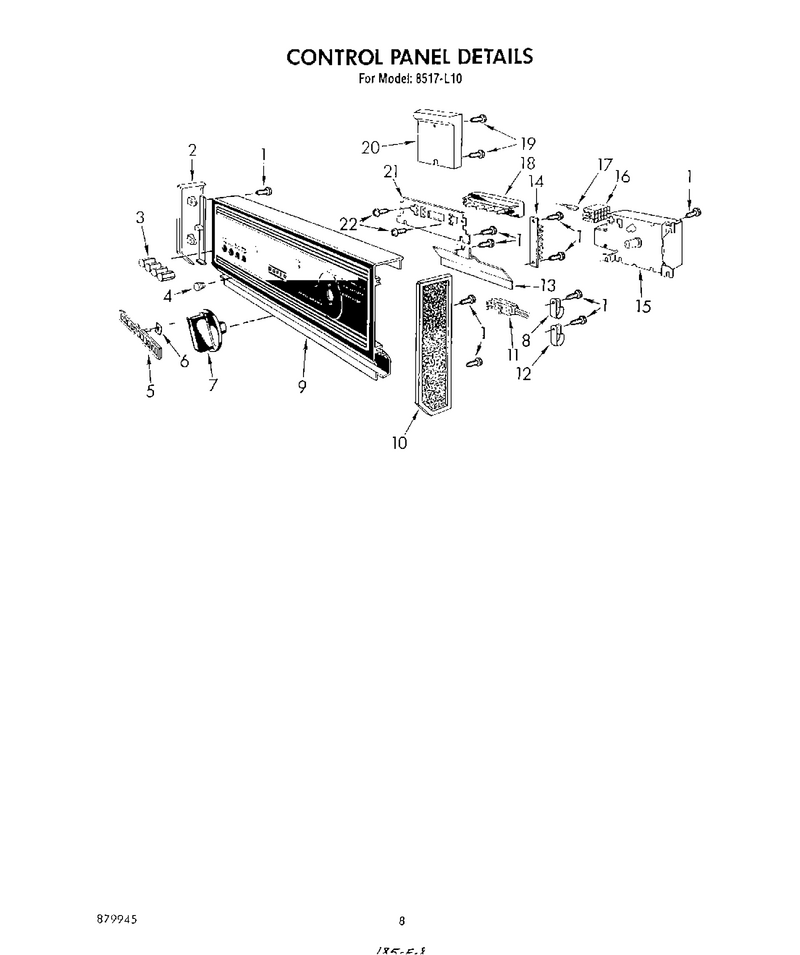

06 - Control Panel

...
...
1
Screw, No.8 X 7/16 WPL-4340865
...
2
End Cap, L.h. WPL-965144
...
3
Push Buttons WPL-4340899
...
4
Lens WPL-4340835
...
5
Vent Grille WPL-965146
...
6
Speednut WPL-965147
...
7
Cycle Indicator Knob WPL-4342579
...
8
Clamp WPL-4355186
...
9
Control Panel WPL-4340908
...
10
End Cap, R.h. WPL-965150
...
11
Light Assembly WPL-4340888
...
12
Clamp WPL-4340643
...
13
Shield, Vent Slot WPL-965159
...
14
Terminal Board WPL-965151
...
15
Timer WPL-4342596
...
16
Timer Terminal Housing WPL-4340884
...
17
Housing Terminal WPL-4340607
...
18
Switch WPL-4340890
...
19
Screw WPL-WP355214
...
20
Splash Pan WPL-965158
...
21
Switch Mounting Bracket WPL-4340267
...
22
Screw, 6-30 X 3/8 WPL-4340369

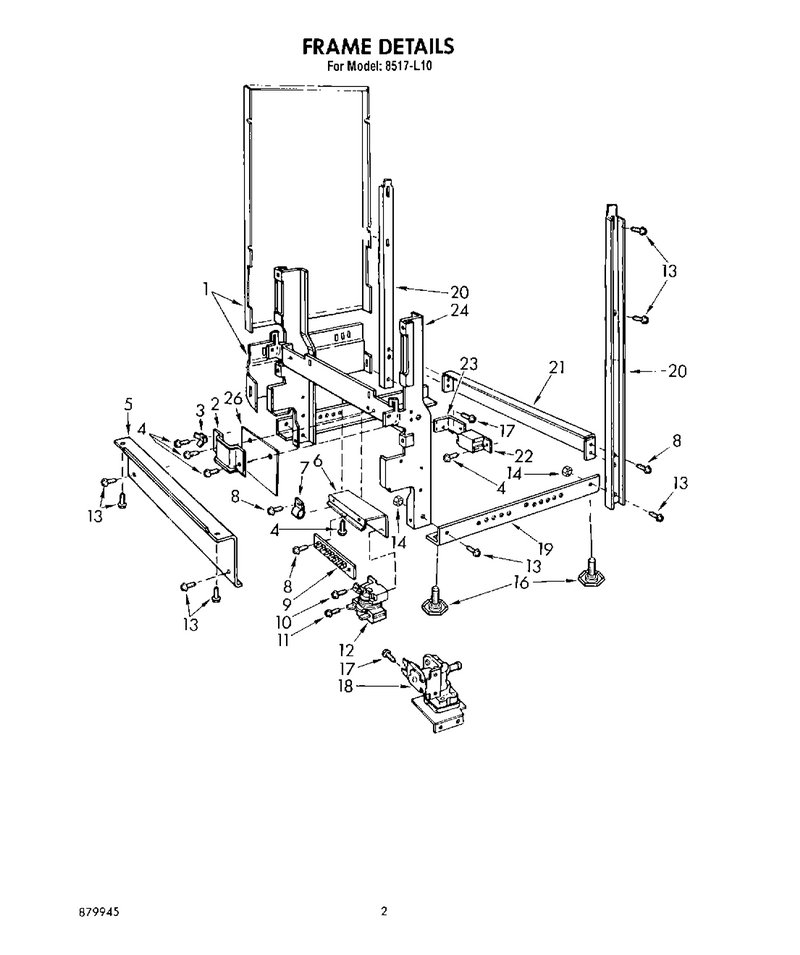

02 - Frame

...
...
1
Side Panels (R.h. Or L.h.) (Avocado) WPL-4340781
...
2
Clamp, Wiring WPL-965248
...
3
Grounding Terminal WPL-4340385
...
4
Screw, No.8 X 3/8 WPL-4340701
...
5
Toeplate WPL-4340449
...
6
Terminal Bracket WPL-965334
...
7
Clamp WPL-4340643
...
8
Screw WPL-WP488729
...
9
Terminal Board WPL-965151
...
10
Screw WPL-WP486579
...
11
Screw, No.8-32 X 1 1/4 WPL-4340123
...
12
Motor Relay WPL-965254
...
13
Screw, 1/4-20 X 1/2 WPL-488849
...
14
Nut WPL-4342593
...
16
Leveler WPL-4342591
...
17
Screw WPL-WP681414
...
18
Valve-Inlt WPL-965453
...
19
Side Base Angle Kit WPL-4342620
...
20
Channel, Side (2) WPL-965269
...
21
Brace, Rear WPL-965270
...
22
Cover, Junction Box WPL-965271
...
23
Bracket, Junction Box WPL-965272
...
24
Hinge Weld Assembly WPL-965336
...
26
Shield, Wire WPL-4340862

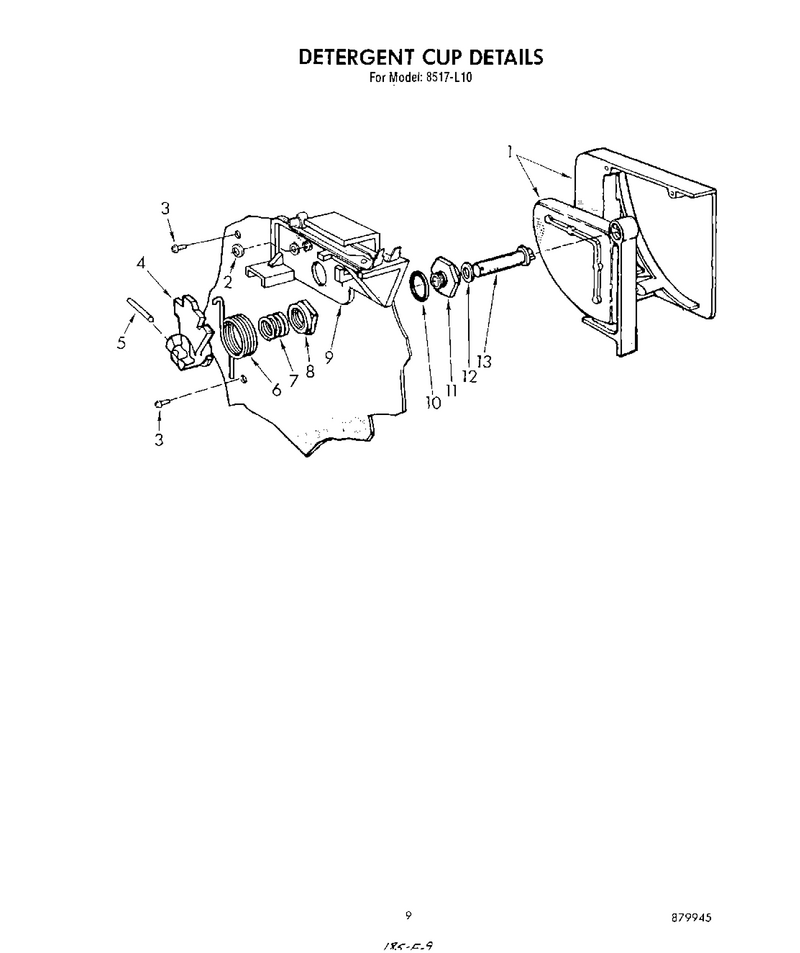

07 - Detergent Cup

...
...
1
Detergent Cup & Cover Kit WPL-965196
...
2
O-Ring WPL-4340582
...
3
Screw WPL-WP98165
...
4
Cam WPL-965199
...
5
Spiral Pin WPL-965312
...
6
Cam Spring WPL-4340147
...
7
Spring, Cam Compression WPL-965202
...
8
Detergent Cup Nut WPL-4340262
...
9
Trigger Assembly WPL-965204
...
10
Spring, Cam Compression WPL-965202
...
11
Bushing WPL-4340167
...
12
Det-Cup WPL-965446
...
13
Shaft (Includes Items 5, 7, 8, 10, 11, 12 & 13) WPL-965209

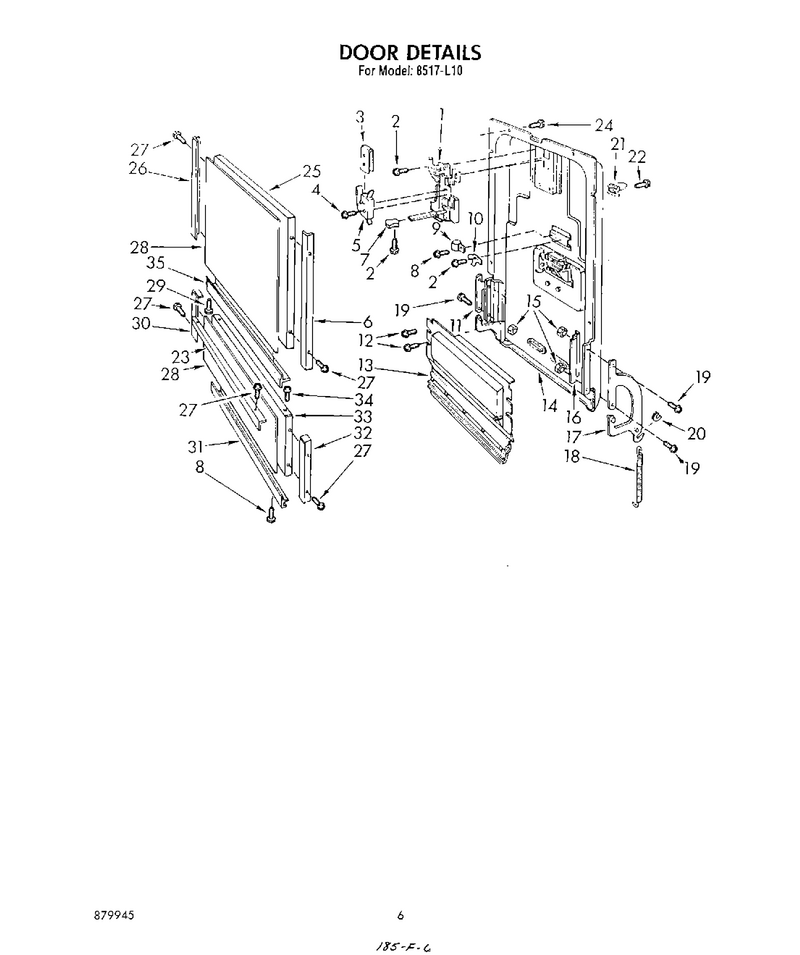

04 - Door

...
...
1
Latch Assembly WPL-965163
...
2
Screw, No.8-32 X 5/16 WPL-4320294
...
3
Switch Cover WPL-965165
...
4
Screw, No.6-32 X 1 WPL-4340692
...
5
Switch WPL-965167
...
6
Trim, Door Side R.h. WPL-965325
...
7
Latch Knob WPL-965169
...
8
Screw WPL-WP965173
...
9
Clamp WPL-4340643
...
10
Grounding Terminal WPL-4340385
...
11
Counterbalance Arm, L.h. WPL-965172
...
12
Screw WPL-WP965173
...
13
Vent Plate WPL-965328
...
14
Porcelain Weld Assembly WPL-4340685
...
15
Nut WPL-W10080180
...
16
Counterbalance Mounting Bracket WPL-4340282
...
17
Counterbalance Arm, R.h. WPL-965178
...
18
Door Spring (2) WPL-965179
...
19
Screw, No.8 X 5/8 WPL-4340094
...
20
Spring Pad (2) WPL-965181
...
21
Door Guide WPL-4340445
...
22
Screw, No.8 X 5/8 WPL-4340736
...
23
Trim, Access Panel Top WPL-965339
...
24
Screw WPL-WP355214
...
25
Door Panel (White) WPL-965184
...
26
Trim, Door Side L.h. WPL-965326
...
27
Screw, No.6 X 1/4 WPL-4340403
...
28
Door & Access Panel Inserts (Wheat) WPL-4340797
...
29
Screw WPL-WP488729
...
30
Trim, Access Panel L.h. WPL-965189
...
31
Access Trim, Bottom WPL-965191
...
32
Trim, Access Panel R.h. WPL-965192
...
33
Access Panel (White) WPL-4340601
...
34
Screw, No.8 X 3/8 WPL-4340701
...
35
Door Panel Trim (Bottom) WPL-4340603

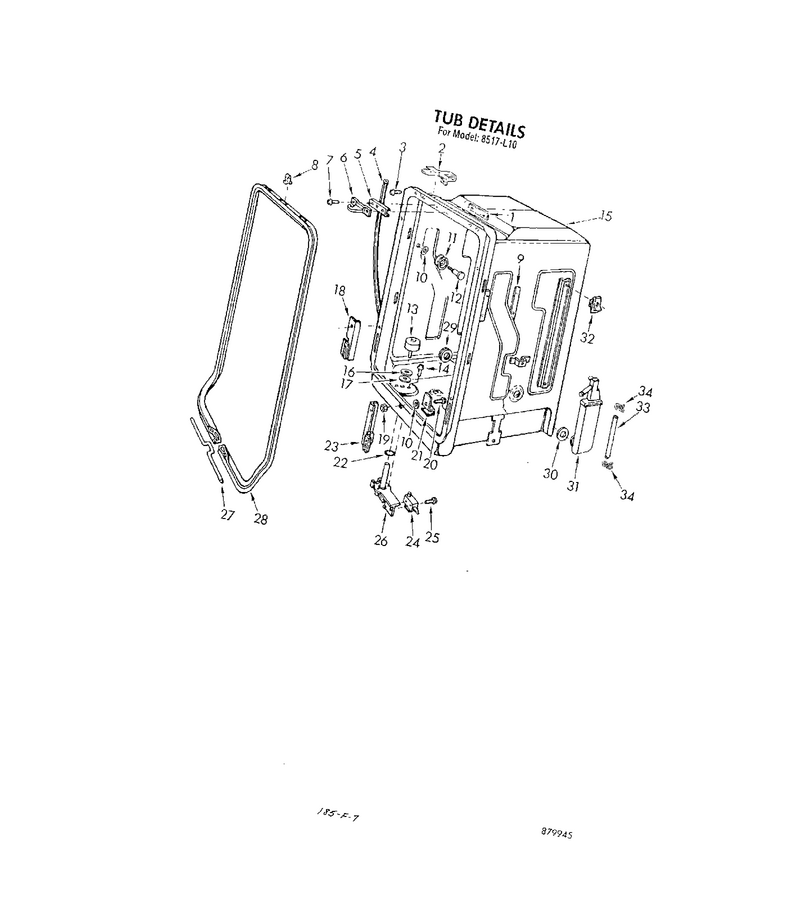

05 - Tub

...
...
1
Latch Plate WPL-965313
...
2
Attach Clip (2) WPL-965210
...
3
Screw WPL-WP355214
...
4
Drain Hose WPL-965314
...
5
Shim WPL-4340359
...
6
Strike WPL-965213
...
7
Screw, 10-16 X 3/4 WPL-489003
...
8
Tub Gasket Clip Kit (Includes Key No. 21) WPL-4340183
...
9
Tapping Plate (4) WPL-965246
...
10
Washer WPL-4340836
...
11
Tub Roller WPL-4340379
...
12
Screw & Washer Kit (Includes Key 10) WPL-4340681
...
13
Float WPL-965221
...
14
Screw, 10 X 1 Hex Wash. Hd. St. Stl. (6) WPL-965222
...
15
Tub (Includes Illus. 25) WPL-965340
...
16
Float Tube Plate WPL-965224
...
17
Float Tube Gasket WPL-965225
...
18
Counterbal Arm Guide (L.h) WPL-4342600
...
19
Nut WPL-WP486255
...
20
Screw, 8-32 X 1/2 WPL-965229
...
21
Gasket Clip WPL-965228
...
22
``o`` Ring WPL-965230
...
23
Arm Guide, R.h. WPL-965231
...
24
Switch-Wl WPL-4169178
...
25
Screw, No.4-40 X 5/8 WPL-4342581
...
26
Float Assembly (Includes Items 16, 17, 22, 27 & 28) WPL-965234
...
27
Junction Rod WPL-4342601
...
28
Gasket, Tub (Includes Illus. 7 & 24) WPL-965233
...
29
Nut WPL-965341
...
30
Gasket, Inlet WPL-965342
...
31
Water Inlet WPL-965343
...
32
Cage Nut WPL-4340231
...
33
Tubing, Inlet (Includes Item 34) WPL-965241
...
34
Clamp, Hose WPL-4161505

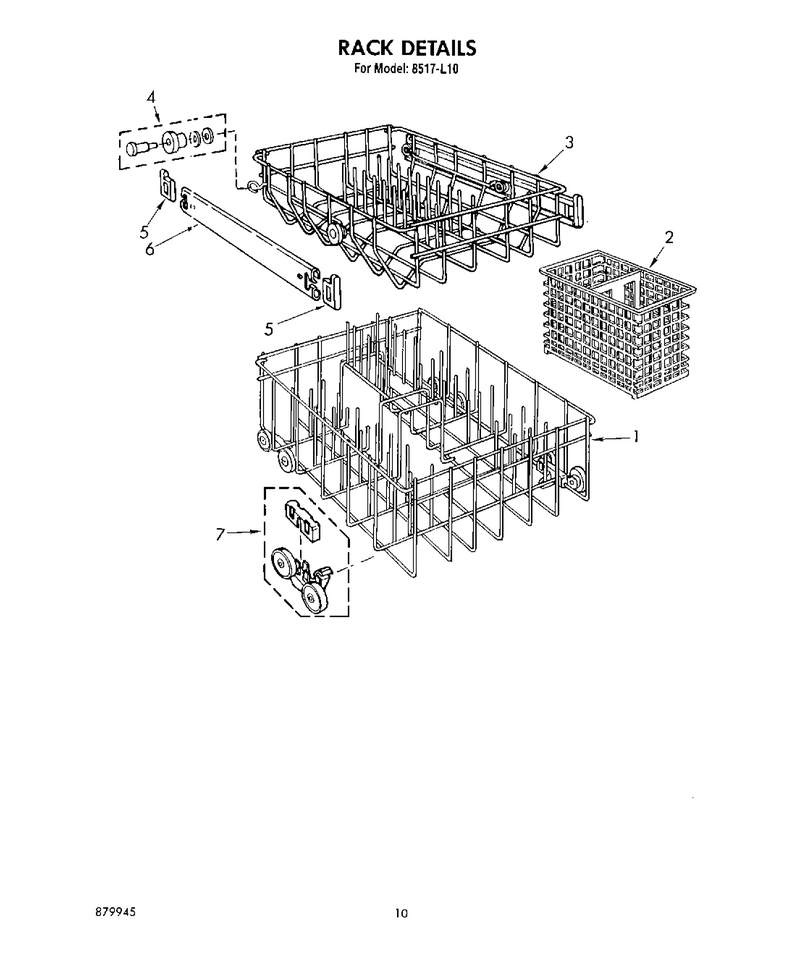

08 - Rack

...
...
Parts List WPL-LIT879945
...
1
Lower Rack Assembly (Includes Item 7) WPL-965366
...
2
Silverware Basket WPL-965290
...
3
Rack Assembly, Upper (Includes Illus. 4) WPL-965344
...
4
Complete Wheel Assembly WPL-4340518
...
5
Rack Slide End Cap WPL-4340507
...
6
Rack Slide WPL-4340874
...
7
Wheel WPL-965565
