Roper 8517L00

Model: 8517L00

Save Part Not Listed?
product name

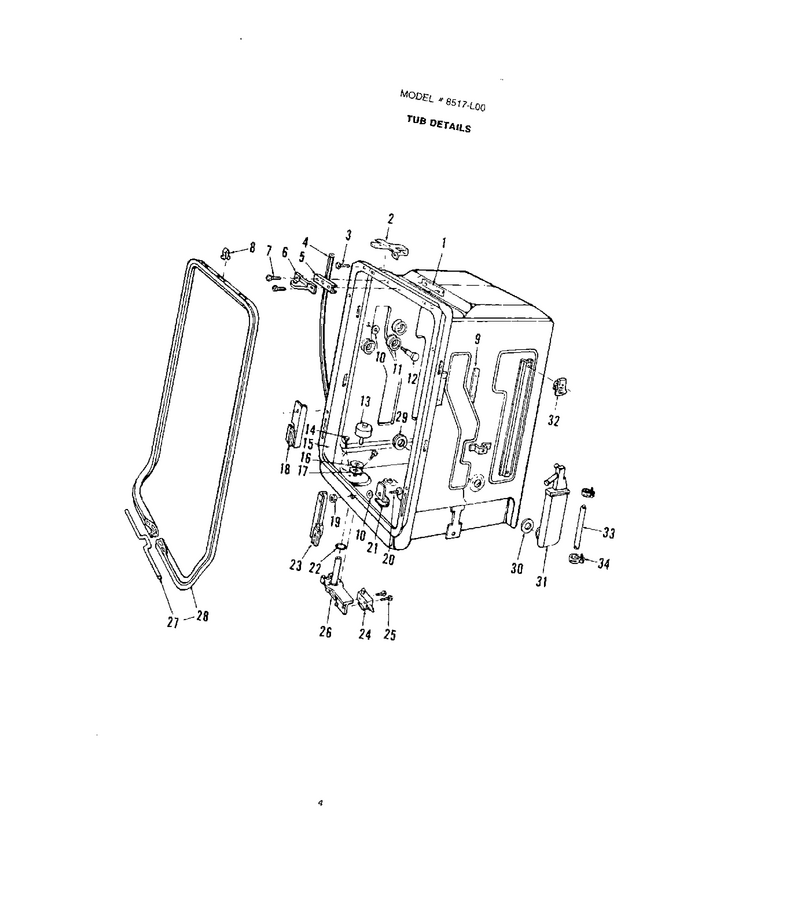

04 - Tub

...
...
1
Latch Tapping Plate WPL-808868
...
2
Attach Clip WPL-808289
...
3
Screw No.8x5/16``lg.c.r. Truss Hd. St. St. WPL-806894
...
4
Drain Hose, Corrugated WPL-809112
...
5
Shim WPL-807073
...
6
Door Strike WPL-807015
...
7
Assembly, Precooler Formed WPL-SCREW
...
8
Tub Gasket Clip Kit (Includes Key No. 21) WPL-805763
...
9
Tapping Plate WPL-807038
...
10
Washer WPL-809044
...
11
Tub Roller WPL-807180
...
12
Screw & Washer Kit (Includes Key No. 10) WPL-808564
...
13
Float WPL-Y0804630
...
14
Screw No.10x1``lg. Hex Washer Hd. St. St. WPL-807268
...
15
Tub & Gasket Assembly WPL-809211
...
16
Plate - Float Tube WPL-808064
...
17
Gasket - Float Tube WPL-808063
...
18
Counterbalance Arm Guide - L.h. WPL-807599
...
19
Nut WPL-803346
...
20
Assembly, Precooler Formed WPL-SCREW
...
21
Dam Clip WPL-808115
...
22
``o`` Ring WPL-807759
...
23
Counterbalance Arm Guide R.h. WPL-807600
...
24
Float Switch WPL-Y0807680
...
25
Screw No.4-40x5/8``lg. Hex Hd. Cad. Pl. WPL-804594
...
26
Float Assy WPL-Y0809859
...
27
Gasket Junction Wire WPL-808118
...
28
Tub Gasket & Wire Assembly (Includes Key Nos. 8 & 27) WPL-809003
...
29
Nut WPL-805669
...
30
Gasket-Water Inlet WPL-803573
...
31
Water Inlet Assembly WPL-806470
...
32
Cage Nut WPL-806291
...
33
Water Inlet Tubing (Includes Key No. 34) WPL-807891
...
34
Clamp WPL-807813

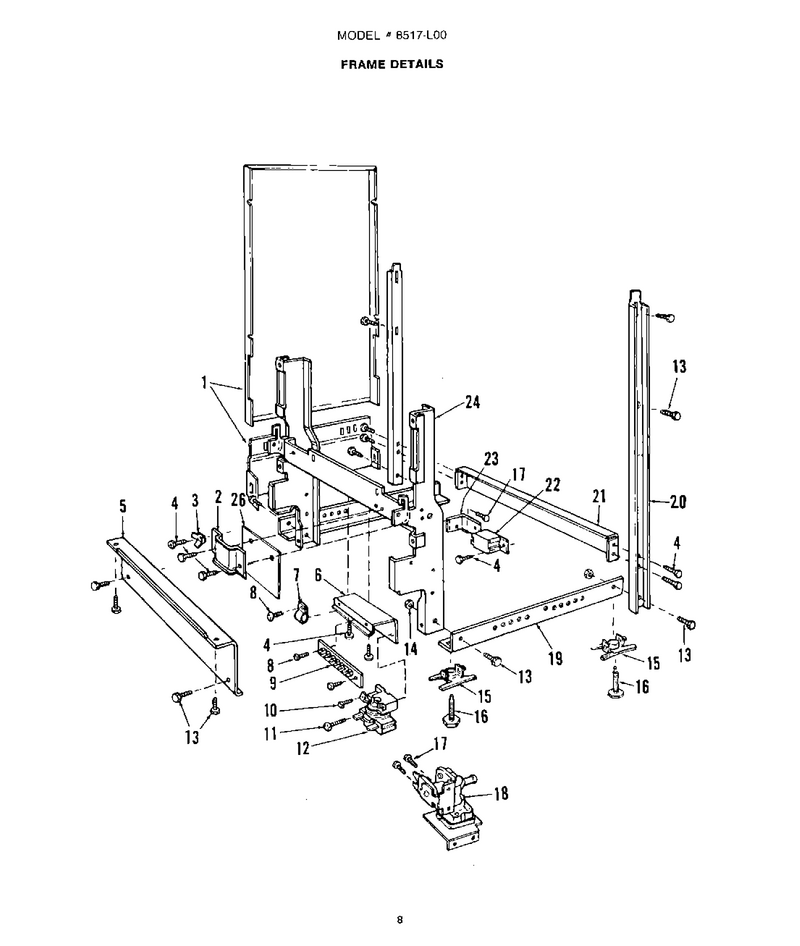

06 - Frame

...
...
1
Side Panel Kit (Reversible Right Or Left) (Avocado) WPL-808886
...
2
Clamp - Wiring WPL-806723
...
3
Grounding Terminal WPL-807213
...
4
Screw WPL-WP90767
...
5
Toeplate WPL-807559
...
6
Terminal Board Bracket WPL-807849
...
7
Clamp WPL-808442
...
8
Screw No.8x1/2`` Lg. C.r. Truss Hd. Chrome Pl. WPL-807501
...
9
Terminal Block Assembly WPL-807486
...
10
Assembly, Precooler Formed WPL-SCREW
...
11
Screw No.8-32x1 1/4``lg. C.r. Oval Hd Cad. Pl. WPL-804672
...
12
Motor Relay WPL-805255
...
13
Screw No. 1/4-20 X 1/2`` Lg. Hex Washer Slotted Hd. Black WPL-807001
...
14
Nut K WPL-M0282005
...
15
Teenut - Snap- In WPL-807671
...
16
Leveler WPL-807672
...
17
Screw No. 10b X 1/2`` Lg. Hex Slot Hd. Cad. WPL-807950
...
18
Water Inlet Valve WPL-809241
...
19
Angle Base WPL-807564
...
20
Support Channel WPL-808670
...
21
Rear Brace WPL-807566
...
22
Junction Box Cover WPL-800222
...
23
Junction Box Bracket WPL-807019
...
24
Hinge Weld Assembly/8`` Lg. C.r. Round Hd. St. St. WPL-809212

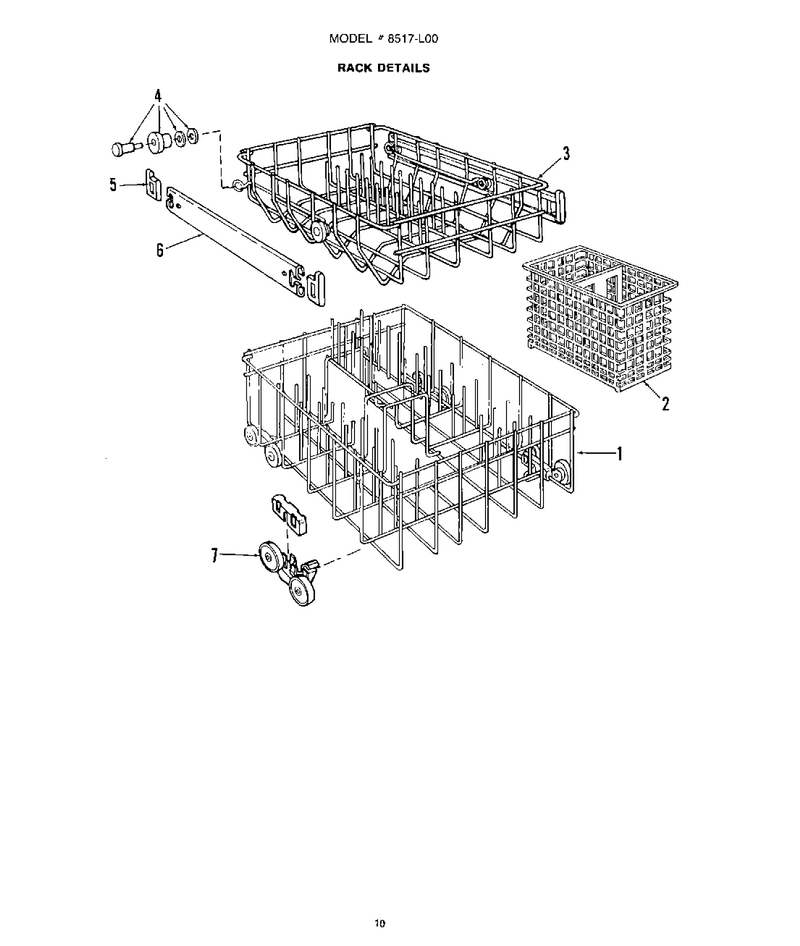

07 - Rack

...
...
1
Lower Rack Assembly WPL-808847
...
2
Silverware Basket WPL-Y0808845
...
3
Upper Rack Assembly WPL-809396
...
4
Wheel Asm WPL-807957
...
5
End Cap Rack Slide WPL-807853
...
6
Rack Slide WPL-809213
...
7
Wheel & Bracket Assembly WPL-80-7008

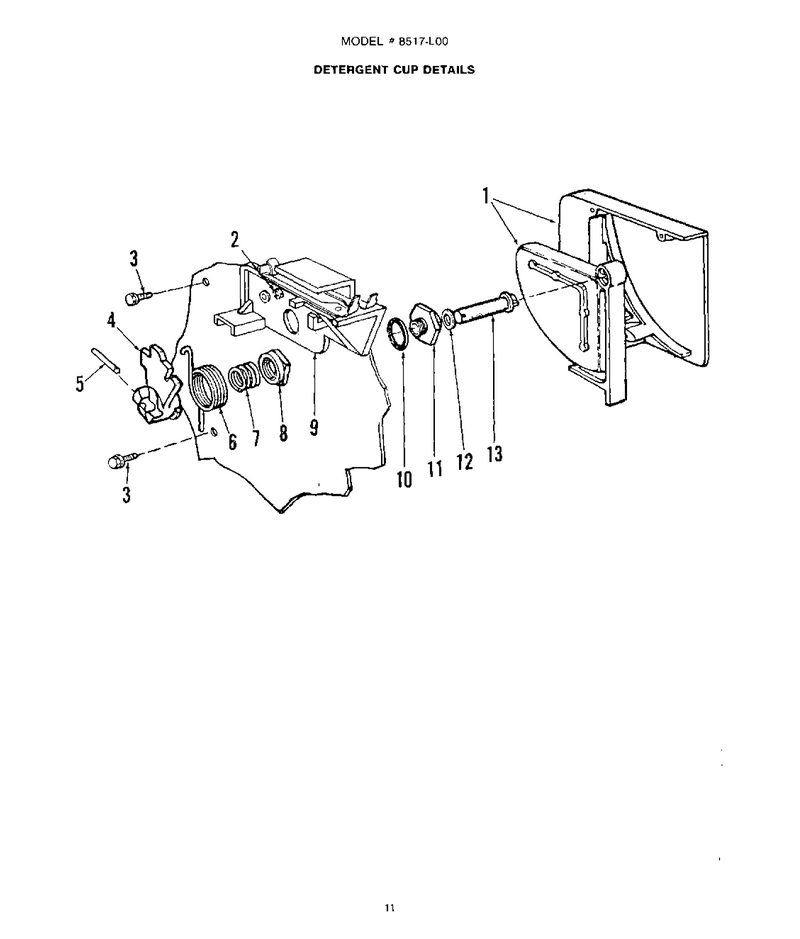

08 - Detergent Cup

...
...
1
Detergent Cup & Cover WPL-807261
...
2
``o`` Ring WPL-808210
...
3
Screw No. 8 X 5/8`` Lg. Hes Washer Hd. St. St. WPL-806565
...
4
Cam WPL-806566
...
5
Spirol Pin WPL-Y0808827
...
6
Spring - Cam WPL-805227
...
7
Spring-Cam Compression WPL-806567
...
8
Detergent Cup Nut WPL-806568
...
9
Bi-Metal Assembly Kit (Includes Key No. 11) WPL-808507
...
10
Washer WPL-802836
...
11
Bushing WPL-805626
...
12
O-Ring WPL-WP912510
...
13
Shaft Kit (Includes Key Nos. 2,4,5,7,8,10,11,12) WPL-806674

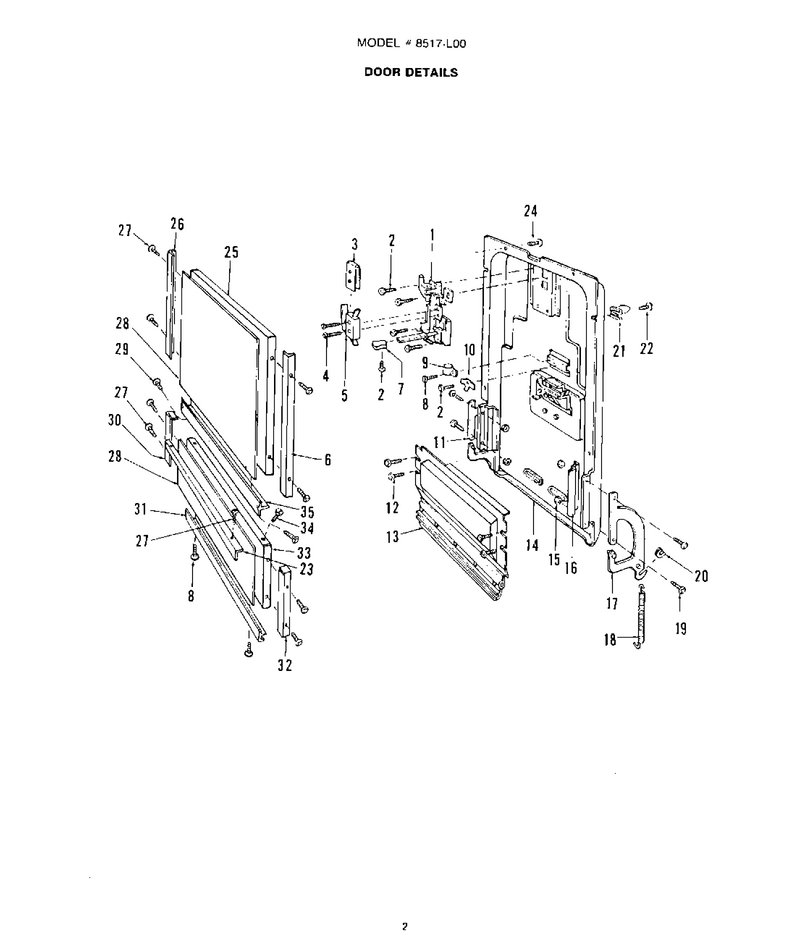

03 - Door

...
...
1
Latch Assembly WPL-807016
...
2
Screw 8-32 X 5/16`` Lg. Hex Washer Hd. Cad. Pl WPL-809163
...
3
Cover - Switch WPL-807450
...
4
Screw 6-32x1``lg. Hex Hd. Cad. Pl. WPL-808618
...
5
Switch WPL-807043
...
6
Door Panel Trim - R.h. WPL-808990
...
7
Latch Knob WPL-808712
...
8
Screw WPL-WP90767
...
9
Clamp WPL-808442
...
10
Grounding Terminal WPL-807213
...
11
Arm, L.h. WPL-Y0807539
...
12
Screw No.8x3/8``lg C.r. Round Hd. St. St. WPL-806810
...
13
Vent Plate Assembly WPL-808370
...
14
Porcelain Weld Assembly WPL-808578
...
15
Nut WPL-M0282009
...
16
Arm Bracket WPL-Y0806717
...
17
Counterbalance Arm Assembly - R.h. WPL-807538
...
18
Door Spring WPL-Y0807534
...
19
Screw No. 10-24 X 5/8`` Lg. C.r. Truss Hd. Chr. Pl. WPL-803311
...
20
Spring Pad WPL-805884
...
21
Guide - Door WPL-807537
...
22
Screw No.8x5/8``lg. C.r. Truss Hd. St. St. WPL-808749
...
23
Access Panel Trip - Top WPL-808471
...
24
Screw No.8x5/16``lg.c.r. Truss Hd. St. St. WPL-806894
...
25
Door Panel (White) WPL-808298
...
26
Door Panel Trim - L.h. WPL-808991
...
27
Assembly, Precooler Formed WPL-SCREW
...
28
Door & Access Panel Inserts (Black) WPL-808923
...
29
Screw 8x1/2 Lg. C.r. Truss Hd. Chrome Pl. WPL-807501
...
30
Trim-Access Panel L.h. Side WPL-808104
...
31
Access Panel Trim - Bottom WPL-808303
...
32
Trim - Access Panel R.h. Side WPL-808103
...
33
Access Panel (White) WPL-808304
...
34
Screw WPL-WP90767
...
35
Door Panel Trim - Bottom WPL-808323

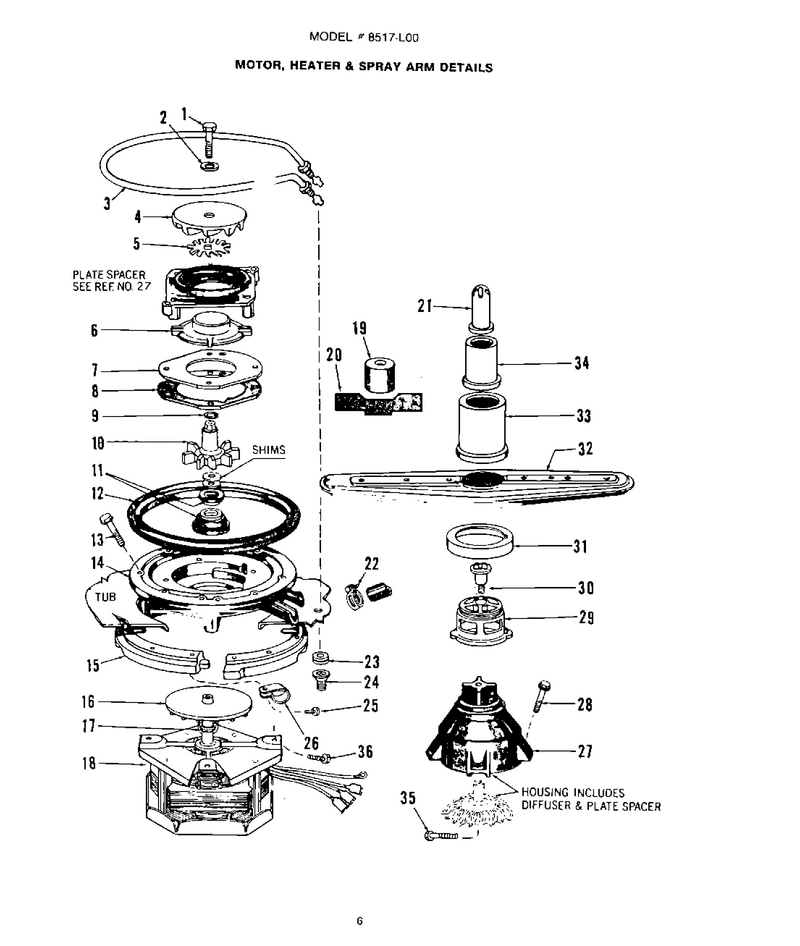

05 - Motor, Heater And Spray Arm

...
...
1
Screw No.10-32x2-1/4`` Lg. Hex Hd. St. St. WPL-806353
...
2
Washer WPL-803367
...
3
Heater (Includes Key Nos. 23 & 24) WPL-806864
...
4
Upper Impeller WPL-809005
...
5
Blade - Macerator WPL-808075
...
6
Shroud - Impeller WPL-806267
...
7
Plate - Pump WPL-807884
...
8
Gasket - Pump WPL-807709
...
9
``o`` Ring WPL-Y0806521
...
10
Pump Seal Kit WPL-Y0809116
...
11
Water Seal WPL-803903
...
12
Gasket WPL-809008
...
13
Screw No.10x1``lg. Hex Washer Hd. St. St. WPL-807268
...
14
Pump Housing WPL-Y0809059
...
15
Clamp Ring WPL-807712
...
16
Watershield Assembly WPL-809366
...
17
Tolerance Ring WPL-808898
...
18
Motor Assembly WPL-Y0806300
...
19
Seal Installation Tool (Required When Installing Key Nos. 10, 11 Or 18) WPL-803923
...
20
Gage - Seal Shim WPL-807077
...
21
Tower Tip WPL-8088498
...
22
Drain Hose Clamp WPL-806090
...
23
Grommet - Heater WPL-806833
...
24
Heater Nut 1/2 20 Brass WPL-806834
...
25
Screw No.8x5/8`` Lg. C.r. Truss Hd. Cad. Pl. WPL-807270
...
26
Clamp WPL-808442
...
27
Upper Impeller Housing Kit (Includes Key Nos. 6 & 7) WPL-809119
...
28
Screw No. 10 X 1 3/4`` Lg. Hex Hd. St. St. WPL-809012
...
29
Bearing WPL-809046
...
30
Spray Arm Bolt WPL-809018
...
31
Shield Bearing WPL-808924
...
32
Spray Arm WPL-Y0808848
...
33
Tower Base WPL-80-8178
...
34
Tower Section WPL-80-8179
...
35
Screw WPL-WP67006908
...
36
Screw WPL-807268

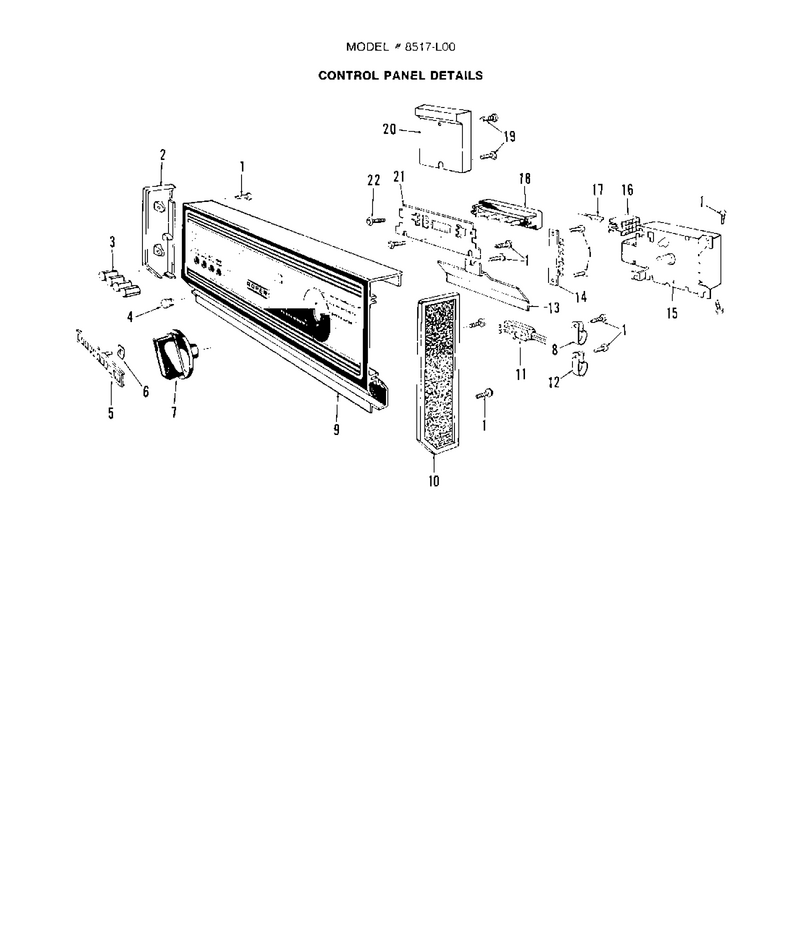

02 - Control Panel

...
...
1
Screw No. 8b X 7/16`` Lg. C.r. Truss Hd. Cad. Pl. WPL-809175
...
2
End Cap-L.h. (Black) WPL-808694
...
3
Pushbuttons WPL-809369
...
4
Lens WPL-809036
...
5
Vent Grille WPL-808477--
...
6
Speednut WPL-808475
...
7
Timer Knob WPL-809370
...
8
Clamp WPL-W10833902
...
9
Control Panel WPL-809380
...
10
End Cap-R.h. (Black) WPL-808693
...
11
Light Assembly WPL-809317
...
12
Clamp WPL-808442
...
13
Shield - Vent Slot WPL-808574
...
14
Terminal Board Assembly WPL-808483
...
15
Timer WPL-Y0809191
...
16
Timer Terminal Housing WPL-809296
...
17
Housing Terminal WPL-808333
...
18
Switch WPL-809328
...
19
Screw No.8x5/16``lg.c.r. Truss Hd. St. St. WPL-806894
...
20
Splash Pan WPL-807425
...
21
Switch Mounting Bracket WPL-806594
...
22
Screw No. 6-30 X 3/8 Lg. Pan Hd. Cad. Pl. WPL-807141
