Roper 7MRAS6233KQ4

Model: 7MRAS6233KQ4

Save Part Not Listed?
product name

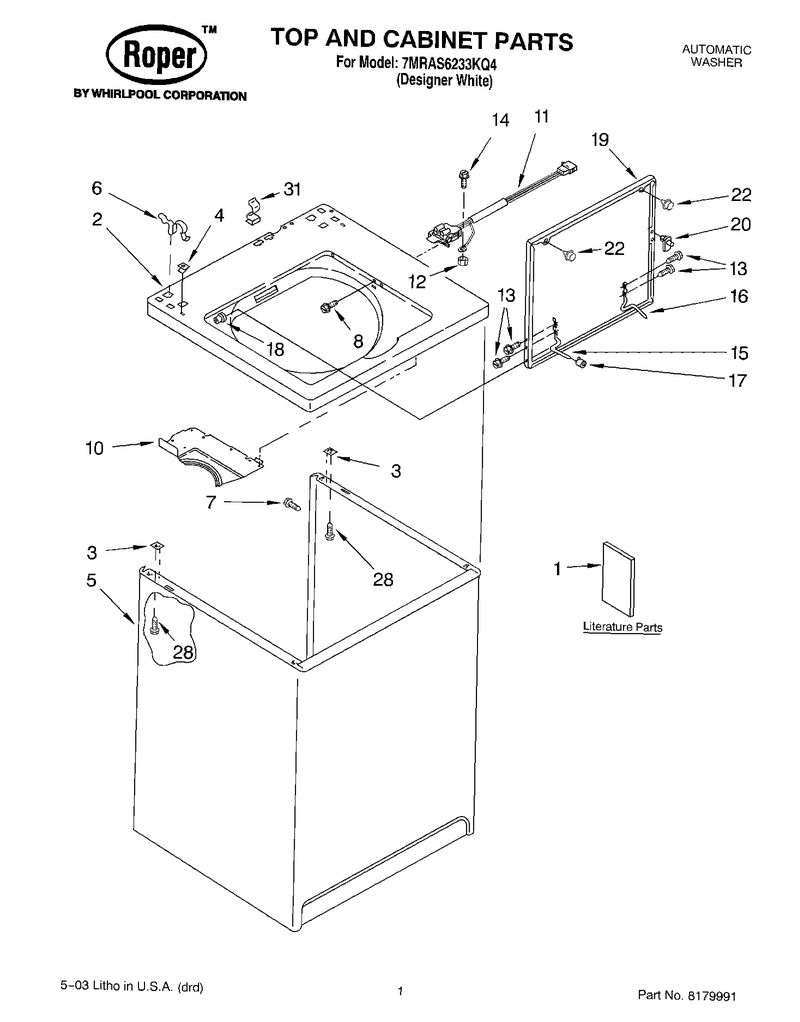

01 - Top And Cabinet Parts

...
...
1
Literature Parts (Energy Guide (Mexico)) WPL-LIT8532071
...
2
Top WPL-8274315
...
3
Spacer WPL-WP62750
...
4
Nut WPL-WP357213
...
5
Cabinet WPL-63424
...
6
Clip WPL-WP62780
...
7
Screw WPL-WP308685
...
8
Screw WPL-WP3356311
...
10
Shield, Lid Switch WPL-3950994
...
11
Switch-Lid WPL-WP3950298
...
12
Nut WPL-W10080180
...
13
Screw WPL-WPW10119828
...
14
Screw WPL-WP3351614
...
15
Hinge WPL-WP54584
...
16
Hinge WPL-WP91770
...
17
Bumper WPL-WP19119
...
18
Bearing WPL-WP21258
...
19
Lid WPL-285923
...
20
Strike WPL-WP358684
...
22
Bumper WPL-WP9724509
...
28
Screw WPL-WP3390631
...
31
Clip WPL-WP90016

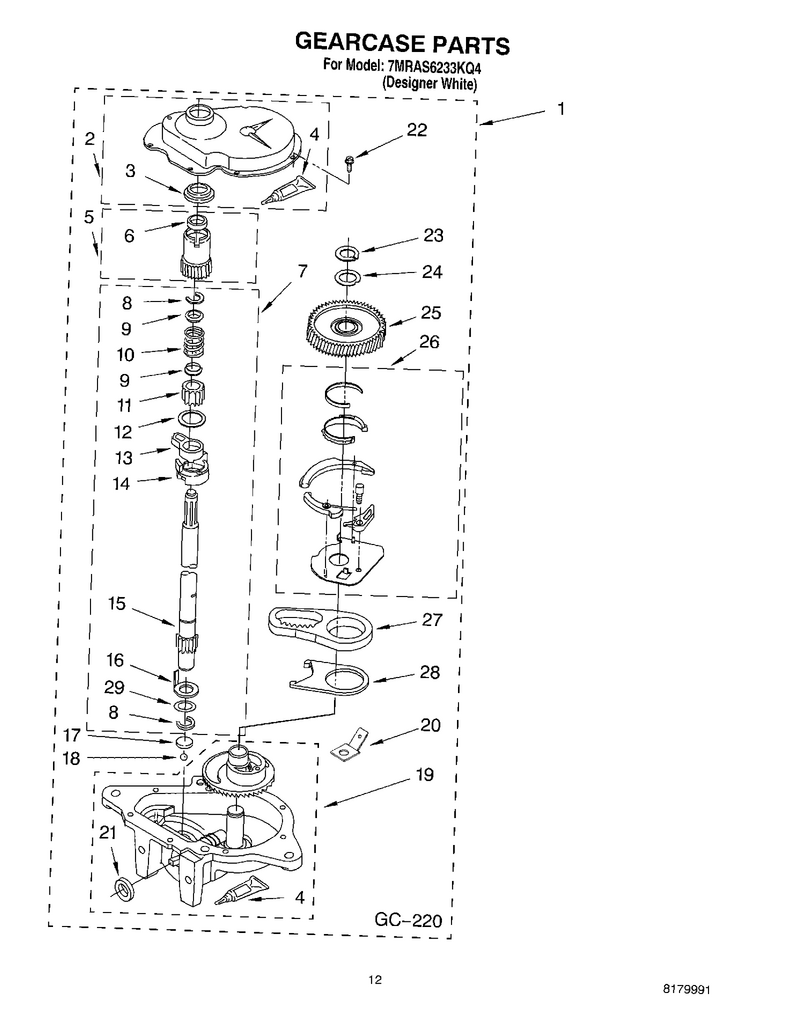

08 - Gearcase Parts

...
...
1
Gearcase WPL-3360629
...
2
Cover, Gearcase WPL-285202
...
3
Seal-Cover WPL-WP3349985
...
4
Sealer WPL-WP285195
...
5
Gearcase WPL-3360629
...
6
Seal-Shaft WPL-WP356427
...
7
Shaft-Agit WPL-WP389387
...
8
Ring, Retaining (2) WPL-90369
...
9
Retainer, Spring (2) WPL-62677
...
10
Spring, Agitate WPL-62676
...
11
Shaft-Agit WPL-WP389387
...
12
Washer, Agitate Gear WPL-62619
...
13
Shaft-Agit WPL-WP389387
...
14
Shaft-Agit WPL-WP389387
...
15
Shaft-Agit WPL-WP389387
...
16
Washer, Cam Thrust WPL-62618
...
17
Bearing WPL-285205
...
18
Bearing WPL-285205
...
19
Gearcase WPL-285515
...
20
Block Tab, Terminal WPL-3949116
...
21
Seal, Thrust Plug WPL-285352
...
22
Screw WPL-WP3351614
...
23
Ring-Retnr WPL-285765
...
24
Washer Kit, Thrust WPL-285766
...
25
Gearcase WPL-3360629
...
26
Neutrl-Pak WPL-388253A
...
27
Gearcase WPL-3360629
...
28
Gearcase WPL-3360629
...
29
Washer WPL-WP388815

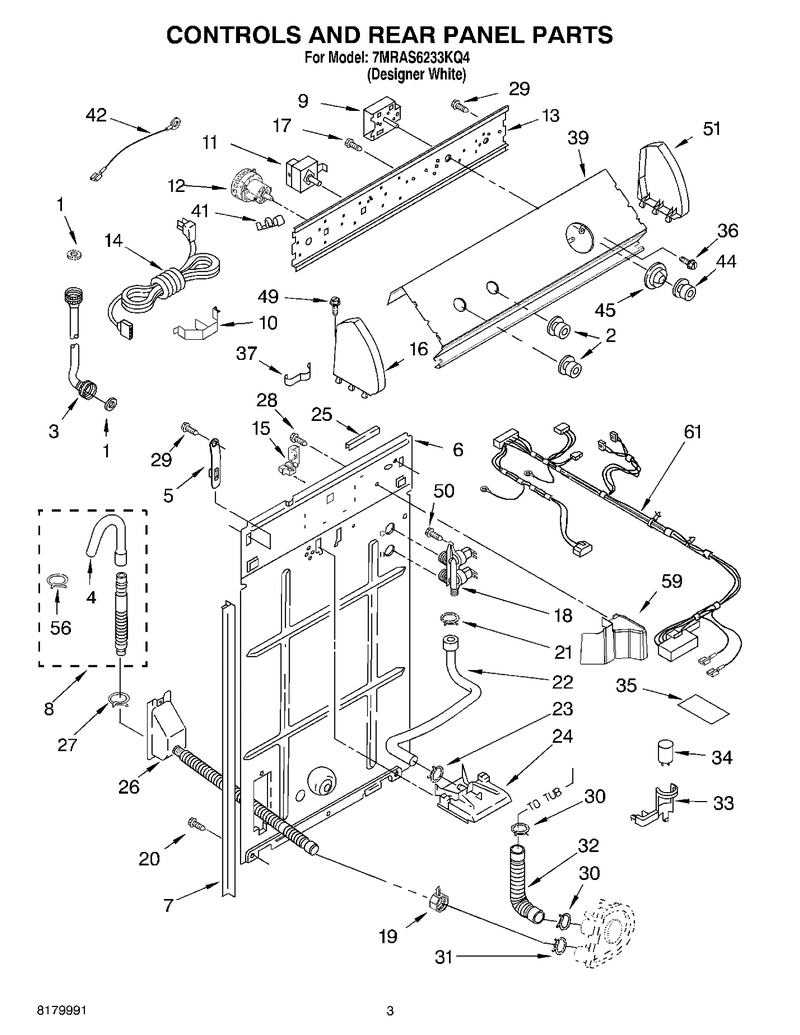

02 - Controls And Rear Panel Parts

...
...
1
Washer WPL-WP16123
...
2
Knob WPL-WP8274378
...
3
Hose-Fill WPL-WP89503
...
4
Nozzle WPL-WP3357027
...
5
Strap WPL-WP8568314
...
6
Panel, Rear WPL-8318405
...
7
Pad WPL-WP62747
...
8
Accessory Parts, 8' Drain Hose W/clamp WPL-285666
...
9
Timer WPL-WP3953146
...
10
Retainer WPL-WP8055003
...
11
Swtch-Temp WPL-WPW10168256
...
12
Switch-Wl WPL-W10820051
...
13
Bracket WPL-WP3948608
...
14
Cord-Power WPL-W10130795
...
15
Relief-Str WPL-285777
...
16
Cap, End (L.h.) WPL-8532108
...
17
Screw, Ground (Console) WPL-3179795
...
18
Valve WPL-285805
...
19
Clamp, Hose WPL-3976395
...
20
Screw WPL-WP3390631
...
21
Clamp WPL-WP596669
...
22
Hose WPL-WP3357328
...
23
Clamp WPL-WP596669
...
24
Break-Vac WPL-WP3360977
...
25
Protector, Edge WPL-3367669
...
26
Hose WPL-WPW10358149
...
27
Clamp WPL-WP356138
...
28
Screw WPL-WP3351614
...
29
Screw WPL-WP90767
...
30
Clamp WPL-WP616099
...
31
Clamp WPL-WP285655
...
32
Hose WPL-285871
...
33
Clip, Capacitor WPL-8318046
...
34
Capacitor WPL-WP8572717
...
35
Shield, Capacitor WPL-3976286
...
36
Screw WPL-WP3400818
...
37
Clip WPL-8528351
...
39
Panel, Console WPL-8531980
...
41
Clip, Grounding WPL-W10113937
...
42
Wire WPL-3395559
...
44
Knob WPL-W10807860
...
45
Dial, Timer WPL-8274395
...
49
Screw WPL-WP388326
...
50
Screw WPL-WP9740848
...
51
Cap, End (R.h.) WPL-8532107
...
56
Clamp WPL-WP3357331
...
59
Shield, Inlet Valve WPL-8314879
...
61
Harness, Wiring (For Detail See Pages 9 & 10) WPL-3956139

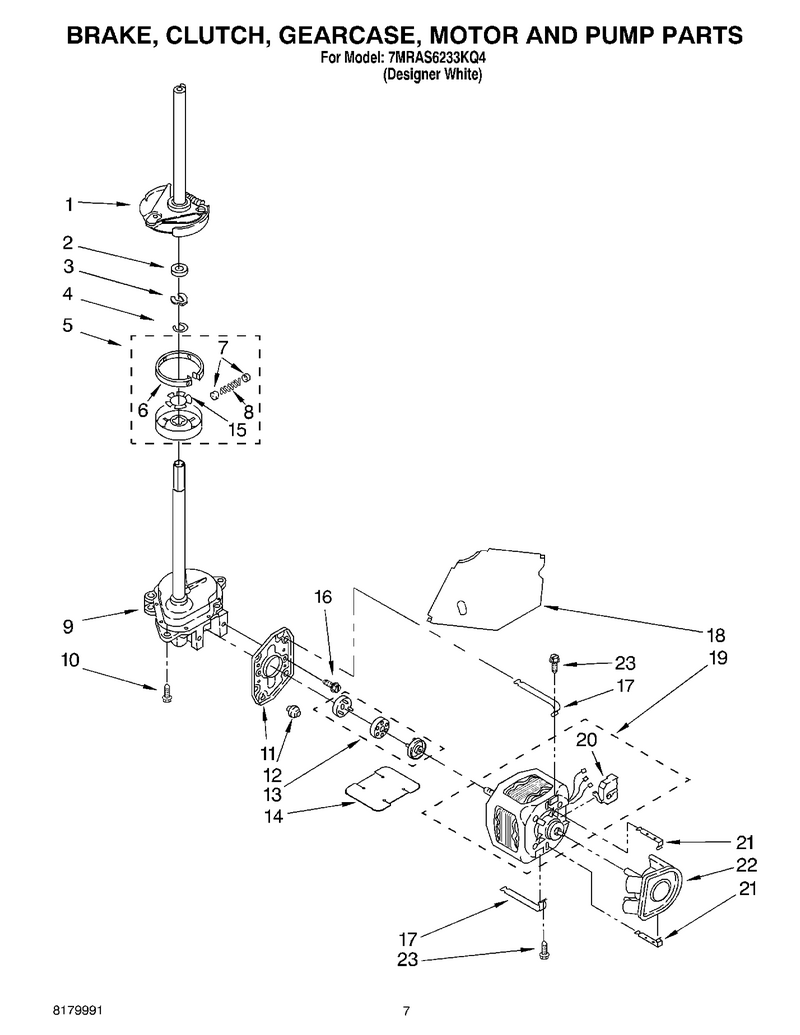

04 - Brake, Clutch, Gearcase, Motor And Pump Parts

...
...
1
Basktdrive WPL-W10820043
...
2
Washer WPL-WP63292
...
3
Ring WPL-WPW10080230
...
4
Ring WPL-285353
...
5
Clutch WPL-285785
...
6
Lining WPL-285790
...
7
Cap WPL-WP62646
...
8
Spring WPL-WP3946792
...
9
Gearcase WPL-3360629
...
10
Screw WPL-WP3400516
...
11
Plate WPL-WP62611
...
12
Grommet WPL-WP62691
...
13
Coupling WPL-285753A
...
14
Shield, Motor WPL-8316060
...
15
Clip WPL-WP3355454
...
16
Screw WPL-WP3400516
...
17
Retainer WPL-WPW10086010
...
18
Shield-Mtr WPL-W10838408
...
19
Motor-Drve WPL-WP661600
...
20
Switch-Mtr WPL-WP3952056
...
21
Retainer WPL-WP8546127
...
22
Pump-Water WPL-WP3363394
...
23
Screw WPL-WP273556

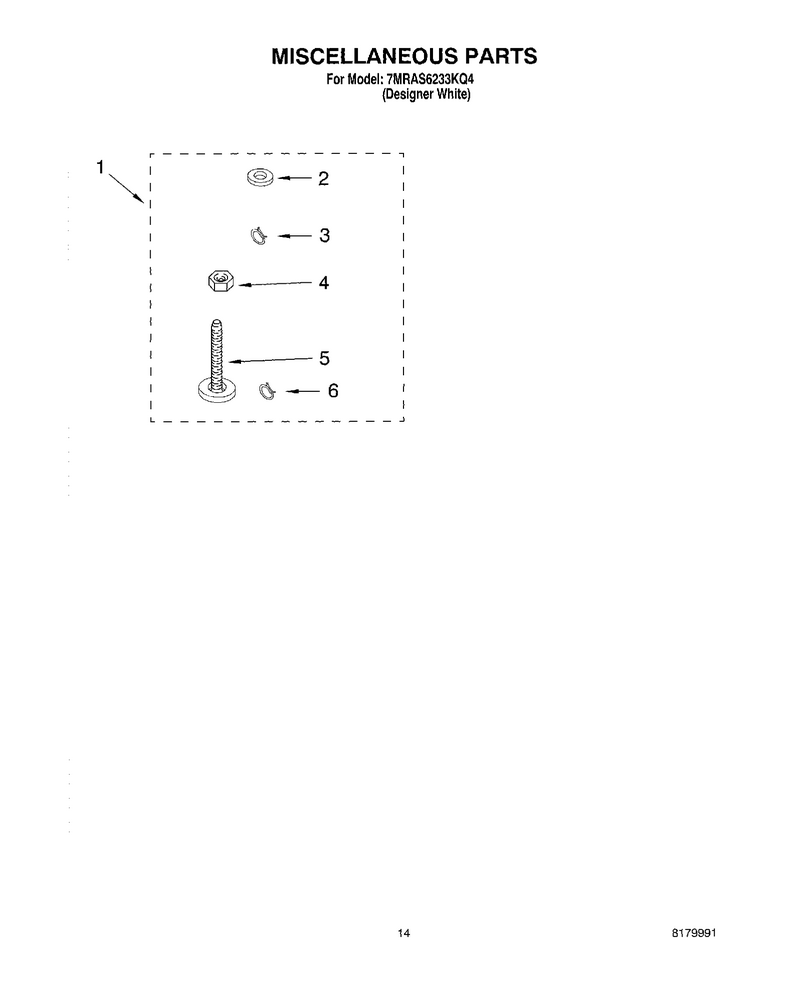

10 - Miscellaneous Parts - Optional Parts (not Inc

...
...
1
Parts-Misc WPL-285654
...
2
Washer WPL-WP16123
...
3
Clamp WPL-WP356138
...
4
Nut WPL-WP3359452
...
5
Feet-Lvlng WPL-WPW10001130
...
6
Sealer WPL-WP285195

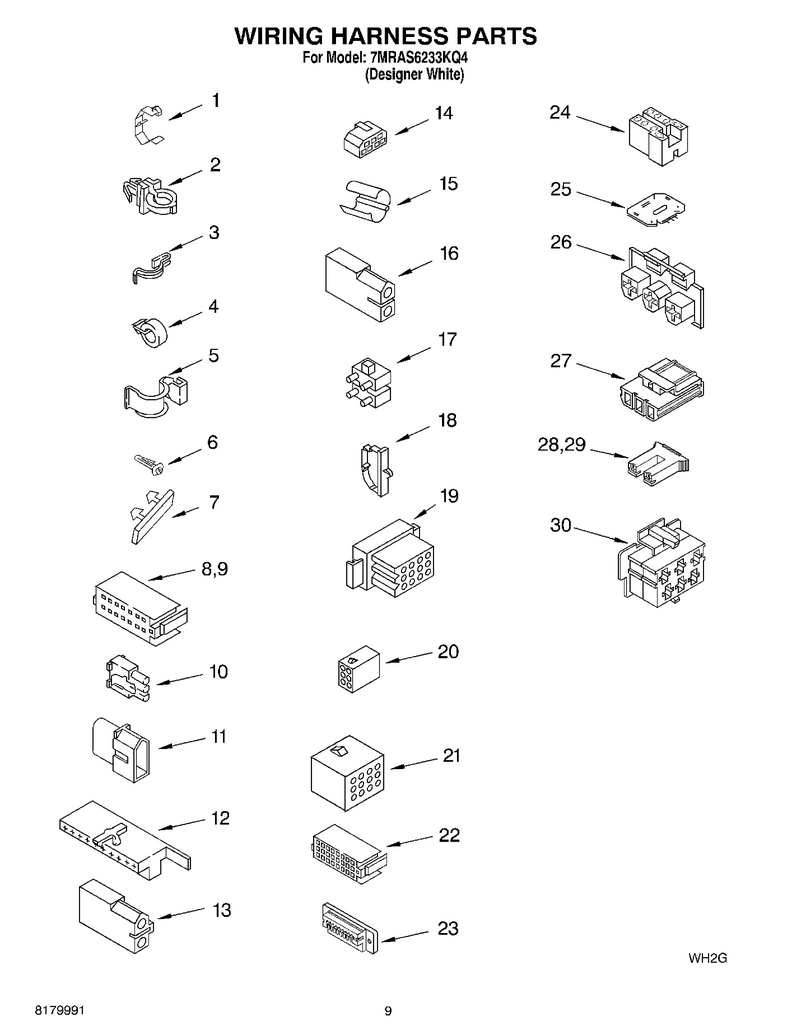

06 - Wiring Harness Parts

...
...
For Complete Wiring Harness Refer To Control And Rear Panel Parts Page WPL---
...
1
Clip, Harness WPL-3349557
...
2
Clip, Harness WPL-388498
...
3
Clip WPL-8528351
...
4
Restraint, Hose WPL-8559320
...
5
Clip WPL-WP90016
...
6
Clip, Harness WPL-3390496
...
7
Retainer WPL-WP389379
...
8
Timer, Block Disconnect (White) WPL-352090
...
9
Connector WPL-W10876590
...
10
Connector WPL-WP62889
...
11
Plug, Terminal (3-Way) (Power Cord) (Use Term 94613) WPL-353424
...
12
Connector WPL-WP62505
...
13
Block, Disconnect (Motor 3 Speed) (Use Term. 94613 Or 94614) WPL-3348075
...
14
Block, Disconnect (Use Term. 352088) WPL-3347243
...
15
Protector WPL-63523
...
16
Connector (2-Way) (Use Term. 94614) WPL-717252
...
17
Plug, Terminal (4-Way) (Power Cord) (Use M3 Screws) WPL-387566
...
18
Clip, Harness WPL-3352944
...
19
Block, Disconnect (12-Way) (Timer) (Use Term. 94613) WPL-3390423
...
20
Receptacle, (6-Way) (Use Term. 94613) WPL-3347730
...
21
Plug, Terminal (12-Way) (Use Term. 94613 Or 94614) WPL-388818
...
22
Timer, Block Disconnect (Black) (Amp) (Use Term. 3369365) WPL-3369366
...
23
Connector, Etc WPL-3349494
...
24
Connector, Relay (Use Term. 308569) WPL-60687
...
25
E.t.c. Control WPL-3407125
...
26
Connector WPL-WP2172937
...
27
Connector WPL-WP3360056
...
28
Block, Connector (Cold Valve) (Use Term. 693217) WPL-3354925
...
29
Block, Connector (Hot Valve) (Use Term. 693217) WPL-3354926
...
30
Connector (T.p.a.) (6-Circuit) (Temp. Switch) (Use Term. 3948619 Or 3948620.) WPL-3948615

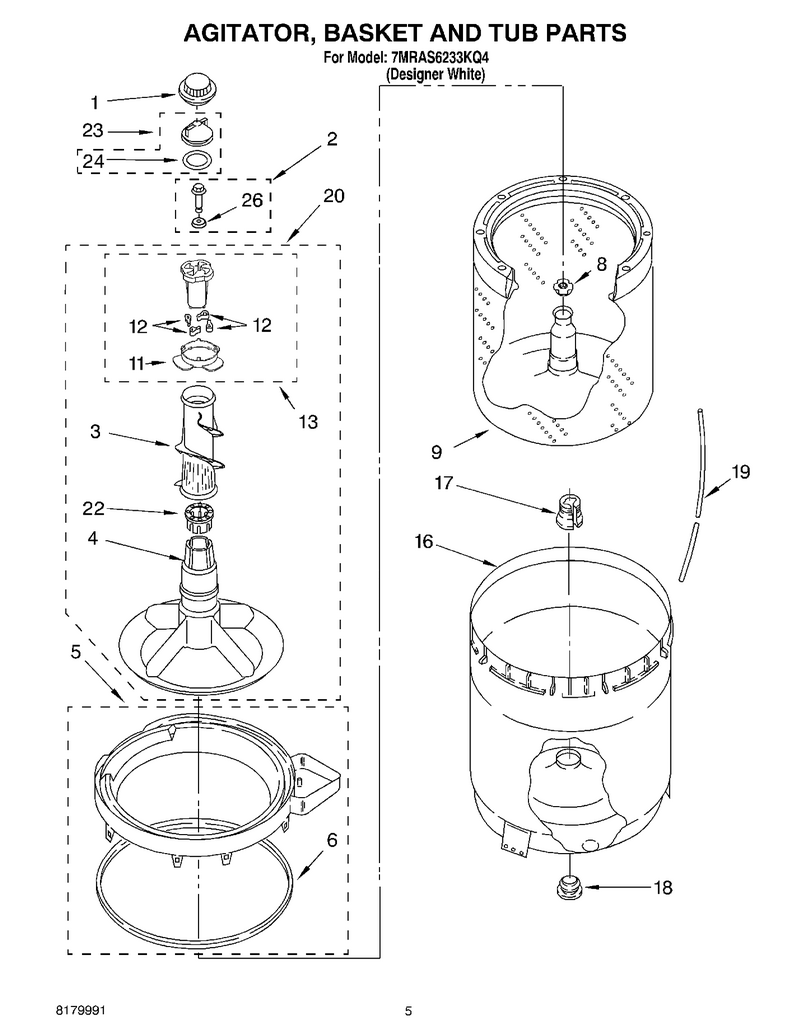

03 - Agitator, Basket And Tub Parts

...
...
1
Cap WPL-WP3355758
...
2
Screw WPL-WP358237
...
3
Mover-Agit WPL-WP3348752
...
4
Agitator WPL-WP3347288
...
5
Ring-Tub WPL-W10880720
...
6
Seal-Tub WPL-WP3976308
...
8
Nut-Spaner WPL-WP21366
...
9
Basket Assembly WPL-W10389329
...
11
Bearing WPL-WP3363661
...
12
Dog-Agit WPL-80040
...
13
Cam-Agit WPL-285811
...
16
Tub WPL-63849
...
17
Block WPL-WP389140
...
18
Gasket WPL-W10814296
...
19
Hose WPL-WP353244
...
20
Agitator WPL-285565
...
22
Washer WPL-285587
...
23
Cap WPL-WPW10074580
...
24
Ring-O WPL-WPW10072840
...
26
Washer WPL-WP3949550

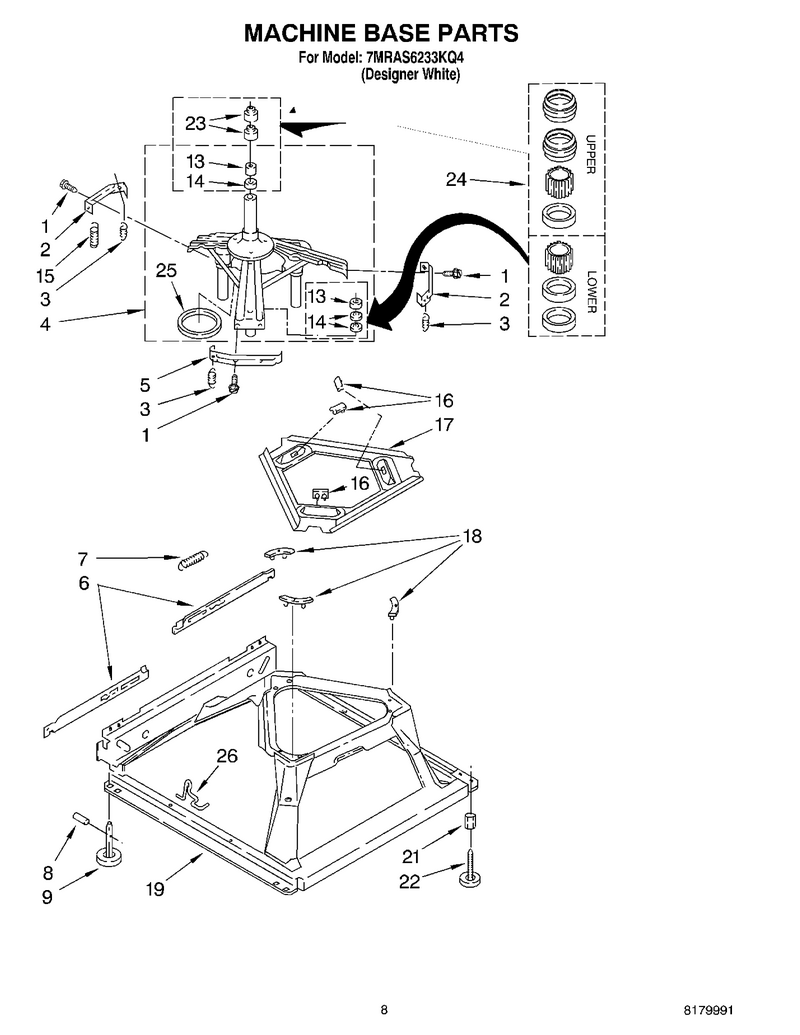

05 - Machine Base Parts

...
...
1
Screw WPL-W10846509
...
2
Bracket WPL-WP64067
...
3
Spring WPL-WP63907
...
4
Support WPL-280184
...
5
Bracket WPL-WP64065
...
6
Link WPL-WP63466
...
7
Spring WPL-8316845
...
8
Pin-Dowel WPL-WP62837
...
9
Feet-Lvlng WPL-285244
...
13
Bearing WPL-WP8546455
...
14
Seal WPL-W11095997
...
15
Spring WPL-WPW10250667
...
16
Pad WPL-285219
...
17
Skate Plt WPL-WP3946509
...
18
Pad WPL-285744
...
19
Base WPL-285771
...
21
Nut WPL-WP3359452
...
22
Feet-Lvlng WPL-WPW10001130
...
23
Seal WPL-WP8577376
...
24
Centerpost Bearing Kit (Includes Illus. 13, 14 & 23) WPL-285203
...
25
Ring WPL-WP63134
...
26
Retainer WPL-WPW10145155

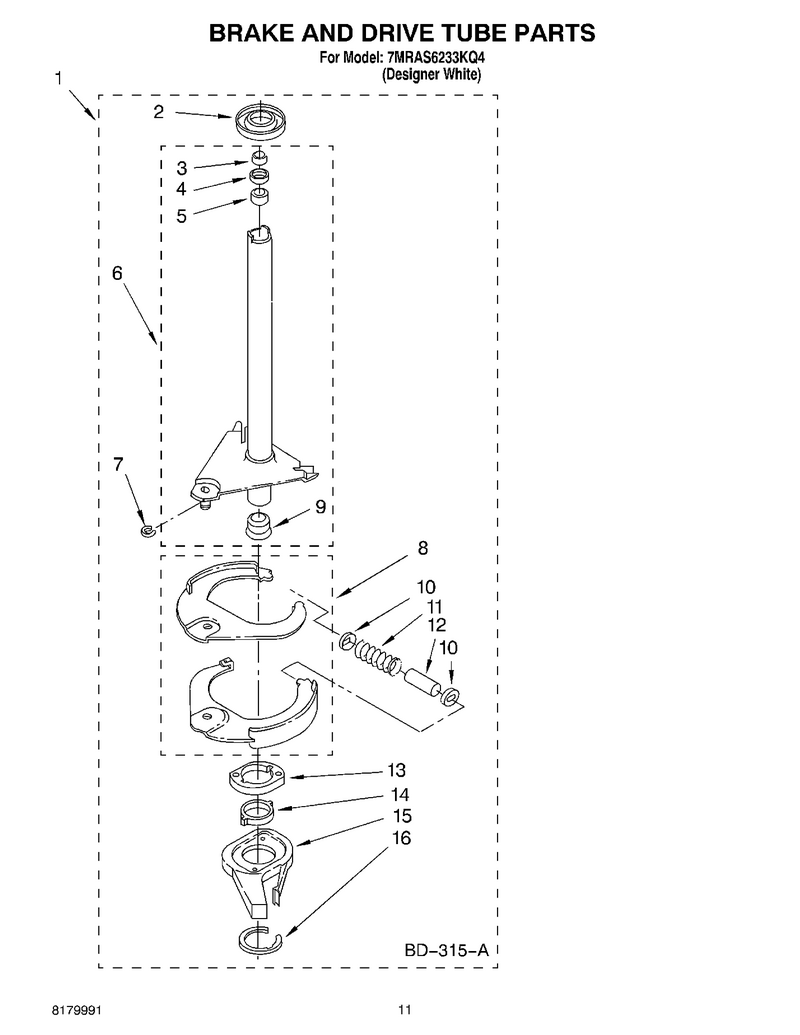

07 - Brake And Drive Tube Parts

...
...
1
Basktdrive WPL-W10820043
...
2
Ring WPL-WP62658
...
3
Seal-Shaft WPL-WP91939
...
4
Seal-Shaft WPL-WP356427
...
5
Spacer, Drive Tube WPL-356937
...
6
Tube-Spin WPL-WP64208
...
7
Ring, Retaining WPL-W10083190
...
8
Shoe-Brake WPL-285438
...
9
Bearing WPL-WP8546462
...
10
Sleeve WPL-285658
...
11
Spring, Brake WPL-387806
...
12
Sleeve WPL-285658
...
13
Cam-Brake WPL-WP8546461
...
14
Sleeve WPL-WP63022
...
15
Lining WPL-285790
...
16
Following Parts Not Illustrated WPL---

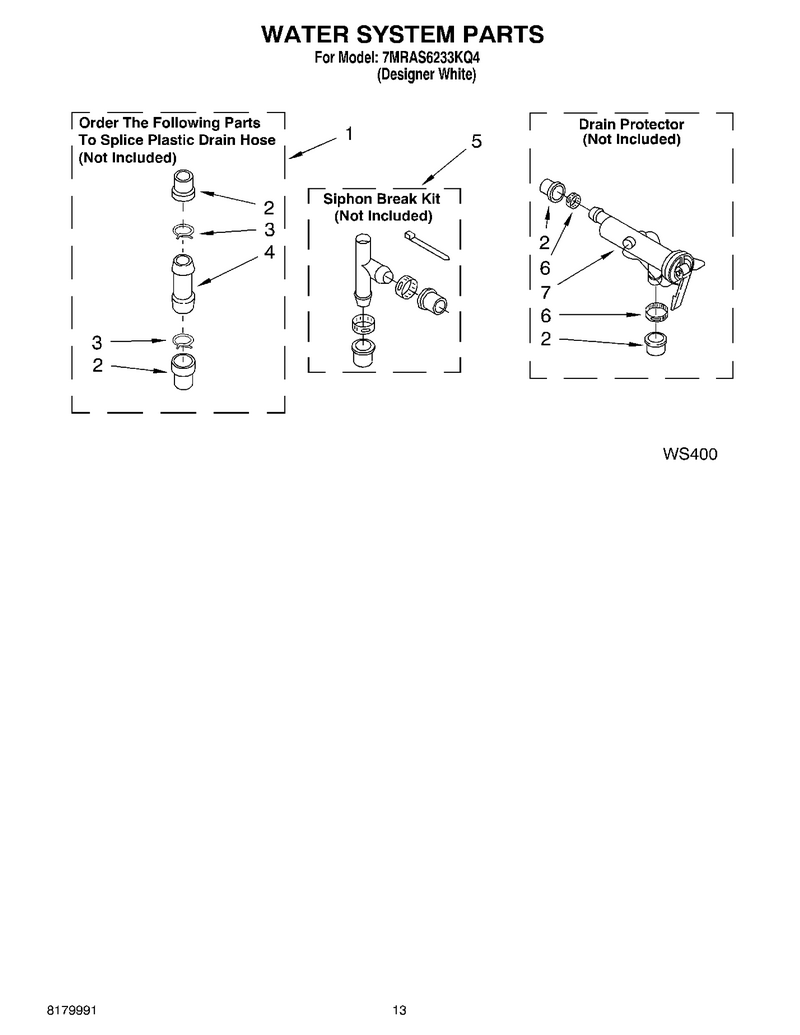

09 - Water System Parts

...
...
1
Connector Kit, Plastic Drain Hose WPL-285442
...
2
Sleeve Kit, (Contains 2 Sleeves) WPL-285321
...
3
Clamp WPL-WP285655
...
4
Couplr-Hse WPL-WP16272
...
5
Siphon Break Kit (Not Included) WPL-285320
...
6
Clamp WPL-WP285655
...
7
Drain Protector (Not Included) WPL-367031
