Roper 2843W0A

Model: 2843W0A

Save Part Not Listed?
product name

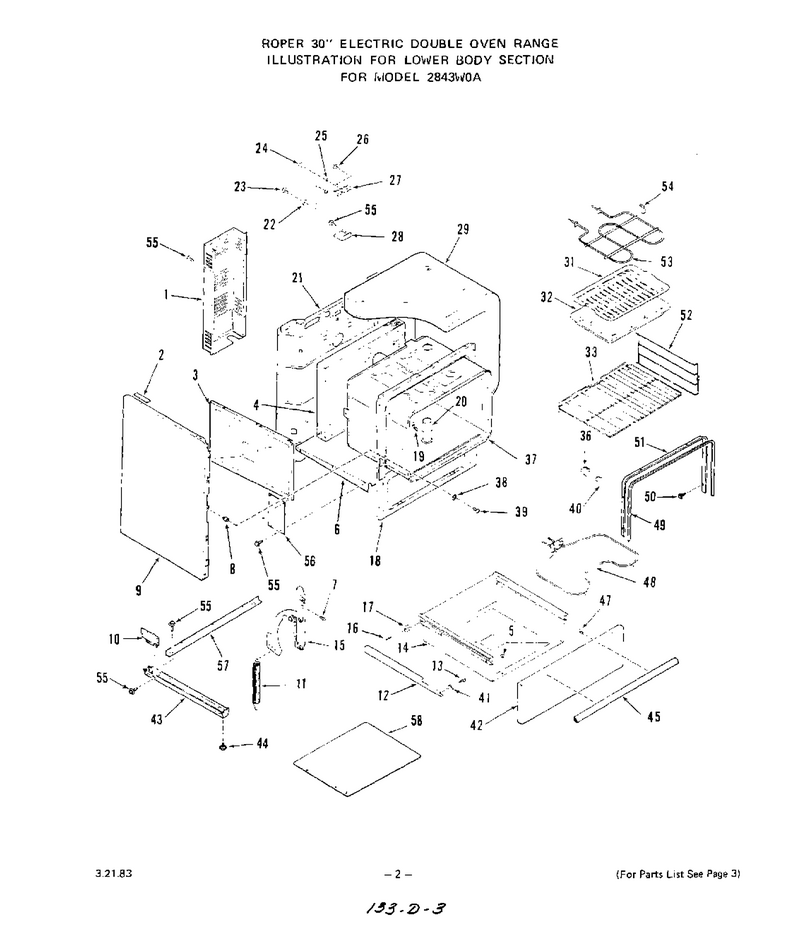

03 - Lower Oven

...
...
1
Wire Shield WPL-296026
...
2
Spacer-Main Top WPL-303513
...
3
Retainer-Insulation WPL-324188
...
4
Insulation - Oven Back WPL-296140
...
5
Screw 10-32x7/16`` WPL-316365
...
6
Retainer-Bottom Insulation WPL-313281
...
7
New Instal WPL-WFR112013
...
8
Grommet - Screw (8 Req.) WPL-296006
...
9
White WPL-323938
...
10
Bracket-Support & Base WPL-324212
...
11
Spring-Oven Door (Lt. Or Rt.) WPL-296170
...
12
Support-Storage Drawer (Lt. Or Rt.) WPL-311441
...
13
Screw 10-32x17/32`` WPL-295849
...
14
Storage Drawer WPL-296150
...
15
Left WPL-303133
...
16
Screw 8 - 32 X 3/8`` WPL-102563
...
17
Rear Slide Block - Lt. Or Rt. WPL-281913
...
18
Front Frame WPL-323800
...
19
Thermostat Bulb Clip (2 Req) WPL-115533
...
20
Vent Tube WPL-308726
...
21
Main Back WPL-323921
...
22
Washer WPL-299425
...
23
Screw 10-32x7/16`` WPL-313191
...
24
Hex Nut 10-32 WPL-97816
...
25
Ground Strap WPL-304987
...
26
Screw 10-32x1`` WPL-313190
...
27
Junction Block WPL-290105
...
28
Range Service Mounting Plate WPL-281903
...
29
Insulation-Oven Top & Sides (1 Piece) WPL-296138
...
31
Broiler Pan Grid WPL-291398
...
32
Broiler Pan WPL-291397
...
33
Oven Rack (2 Req) WPL-305408
...
36
Holder-Oven Lamp Bulb WPL-87883
...
37
Oven Body WPL-324900
...
38
Washer WPL-303963
...
39
Hi-Limit T WPL-WP303896
...
40
Oven Lamp Bulb WPL-111257
...
41
Front Slide Block-(Lt. Or Rt.) WPL-281914
...
42
Screw WPL-WP912618
...
43
Base W/levelers (Lt Or Rt) WPL-323929
...
44
Leg Leveler WPL-69065
...
45
Handle WPL-292240
...
47
Screw 10 - 32 X 7/16`` WPL-295850
...
48
Bake Element WPL-301444
...
49
Seal - Oven Door WPL-296102
...
50
Screw 10 - 32 X 17/32`` WPL-102428
...
51
Retainer - Oven Door Seal WPL-296103
...
52
Guide-Oven Rack (Rt. Or Lt.) WPL-305409
...
53
Broiler Element WPL-319487
...
54
Support-Broiler Element WPL-324808
...
55
Nut WPL-WP112432
...
56
Shield-Hinge (Lt. Or Rt.) WPL-324305
...
57
Strap - Main Back & Base WPL-323931
...
58
Oven Bottom Liner WPL-319163

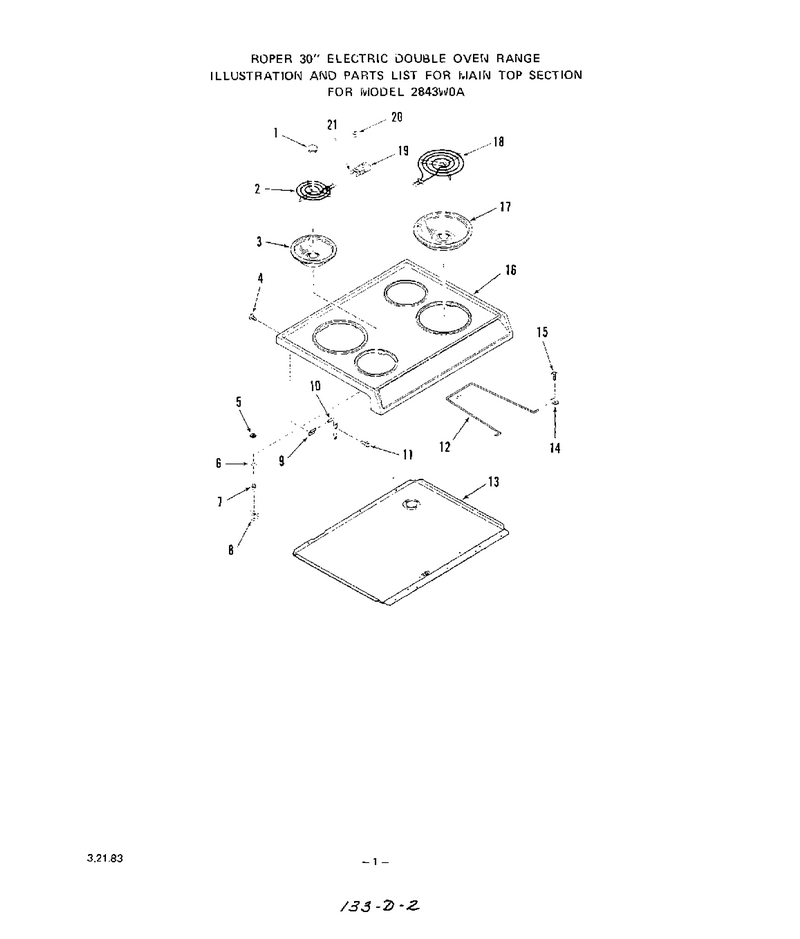

02 - Lower Body

...
...
1
Medallion (4 Req) WPL-318586
...
2
6`` Surface Unit (Lt. Front & Rt. Rear) WPL-325507
...
3
6`` Chrome Bowl-Lt., Rt. Rear & Lt. Front WPL-296481
...
4
Screw 10-32x7/16`` WPL-321337
...
5
Keps Nut 8-32 WPL-239764
...
6
Washer WPL-99279
...
7
Strike (2 Req) WPL-299784
...
8
Catch-Main Top Strike (2 Req.) WPL-71003
...
9
Bracket-Main Top Hinge (2 Req) WPL-320931
...
10
Right WPL-320921
...
11
Screw 10-32 X 3/4`` WPL-321162
...
12
Support Rod-Main Top WPL-320725
...
13
Burner Box Bottom WPL-323944
...
14
Clip (2 Req) WPL-285945
...
15
Screw 10-32x7/16`` WPL-316365
...
16
White WPL-320960
...
17
8`` Chrome Bowl (Rt. Front & Lt. Rear) WPL-304969
...
18
8`` Surface Unit (Rt. Front & Lt. Rear) WPL-325503
...
19
Terminal Block W/wire Lead (4 Req) WPL-318960
...
20
Screw 7-32x5/16`` WPL-299632
...
21
Bracket-Terminal Block (4 Req) WPL-318872

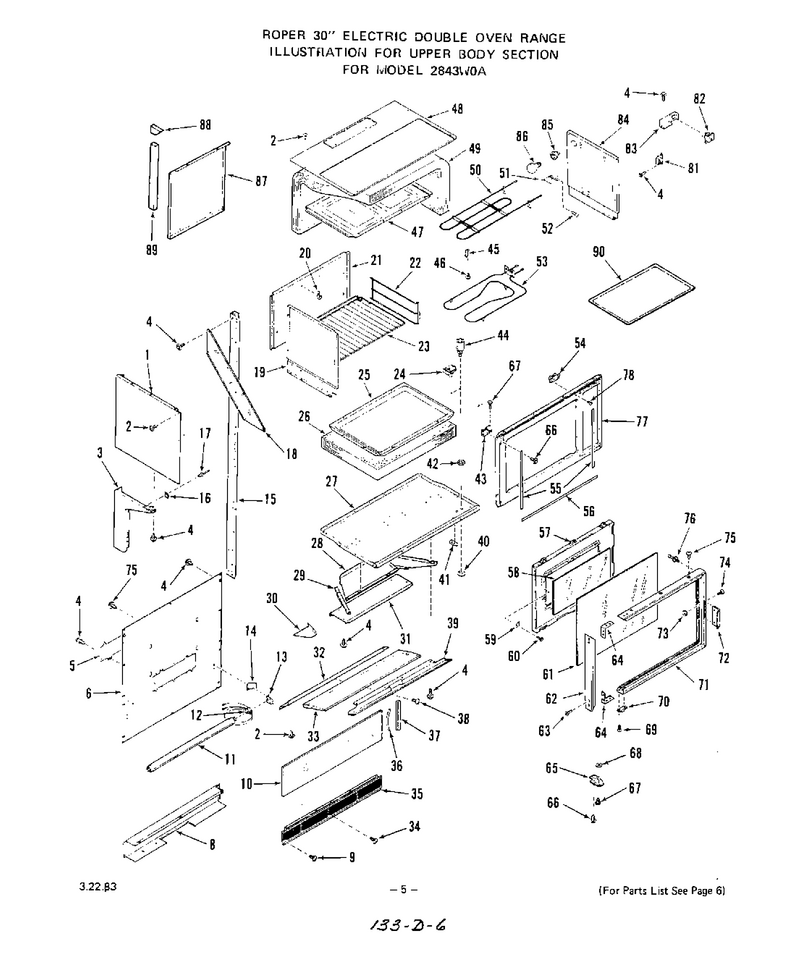

05 - Control Panel

...
...
1
Upper Body Side WPL---
...
2
Screw 6-32x3/8`` WPL-295268
...
3
Almond-Right WPL-325287
...
4
Nut WPL-WP112432
...
5
Cover Plate WPL-322992
...
6
Wire Cover WPL-323947
...
8
Wire Cover-Fluorescent WPL-323958
...
9
Screw 6-32 X 3/8`` WPL-303820
...
10
Lamp Glass WPL-324747
...
11
Fluorescent Lamp (20 W - 24``) WPL-71734
...
12
Left WPL-325104
...
13
Bracket-Fluorescent Lamp (Rt. Or Lt.) WPL-324746
...
14
Shield-Wire (Rt. Or Lt.) WPL-321107
...
15
Support - Upper Oven (Lt Or Rt) WPL-324058
...
16
Retainer (2 Req) WPL-285523
...
17
Pop Rivet WPL-101523
...
18
Brace - Cabinet Side (Lt Or Rt) WPL-324791
...
19
Oven Side-Left WPL-323953
...
20
Thermostat Bulb Clip (2 Req) WPL-115533
...
21
Oven Back WPL-305128
...
22
Oven Rack Guide (Rt. Or Lt.) WPL-305628
...
23
Oven Rack (1 Req) WPL-305629
...
24
Push Switch-Oven Light WPL-298794
...
25
Oven Bottom WPL-288663
...
26
Insulation WPL-110061
...
27
Oven Cabinet Bottom WPL-325048
...
28
Baffle - Vent WPL-322937
...
29
Right WPL-320257
...
30
Right WPL-322935
...
31
Vent Bottom WPL-320261
...
32
Upper Retainer-Lamp Glass WPL---
...
33
Almond WPL-321664
...
34
Screw 6-32x3/8`` WPL-295268
...
35
Lower Retainer-Lamp Glass WPL-324307
...
36
Spring - Lamp Glass End Trim (Lt Or Rt) WPL-286327
...
37
End Trim - Lamp Glass (Lt Or Rt) WPL-299979
...
38
Screw 6-32 X 1/2`` WPL-299766
...
39
Trim-Filter WPL---
...
40
Knurled Nut (2 Req) WPL-87403
...
41
Support-Oven Door WPL-324159
...
42
Lock Nut (2 Req) WPL-236129
...
43
Upper Hinge-Oven Door WPL-281781
...
44
Push Switch (Fluorescent Light) WPL-288557
...
45
Support-Broiler Element WPL-324809
...
46
Screw 10 - 32 X 17/32`` WPL-102428
...
47
Oven Top WPL-294297
...
48
Almond WPL-323892
...
49
Insulation-Top-Sides & Back WPL-324318
...
50
Broiler Element WPL-319844
...
51
Guard-Oven Lamp Bulb WPL-305127
...
52
Screw 10-32 X 1/2`` WPL-102376
...
53
Bake Element WPL-319842
...
54
Door Catch WPL-97003
...
55
Side Seal - Oven Door (Rt Or Lt) WPL-292912
...
56
Seal-Oven Door (Bottom) WPL-292913
...
57
Lining-Oven Door WPL-305134
...
58
Oven Door Glass-Inner WPL-299988
...
59
Retainer-Oven Door Glass WPL-299987
...
60
Screw 10 - 32 X 7/16`` WPL-295850
...
61
Oven Door Glass-Outer WPL-308009
...
62
End-Oven Door Frame WPL-281846
...
63
Screw 10 - 32 X 7/16`` WPL-102559
...
64
Bracket-Oven Door Frame WPL-292907
...
65
Lower Hinge-Oven Door WPL-323886
...
66
Screw 10-32x7/16`` WPL-316365
...
67
Hinge Pin WPL-292906
...
68
Washer WPL-67710
...
69
Screw 6-32x5/16`` WPL-280491
...
70
Broiler Stop WPL-286326
...
71
Frame-Oven Door WPL-305130
...
72
Handle-Oven Door WPL-293051
...
73
Keps Nut 8-32 WPL-239764
...
74
Screw 8-32x1/2`` WPL-235134
...
75
Screw 10-32x3/8`` WPL-239113
...
76
Strike-Oven Door WPL-299263
...
77
Front Frame WPL-323873
...
78
8-32x1/8`` WPL-97411
...
81
Ballast WPL-98186
...
82
Convenience Outlet WPL-109180
...
83
Bracket-Disconnect WPL-293747
...
84
Oven Side-Right WPL-323949
...
85
Holder-Oven Lamp Bulb WPL-87883
...
86
Oven Lamp Bulb WPL-111257
...
87
Panel-Air Vent WPL-323970
...
88
Top Seal-Vent (Lt. Or Rt.) WPL-324339
...
89
Foam Strip (Lt. Or Rt.) WPL-324338
...
90
Oven Bottom Liner WPL-319430

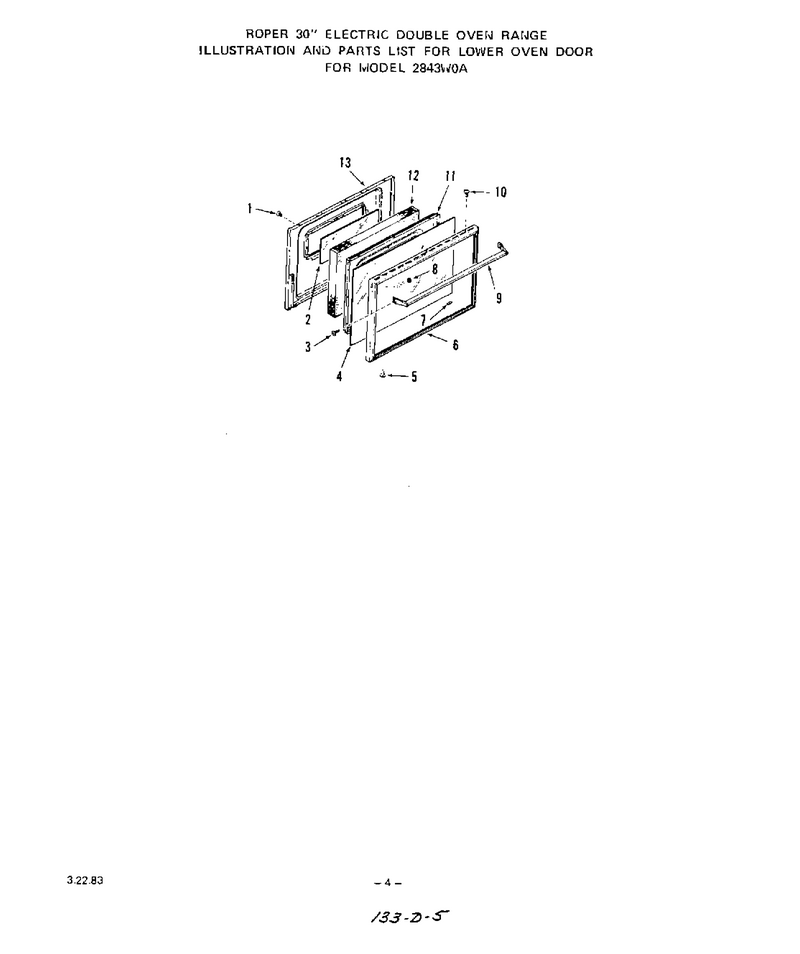

04 - Upper Body

...
...
1
Elmnt-Surf WPL-WPY04100165
...
2
Inner Glass-Oven Door WPL-296214
...
3
Screw 8-32 X 1/2`` WPL-319447
...
4
Outer Glass-Oven Door WPL-318315
...
5
Screw 10-32 X 1/2`` WPL-102376
...
6
Frame-Oven Door WPL-296473
...
7
Cushion WPL-112370
...
8
Keps Nut 8-32 WPL-239764
...
9
Handle-Oven Door WPL-303342
...
10
Screw 6abx3/8`` WPL-120855
...
11
Retainer - Oven Door Insulation WPL-296471
...
12
Insulation WPL-303556
...
13
Lining - Oven Door WPL-296206
