Roper 2141W0E

Model: 2141W0E

Save Part Not Listed?
product name

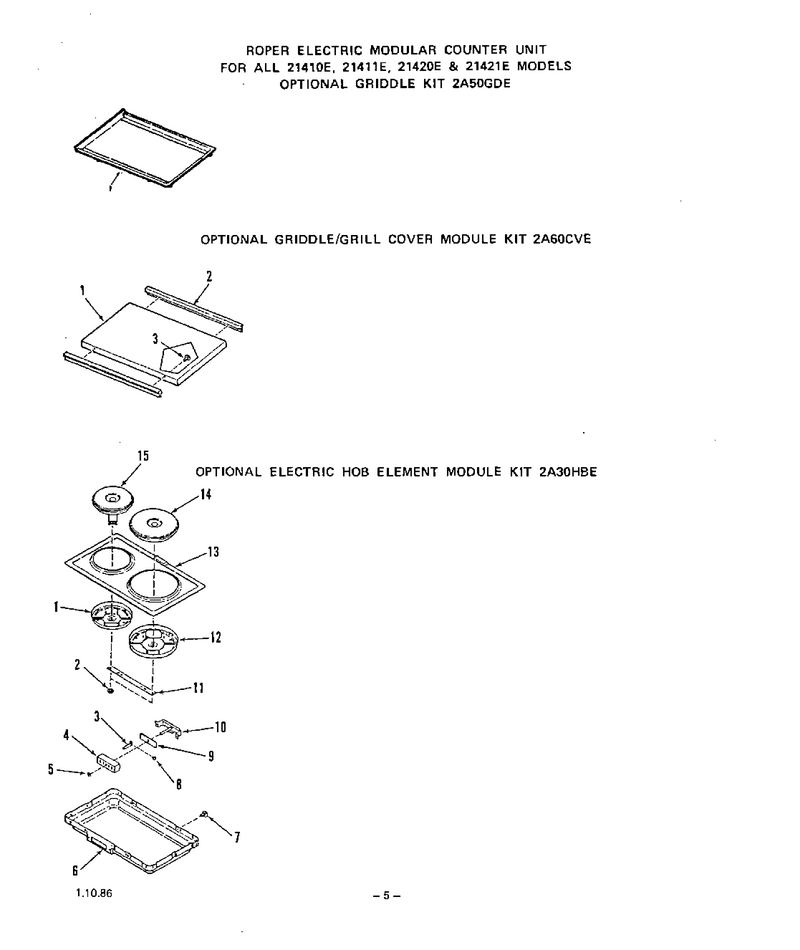

04 - Griddle, Griddle/grill Cover Modu

...
...
1
Clamp-Hob Element (Small) WPL-329109
...
2
Mounting Nut (2 Req) WPL-329326
...
3
Terminal Pin (4 Req) WPL-310709
...
4
Terminal Block WPL-329024
...
5
Speed Nut WPL-69831
...
6
Pan-Module WPL-329110
...
7
Screw 8-32x3/8`` WPL-232183
...
8
Screw 8-32x3/16`` WPL-78565
...
9
Insulator WPL-310705
...
10
Bracket-Terminal Block WPL-329112
...
11
Strap-Hob Element WPL-329240
...
12
Clamp-Hob Element (Large) WPL-329108
...
13
Main Top WPL-329105
...
14
Element-Hob (Large) WPL-329107
...
15
Element-Hob (Small) WPL-329106

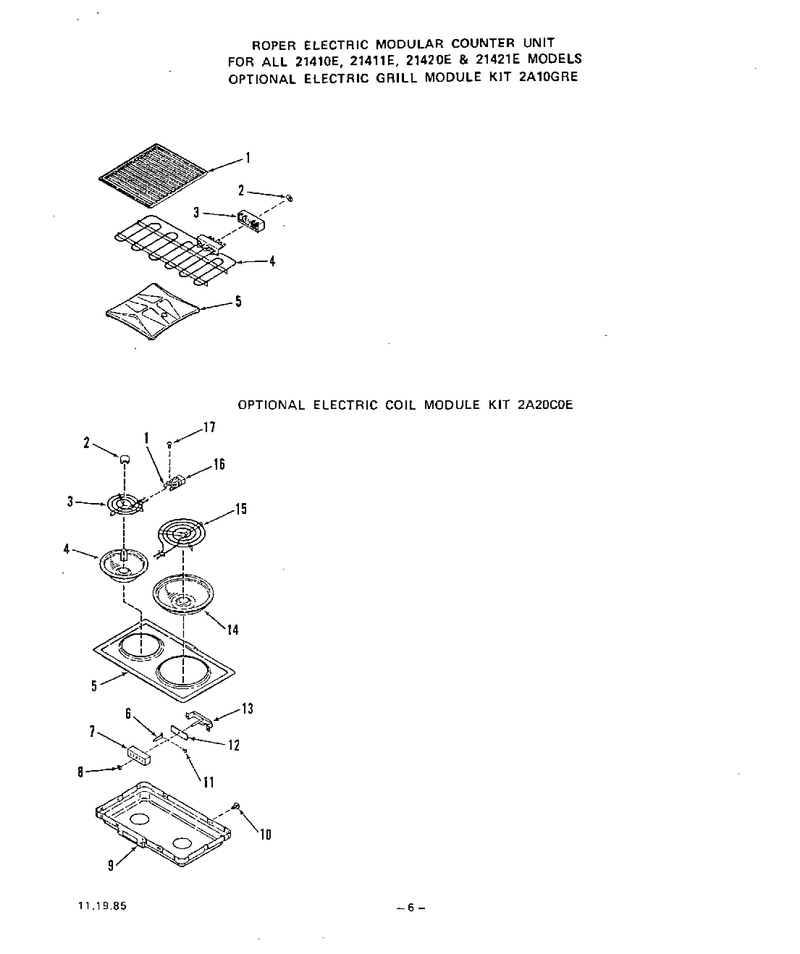

05 - Electric Grill Module, Electric

...
...
1
Bracket-Terminal Block (2 Req) WPL-318872
...
2
Medallion (2 Req) WPL-318586
...
3
6`` Surface Element (240 Volt-208 Volt) WPL-325510
...
4
240 Volt 208 Volt (Optional) - Order Kit 2c60gee WPL-329023
...
5
Main Top WPL-329211
...
6
Terminal Pin (4 Req) WPL-310709
...
7
Terminal Block WPL-329024
...
8
Speed Nut WPL-69831
...
9
Pan-Module WPL-329237
...
10
Screw 8-32x3/8`` WPL-232183
...
11
Screw 8-32x3/16`` WPL-78565
...
12
Insulator WPL-310705
...
13
Bracket-Terminal Block WPL-329112
...
14
8`` Burner Bowl WPL-304969
...
15
8`` Surface Element (240 Volt-208 Volt) WPL-325506
...
16
Terminal Block W/wire Leads (2 Req) WPL-318960
...
17
Screw 7-32x5/16`` WPL-299632

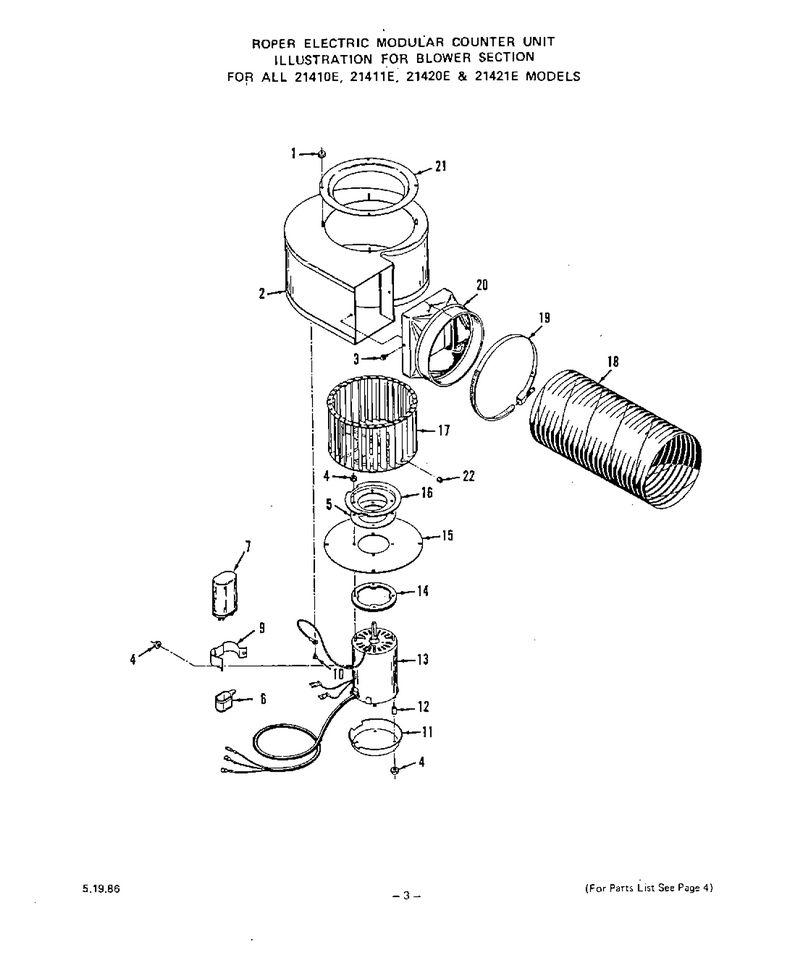

03 - Blower

...
...
Xwire Harness WPL---
...
1
Lock Nut WPL-330275
...
2
Housing WPL-329644
...
3
Screw 10-16x7/16`` WPL-327320
...
4
Keps Nut 8-32 WPL-239764
...
5
Gasket-Motor Seal WPL-330347
...
6
Cap-Capacitor WPL-33-0260
...
7
Capacitor WPL-329649
...
9
Bracket-Capacitor WPL-330261
...
10
Screw 8abx1/4`` WPL-233583
...
11
Shield-Motor WPL-329659
...
12
Spacer WPL-325308
...
13
Motor WPL-329646
...
14
Rubber Motor Mount WPL-329648
...
15
Plate-Motor Mount WPL-329647
...
16
Seal-Motor WPL-330346
...
17
Impellor WPL-329645
...
18
Flexible Hose WPL-329031
...
19
Clamp-Hose WPL-329032
...
20
Discharge-Blower WPL-329030
...
21
Inlet Ring WPL-329643
...
22
All 21410e Models WPL-330187

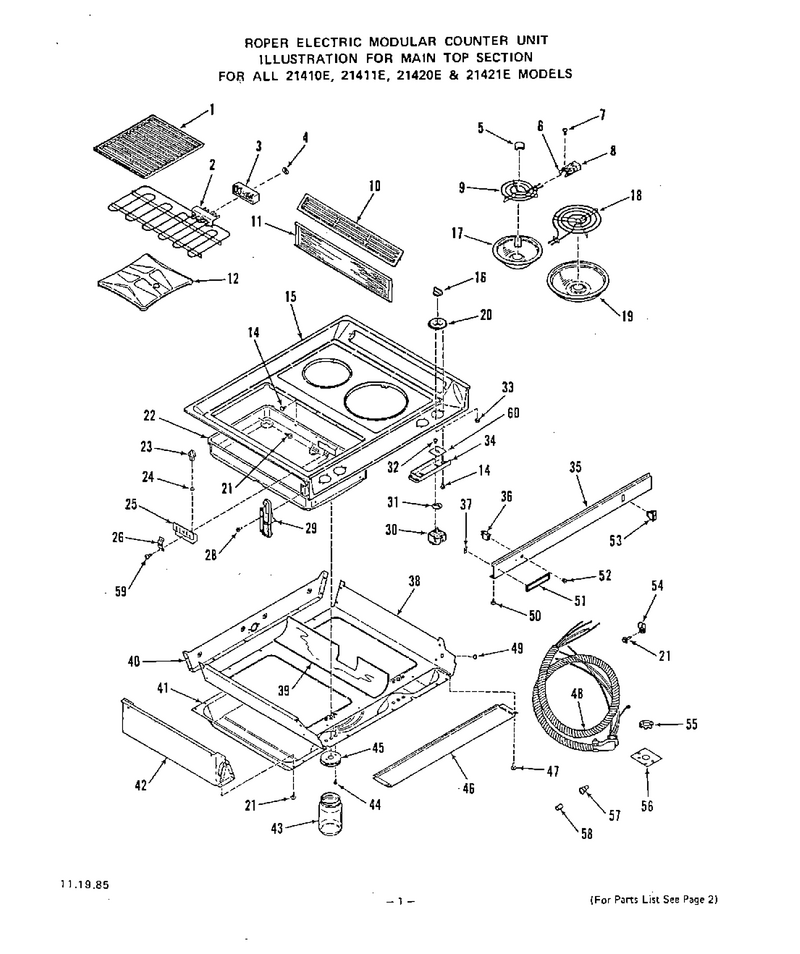

02 - Main Top

...
...
1
Grate-Grill (2 Req) WPL-331897
...
2
Element-Grill WPL-329023
...
3
Terminal Block-Grill Element WPL-330310
...
4
Clip-Push On WPL-330332
...
5
Medallion (2 Req) All 2141 Models WPL-318586
...
6
Bracket-Term.block (2 Req) All 2141 Mod. WPL-318872
...
7
Screw 7-32x5/16`` All 2141 Models WPL-299632
...
8
Terminal Block W/wire Leads 2141 Models WPL-318960
...
9
6`` Surface Element (240-208 Vt) 2141 Mod. WPL-325510
...
10
Air Intake-Grill (Rt. Or Lt.) WPL-329021
...
11
Air Filter (Rt. Or Lt.) WPL-329033
...
12
Reflector-Grill Support (2 Req) WPL-329022
...
14
Screw 6-20x3/8`` WPL-327621
...
15
White 2142w WPL-328767
...
16
Knob-Infinite Control (4 Req) WPL-329020
...
17
6`` Burner Bowl All 2141 Models WPL-296481
...
18
8`` Surface Element (240-208 Vt) 2141 Mod WPL-325506
...
19
8`` Burner Bowl All 2141 Models WPL-304969
...
20
Ad400 Tilt WPL-WFR331543
...
21
Screw 10-16x7/16`` WPL-327320
...
22
Right All 21421e Models WPL-331927
...
23
8 Req. All 2142 Models WPL-310692
...
24
4 Req. All 2141 Models WPL-71310
...
25
2 Req. All 2142 Models WPL-329007
...
26
Baffle, Top Insulation WPL-3183796
...
28
Screw-10-32x1/2`` WPL-316849
...
29
End Cap WPL---
...
30
Infinite Control (4 Req) WPL-320944
...
31
Seal-Infinite Control (4 Req) WPL-280157
...
32
Screw 8-32 WPL-78565
...
33
Pal Nut WPL-78593
...
34
Mounting Tray-Switch (Rt. Or Lt.) WPL-331875
...
35
Front Panel WPL-329015
...
36
Indicator Light WPL-327326
...
37
Speed Clip (2 Req) WPL-24710
...
38
Housing-Bottom & Sides WPL-328999
...
39
2 Req. All 2142 Models WPL-330186
...
40
Housing-Back & Front WPL-329000
...
41
Plenum-Blower WPL-329250
...
42
Duct Side-Lt Or Rt. WPL-329013
...
43
2 Req. All 2142 Models WPL-329034
...
44
2 Req. All 2141 Models WPL-105771
...
45
1 Req. All 2141 Models WPL-329010
...
46
Cover-Switches WPL-329019
...
47
Nut WPL-WP112432
...
48
Harness Conduit WPL-329452
...
49
Bushing WPL-232365
...
50
Screw 6-20x3/8`` WPL-329382
...
51
Name Plate WPL-329016
...
52
Lens-Indicator Light WPL-329465
...
53
Switch WPL-330117
...
54
Clamp-Nylon WPL-109266
...
55
Nut (For Key 48) WPL-110340
...
56
Plate (For Key 48) WPL-294983
...
57
Insulator (2 Req) WPL-112062
...
58
Splice Cap (2 Req) WPL-112061
...
59
Screw 8abx3/4`` WPL-282634
...
60
Plate-Switch (4 Req) WPL-330289
