Roper 2101W1E

Model: 2101W1E

Save Part Not Listed?
product name

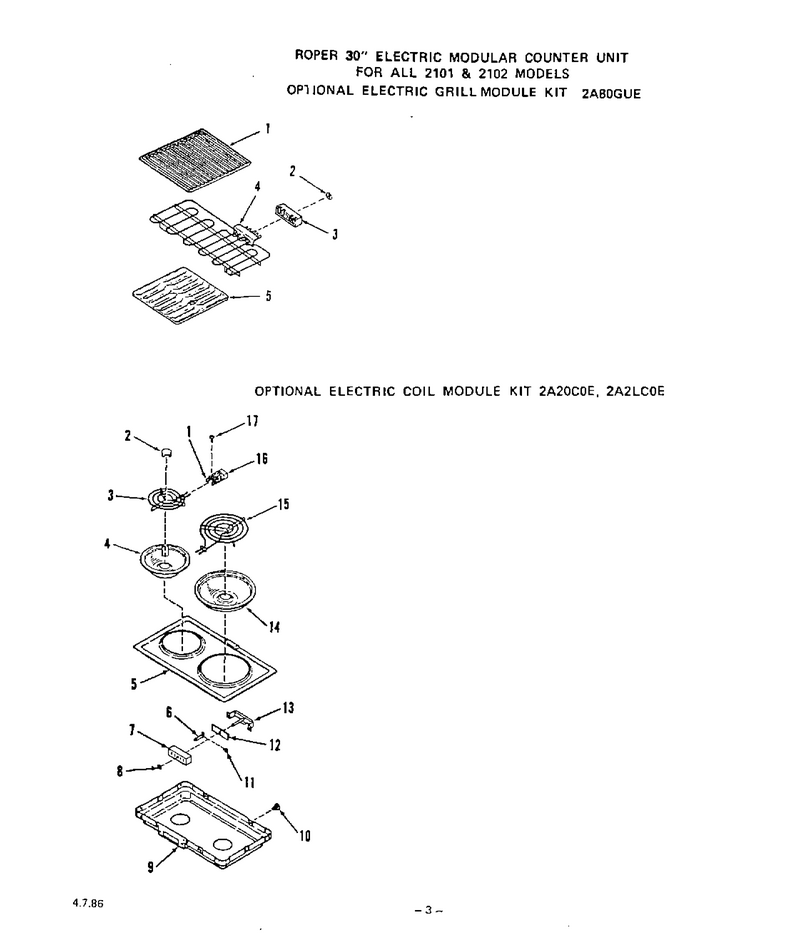

03 - Electric Grill Module Kit, Electric

...
...
A1
Clip-Terminal Block (2 Req) WPL-318872
...
A10
Screw 8-32x3/8`` WPL-232183
...
A11
Screw 8-32x3/16`` WPL-78565
...
A12
Insulator WPL-310705
...
A13
Bracket-Terminal Block WPL-329112
...
A14
8`` Burner Bowl WPL-304969
...
A15
8`` Surface Elemenet WPL-325506
...
A16
Terminal Block W/wire Leads WPL-318960
...
A17
Screw 7-32x5/16`` WPL-299632
...
A2
Medallion (2 Req) WPL-318586
...
A3
6`` Surface Element WPL-325510
...
A4
6`` Burner Bowl WPL-296481
...
A5
Main Top WPL---
...
A6
Terminal Pin (4 Req) WPL-310709
...
A7
Terminal Block WPL-329024
...
A8
Speed Nut WPL-69831
...
A9
Pan-Module WPL-331609
...
1
Grate-Grill (2 Req) WPL-331897
...
2
Speed Nut WPL-69831
...
3
Terminal Block WPL-329024
...
4
240 Volt WPL-330311
...
5
Reflector-Grill (2 Req) WPL-331127

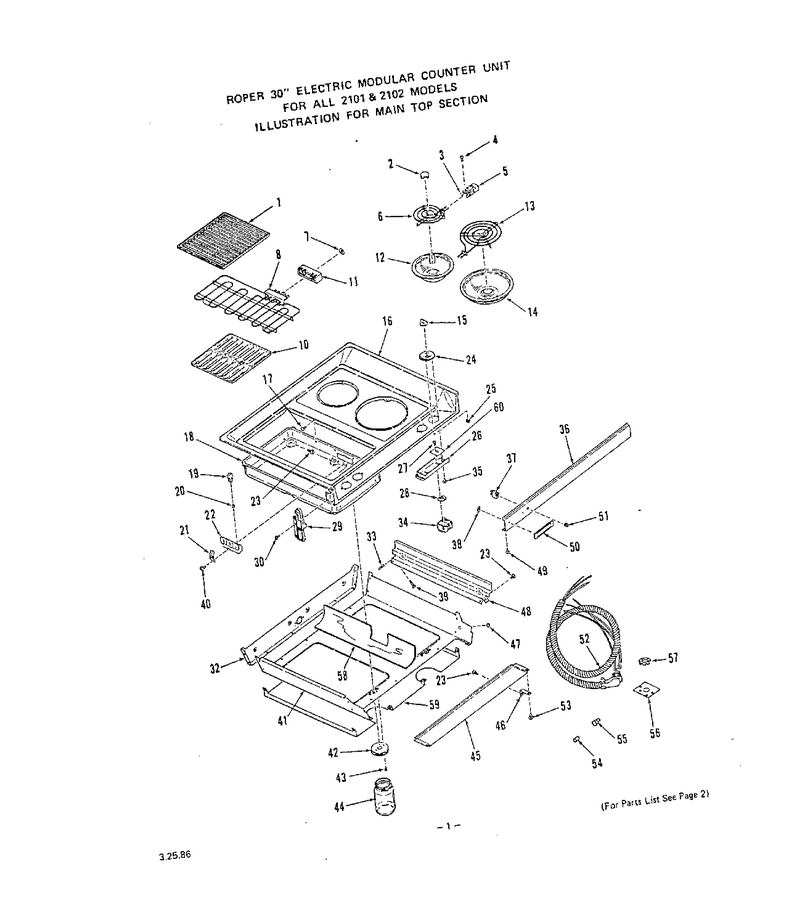

02 - Main Top

...
...
Xwire Harness WPL---
...
1
Grate-Grill (2 Req) WPL-331897
...
2
Medallion (2 Req) All 2101 Models WPL-318586
...
3
Bracket-Term. Block (2 Req) All 2101 Mod. WPL-318872
...
4
Screw 7-32x5/16``(2 Req) All 2101 Models WPL-299632
...
5
Term. Block W/leads-All 2101 Models WPL-318960
...
6
6`` Surface Element (1 Req) All 2101 Models WPL-325510
...
7
Speed Nut WPL-69831
...
8
240 Volt WPL-330311
...
10
Reflector-Grill (2 Req) WPL---
...
11
Terminal Block-Grill Element WPL-329024
...
12
6`` Burner Bowl (1 Req) All 2101 Models WPL-296481
...
13
8`` Surface Element (1 Req) All 2101 Mod. WPL-325506
...
14
8`` Burner Bowl (1 Req) All 2101 Models WPL-304969
...
15
Door-Outer WPL-3182315
...
16
Toast 2101t WPL-328738
...
17
Screw 6-20x3/8`` WPL-327621
...
18
Grease Well WPL---
...
19
Terminal-Female WPL---
...
20
Terminal Screw 8-32x1/4`` WPL---
...
21
Chassis WPL-814349
...
22
21012e & 21022e Models WPL-333732
...
23
Screw 10-16x7/16`` WPL-327320
...
24
Lt Front All 21010e & 21020e Models WPL-329550
...
25
Speed Nut (4 Req) WPL-78593
...
26
Mounting Tray-Switch (Rt. Or Lt.) WPL-331875
...
27
Screw 8-32x3/16`` WPL-78565
...
28
Seal-Infinite Control (4 Req) WPL-280157
...
29
End Cap WPL---
...
30
Screw-10-32x1/2`` WPL-316849
...
31
Housing-Back & Front WPL-329000
...
33
Speed Nut 1/4-20 (2 Req) WPL-329056
...
34
Ad 400 Blo WPL-WFR331619
...
35
Screw 6-20x3/8`` WPL-327621
...
36
21012e & 21022e Models WPL-333176
...
37
Indicator Light WPL-327326
...
38
Speed Clip (2 Req) WPL-24710
...
39
Screw 1/4-20x2`` WPL-329057
...
40
Screw 8-32x3/8`` WPL-232183
...
41
Housing-Bottom & Sides WPL-328999
...
42
Lid-Jar WPL-329010
...
43
Screw 8abx1/4`` WPL-105771
...
44
Jar-Grease WPL-329034
...
45
Cover-Switches WPL-329019
...
46
Retainer-Cooktop (2 Req) WPL-329829
...
47
Plug Button WPL-98229
...
48
Support-Counter (Rt. Or Lt.) WPL-329055
...
49
Screw 6-20x3/8`` WPL-329382
...
50
Roper Name Plate WPL-329016
...
51
Lens-Indicator WPL-329465
...
52
Harness Conduit Asm. WPL-333726
...
53
Nut WPL-WP112432
...
54
Cap Splice (2 Req) WPL-112061
...
55
Insulator (2 Req) WPL-112062
...
56
Plate (For Key 52) WPL-333487
...
57
Nut (For Key 52) WPL-110340
...
58
Insulation-Cabinet Bottom WPL-330186
...
59
Baffle-Housing WPL-330268
...
60
All 21012e & 21022e Models WPL-333863

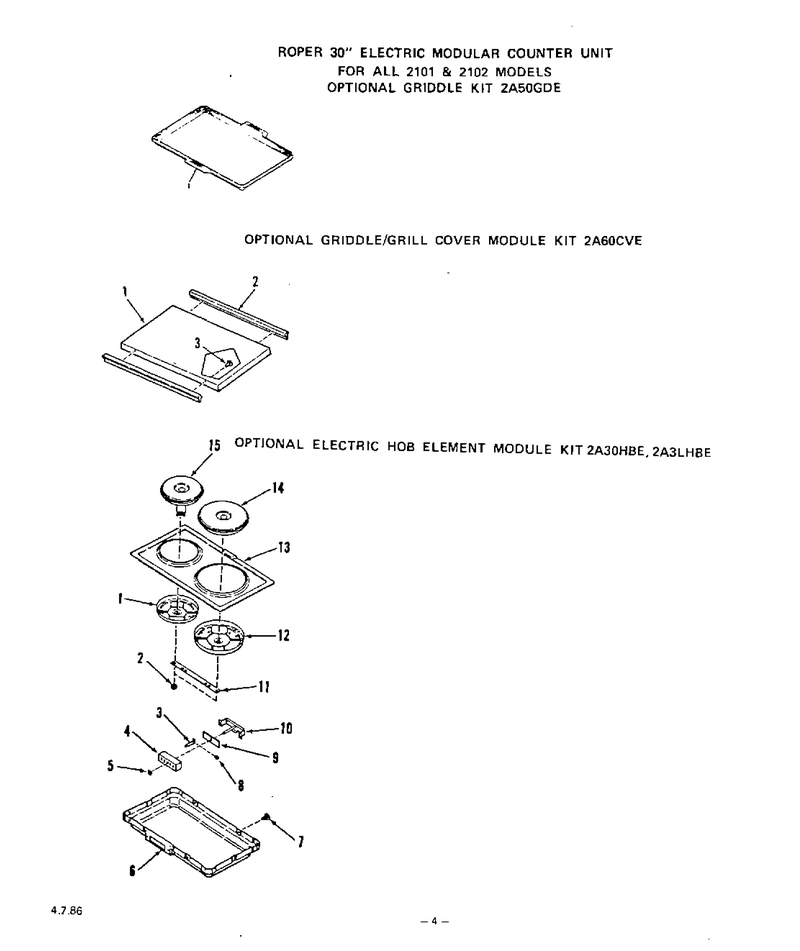

04 - Griddle Kit, Griddle/grill Cover

...
...
A1
Cover WPL-329281
...
A2
Handle-Rt. Or Lt. WPL-329282
...
A3
Screw 6abx1/4`` WPL-330244
...
B1
Clamp-Hob Element (Small) WPL-329109
...
B10
Bracket-Terminal Block WPL-329112
...
B11
Strap-Hob Element WPL-329240
...
B12
Clamp-Hob Element (Large) WPL-329108
...
B13
Almond WPL-330952
...
B14
Element-Hob (Large) WPL-329107
...
B15
Element-Hob (Small) WPL-329106
...
B2
Mounting Nut (2 Req) WPL-329326
...
B3
Terminal Pin (4 Req) WPL-310709
...
B4
Terminal Block WPL-329024
...
B5
Speed Nut WPL-69831
...
B6
Pan-Module WPL-331607
...
B7
Screw 8-32x3/8`` WPL-232183
...
B8
Screw 8-32x3/16`` WPL-78565
...
B9
Insulator WPL-310705
...
1
Griddle WPL-330928
