Roper 2065B2A

Model: 2065B2A

Save Part Not Listed?
product name

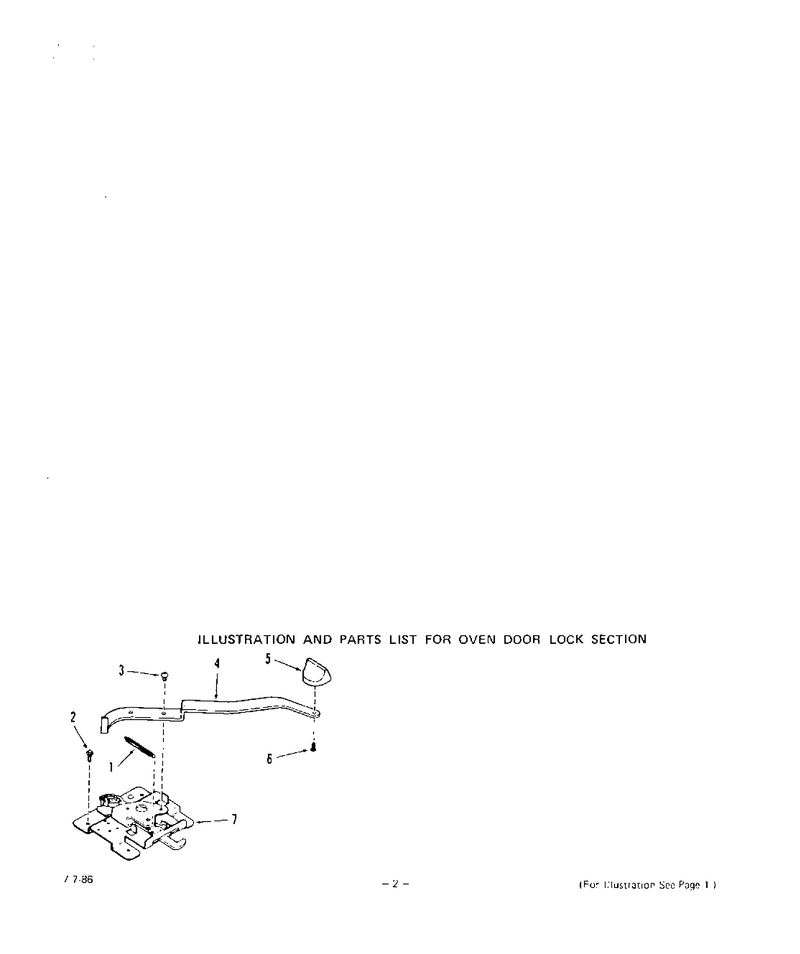

03 - Oven Door Lock

...
...
1
WPL-832952
...
2
Nut WPL-WP112432
...
3
Screw 10-24x1/4`` WPL-288248
...
4
Lock Handle WPL-318379
...
5
Knob-Lock Handle WPL-323363
...
6
Screw 6-32x15/32`` WPL-313768
...
7
Oven Door Lock Assm. WPL-311869

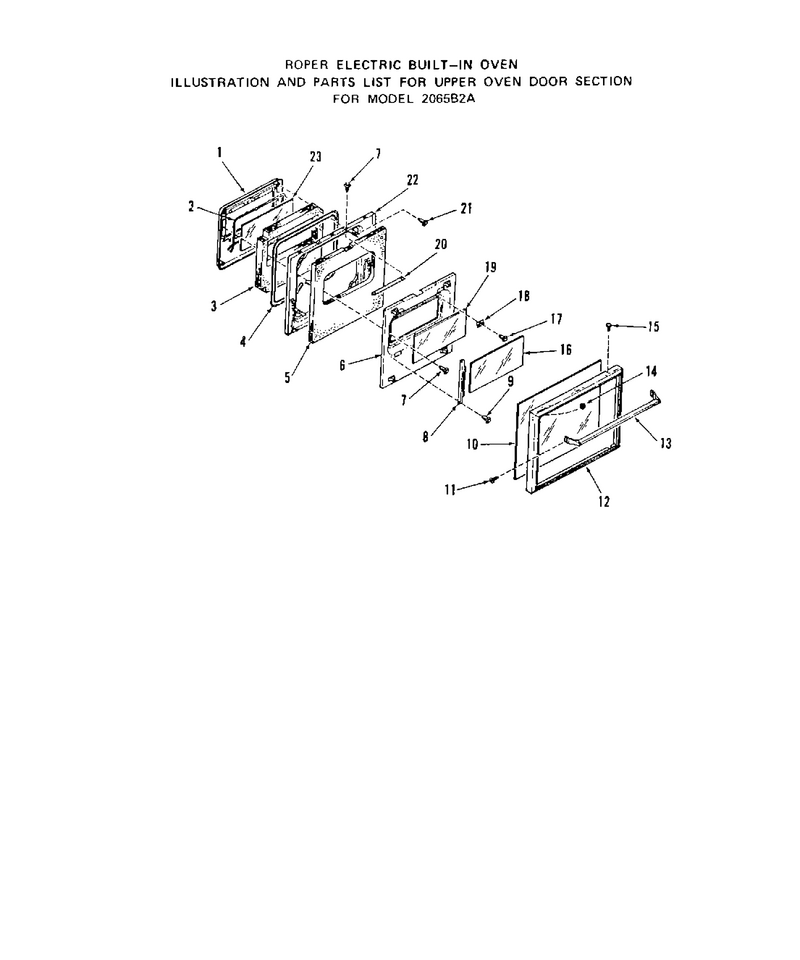

05 - Upper Oven Door

...
...
1
Plug-Oven Door Lining WPL-331677
...
2
Door Seal WPL-302935
...
3
Insulation-Oven Door Plug WPL-328107
...
4
Gasket-Oven Door WPL-328123
...
5
Insulation-Oven Door Lining WPL-328106
...
6
Retainer-Oven Door Insulation WPL-328153
...
7
Nut WPL-WP112432
...
8
Retainer-Oven Door Glass (Lt. Or Rt.) WPL-328064
...
9
Screw 10-16x7/16`` WPL-327320
...
10
Oven Door Glass-Outer WPL-328044
...
11
Screw 8-32 X 1/2`` WPL-319447
...
12
Frame-Oven Door WPL-328080
...
13
Handle-Oven Door WPL-328062
...
14
Keps Nut 8-32 WPL-239764
...
15
Screw 6-20x3/8`` WPL-327621
...
16
Oven Door Glass-Intermediate WPL-328046
...
17
Screw 10-32x17/32`` WPL-295849
...
18
Retainer-Door Glass (4 Req) WPL-326009
...
19
Oven Door Glass-Center WPL-328045
...
20
Clamp WPL-WP312967
...
21
Screw 10 - 32 X 3/8`` WPL-102429
...
22
Lining-Oven Door WPL-331816
...
23
Oven Door Glass-Inner WPL-328043

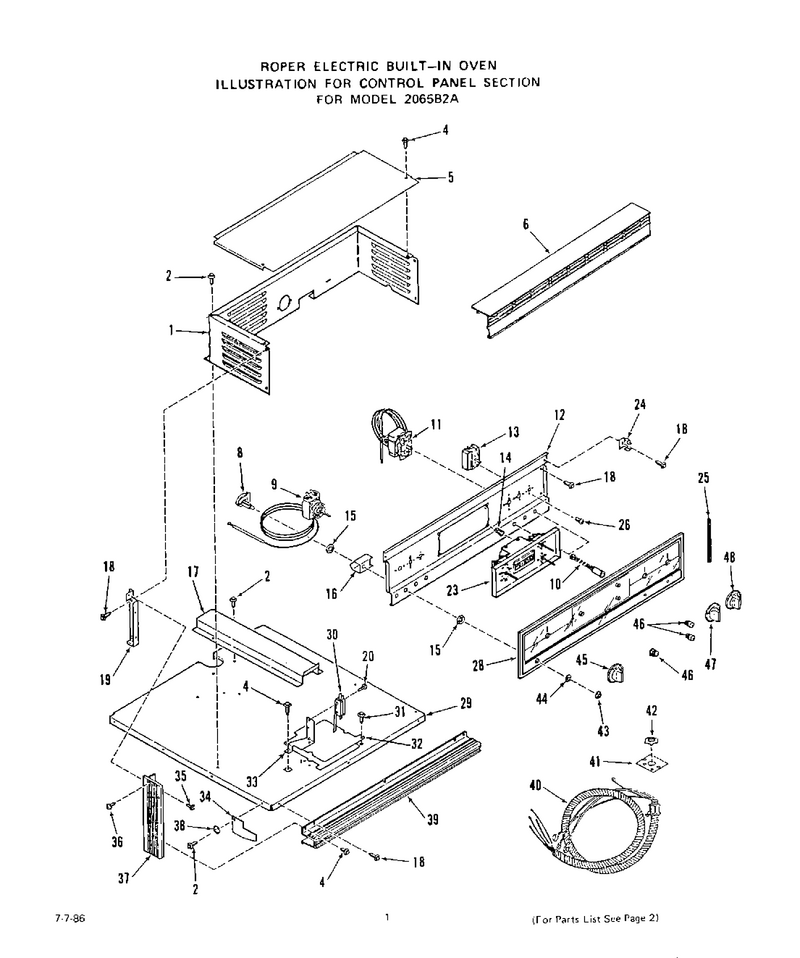

02 - Control Panel

...
...
1
Control Housing WPL-327989
...
2
Screw 10-16x7/16`` WPL-327320
...
4
Screw 10 - 32 X 3/8`` WPL-102429
...
5
Top Cover-Control Housing WPL-328038
...
6
Trim WPL-328837
...
8
Push Switch-Oven Light WPL-298794
...
9
Thermostat-Lower Oven WPL-320938
...
10
Lower Oven WPL-334854
...
11
Thermostat-Upper Oven WPL-331880
...
12
Control Mounting Panel WPL-333112
...
13
Selector Switch WPL-331881
...
14
Clip WPL-293577
...
15
Lock Nut WPL-236129
...
16
Shield-Switch WPL-291351
...
17
Wire Cover WPL-327990
...
18
Nut WPL-WP112432
...
19
Left WPL-328061
...
20
Screw 6-32x7/8`` WPL-327256
...
23
Clock W/1 Hr. Timer WPL-330938
...
24
Retainer-Glass (Rt. Or Lt.) WPL-328863
...
25
End Trim-Control Panel Glass (Rt. Or Lt.) WPL-328958
...
26
Screw 8-32x3/16`` WPL-78565
...
28
Control Panel Glass WPL-333252
...
29
Cabinet Top WPL-333120
...
30
Micro Switch-Lock WPL-334973
...
31
Screw 10 - 32 X 7/16`` WPL-295850
...
32
Cover Plate Lock WPL-333124
...
33
Bracket-Micro Switch WPL-335115
...
34
Heat Shield (Lt. Or Rt.) WPL-312395
...
35
Screw 6-32x1/4`` WPL-293121
...
36
Screw 6-32 X 1/2`` WPL-299766
...
37
Side Trim-Control Panel WPL---
...
38
Washer WPL-106462
...
39
Trim-Control Panel WPL-328000
...
40
Harness Conduit Asm. WPL-333036
...
41
Plate (For Key 40) WPL-294983
...
42
Nut (For Key 40) WPL-110340
...
43
Knurled Nut WPL-87403
...
44
Washer WPL-104838
...
45
Knob-Lower Oven Thermostat WPL-329447
...
46
Knob-Clock WPL-294810
...
47
Knob-Upper Oven Thermostat WPL-334678
...
48
Knob-Selector Switch WPL-329446

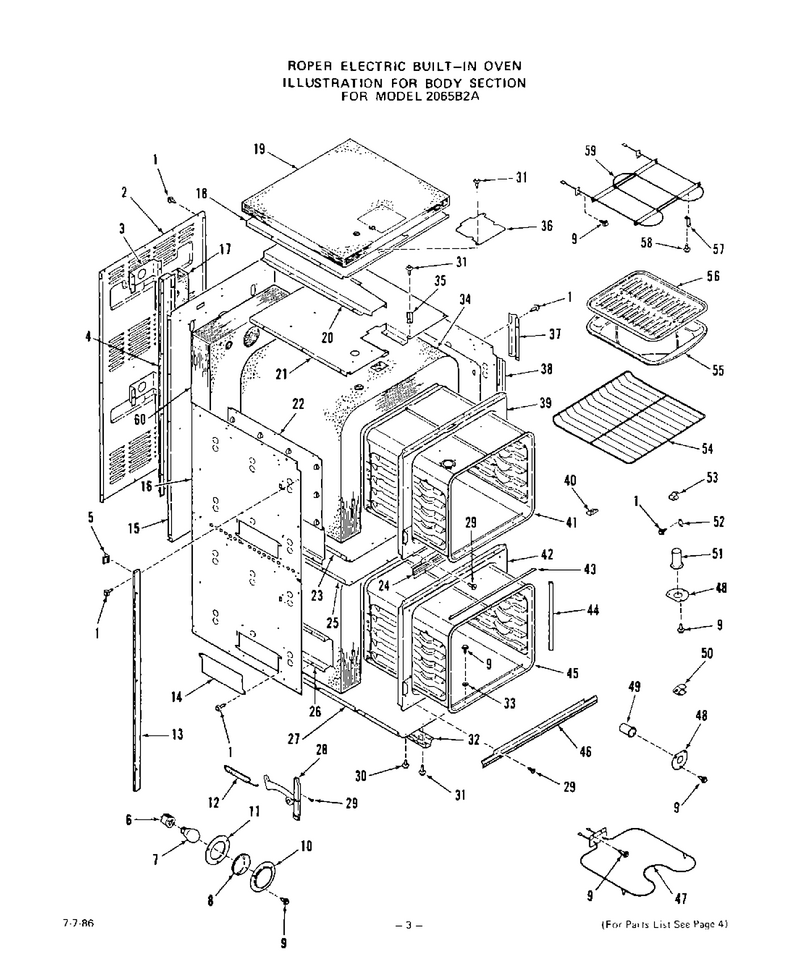

04 - Body

...
...
1
Screw 10-16x7/16`` WPL-327320
...
2
Cabinet Back WPL-328090
...
3
Insulation Retainer-Oven Light (Up. & Lo. Oven) WPL-323630
...
4
Rear Oven Vent Box WPL-328148
...
5
Spacer (6 Req.) WPL-328077
...
6
Holder-Oven Light Bulb (Up. & Lo. Oven) WPL-87883
...
7
Oven Light Bulb (Up. & Lo. Oven) WPL-111257
...
8
Oven Light Lens (Up. Oven) WPL-114989
...
9
Screw 10 - 32 X 17/32`` WPL-102428
...
10
Lens Retainer-Oven Light (Up. Oven) WPL-229372
...
11
Gasket-Oven Light (Up. Oven) WPL-229371
...
12
Lower Oven WPL-328961
...
13
Side Trim (Lt. Or Rt.) WPL-328070
...
14
Cover Plate (4 Req.) WPL-328112
...
15
Main Back WPL-328083
...
16
Cabinet Side-Lt. Or Rt. WPL-328085
...
17
Elmnt-Brol WPL-WP660579
...
18
Insulation Retainer-Cabinet Top WPL-333116
...
19
Insulation-Cabinet Top WPL-333118
...
20
Vent Box WPL-328052
...
21
Insulation Retainer-Oven Top WPL-327968
...
22
Insulation Retainer-Oven Side (Lt. Or Rt.) WPL-328089
...
23
Bottom Insulation Retainer (Up. Oven) WPL-327966
...
24
Center Front Trim WPL-328003
...
25
Insulation Retainer-Oven Top (Lo. Oven) WPL-327963
...
26
Door Spring Insulation Retainer (Lt. Or Rt.) WPL-328071
...
27
Cabinet Bottom WPL-327948
...
28
Right (2 Req) WPL-328024
...
29
New Instal WPL-WFR112013
...
30
Screw 10 - 32 X 1/4`` WPL-105771
...
31
Nut WPL-WP112432
...
32
Bottom Cabinet-Lt. Or Rt. WPL-328042
...
33
Washer WPL-106462
...
34
Insulation-Oven Top & Sides (1 Piece) (Up & Lo. Oven) WPL-328103
...
35
Bracket (2 Req) WPL-313627
...
36
Cover Plate-Lock WPL-323648
...
37
Raceway WPL-324352
...
38
Raceway WPL-325532
...
39
Front Frame-Up. Oven WPL-331659
...
40
Cover-Lo. & Up. Oven WPL-304835
...
41
Upper Oven Body WPL-331643
...
42
Front Frame-Lo. Oven WPL-331663
...
43
Top Seal-Oven Door (Lo. Oven) WPL-328809
...
44
Side Seal-Oven Door (Rt. Or Lt.) (Lo. Oven) WPL-329204
...
45
Lower Oven Body WPL-331647
...
46
Lower Trim WPL-328000
...
47
Bake Element-Up.& Lo. Oven WPL-328113
...
48
Clamp-Oven Vent WPL-328303
...
49
Vent Tube-Lower Oven WPL-294679
...
50
Retainer, Thermostat Bulb (Lo. Oven) 2 Req WPL-291123
...
51
Elmnt-Brol WPL-WP660579
...
52
Cover Plate-Thermostat Bulb (2 Req.) WPL-237762
...
53
Clip WPL-321539
...
54
Knob WPL-WP330190
...
55
Broiler Pan WPL-331592
...
56
Broiler Pan Grid WPL-326297
...
57
Support-Broil Element (2 Req) WPL-324809
...
58
Screw 10abx3/8`` WPL-69605
...
59
Broil Element (Up. Oven) WPL-328115
...
60
Insulation-Oven Back & Bottom (1 Piece) WPL-328104

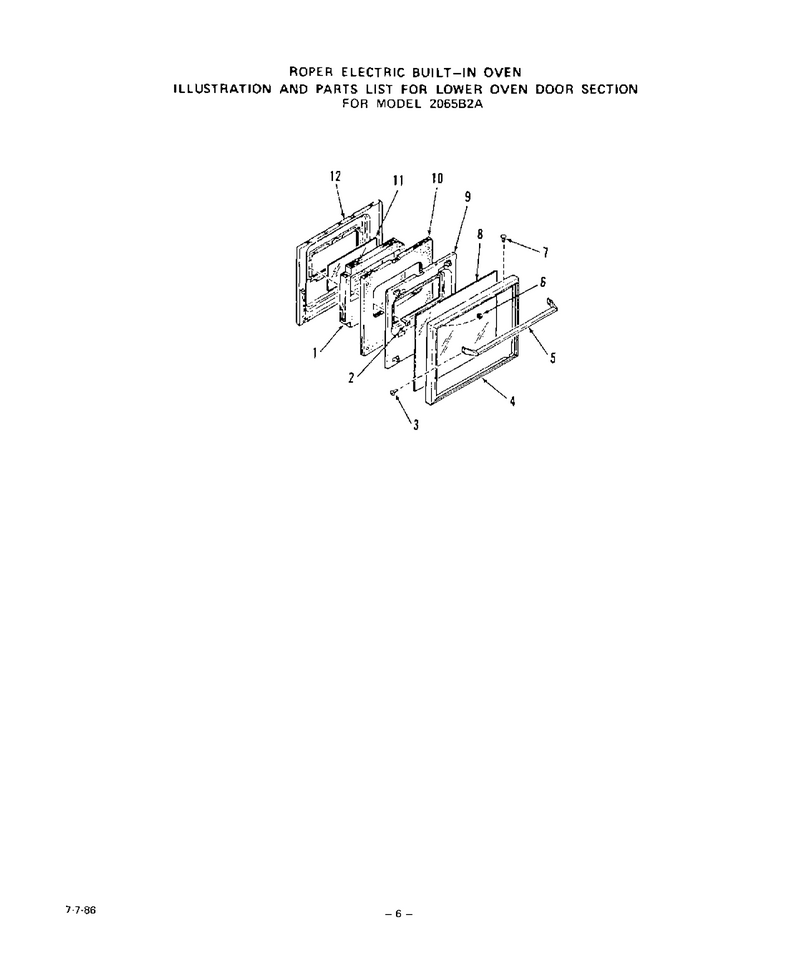

06 - Lower Oven Door , Lit/optional

...
...
Xwire Harness WPL---
...
1
Insulation WPL-328107
...
2
Nut WPL-WP112432
...
3
Screw 8-32 X 1/2`` WPL-319447
...
4
Frame-Oven Door WPL-328080
...
5
Handle WPL-328062
...
6
Keps Nut 8-32 WPL-239764
...
7
Screw 6-20x3/8`` WPL-327621
...
8
Oven Door Glass-Outer WPL-328044
...
9
Retainer-Oven Door Insulation WPL-328153
...
10
Insulation WPL-328106
...
12
Lining-Oven Door WPL-331686
