Roper 2055B0A

Model: 2055B0A

Save Part Not Listed?
product name

Popular Parts

Popular Parts

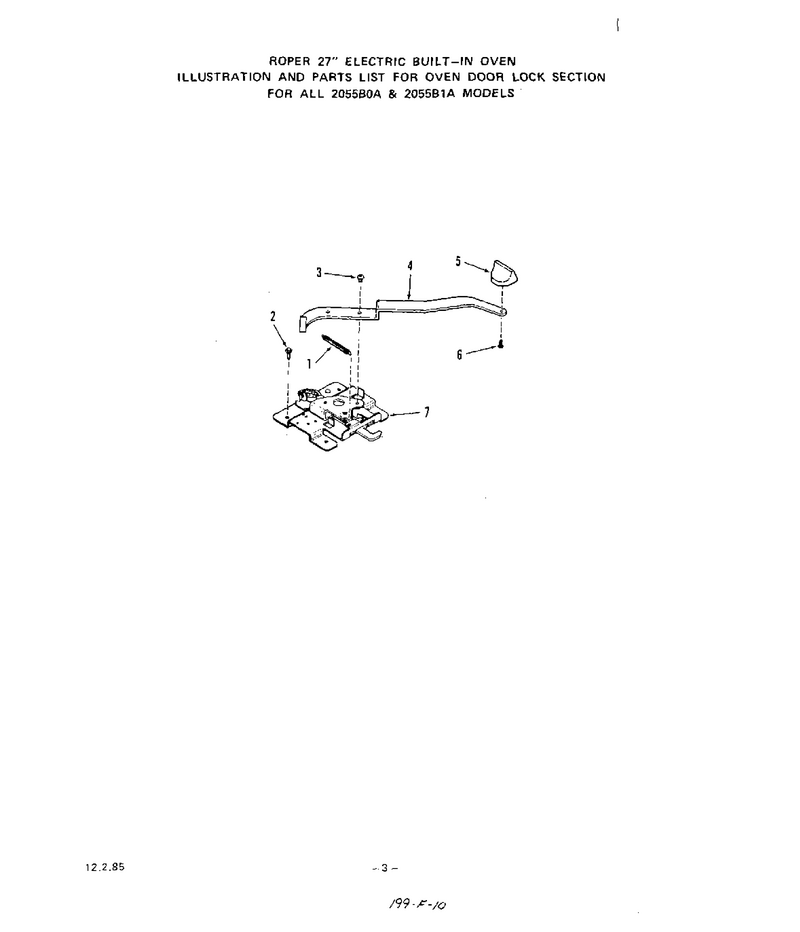

03 - Oven Door Lock

...
...
1
WPL-832952
...
2
Nut WPL-WP112432
...
3
Screw 10-24x1/4`` WPL-288248
...
4
Lock Handle WPL-318379
...
5
Knob-Lock Handle WPL-323363
...
6
Screw 6-32x15/32`` WPL-313768
...
7
Oven Door Lock Assm. WPL-311869

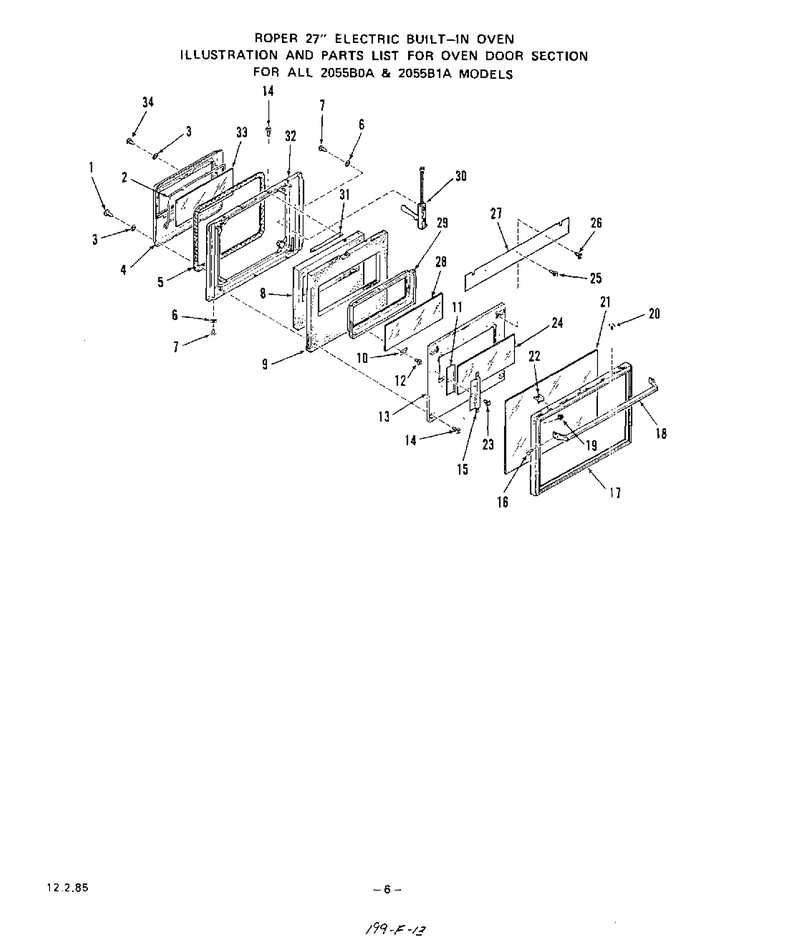

05 - Oven Door , Lit/optional

...
...
Xwire Harness WPL---
...
1
Screw 10abx1/2`` WPL-326974
...
2
Door Seal WPL-302935
...
3
Plug-Oven Door Lining WPL-21067
...
4
2055b1a Model WPL-331672
...
5
Oven Door Gasket WPL-311925
...
6
Washer WPL-106462
...
7
Screw 10-32x3/8`` WPL-239113
...
8
Insulation-Oven Door Plug WPL-311872
...
9
Insulation-Oven Door Lining WPL-311874
...
10
Door Glass Retainer (4 Req) WPL-312888
...
11
Spacer-Oven Door Glass (Lt. Or Rt.) WPL-310929
...
12
Screw 10-32x17/32`` WPL-295849
...
13
Retainer-Oven Door Insulation WPL-323678
...
14
Nut WPL-WP112432
...
15
Screw WPL-WP487353
...
16
Screw 8-32 X 1/2`` WPL-319447
...
17
Frame-Oven Door WPL-325836
...
18
Oven Door Handle WPL-325837
...
19
Keps Nut 8-32 WPL-239764
...
20
Screw 6-20x3/8`` WPL-327621
...
21
Oven Door Glass-Outer WPL-311738
...
22
Door Glass Retainer (6 Req) WPL-299596
...
23
Screw 10abx3/4`` WPL-69364
...
24
Oven Door Glass-Intermediate WPL-308239
...
25
Screw 10 - 32 X 7/16`` WPL-295850
...
26
Screw 6-32x1/4`` WPL-293121
...
27
Baffle-Oven Door Lining WPL-311751
...
28
Oven Door Glass-Center WPL-296214
...
29
Retainer-Oven Door Glass WPL-323672
...
30
Oven Door Hinge-Rt. Or Lt. WPL-331028
...
31
Clamp WPL-WP312967
...
32
Oven Door Lining WPL---
...
33
Oven Door Glass-Inner WPL-312426
...
34
Main WPL-329438

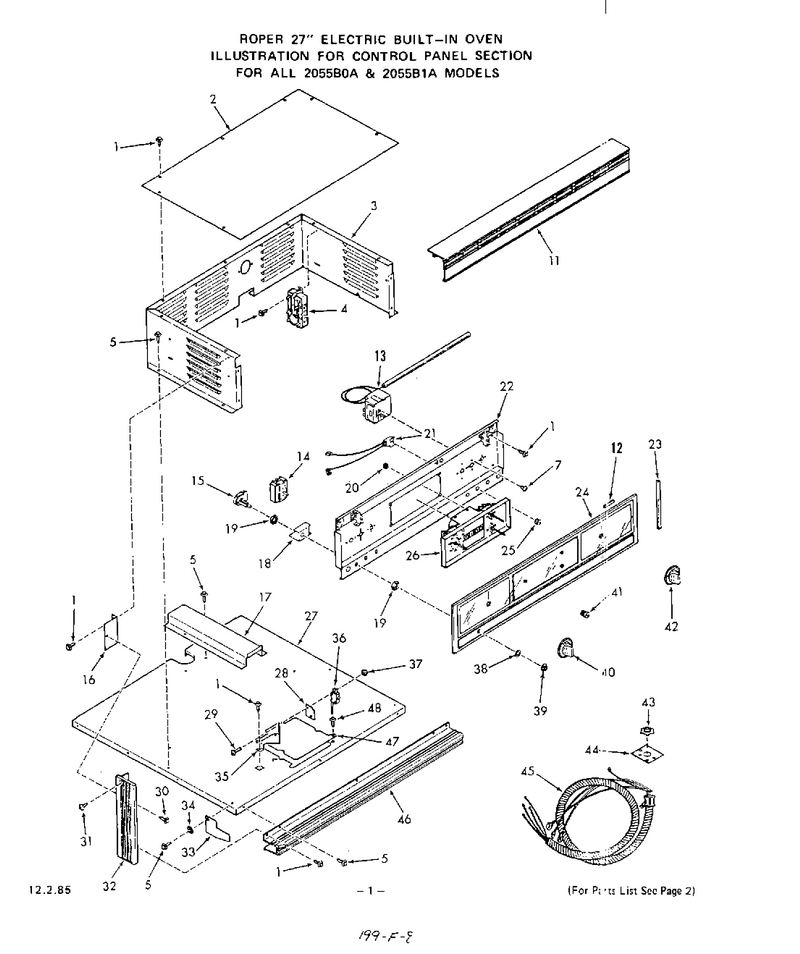

02 - Control Panel

...
...
1
Screw 10 - 32 X 3/8`` WPL-102429
...
2
Top-Control Housing WPL-323667
...
3
Control Housing WPL-323659
...
4
Oven Relay WPL-239802
...
5
Nut WPL-WP112432
...
7
Screw 8-32x3/16`` WPL-78565
...
11
Top Trim WPL-329398
...
12
Cushion WPL-112370
...
13
Oven Thermostat WPL-324685
...
14
Selector Switch WPL-326326
...
15
Push Switch-Oven Light WPL-298794
...
16
Control Panel Support (Lt. Or Rt.) WPL-311759
...
17
Wire Cover WPL-323663
...
18
Shield-Switch WPL-291351
...
19
Lock Nut WPL-236129
...
20
Keps Nut 10-24 WPL-74056
...
21
Indicator Light WPL-329632
...
22
Mounting Panel-Controls WPL-325151
...
23
End Trim-Control Panel Glass (Rt Or Lt) WPL-239565
...
24
Control Panel Glass WPL-329428
...
25
Lens-Indicator Light WPL-114003
...
26
Clock W/1 Hr. Timer WPL-329383
...
27
Cabinet Top WPL-323650
...
28
Insulator WPL-327770
...
29
Screw 4-40x3/4`` WPL-229288
...
30
Screw 6-32x1/4`` WPL-293121
...
31
Screw 6-32 X 1/2`` WPL-299766
...
32
Side Trim-Control Panel WPL---
...
33
Heat Shield (Lt. Or Rt.) WPL-312395
...
34
Washer WPL-106462
...
35
Bracket-Micro Switch WPL-328862
...
36
Micro Switch - Lock WPL-311868
...
37
Keps Nut 4-40 WPL-306638
...
38
Washer WPL-104838
...
39
Knurled Nut WPL-87403
...
40
Knob-Selector Switch WPL-329446
...
41
Knob-Clock (Start & Stop Time) (3) WPL-10-9225
...
42
Knob-Oven Thermostat WPL-329445
...
43
Nut (For Key 45) WPL-110340
...
44
Plate (For Key 45) WPL-294983
...
45
Harness Conduit Asm. WPL-325845
...
46
Control Panel Trim WPL-314284
...
47
Cover Plate-Lock WPL-323652
...
48
Screw 10 - 32 X 7/16`` WPL-295850

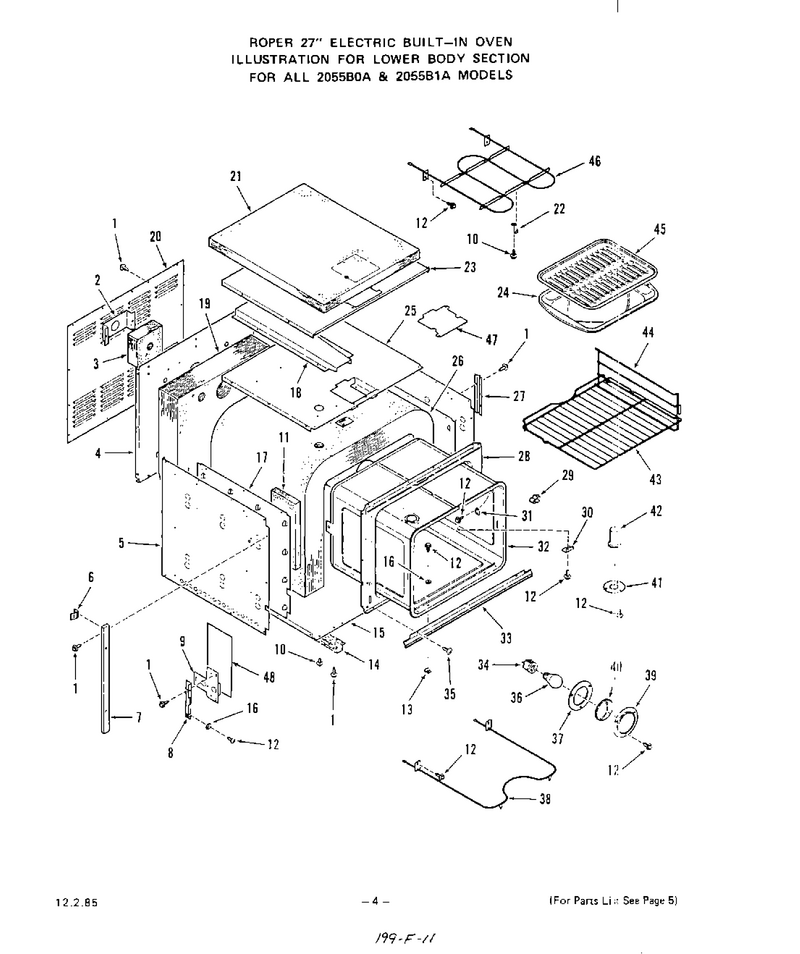

04 - Lower Body

...
...
1
Nut WPL-WP112432
...
2
Insulation Retainer-Oven Light WPL-323630
...
3
Elmnt-Brol WPL-WP660579
...
4
Main Back WPL-323742
...
5
Cabinet Side WPL---
...
6
Spacer (4 Req) WPL-311726
...
7
Side Trim-Lt. Or Rt. WPL-311725
...
8
Hinge Angle-Lt. Or Rt. WPL-322611
...
9
Hinge Box-Lt. Or Rt. WPL-322609
...
10
Screw 10 - 32 X 1/4`` WPL-105771
...
11
Insulation (Lt. Or Rt.) WPL-279470
...
12
Screw 10 - 32 X 17/32`` WPL-102428
...
13
Speed Nut 10-32 WPL-107956
...
14
Bottom Channel-Lt. Or Rt. WPL-328042
...
15
Cabinet Bottom WPL-323740
...
16
Washer WPL-106462
...
17
Insulation Retainer-Oven Side (Lt. Or Rt.) WPL-323636
...
18
Top Oven Vent Box WPL-323640
...
19
Elmnt-Brol WPL-WP660579
...
20
Cabinet Back WPL-323722
...
21
Elmnt-Brol WPL-WP660579
...
22
Broiler Element Support WPL-324809
...
23
Insulation Retainer-Cabinet Top WPL-323646
...
24
2055b1a Model WPL-331592
...
25
Insulation Retainer-Oven Top WPL-323634
...
26
Insulation Oven Top & Sides (1 Piece) WPL-311712
...
27
Raceway WPL-324352
...
28
2055b0a Model WPL-325832
...
29
Thermostat Bulb-Retainer (2 Req) WPL-238052
...
30
Cover WPL-304835
...
31
Cover Plate-Thermostat Bulb WPL-237762
...
32
2055b0a Model WPL-325831
...
33
Lower Trim WPL-311558
...
34
Holder-Oven Light Bulb WPL-87883
...
35
New Instal WPL-WFR112013
...
36
Oven Light Bulb WPL-111257
...
37
Gasket-Oven Light WPL-229371
...
38
Bake Element WPL-320418
...
39
Lens Retainer-Oven Light WPL-229372
...
40
Oven Light Lens WPL-114989
...
41
Oven Vent Clamp WPL-303612
...
42
Elmnt-Brol WPL-WP660579
...
43
Oven Rack (2 Req) WPL-311735
...
44
Oven Rack Guide-Rt. Or Lt. WPL-305350
...
45
Broiler Pan Grid WPL-326297
...
46
Broiler Element WPL-319526
...
47
Cover Plate-Lock WPL-323648
...
48
Insulation Cover WPL-114300
