Roper 2045B1A

Model: 2045B1A

Save Part Not Listed?
product name

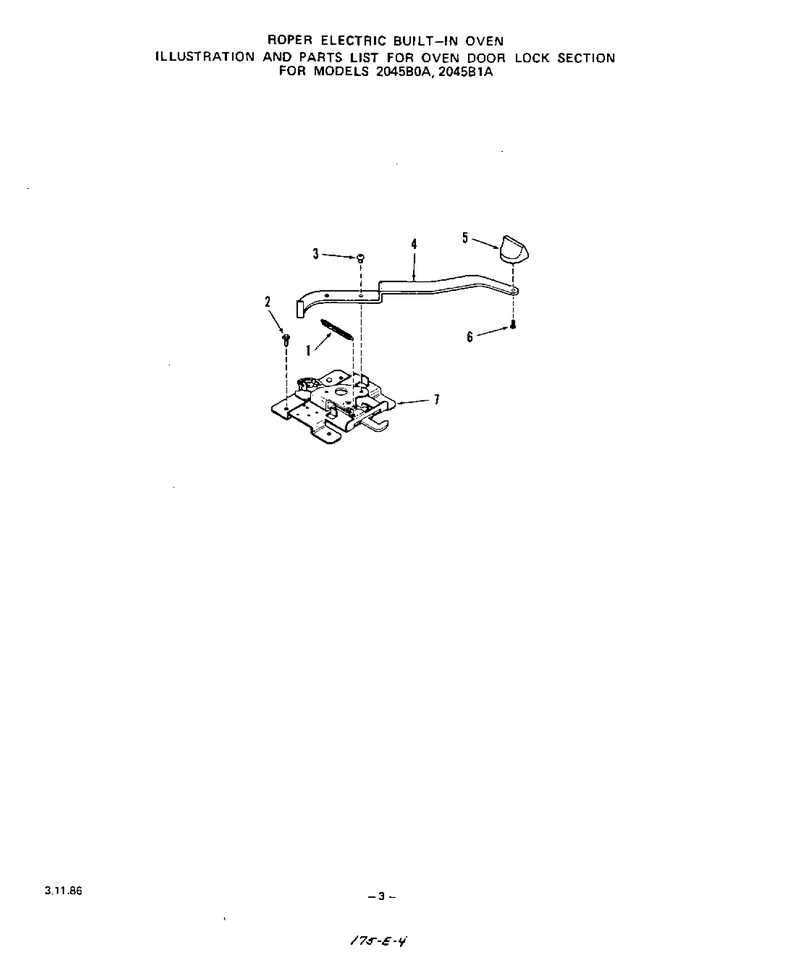

03 - Oven Door Lock

...
...
1
WPL-832952
...
2
Nut WPL-WP112432
...
3
Screw 10-24x1/4`` WPL-288248
...
4
Lock Handle WPL-318379
...
5
Knob-Lock Handle WPL-323363
...
6
Screw 6-32x15/32`` WPL-313768
...
7
Oven Door Lock Assm. WPL-311869

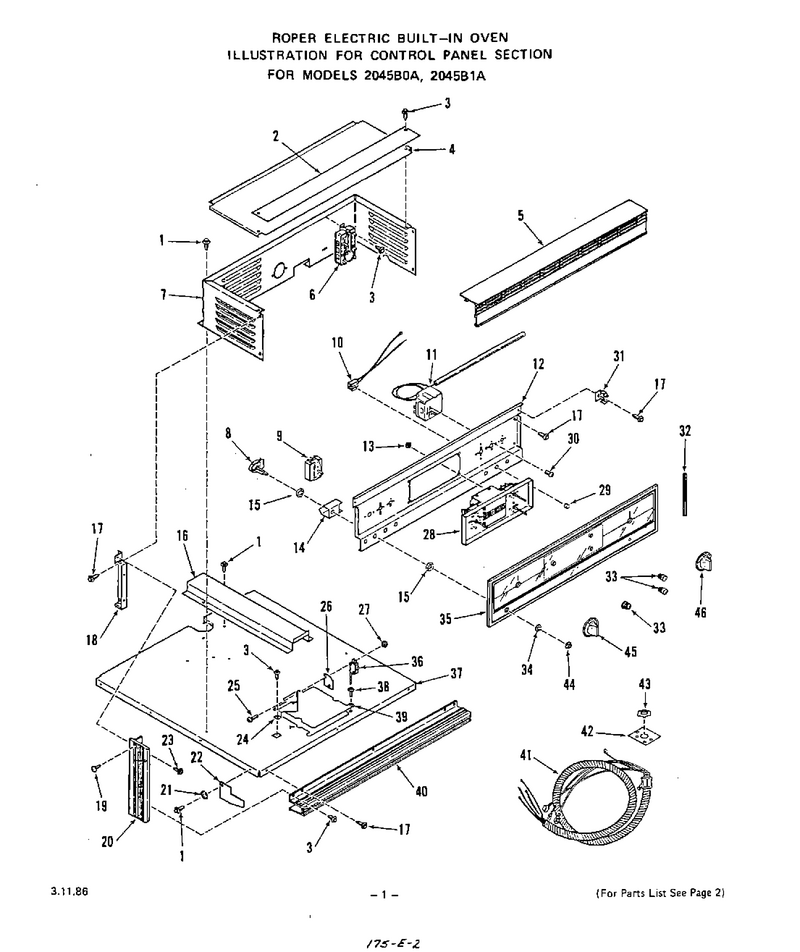

02 - Control Panel

...
...
1
Screw 10-16x7/16`` WPL-327320
...
2
Extension-Top Cover WPL-329544
...
3
Screw 10 - 32 X 3/8`` WPL-102429
...
4
Top Cover-Control Housing WPL-328038
...
5
Trim WPL-328837
...
6
Oven Relay WPL-239802
...
7
Control Housing WPL-327989
...
8
Push Switch-Oven Light WPL-298794
...
9
Selector Switch WPL-326326
...
10
Indicator Light-Oven WPL-329319
...
11
Thermostat WPL-324685
...
12
Control Mounting Panel WPL-327979
...
13
Keps Nut 10-24 WPL-74056
...
14
Shield-Switch WPL-291351
...
15
Lock Nut WPL-236129
...
16
Wire Cover WPL-327990
...
17
Nut WPL-WP112432
...
18
Right WPL-328060
...
19
Screw 6-32 X 1/2`` WPL-299766
...
20
Left WPL-327992
...
21
Washer WPL-106462
...
22
Heat Shield (Lt. Or Rt.) WPL-312395
...
23
Screw 6-32x1/4`` WPL-293121
...
24
Bracket-Micro Switch WPL-328862
...
25
Screw 4-40x3/4`` WPL-229288
...
26
Insulation WPL-327770
...
27
Keps Nut 4-40 WPL-306638
...
28
Clock W/1 Hr. Timer WPL-329383
...
29
Lens-Indicator Light WPL-233161
...
30
Screw 8-32x3/16`` WPL-78565
...
31
Retainer-Glass (Rt. Or Lt.) WPL-328863
...
32
End Trim-Control Panel Glass (Rt. Or Lt.) WPL-328958
...
33
Knob-Clock WPL-294810
...
34
Washer WPL-104838
...
35
Control Panel Glass WPL-329069
...
36
Micro Switch - Lock WPL-311868
...
37
Cabinet Top WPL-327974
...
38
Screw 10 - 32 X 7/16`` WPL-295850
...
39
Cover Plate-Lock WPL-323652
...
40
Trim-Control Panel WPL-328005
...
41
Harness Conduit Asem. WPL-328109
...
42
Plate (For Key 41) WPL-294983
...
43
Nut (For Key 41) WPL-110340
...
44
Knurled Nut WPL-87403
...
45
Knob-Selector Switch WPL-329446
...
46
Knob-Thermostat WPL-329445

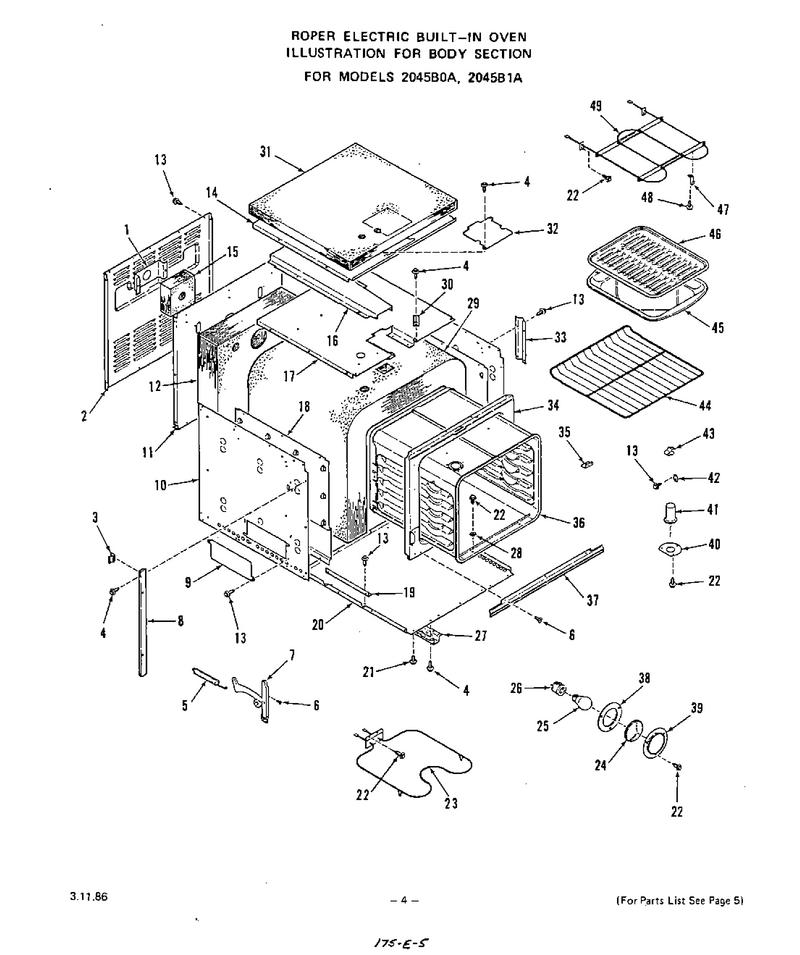

04 - Body

...
...
1
Insulation Retainer-Oven Light WPL-323630
...
2
Cabinet Back WPL-328091
...
3
Spacer (4 Req) WPL-328077
...
4
Nut WPL-WP112432
...
5
Spring-Oven Door (Lt. Or Rt.) WPL-328961
...
6
New Instal WPL-WFR112013
...
7
Left WPL-328025
...
8
Side Trim-Lt. Or Rt. WPL-328124
...
9
Cover Plate WPL-328112
...
10
Cabinet Side-Lt Or Rt. WPL-328087
...
11
Main Back WPL-328084
...
12
Insulation-Oven Back & Bottom (1 Piece) WPL-328104
...
13
Screw 10-16x7/16`` WPL-327320
...
14
Insulation Retainer-Cabinet Top WPL-327969
...
15
Elmnt-Brol WPL-WP660579
...
16
Vent Box WPL-328052
...
17
Insulation Retainer-Oven Top WPL-327968
...
18
Insulation Retainer-Oven Side (Lt. Or Rt.) WPL-328089
...
19
Bracket-Insulation Retainer (Lt. Or Rt.) WPL-328141
...
20
Cabinet Bottom WPL-327949
...
21
Screw 10 - 32 X 1/4`` WPL-105771
...
22
Screw 10 - 32 X 17/32`` WPL-102428
...
23
Bake Element WPL-328113
...
24
Oven Light Lens WPL-114989
...
25
Oven Light Bulb WPL-111257
...
26
Holder-Oven Light Bulb WPL-87883
...
27
Bottom Channel-Lt. Or Rt. WPL-328042
...
28
Washer WPL-106462
...
29
Insulation-Oven Top & Sides (1 Piece) WPL-328103
...
30
Bracket (2 Req) WPL-313627
...
31
Insulation-Cabinet Top WPL-328105
...
32
Cover Plate-Lock WPL-323648
...
33
Raceway WPL-324352
...
34
Front Frame WPL---
...
35
Cover WPL-304835
...
36
2045boa Model WPL-327413
...
37
Lower Trim WPL-328000
...
38
Gasket-Oven Light WPL-229371
...
39
Lens Retainer-Oven Light WPL-229372
...
40
Clamp-Oven Vent Tube WPL-328303
...
41
Elmnt-Brol WPL-WP660579
...
42
Cover Plate-Thermostat Bulb WPL-237762
...
43
Thermostat Bulb-Retainer (2 Req) WPL-238052
...
44
Knob WPL-WP330190
...
45
2045b1a Model WPL-331592
...
46
Broiler Pan Grid WPL-326297
...
47
Support-Broiler Element (2 Req) WPL-324809
...
48
Screw 10abx3/8`` WPL-69065
...
49
Broiler Element WPL-328115

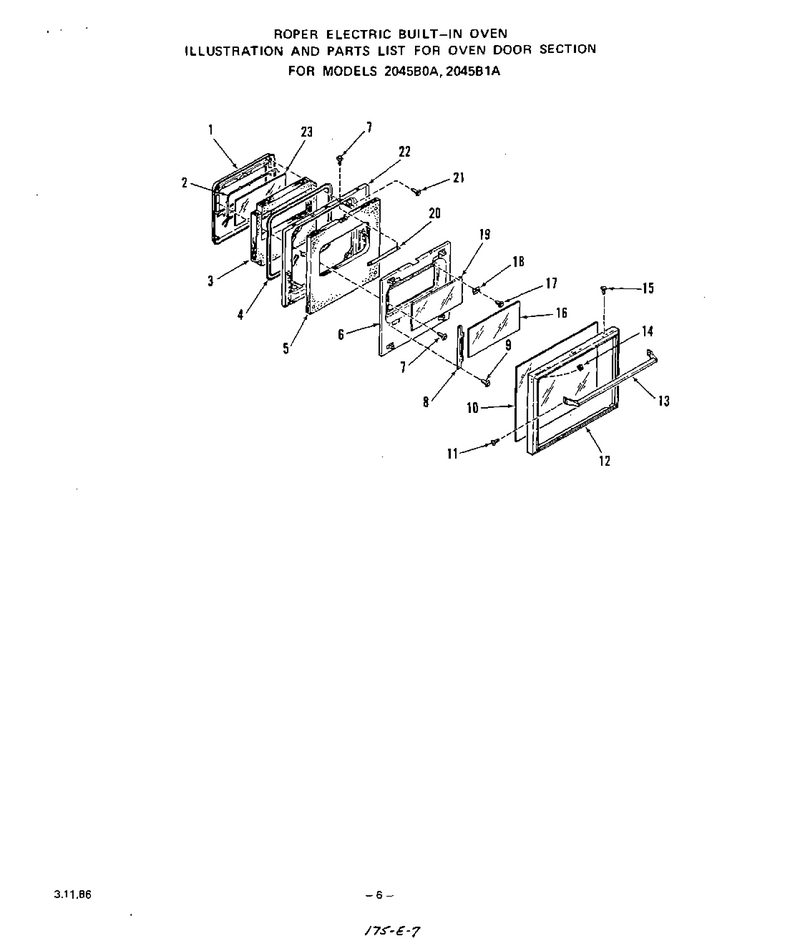

05 - Oven Door , Lit/optional

...
...
Xwire Harness WPL---
...
1
2045boa Model WPL-328450
...
2
Door Seal WPL-302935
...
3
Insulation-Oven Door Plug WPL-328107
...
4
Gasket-Oven Door WPL-328123
...
5
Insulation-Oven Door Lining WPL-328106
...
6
Retainer-Oven Door Insulation WPL-328153
...
7
Nut WPL-WP112432
...
8
Retainer-Oven Door Glass (Lt. Or Rt.) WPL-328064
...
9
Screw 10-16x7/16`` WPL-327320
...
10
Oven Door Glass-Outer WPL-328044
...
11
Screw 8-32 X 1/2`` WPL-319447
...
12
Frame-Oven Door WPL-328080
...
13
Handle-Oven Door WPL-328062
...
14
Keps Nut 8-32 WPL-239764
...
15
Screw 6-20x3/8`` WPL-327621
...
16
Oven Door Glass-Intermediate WPL-328046
...
17
Screw 10-32x17/32`` WPL-295849
...
18
Retainer-Door Glass (4 Req) WPL-326009
...
19
Oven Door Glass-Center WPL-328045
...
20
Clamp WPL-WP312967
...
21
Screw 10 - 32 X 3/8`` WPL-102429
...
22
Lining-Oven Door WPL---
...
23
Auxiliary WPL-329321
