Roper 1225W2A

Model: 1225W2A

Save Part Not Listed?
product name

Popular Parts

Popular Parts

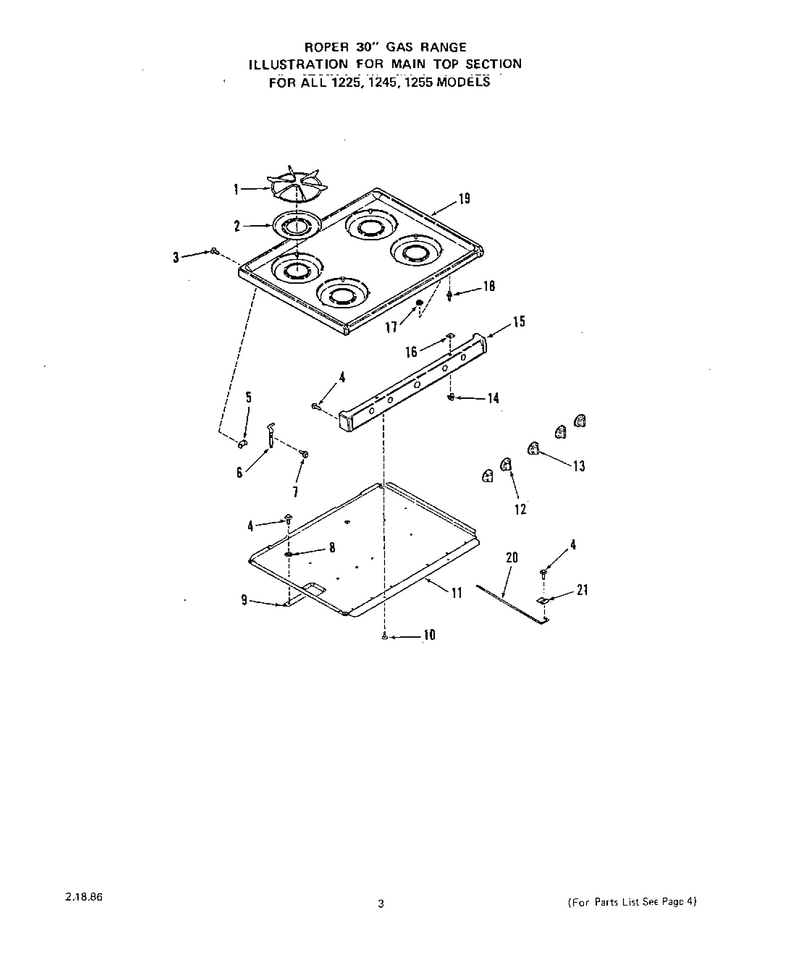

03 - Griddle

...
...
1
Top Grate (4 Req) WPL-316786
...
2
Insert Pan (4 Req) All 1255 Models WPL-322888
...
3
Screw-10-32x1/2`` WPL-316849
...
4
Screw 10-16x7/16`` WPL-327320
...
5
Bracket-Hinge (Lt. Or Rt.) WPL-327403
...
6
Right WPL-320921
...
7
Screw 10-32 X 3/4`` WPL-321162
...
8
Washer WPL-106462
...
9
Stiffener-Burner Box Bottom WPL---
...
10
Screw 10-32x3/8`` WPL-239113
...
11
Bottom-Burner Box WPL---
...
12
Knob-Gas Valve (4 Req) WPL-327485
...
13
Knob-Thermostat WPL-322981
...
14
Catch (2 Req) WPL-24667
...
15
Platinum WPL-327843
...
16
Elmnt-Brol WPL-326795
...
17
Keps Nut 8-32 WPL-239764
...
18
Strike (2 Req) WPL-299784
...
19
Main Top WPL---
...
20
Support Rod-Main Top WPL-326066
...
21
Clamp-Support Rod WPL-326348

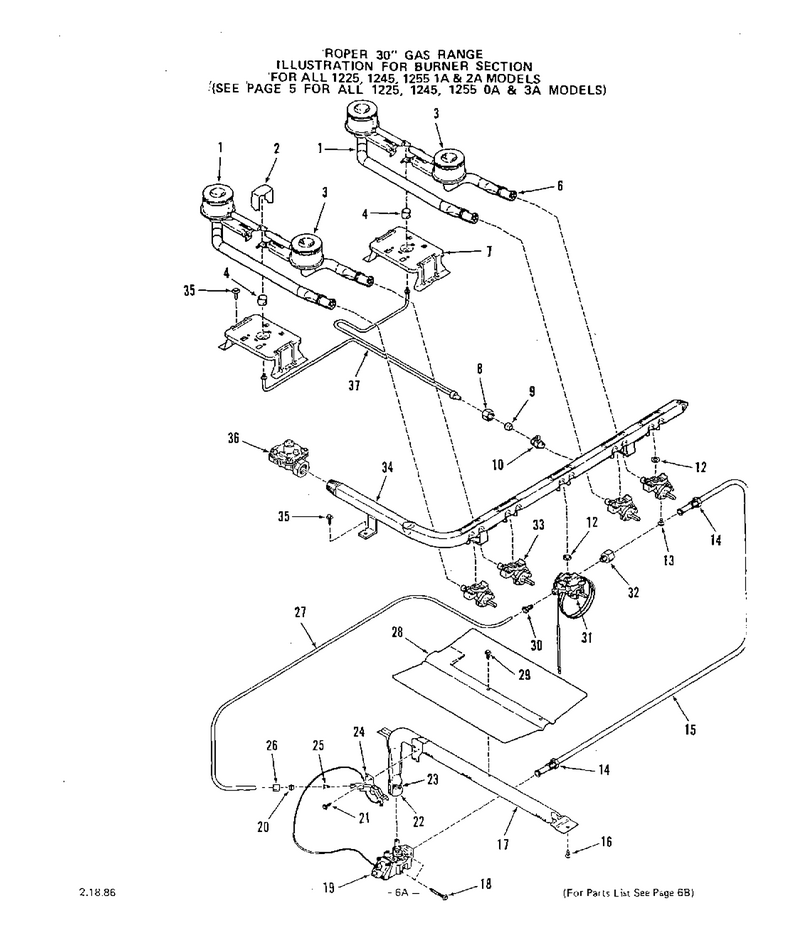

06 - Body

...
...
1
Top Burner-Rear (Inc. Key 6) WPL-327075
...
2
Shield-Top Pilot (Lt. Or Rt.) WPL-296183
...
3
Top Burner-Frt. (Inc. Key 6) WPL-327074
...
4
Seal, Foam WPL-313751
...
6
Air Shutter WPL-327198
...
7
Support-Top Burners (Rt. Or Lt.) WPL-327071
...
8
Compression Nut 1/4`` WPL-4825
...
9
Compression Ball Sleeve 1/4`` WPL-867
...
10
Filter-Top Pilot WPL-290610
...
12
Gasket (5 Req. For Keys 31 & 33) WPL-288186
...
13
Bolt 10-24x5/16`` (10 Req) WPL-330149
...
14
Inverted Nut 3/8`` WPL-113384
...
15
Tubing 3/8`` (Thmst. To Cont. Valve) WPL-315807
...
16
Screw 10-16x7/16`` WPL-327320
...
17
Burner-Oven (Inc. Keys 22, 23 & 28) WPL-303398
...
18
Screw 10-32 X 2`` WPL-323296
...
19
Control Valve (Inc. Keys 24 & 25) WPL-324050
...
20
Compression Ball Sleeve 3/16`` WPL-65711
...
21
Screw 10-24x1/4`` WPL-288248
...
22
Air Shutter WPL-239267
...
23
Adjustment Screw-Air Shutter WPL-239268
...
24
Pilot-Oven (Inc. Key 25) WPL-294528
...
25
Orifice Cup WPL-113117
...
26
Compression Nut 3/16`` WPL-65712
...
27
Tubing 3/16`` (Thermostat To Pilot) WPL-322447
...
28
Baffle - Oven Burner WPL-329316
...
29
Screw 10-16x7/16`` WPL-327320
...
30
Loxit Nut 3/16`` WPL-79673
...
31
Thermostat-Inc. Keys 12 & 32) WPL-302727
...
32
Fitting WPL-303503
...
33
Gas Valve (4 Req-Inc. Key 12) WPL-330148
...
34
Manifold Pipe WPL-330147
...
35
Screw 10-16x7/16`` WPL-327320
...
36
Pressure Regulator WPL-324528
...
37
Pilot Tube (Inc. Keys 8 & 9) WPL-325683

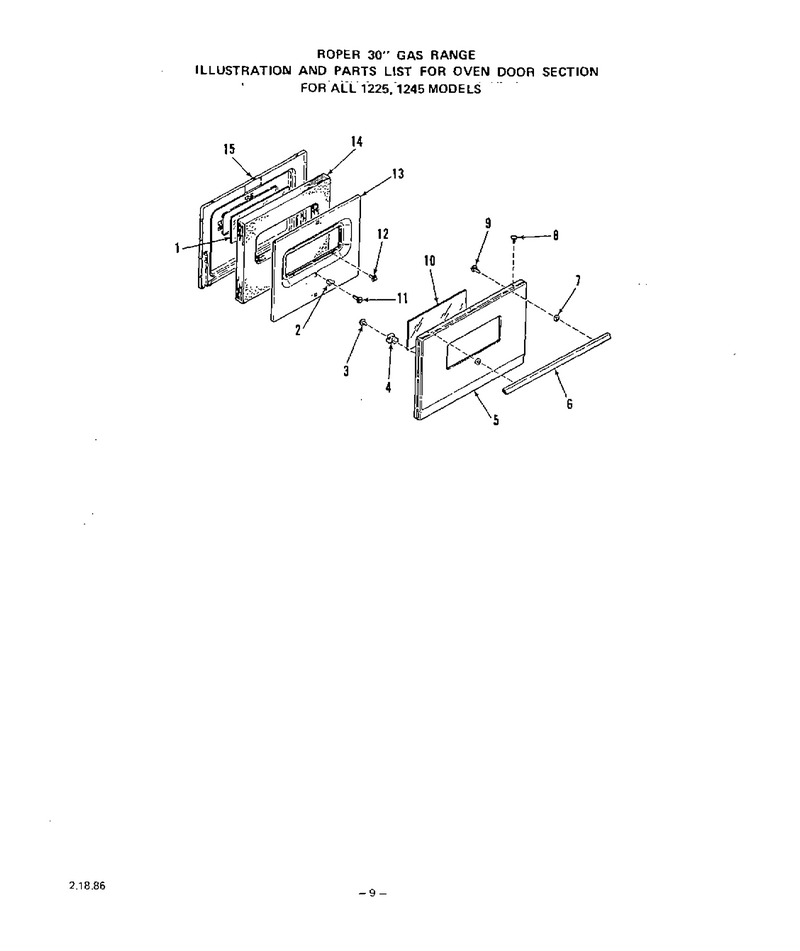

08 - Section

...
...
1
Inner Glass-Oven Door WPL-326010
...
2
Spacer WPL-327269
...
3
Screw 10-32x3/8`` WPL-239113
...
4
Retainer-Door Glass (4 Req) WPL-299592
...
5
Avocado WPL-325971
...
6
Handle-Oven Door WPL-292240
...
7
Spacer-Door Handle WPL-302343
...
8
Screw-10-32x1/2`` WPL-316849
...
9
Screw 10-16x7/16`` WPL-327320
...
10
Frame-Innr WPL-327610
...
11
Screw 10-16x7/16`` WPL-327320
...
12
Screw 10-32 X 17/32`` WPL-104520
...
13
Insulation Retainer-Oven Door WPL-325996
...
14
Insulation WPL-325999
...
15
All 12250a & 12251a Models WPL-327189

02 - Main Top

...
...
1
Clip WPL-70588
...
2
Wire Cover-Backguard WPL-320767
...
3
Knurled Nut WPL-87403
...
4
Crosstie WPL-328654
...
5
Clock Motor WPL-283296
...
6
Clock Knob WPL-294810
...
7
Screw 6-20x3/8`` WPL-327621
...
8
Clock (Inc`s. 5) WPL-327882
...
9
Spacer-Backguard Glass (2 Req) WPL-322302
...
10
Pal Nut 3/8-27 WPL-236129
...
11
Push Switch-Oven Light WPL-298793
...
12
Screw 10abx1/2`` WPL-326974
...
13
Screw 10-16x7/16`` WPL-327320
...
14
Support-Backguard WPL---
...
15
Glass-Backguard WPL-322303
...
16
Bezel-Backguard WPL-308007
...
17
Screw 6-20x3/8`` WPL-329382
...
18
Trim WPL-329236

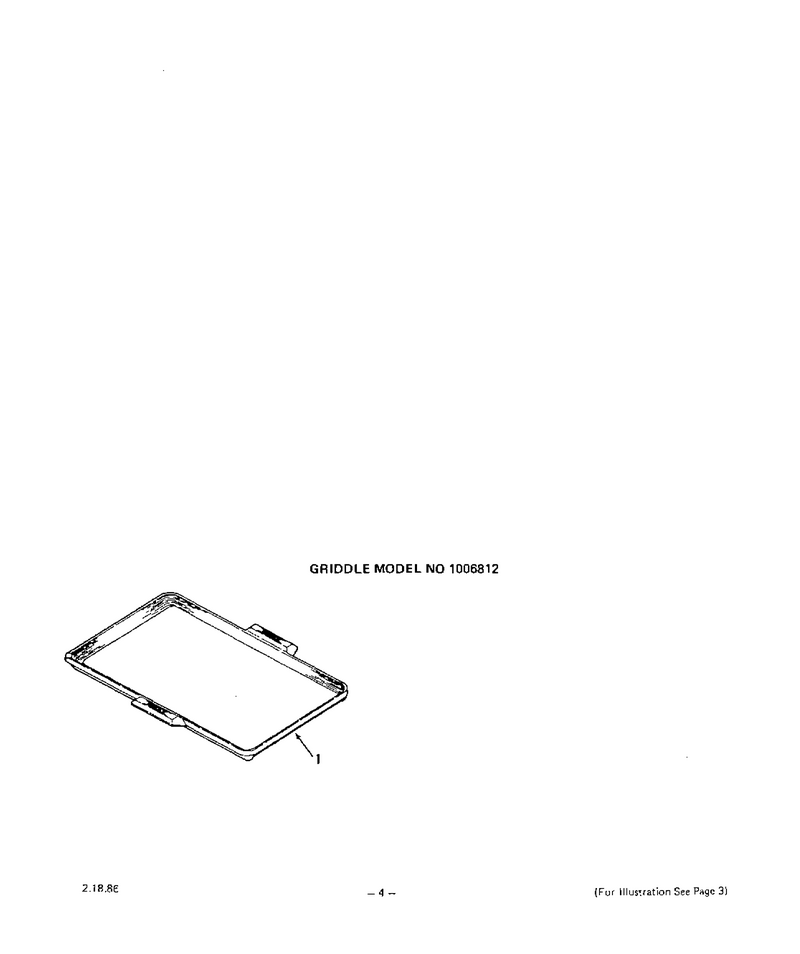

04 - Burner

...
...
1
Set-On Griddle WPL-289671

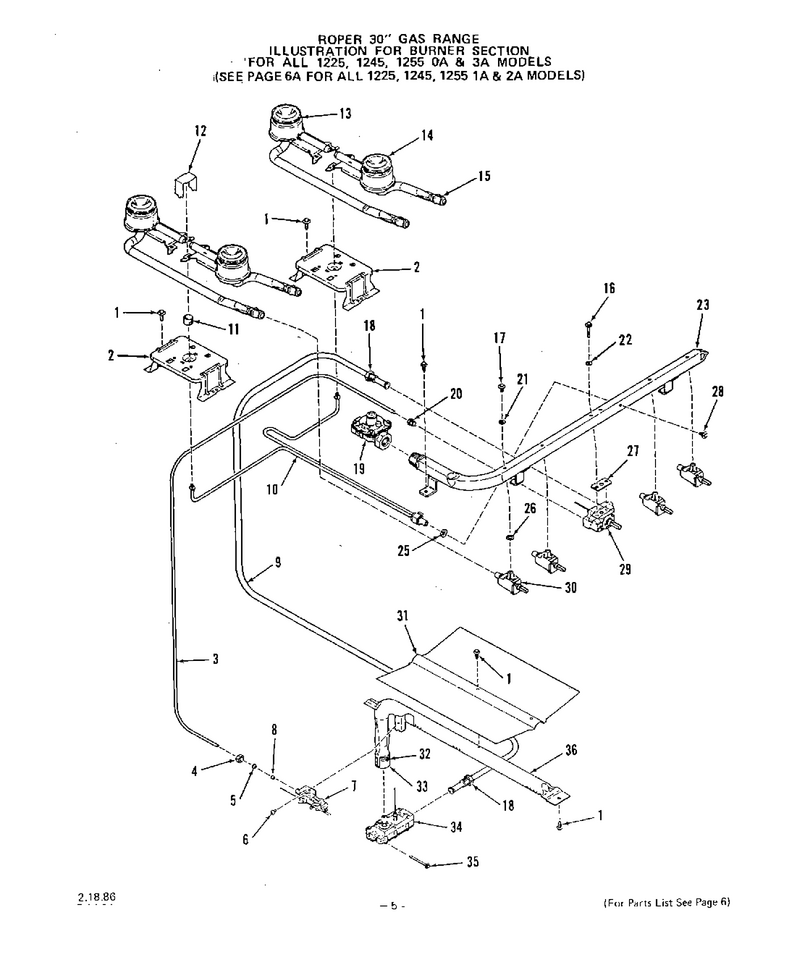

05 - Section

...
...
1
Screw 10-16x7/16`` WPL-327320
...
2
Support-Top Burner WPL-327071
...
3
Tubing 3/16`` WPL-322446
...
4
Compression Nut 3/16`` WPL-65712
...
5
Compression Ball Sleeve 3/16`` WPL-65711
...
6
Screw 10-24x1/4`` WPL-288248
...
7
Pilot Only (Inc`s. 8) WPL-318486
...
8
Orifice Cup Only (For 7) WPL-318485
...
9
Tubing 3/8`` WPL-295037
...
10
Pilot W/filter WPL-323912
...
11
Seal, Foam WPL-313751
...
12
Shield-Top Pilot (Lt. Or Rt.) WPL-296183
...
13
Rear Top Burner (Rt. Or Lt.) - Inc`s. 15 WPL-327075
...
14
Front Top Burner (Rt. Or Lt.) - Inc`s. 15 WPL-327074
...
15
Air Shutter (4 Req) WPL-327198
...
16
Mounting Screw (Inc`s. 22) WPL-318478
...
17
Trim, Bottom WPL-3181005
...
18
Inverted Nut 3/8`` WPL-113384
...
19
Pressure Regulator WPL-324528
...
20
Loxit Nut 3/16`` WPL-79673
...
21
Gasket WPL-304241
...
22
Gasket WPL-318658
...
23
Manifold Pipe WPL-327088
...
25
Gasket WPL-323913
...
26
Silicone Rubber Gasket (For 30) WPL-313563
...
27
Silicone Rubber Gasket (For 29) WPL-318657
...
28
Mounting Screw WPL-323914
...
29
Oven Thermostat (Inc`s. 27) WPL-323467
...
30
Gas Valve-4 Req. (Inc`s. 17, 21, 26) WPL-324912
...
31
Baffle - Oven Burner WPL-329316
...
32
Adjustment Screw -Air Shutter WPL-312989
...
33
Air Shutter WPL-312988
...
34
Control Valve (Inc`s. 7,8) WPL-323680
...
35
Screw 10-32 X 2`` WPL-323296
...
36
Oven Burner (Inc`s. 31, 32,33) WPL-319255

07 - Oven Door

...
...
1
Flue Deflector WPL-327079
...
2
Back-Main WPL-327087
...
3
Insulation-Oven Back WPL-328142
...
4
Screw 10-16x7/16`` WPL-327320
...
5
Base W/levelers (Lt. Or Rt.) WPL-326050
...
6
Spacer-Main Top WPL-326914
...
7
Leg Leveler (4 Req) WPL-326052
...
8
Screw 10-16x7/16`` WPL-327320
...
9
Wheat WPL-326058
...
10
Screw 10abx1/2`` WPL-326974
...
11
Broiler Drawer Guide (Inc`s. 12, 13) WPL---
...
12
Shoulder Rivet WPL-70275
...
13
Roller WPL-69006
...
14
Spring-Oven Door WPL-326962
...
15
New Instal WPL-WFR112013
...
16
Right WPL-329653
...
18
Disconnect WPL-232150
...
19
Wire Cover Bottom-Backguard WPL-327251
...
20
Clip WPL-106767
...
21
Insulation-Oven Top & Sides (1 Piece) WPL-326040
...
22
All 12250a & 12251a Models WPL-324958
...
23
Bottom-Main WPL-327053
...
24
Broiler Drawer (Inc`s. 12, 13) WPL---
...
25
Shoulder Bolt WPL-329271
...
26
Left WPL-327483
...
27
Switch-Lid WPL-W10820036
...
28
Almond WPL-326291
...
29
Handle WPL-292240
...
30
Spacer WPL-302343
...
31
Screw-10-32x1/2`` WPL-316849
...
32
All 1225, 1245, 1255 2a & 3a Models WPL-331567
...
33
Nut-Keps 10-24 WPL-74056
...
34
All 1225, 1245, 1255 2a & 3a Models WPL-331593
...
35
Grid-Broiler Pan WPL---
...
36
Bulb-Oven Lamp WPL-111257
...
37
Motor-Drve WPL-299761
...
38
Seal-Oven Door WPL-326047
...
39
Retainer-Door Seal WPL-327875
...
40
Front Frame WPL---
...
41
Retainer-Insulation (Lt. Or Rt.) WPL-328984
...
42
Switch-Lid WPL-W10820036
...
43
Cord-Range Service WPL-235822
...
44
Rack-Oven (2 Req) WPL-326068
...
45
All 12250a & 12251a Models WPL-327083
...
46
Clip-Thermostat Bulb (2 Req) WPL-115533
...
47
Insulation-Flue WPL-329314
...
48
Spring-Broiler Drawer (Lt. Or Rt) WPL-327481
...
49
All 1225, 1245, 1255 0a & 1a Models WPL-329862
