Roper 1215W1A

Model: 1215W1A

Save Part Not Listed?
product name

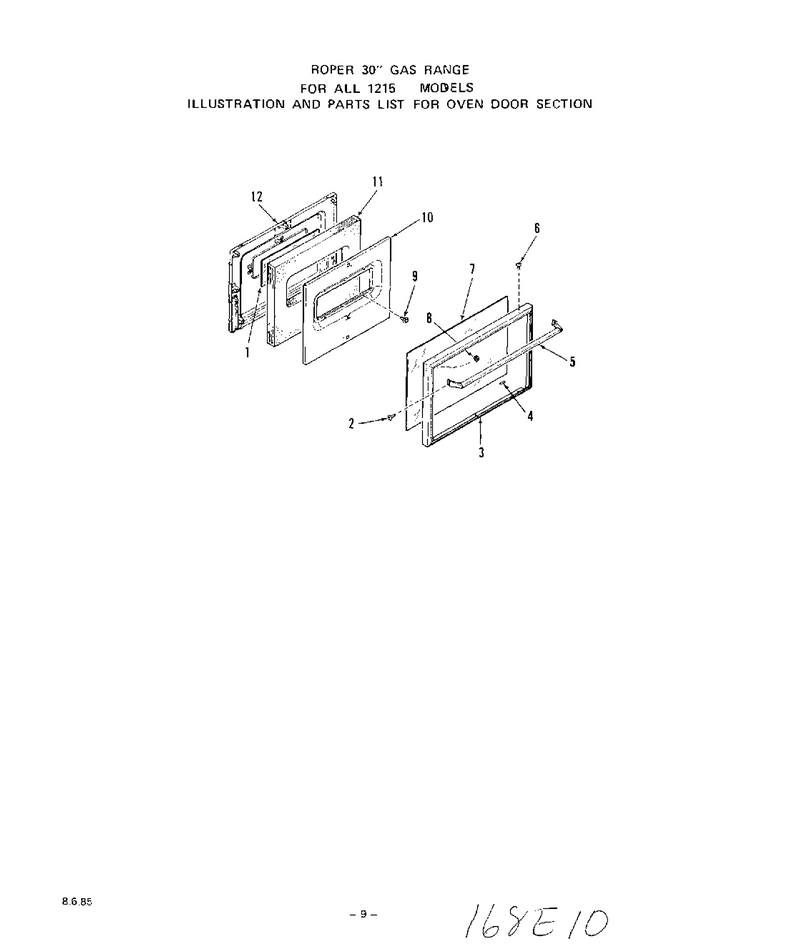

07 - Section

...
...
Xrepair Parts Manual WPL-332178
...
1
Inner Glass-Ove Door WPL-326010
...
2
Screw 8-32 X 1/2`` WPL-319447
...
3
Frame-Oven Door WPL-326002
...
4
Cushion (5 Req) WPL-112370
...
5
Handle WPL-303342
...
6
Screw-10-32x1/2`` WPL-316849
...
7
Outer Glass-Oven Door WPL-326367
...
8
Keps Nut 8-32 WPL-239764
...
9
Screw 10-32 X 17/32`` WPL-104520
...
10
Insulation Retainer-Oven Door WPL-325996
...
11
Insulation WPL-325999
...
12
Gas Valve Switches WPL-326870

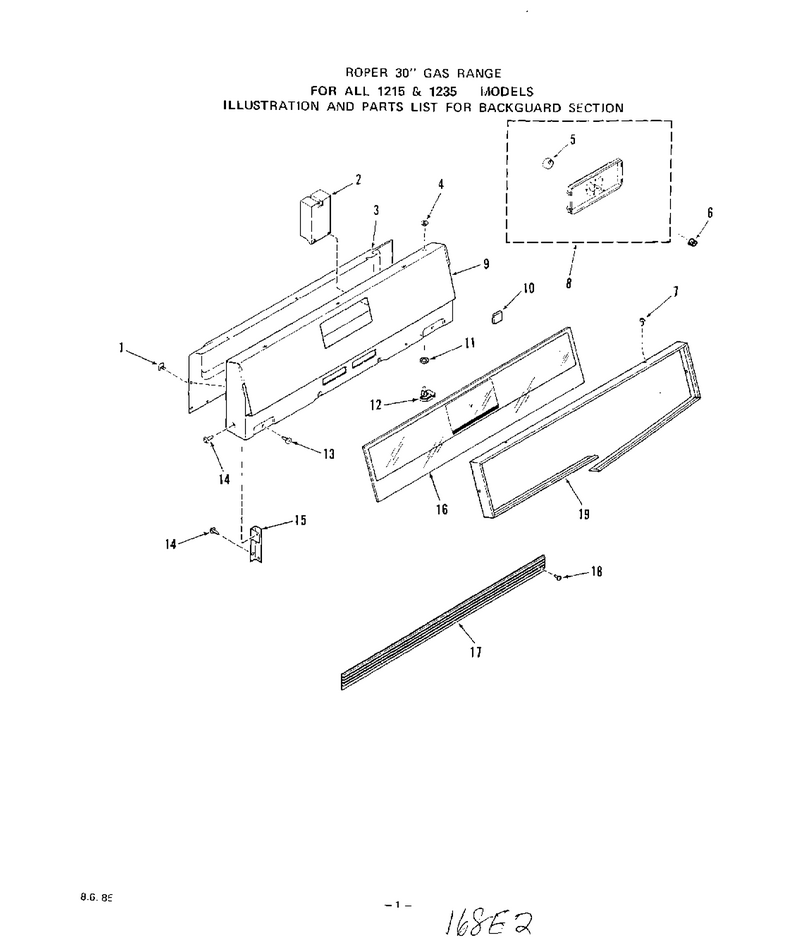

02 - Backguard

...
...
1
Clip WPL-70588
...
2
Module - Spark Igniter WPL-326136
...
3
Wire Cover WPL-320767
...
4
Knurled Nut WPL-87403
...
5
Clock Motor WPL-283296
...
6
Knob-Clock WPL-294810
...
7
Screw 6-20x3/8`` WPL-327621
...
8
Clock W/4 Hr. Timer-Inc`s. 5 WPL-327882
...
9
Crosstie WPL-328654
...
10
Spacer (2 Req) WPL-322302
...
11
Pal Nut 3/8-27 WPL-236129
...
12
Push Switch-Oven Light WPL-298793
...
13
Screw 10abx1/2`` WPL-326974
...
14
Screw 10-16x7/16`` WPL-327320
...
15
Support-Backguard (Right) WPL-327106
...
16
Backguard Glass (All 1215 Models) WPL-322664
...
17
Bottom Trim WPL-329236
...
18
Screw 6-20x3/8`` WPL-329382
...
19
Bezel-Backguard WPL-308007

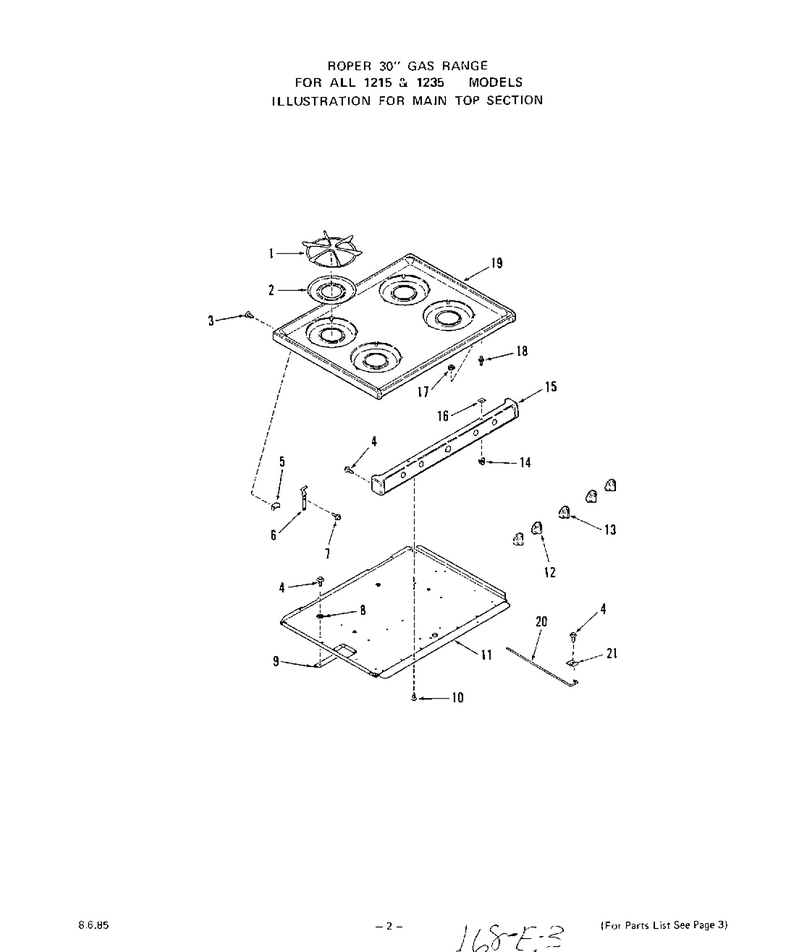

03 - Main Top

...
...
1
Top Grate (4 Req) WPL-316786
...
2
Aeration Pan - 1215x WPL-322888
...
3
Screw-10-32x1/2`` WPL-316849
...
4
Screw 10-16x7/16`` WPL-327320
...
5
Bracket-Hinge (Lt. Or Rt.) WPL-327403
...
6
Hinge-Main Top (Left) WPL-320922
...
7
Screw 10-32 X 3/4`` WPL-321162
...
8
Washer WPL-106462
...
9
Stiffener-Burner Box Bottom (Front) WPL-327705
...
10
Screw 10-32x3/8`` WPL-239113
...
11
Bottom-Burner Box (All 12150a & 12350a Models) WPL-327250
...
12
Knob-Gas Valve (4 Req) (All 1235 Models) WPL-327485
...
13
Knob-Thermostat WPL-322981
...
14
Catch (2 Req) WPL-24667
...
15
Manifold Panel (Almond) WPL-327457
...
16
Elmnt-Brol WPL-326795
...
17
Keps Nut 8-32 WPL-239764
...
18
Strike (2 Req) WPL-299784
...
19
Main Top (Chrome) WPL-328912
...
20
Support Rod-Main Top All 1235 Models WPL-326066
...
21
Clamp WPL-326348

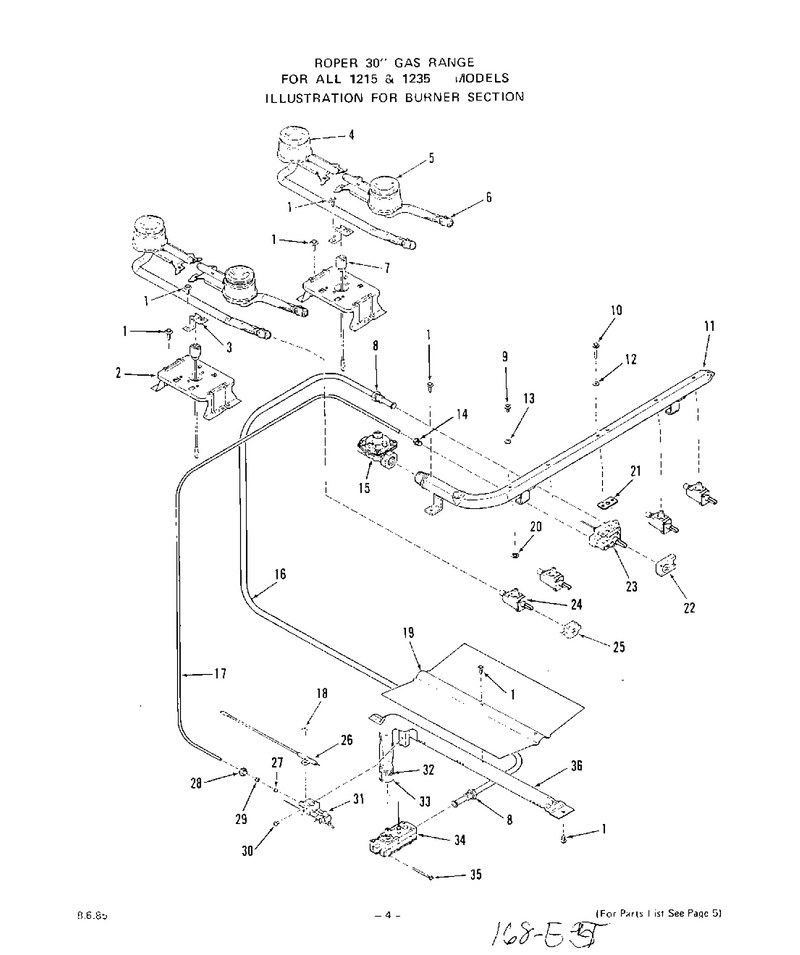

04 - Burner

...
...
1
Screw 10-16x7/16`` WPL-327320
...
2
Support-Top Burner (Lt. Or Rt.) WPL-327073
...
3
Bracket-Spark Igniter (Lt. Or Rt.) WPL-312453
...
4
Rear Top Burner-Rt. Or Lt. (Inc`s. 6) WPL-327075
...
5
Front Top Burner-Rt. Or Lt. (Inc`s. 6) WPL-327074
...
6
Air Shutter WPL-327198
...
7
Electrode-Spark Igniter (Left) WPL-327216
...
8
Inverted Nut 3/8`` WPL-113384
...
9
Trim, Bottom WPL-3181005
...
10
Mounting Screw 10-24 (Inc`s. 12) WPL-318478
...
11
Manifold Pipe WPL-327089
...
12
Silicone Rubber Gasket WPL-318658
...
13
Silicone Rubber Gasket WPL-311692
...
14
Loxit Nut WPL-79673
...
15
Pressure Regulator WPL-324528
...
16
Tubing 3/8`` WPL-295037
...
17
Switch-Inf WPL-WP3149400
...
18
Screw 6abx3/8`` WPL-120855
...
19
Baffle - Oven Burner WPL-329316
...
20
Silicone Rubber Gasket WPL-313563
...
21
Silicone Rubber Gasket WPL-318657
...
22
Switch-Thermostat WPL-318432
...
23
Oven Thermostat (Inc`s. 21) WPL-321983
...
24
Gas Valve (4 Req. - Inc`s. 20) (All 1235 Models) WPL-324511
...
25
Switch-Gas Valve (4 Req) (All 1215 Models) WPL-312457
...
26
Electrode-Oven Spark Igniter WPL-327217
...
27
Orifice Cup Only (For 31) WPL-318485
...
28
Compression Nut 3/16`` WPL-65712
...
29
Compression Ball Sleeve 3/16`` WPL-65711
...
30
Screw 10-24x1/4`` WPL-288248
...
31
Pilot Only (Inc`s. 27) WPL-318486
...
32
Adjustment Screw -Air Shutter WPL-312989
...
33
Air Shutter WPL-312988
...
34
Control Valve (Inc`s. 27 & 31) WPL-322814
...
35
Screw 10-32 X 2`` WPL-323296
...
36
Oven Burner (Inc`s. 19, 32 & 33) WPL-319255

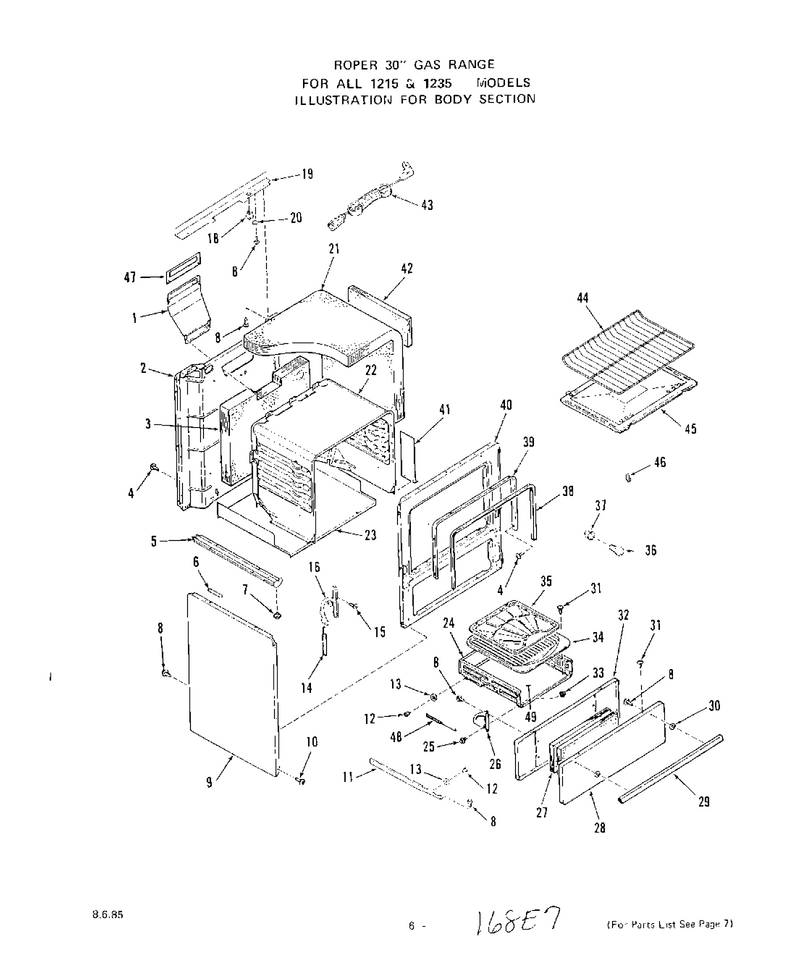

05 - Body

...
...
1
Flue Deflector WPL-327079
...
2
Back-Main WPL-327087
...
3
Insulation-Oven Back WPL-328142
...
4
Screw 10-16x7/16`` WPL-327320
...
5
Base W/levelers (Lt. Or Rt.) WPL-326050
...
6
Spacer-Main Top WPL-326914
...
7
Leg Leveler (4 Req) WPL-326052
...
8
Screw 10-16x7/16`` WPL-327320
...
9
Body Side (Lt. Or Rt.) (White) WPL-326055
...
10
Screw 10abx1/2`` WPL-326974
...
11
Belt WPL-WP691371
...
12
Shoulder Rivet WPL-70275
...
13
Roller WPL-69006
...
14
Spring-Oven Door WPL-326962
...
15
New Instal WPL-WFR112013
...
16
Hinge-Oven Door (Left) WPL-329654
...
18
Disconnect WPL-232150
...
19
Wire Cover Bottom-Backguard WPL-327251
...
20
Clip WPL-106767
...
21
Insulation-Oven Top & Sides (1 Piece) WPL-326040
...
22
Oven Body (All 1215 Models) WPL-324957
...
23
Bottom-Main WPL-327053
...
24
Drawer-Broiler (Inc`s. 12. 13) (All 12151a & 12351a Models) WPL-331566
...
25
Bolt WPL-329271
...
26
Hinge-Broiler Door (Right) WPL-327482
...
27
Switch-Lid WPL-W10820036
...
28
Front Panel-Broiler Door (Golden Wheat) WPL-326290
...
29
Handle WPL-292240
...
30
Spacer WPL-302343
...
31
Screw-10-32x1/2`` WPL-316849
...
32
Lining-Broiler Door (All 12151a & 12351a Models) WPL-331567
...
33
Keps Nut 10-24 WPL-74056
...
34
Pan-Broiler (All 12151a & 12351a Models) WPL-331593
...
35
Grid-Broiler Pan (All 12151a & 12351a Models) WPL-331588
...
36
Oven Lamp Bulb WPL-111257
...
37
Motor-Drve WPL-299761
...
38
Seal-Oven Door WPL-326047
...
39
Retainer-Oven Door Seal WPL-327875
...
40
Front Frame (All 12150a & 12350a Models) WPL-326042
...
41
Retainer-Insulation (Rt. Or Lt.) WPL-328984
...
42
Switch-Lid WPL-W10820036
...
43
Range Service Cord WPL-235822
...
44
Oven Rack (2 Req) WPL-326068
...
45
Oven Bottom (All 12350a Models) WPL-327083
...
46
Thermostat Bulb Clip (2 Req) WPL-115533
...
47
Insulation-Flue WPL-329314
...
48
Spring-Broiler Drawer (Lt. Or Rt) WPL-327481
...
49
Bottom-Broiler Drawer (All 12151a & 12351a Models) WPL-331554

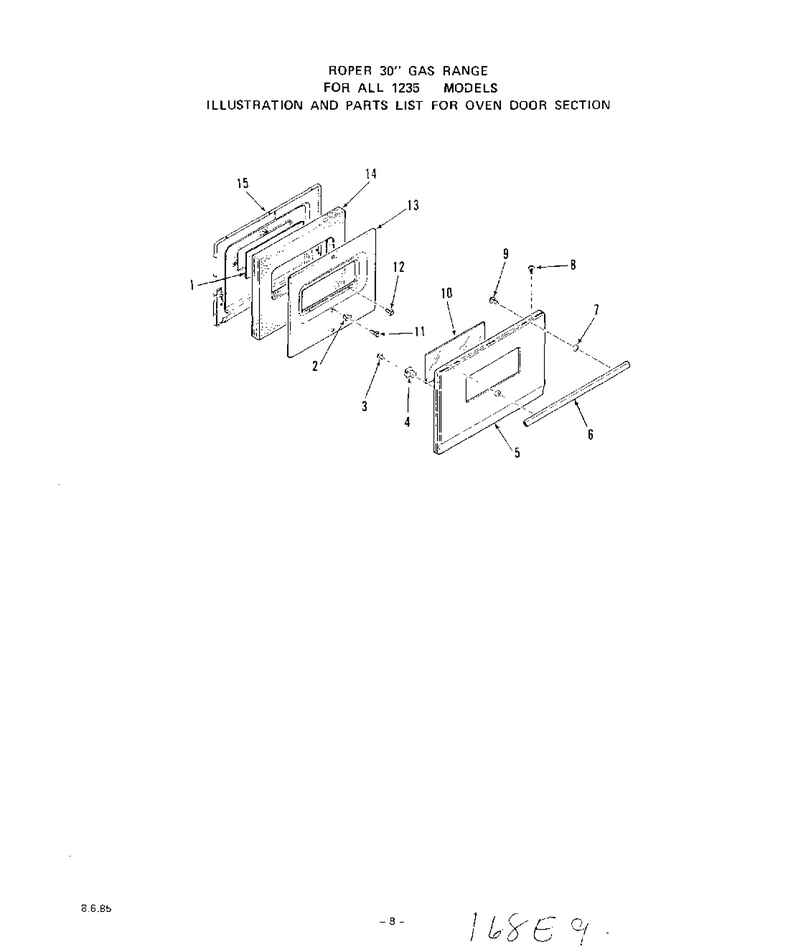

06 - Oven Door

...
...
1
Inner Glass-Oven Door WPL-326010
...
2
Spacer WPL-327269
...
3
Screw 10-32x3/8`` WPL-239113
...
4
Retainer-Door Glass (2 Req) WPL-299592
...
5
Front Panel-Oven Door (Golden Wheat) WPL-325969
...
6
Handle-Oven Door WPL-292240
...
7
Spacer-Door Handle WPL-302343
...
8
Screw-10-32x1/2`` WPL-316849
...
9
Screw 10-16x7/16`` WPL-327320
...
10
Frame-Innr WPL-327610
...
11
Screw 10-32x7/16`` WPL-316365
...
12
Screw 10-32 X 17/32`` WPL-104520
...
13
Insulation Retainer-Oven Door WPL-325996
...
14
Insulation WPL-325999
...
15
Lining-Oven Door (All 12350a Models) WPL-327189

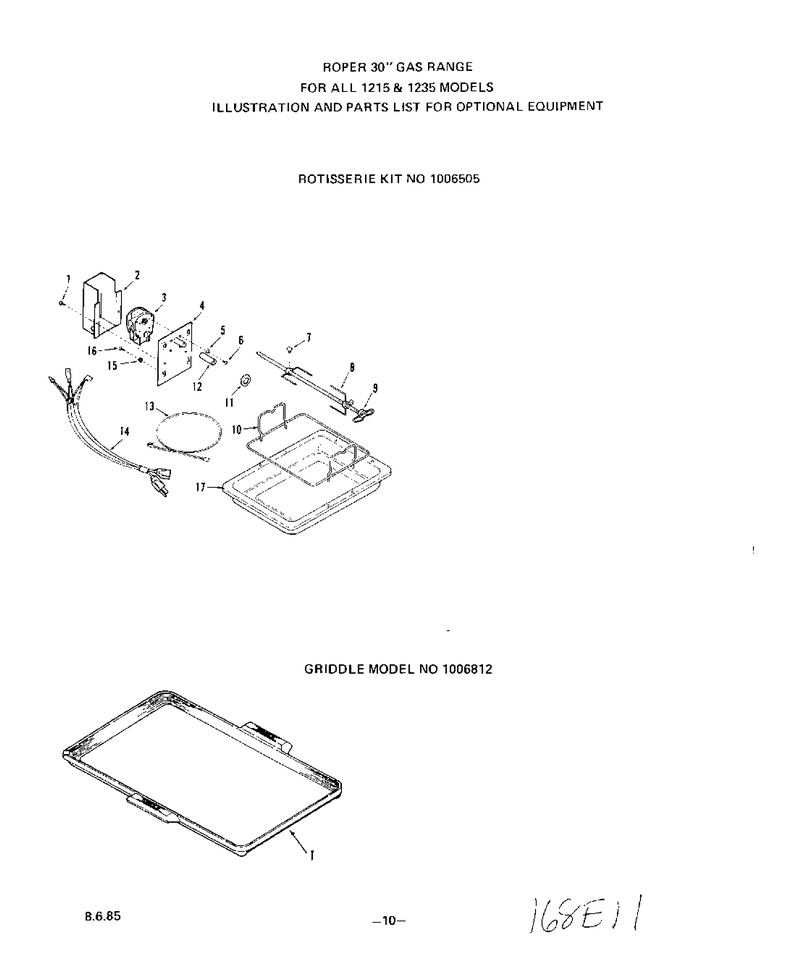

08 - Rotisserie Kit , Griddle

...
...
Xinstallation Instructions WPL-300668
...
1
Screw 10 - 32 X 1/4`` WPL-105771
...
2
Cover - Rotisserie Motor WPL-282918
...
3
Rotisserie Motor WPL-106575
...
4
Mounting Bracket-Rotisserie Motor WPL-324623
...
5
Lockwasher 3/16`` WPL-1164
...
6
Screw 8-32 X 3/8`` WPL-238833
...
7
Thumbscrew WPL-70287
...
8
Skewer WPL-88433
...
9
Rotisserie Spit WPL-100092
...
10
Spit Support WPL-232137
...
11
Plug Button WPL-100095
...
12
Guide Extension - Rotisserie Motor WPL-282925
...
13
Fixture Wire Lead With 1/4`` Faston & Piggyback Terminals (White) WPL-284278
...
14
Rotisserie Cord WPL-282924
...
15
Lockwasher WPL-69603
...
16
Screw 10-32 X 1/2`` WPL-102376
...
17
Rotisserie Pan WPL-291397
