Roper 1176W0A

Model: 1176W0A

Save Part Not Listed?
product name

Popular Parts

Popular Parts

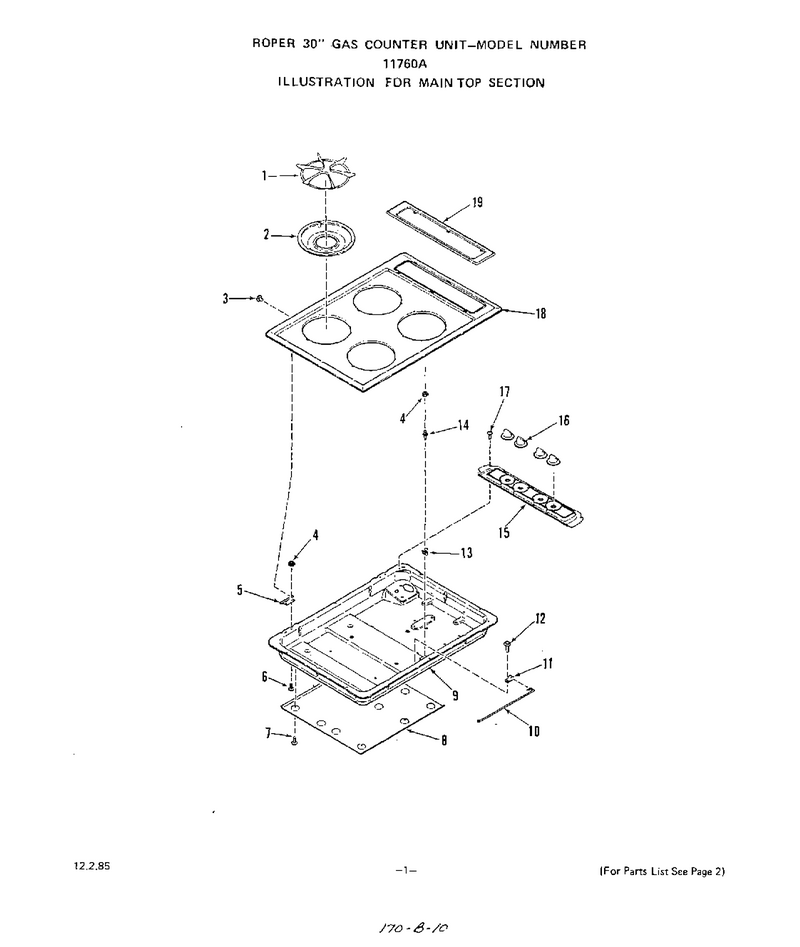

02 - Section

...
...
1
Grate-Top (4 Req) WPL-316786
...
2
Pan-Aeration (4 Req) WPL-330427
...
3
Screw 6-32x1/4`` WPL-072055
...
4
Nut-Hex 8-32 WPL-239764
...
5
Hinge-Main Top WPL-330421
...
6
Screw 8-32x1/4`` WPL-322183
...
7
Screw 10 - 32 X 1/4`` WPL-105771
...
8
Burner Box Shield WPL-323348
...
9
Box-Burner WPL-331922
...
10
Support-Main Top WPL-330422
...
11
Clamp WPL-285945
...
12
Nut WPL-WP112432
...
13
Catch-Main Top WPL-71003
...
14
Strike-Main Top WPL-24668
...
15
Control Panel WPL-330809
...
16
Knob-Gas Valve (4 Req) WPL-329297
...
17
Screw 6-32x3/8`` WPL-105667
...
18
Top-Main (Wheat) WPL-330444
...
19
Bezel-Control WPL-330419

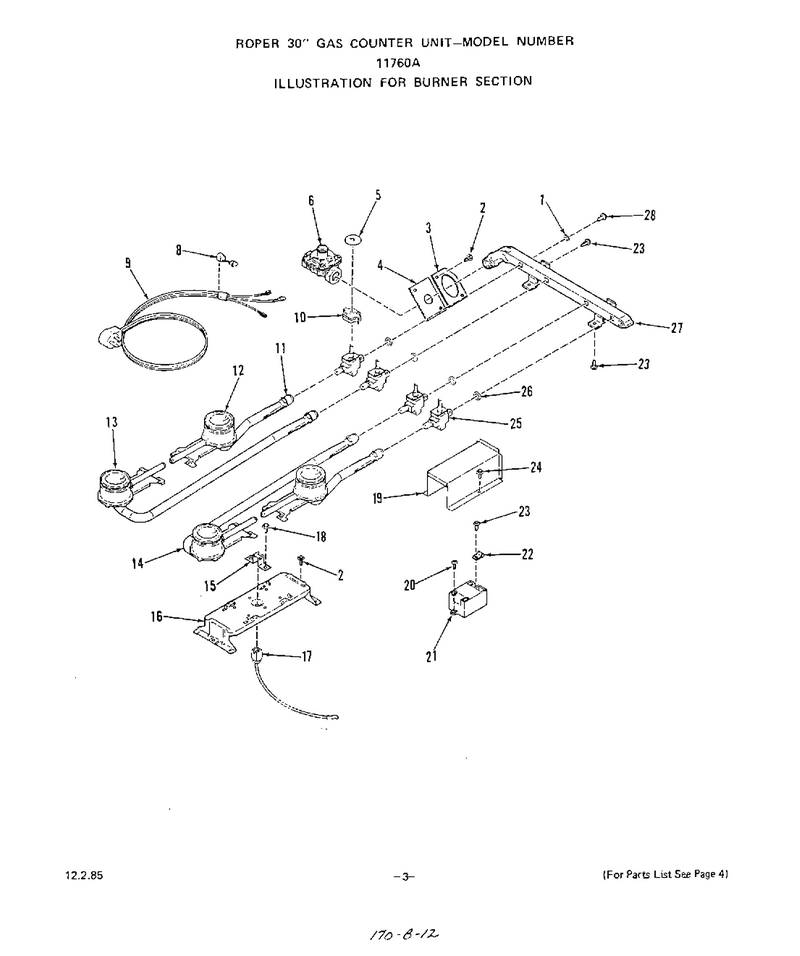

03 - Section

...
...
1
Gasket WPL-311692
...
2
Screw 10 - 32 X 1/4`` WPL-105771
...
3
Manifold Seal WPL-330408
...
4
Manifold Seal Retainer WPL-330409
...
5
Shield-Gas Valve (4 Req) WPL-306589
...
6
Regulator-Pressure WPL-324529
...
8
Relief-Strain WPL-280050
...
9
Cord WPL-309854
...
10
Switch-Valve (4 Req) WPL-311389
...
11
Shutter-Air WPL-327198
...
12
Burner-Top Asm (Right Front & Rear) WPL-33-0410
...
13
Burner-Top Asm (Left Rear) WPL-330412
...
14
Burner-Top Asm (Left Front) WPL-330411
...
15
Bracket-Spark Igniter (Lt. Or Rt.) WPL-312453
...
16
Support-Top Burner WPL-33-0405
...
17
Electrode-Spark Igniter WPL-312598
...
18
Screw 10-16x7/16`` WPL-327320
...
19
Cover-Module Wire WPL-323351
...
20
Screw 6-32x3/8`` WPL-105667
...
21
Module-Spark Igniter WPL-320990
...
22
Clamp-Nylon WPL-109266
...
23
Screw 10 - 32 X 7/16`` WPL-295850
...
24
Screw 10 - 32 X 3/8`` WPL-102429
...
25
Valve-Gas (4 Req) WPL-330407
...
26
Gasket WPL-313563
...
27
Pipe-Manifold WPL-330406
...
28
Trim, Bottom WPL-3181005
