Robomow by MTD 22BSGDAE737 RS630 (2019) Robotic Mower

Model: 22BSGDAE737 RS630 (2019)

Back To Assemblies

Save Part Not Listed?
product name

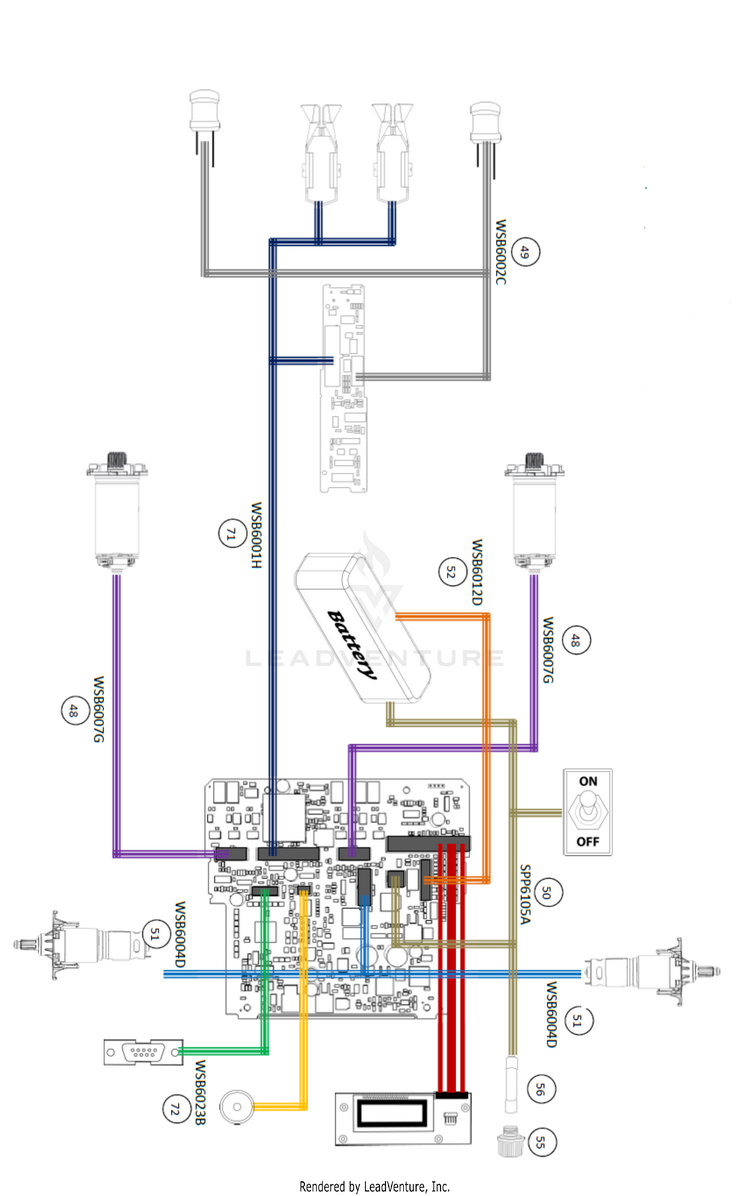

Wiring Harness

...
...
48
MAIN BOARD TO MOW MOTOR CABLE BL MTD-FR-WSB6007G
...
49
WIRE SENSORS CABLE W/HOLDERS MTD-FR-WSB6002C
...
50
FUSE-BATTERY CABLE MTD-FR-SPP6105A
...
51
MAIN BOARD TO DRIVE MOTOR CABLE MTD-FR-WSB6004D
...
52
MAIN BOARD TO BATTERY CELLS CABLE MTD-FR-WSB6012D
...
55
FUSE THREAD MTD-FR-SPP6107A
...
56
FUSE-32V/20A FAST MTD-FR-FUS6000A
...
71
MAIN BOARD TO FRT WHEEL CABLE (18) MTD-FR-WSB6001H
...
72
RS COMMUNICATION/GSM SPLIT CABLE MTD-FR-WSB6023B
