Robomow by MTD 22BCDDAE737 RC306 (2019) Robotic Mower

Model: 22BCDDAE737 RC306 (2019)

Back To Assemblies

Save Part Not Listed?
product name

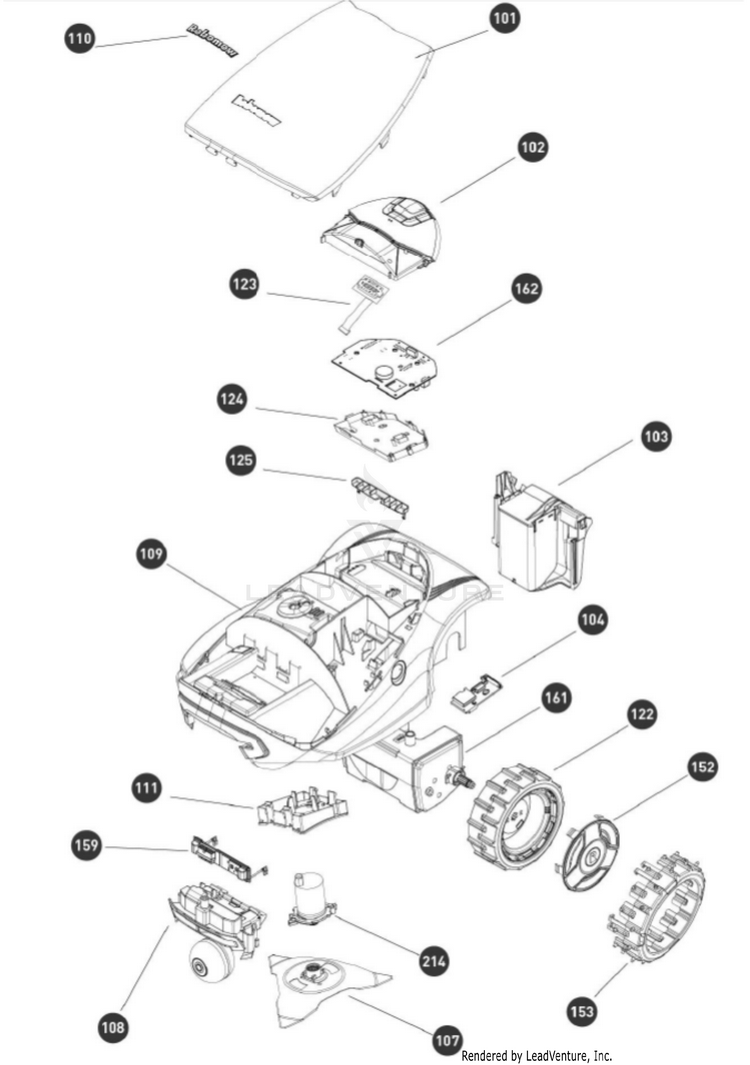

General Assembly

...
...
101
C COVER ASSEMBLY (GREEN) MTD-FR-INJ7001B
...
102
RC PANEL ASSEMBLY W/O LCD DISPLAY MTD-FR-SMSB7008A
...
103
BATTERY (RC/TC/MC) MTD-FR-MRK7005A
...
104
GSM W/GPS US (CATM1) MTD-FR-ESB7020B2
...
107
HIGH CUT BLADE KIT MTD-FR-MRK7019A
...
107
1 BLADE KIT (RC) NOT SHOWN MTD-FR-MRK7003A
...
108
NOZZLE ASSEMBLY MTD-FR-SPP7029A
...
109
RC CHASSIS ASSEMBLY (BRUSH) MTD-FR-MSB7000B2
...
110
ROBOMOW STICKER C MODELS MTD-FR-STC7000A
...
111
MOWING DECK FLANGE MTD-FR-INJ7011A
...
122
POWER WHEELS (RC MODEL - PAIR) MTD-FR-MRK7012A
...
122
POWER WHEEL C W/O PLATE NOT SHOWN MTD-FR-SPP7021A
...
123
RC LCD ASSEMBLY MTD-FR-SESB7001A
...
124
Main Circuit Board Protector RC MTD-FR-INJ7156B
...
125
RC DRAIN PROTECTOR MTD-FR-INJ7157A
...
152
RC PREMIUM TAS MTD-FR-INJ7155A
...
153
ROBO GRIPS FOR RC MTD-FR-MRK7023A
...
159
RC FRONT BOARD MTD-FR-ESB7103A1
...
161
GEAR CASE ASSY HD (SPARE PARTS) MTD-FR-SMSB7106A
...
162
MAIN ELECTRICAL BOARD MTD-FR-SPP7216B
...
214
MOWING MOTOR ASSEMBLY (BRUSH) MTD-FR-SPP7013A
