Robomow by MTD 22AXBAAA737 RX12 (2019) Robotic Mower

Model: 22AXBAAA737 RX12 (2019)

Save Part Not Listed?
product name

Base Station & Power Supply

...
...
314
10MM POWER SUPPLY WALL MT 17V MTD-FR-SPWS0022A
...
315
POWER SUPPLY W/18M CABLE MTD-FR-MRK9103A
...
316
BASE STATION HEAD ASSEMBLY RX MTD-FR-SMSB9009A
...
317
BASE STATION RX MTD-FR-SINJ9026B

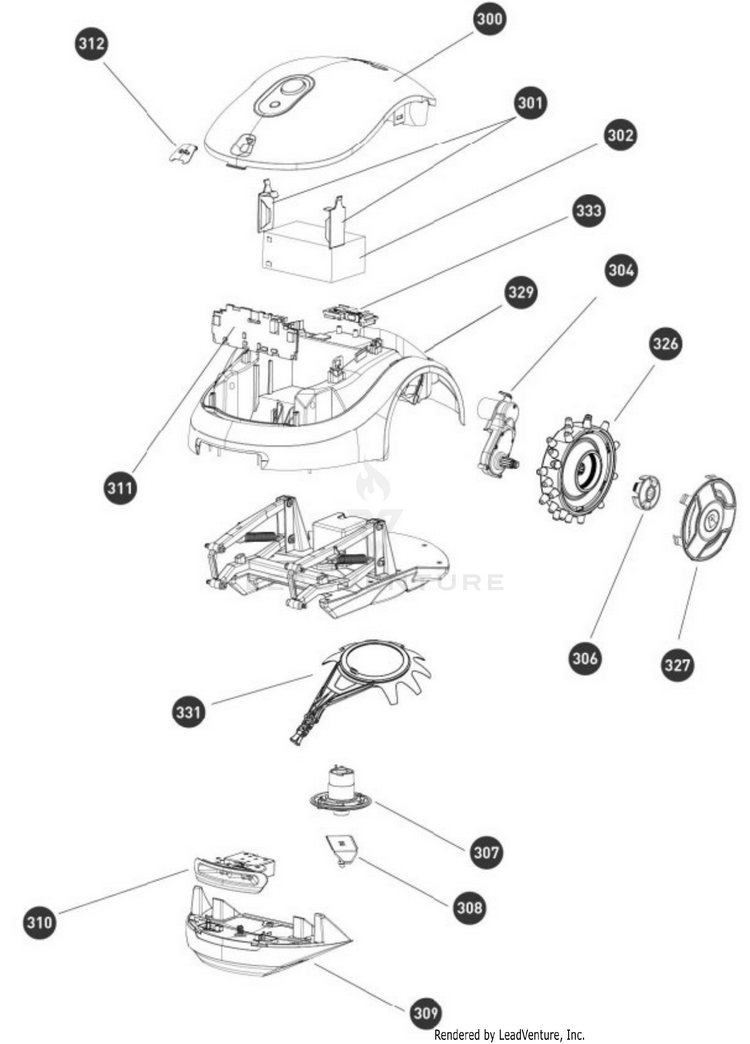

General Assembly

...
...
300
COVER ASSY (GRN)AND DISABLING RX MTD-FR-SMSB9001G
...
301
BATTERY LOCKERS RX MTD-FR-SINJ9028A
...
302
BATTERY (RX) MTD-FR-MRK9101A
...
304
DRIVE MOTOR RX MTD-FR-SMOT9000A
...
306
WHEEL LOCK CAPS RX MTD-FR-SINJ9014A
...
307
MOWING MOTOR RX MTD-FR-SMOT9101A
...
309
SKI ASSEMBLY RX MTD-FR-MSB9002B
...
310
RX NOZZLE ASSEMBLY MTD-FR-MSB9004B
...
311
MAIN BOARD RX MTD-FR-SESB9000B
...
312
DISABLING DEVICE FOR RX MTD-FR-SMSB9010A
...
326
RX DRIVE WHEEL SPIKES OVERMOLD MTD-FR-INJ9071A
...
327
RX ROBOMOW WHEEL PLATE MTD-FR-INJ9074A
...
329
RX CHASSIS MTD-FR-MSB9000B
...
331
MULCH CLEANER ASSEMBLY RX MTD-FR-MSB9011A
...
333
GSM W/GPS US (CATM1) MTD-FR-ESB7020B2

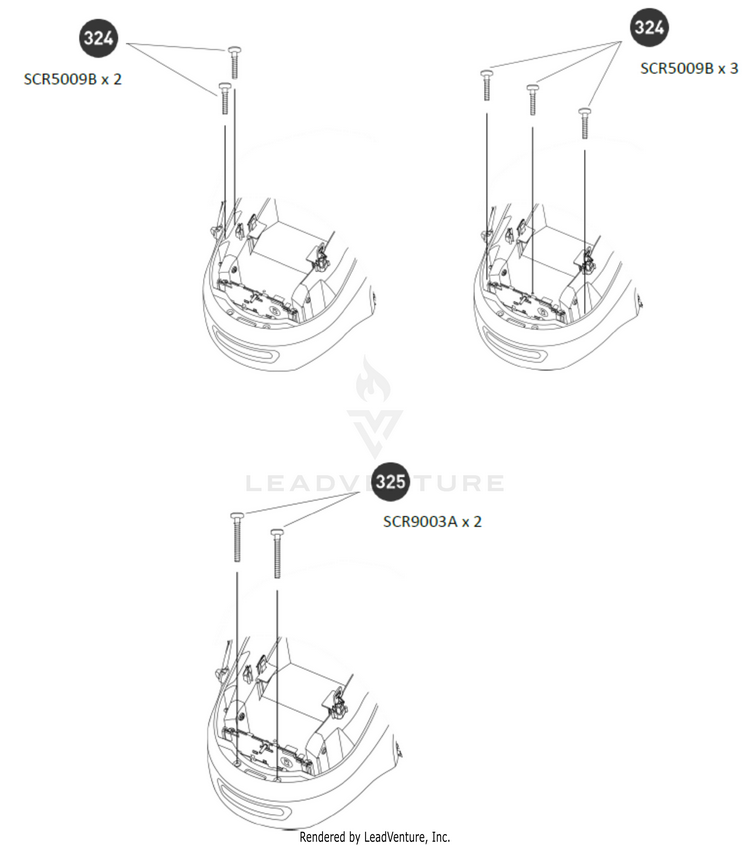

Hardware

...
...
324
SCREW K4X20 WN 1451-ZP TOREX MTD-FR-SCR5009B
...
325
EJOT K30X35 WN-1451 TORX MTD-FR-SCR9003A

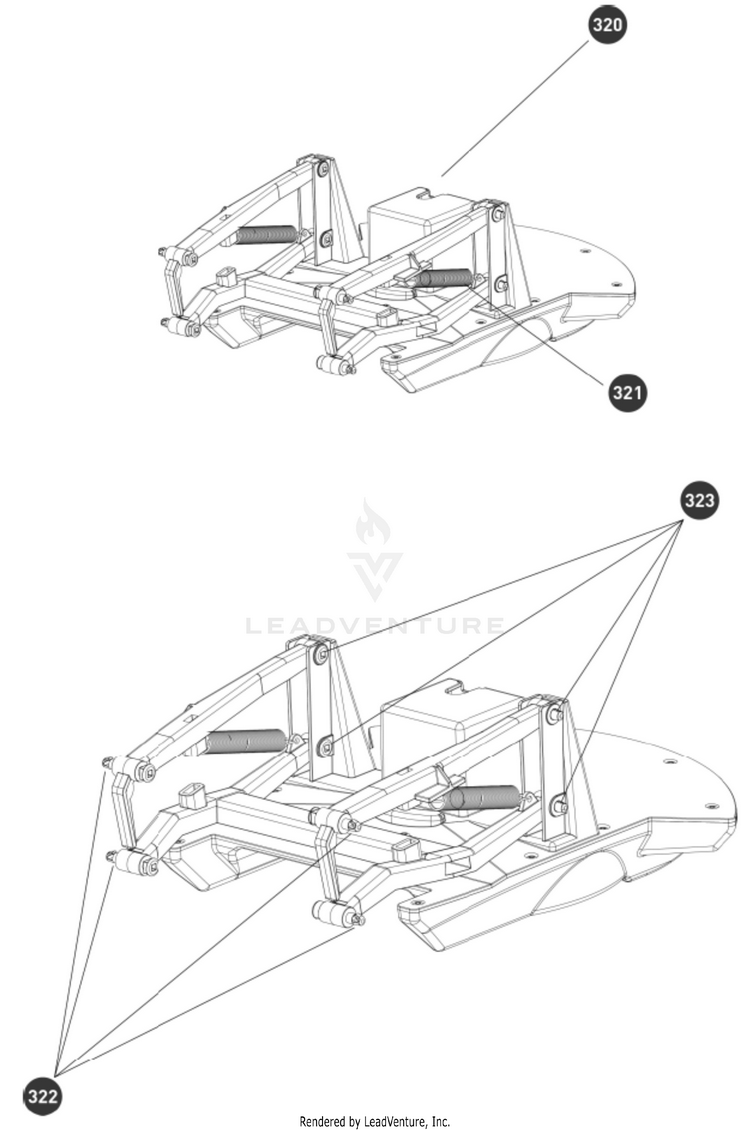

Mowing Deck Assembly

...
...
320
DECK ASSEMBLY (RX) MTD-FR-MSB9003B
...
321
MOWER DECK SPRING (RX) MTD-FR-GEN9004B
...
322
MOWING ARM LONG PIN RX MTD-FR-INJ9022A-01
...
323
MOWING ARM SHORT PIN RX MTD-FR-INJ9023A-01

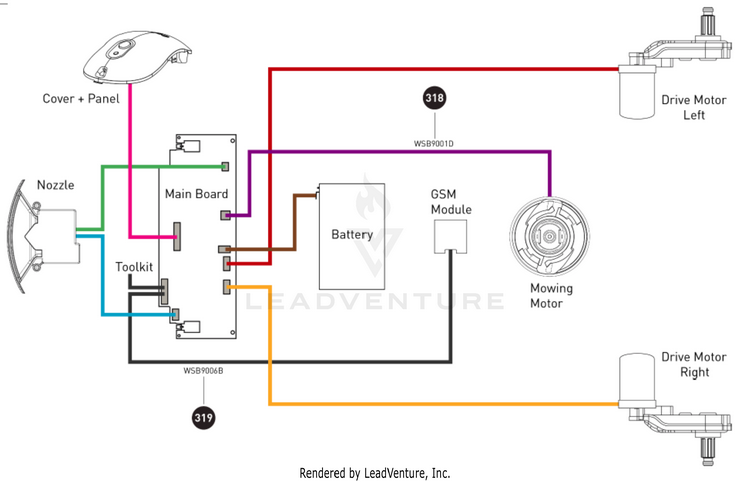

Wiring Harness

...
...
318
MOWING MOTOR CABLE MTD-FR-WSB9001D
...
319
RX COMMUNICATION CABLE MTD-FR-WSB9006B
