Robomow by MTD 22ACDDAE037 RC306 (2018) Robotic Mower

Model: 22ACDDAE037 RC306 (2018)

Save
 Part Not Listed?Part Not Listed?
product name

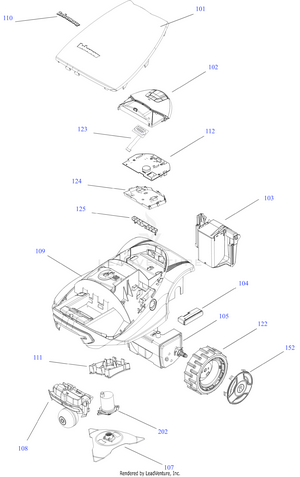

General Assembly

...
...
102
RC PANEL ASSEMBLY W/O LCD DISPLAY MTD-FR-SMSB7008A
...
103
BATTERY (RC/TC/MC) MTD-FR-MRK7005A
...
105
GEAR CASE ASSEMBLY MTD-FR-SPP7012A
...
107
HIGH CUT BLADE KIT MTD-FR-MRK7019A
...
xx
1 BLADE KIT (RC) MTD-FR-MRK7003A
...
111
MOWING DECK FLANGE MTD-FR-INJ7011A
...
117
STAKES FOR BASE STATION MTD-FRPGEN7016A
...
119
EXTENSION CABLE 15 METERS MTD-FR-WSB7011B
...
121
RC MOW MOTOR CABLE BRUSH MTD-FR-WSB7006C
...
123
RC LCD ASSEMBLY MTD-FR-SESB7001A
...
124
C MAIN BOARD MULCH PROTECTOR MTD-FR-INJ7156A
...
125
RC DRAIN PROTECTOR MTD-FR-INJ7157A
...
126
RC SHELTER LEG RIGHT MTD-FR-INJ7164A
...
127
RC SHELTER DOOR MTD-FR-INJ7161A-13
...
128
RC SHELTER LEG RIGHT MTD-FR-INJ7163A-13
...
129
RCSHELTER LEG LEFT MTD-FR-INJ7162A-13
...
130
BASE STATION BOARD WITH BLE MTD-FR-SPP7206A
...
133
ALARM STICKER MTD-FR-STC6036W
...
134
RC FRONT CABLE MTD-FR-WSB7001G
...
135
RC MOW MOTOR CABLE BL MTD-FR-WSB7007E
...
137
USB2RS232 UP TO WIN8 MTD-FR-WSB0101C
...
138
BLADE REMOVAL TOOL MTD-FR-TOL0006B
...
139
PLOT CONNECTOR MTD-FR-CON0054A
...
140
ROBORULER FOR RC/TC/MC MTD-FR-DOC7010B
...
152
RC PREMIUM TAS MTD-FR-INJ7155A
...
154
PEGS-PACK OF 50 MTD-FR-MRK0012A
...
155
PERIMETER WIRE MTD-FR-MRK0040A
...
203
POWER BOX HANGING BRACKET MTD-FR-GEN6034B
...
204
SCREW + "DIBEL" X 2 KIT MTD-FR-SCR6000A
...
207
MINI JUMPER 2.54MM MTD-FR-CON0144G
...
208
STAKE-PERIMETER SW MTD-FR-GEN0175A
...
210
PERIMETER SWITCH (ESB5009F) MTD-FR-UNT5007C
...
211
BATTERY PACK-PERIM MTD-FR-MRK5006A
...
212
PERIMETER SWITCH B MTD-FR-GEN0176A
...
213
PERIMETER SWITCH STICKER MTD-FR-STC5009B
...
214
MOWING MOTOR ASSEMBLY (BRUSH) MTD-FR-SPP7013A
...
xx
RC FRONT BOARD (Not Shown) MTD-FR-ESB7003F1
...
xx
SHORT PEGS (PKG OF 50) (Not Shown) MTD-FR-MRK7101A
...
xx
RC FRONT WHEEL ASSEMBLY (Not Shown) MTD-FR-MSB7005B
...
xx
EJOT WN 1452 K30 L (Not Shown) MTD-FR-SCR6009A
...
xx
M6 SCREW DIN 16 912 12.9 (Not Shown) MTD-FR-SCR7003B
...
xx
M4X10 PHILLIPS HEAD SCREW (Not Shown) MTD-FR-SCR7006A
...
xx
POWER WHEEL C W/O PLATE (Not Shown) MTD-FR-SPP7021A
...
xx
BASE STATION (2018) (Not Shown) MTD-FR-SPP7023A
...
xx
WASHER FOR RC FRONT WHEELS (10PCS) (Not Shown) MTD-FR-SPP7027A
...
xx
MAIN BOARD (2018) (Not Shown) MTD-FR-SPP7216A
...
...
...
