Remington RM4HB 41BS4ESG983 Gas Blower

Model: RM4HB 41BS4ESG983

Back To Assemblies

Save Part Not Listed?
product name

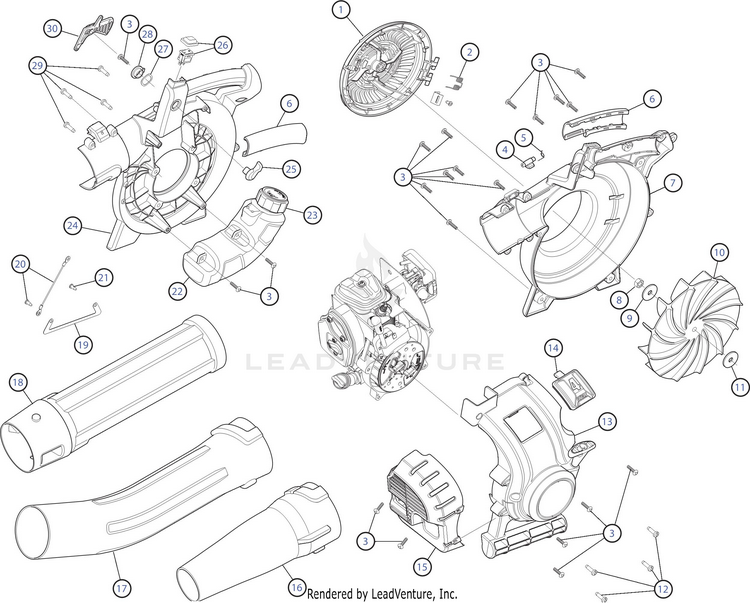

General Assembly

...
...
1
INTAKE COVER MTD-753-06678
...
2
Spring MTD-753-05918
...
3
Screw MTD-710-04194
...
4
Latch Tube MTD-753-05926
...
5
Latch Spring MTD-753-05939
...
6
Handle Grips MTD-753-05919
...
7
Impeller Housing (Incl. 6) MTD-753-06679
...
8
Nut MTD-912-0237
...
9
Washer MTD-753-06444
...
10
Impeller MTD-753-05929
...
11
Spacer MTD-753-06806
...
12
SCREW M5X0.8 MTD-710-04604A
...
13
STARTER HOUSING (Incl. 3, 14 & 15) MTD-753-08904
...
14
Spark Plug Cover MTD-753-05935
...
15
COVER MUFFLER (Incl. 3) MTD-753-05931
...
16
Nozzle MTD-753-06000
...
17
CURVED LOWER TUBE MTD-731-06576B
...
18
Upper Tube MTD-753-05936
...
19
STRAP GROUND MTD-753-05965
...
20
Wire Ground MTD-753-05964
...
21
Screw MTD-1755
...
22
Fuel Tank Assembly (Incl. 23) MTD-753-05933
...
23
Fuel Cap MTD-753-05289
...
24
Impeller Housing (Incl. 6) MTD-753-06693
...
25
Outer Trigger Lock MTD-753-05932
...
26
Switch MTD-791-182405
...
27
WAVE WASHER MTD-736-04353
...
28
Inner Trigger Lock MTD-753-05924
...
29
SCREW, M5 X18 MTD-9052-1
...
30
THROTTLE TRIGGER MTD-753-05930
