Remington RM4000B 41AE40VB983 Electric String Trimmer

Model: RM4000B 41AE40VB983

Save Part Not Listed?
product name

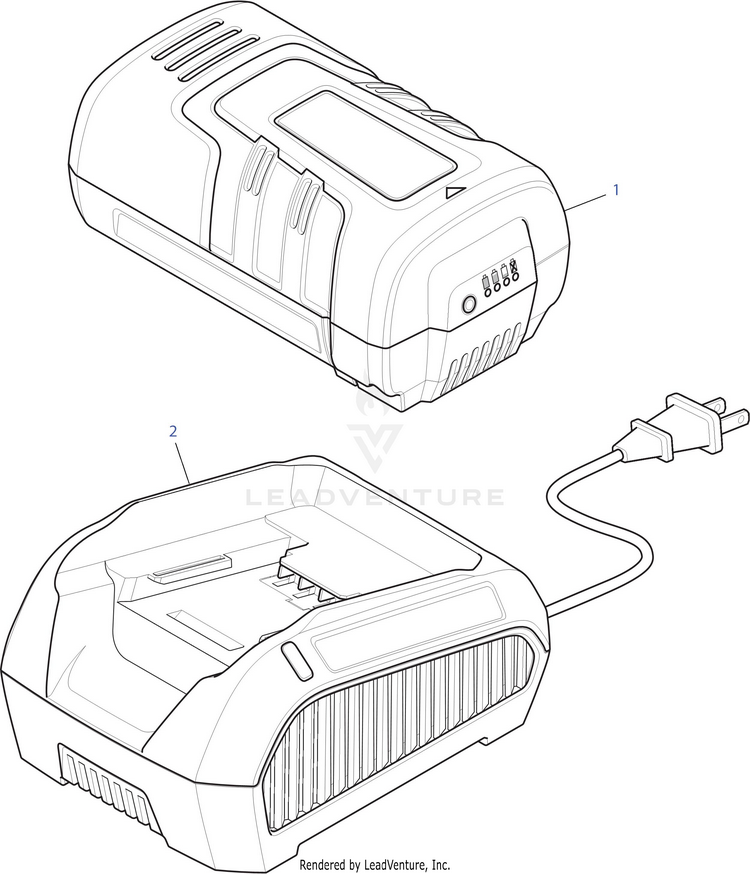

Battery & Charger

...
...
1
BATTERY 40V 2.5AH Not included in the initial purchase of model RM4000B MTD-49MA25AQ983
...
2
Charger Not included in the initial purchase of model RM4000B MTD-49MA40VQ983
...
xx
BATTERY 40V 4AH Optional Items MTD-49MA40AQ983
...
xx
BATTERY 40V 5AH Optional Items MTD-49MA50AQ983

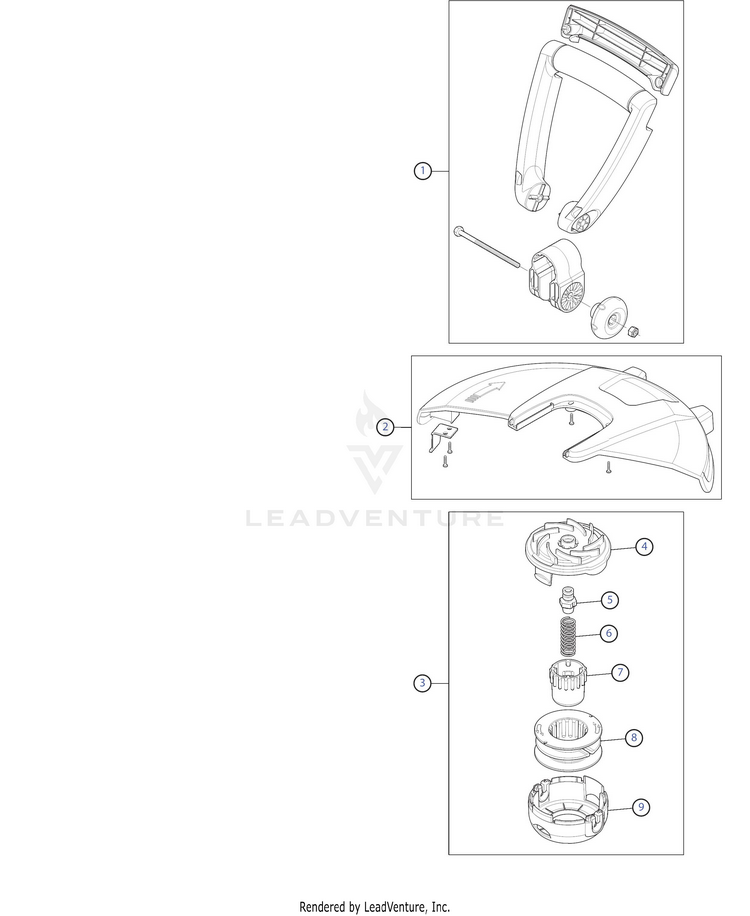

General Assembly

...
...
1
HANDLE ASSEMBLY MTD-A05Q3700003R
...
2
GUARD/BLADE ASM MTD-A05Q1720001R
...
3
Cutting Head Assembly (Incl. 4 - 9) MTD-A05Q4930001R
...
4
FAN MTD-A05Q2980001R
...
5
NUT FAN ASM KCL NLAUD MTD-J0840000102R
...
6
SPRING BUMP KNB KCL NLAUD MTD-J05Q0370001R
...
7
BUMP KNOB MTD-Q05Q01V0H33R
...
8
Inner Reel and Line (Line not shown) MTD-A05Q2450004R
...
9
Spool Cover MTD-Q05Q3650H33R
