Remington RM2BVEC 41ASBVEG983 Gas Blower

Model: RM2BVEC 41ASBVEG983

Back To Assemblies

Save Part Not Listed?
product name

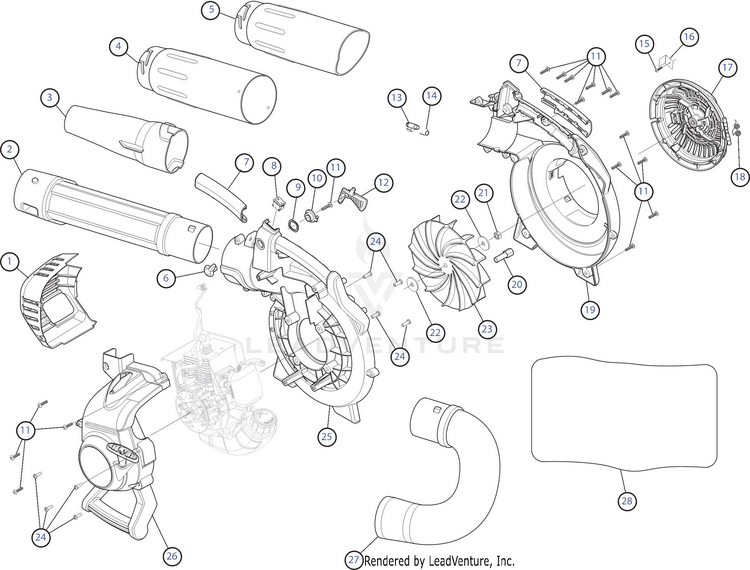

General Assembly

...
...
1
MUFFLER COVER (Incl. 11) MTD-753-06694
...
2
Upper Tube MTD-753-05936
...
3
Nozzle MTD-753-06000
...
4
Upper Vac Tube MTD-753-06660
...
5
Lower Vac Tube MTD-791-180467
...
6
Outer Trigger Lock MTD-753-05932
...
7
Handle Grips MTD-753-05919
...
8
Switch MTD-791-182405
...
9
WAVE WASHER MTD-736-04353
...
10
Inner Trigger Lock MTD-753-05924
...
11
Screw MTD-710-04194
...
12
THROTTLE TRIGGER MTD-753-05930
...
13
Latch Tube MTD-753-05926
...
14
Latch Spring MTD-753-05939
...
15
Screw MTD-1755
...
16
Door Lock MTD-753-06696
...
17
INTAKE COVER MTD-753-06678
...
18
Spring MTD-753-05918
...
19
Impeller Housing MTD-753-06679
...
20
Adapter MTD-753-06700
...
21
Nut MTD-912-0237
...
22
Washer MTD-753-05928
...
23
Impeller MTD-753-05929
...
24
SCREW:10-32X.5 MTD-1964
...
25
Impeller Housing MTD-753-06693
...
26
Engine Cover Assembly (Incl. 11 & 24) MTD-753-08298
...
27
Elbow MTD-753-06658
...
28
Bag MTD-753-06659
