Remington RM2BL 41AS2HBC983 Gas Blower

Model: RM2BL 41AS2HBC983 41AS2HBC983 RM2BL

Back To Assemblies

Save Part Not Listed?
product name

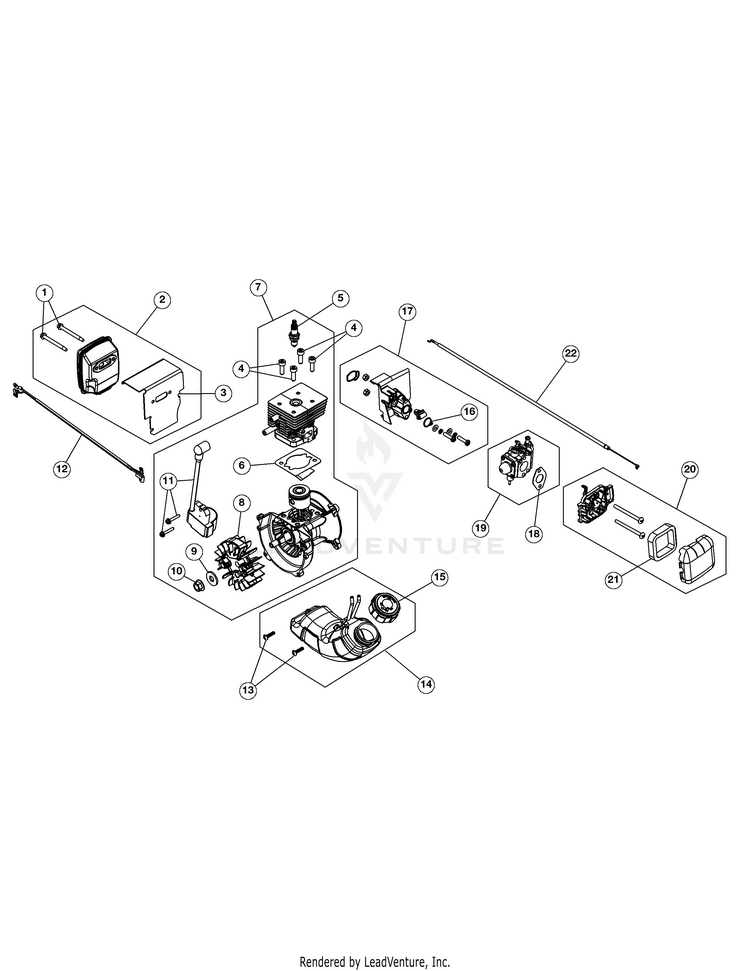

Engine Assembly

...
...
1
Muffler Screws MTD-753-06294
...
2
Muffler Assembly (Incl. 1 & 3) MTD-753-06027
...
3
Muffler Gasket MTD-753-05946
...
4
Screw MTD-710-04715
...
5
Spark Plug MTD-753-06847
...
6
Cylinder Gasket MTD-753-06827
...
7
Shortblock Assembly (Incl. 4-6 & 8-11) MTD-753-06687
...
8
Flywheel Assembly MTD-753-06175
...
9
Washer MTD-736-04107
...
10
Nut MTD-712-04137
...
11
Module Assembly MTD-753-06443
...
12
Lead Wire MTD-753-05949
...
13
Screw MTD-710-04194
...
14
Fuel Tank Assembly (Incl. 13 & 15) MTD-753-06720
...
15
Fuel Cap MTD-791-182529
...
16
Insulator Gasket MTD-753-06185
...
17
Insulator Assembly (Incl. 16) MTD-753-06189
...
18
Carburetor Gasket MTD-753-06253
...
19
Carburetor Assembly (Incl. 18) MTD-753-06753
...
20
Aircleaner Assembly (Incl. 21) MTD-753-05725
...
21
Air Filter MTD-791-181757
...
22
Throttle Cable MTD-753-06690
...
xx
Oil, 2-Cycle 16 OZ. (Optional Accessory) MTD-OL-216-OM
