Remington RM25S 41AD25SA983 Gas String Trimmer

Model: RM25S 41AD25SA983

Save Part Not Listed?
product name

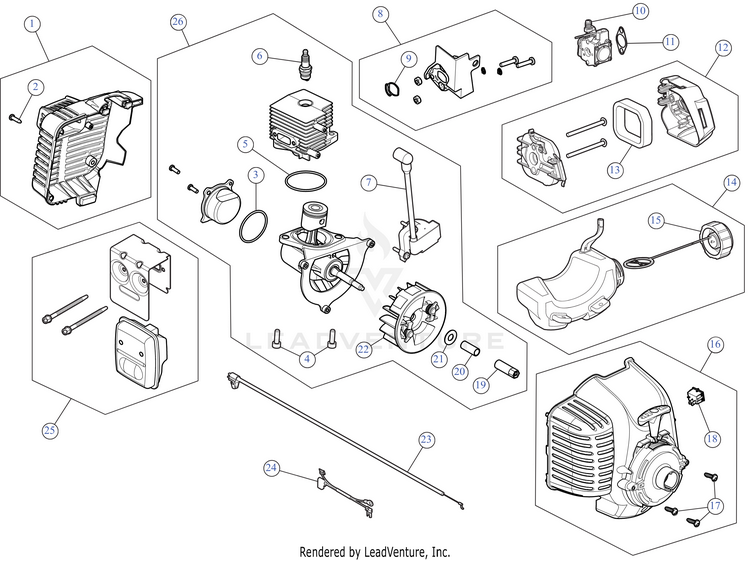

Engine Assembly

...
...
1
HOUSING ASSEMBLY RR (Incl. 2) MTD-753-09084
...
2
SCREW, #8-16X.750 PH MTD-791-181345
...
3
O-RING SEAL CRANKCASE MTD-753-09086
...
4
SCREW 5/16-18x3/4 T40 MTD-710-06241
...
5
O-RING SEAL CYLINDER MTD-753-09085
...
6
SPARK PLUG MTD-753-06847
...
7
MODULE ASSEMBLY MTD-753-09104
...
8
INTAKE ASSEMBLY (Incl. 9) MTD-753-09105
...
9
INSL/CYL SEAL MTD-721-04973
...
10
Carburetor MTD-753-06190
...
11
GASKET CARB MTD-753-06253
...
12
AIRCLEANER COVER ASSEMBLY (Incl. 13) MTD-753-06415
...
13
AIR FLITER MTD-753-06417
...
14
FUEL TANK ASSEMBLY (Incl. 15) MTD-753-08751
...
15
FUEL CAP ASSEMBLY MTD-791-182612
...
16
STARTER HOUSING ASSEMBLY (Incl. 17 & 18) MTD-753-09124
...
17
SCREW #10-24X11/16 T-25 MTD-791-182195
...
18
SW, MOMENTARY ON/O MTD-791-182405
...
19
POWER SHAFT ADAPTER MTD-711-07481-1
...
20
SPACER CRANKSHAFT MTD-753-09087
...
21
FLAT WASHER .401X.88 MTD-736-05080
...
22
FLYWHEEL ASSEMBLY MTD-753-09125
...
23
THROTTLE CABLE MTD-746-05451
...
24
WIRE LEAD MTD-794-00127A
...
25
MUFFLER ASSEMBLY MTD-753-09144
...
26
SHORT BLOCK (Incl. Crankcase,Cylinder, Piston, 3 - 7 & 19 - 22) MTD-753-09145

General Assembly

...
...
27
THROTTLE GRIP ASSEMBLY (Incl. 28) MTD-753-09146
...
28
THROTTLE TRIGGER MTD-731-13693
...
29
UPPER BOOM ASSEMBLY (Incl. 30) MTD-753-09147
...
30
SCREW 8-32X3/8 MTD-710-06562
...
31
HANDLE (Incl. 32) MTD-753-06198
...
32
HANDLE HWD MTD-753-06199
...
33
LOWER BOOM ASSEMBLY MTD-753-08686
...
34
GUARD & BLADE ASSEMBLY (Incl. 35 & 36) MTD-753-08360
...
35
BLADE GUARD MOUNTING HARDWARE MTD-753-04282
...
36
BLADE ASSEMBLY W/HDW MTD-753-08355
...
37
GEARBOX ASSEMBLY (Incl. 38 - 43) MTD-753-06571
...
38
SCREW 8-32X.437 MTD-7039
...
39
OUTER REEL W/RETAINING RING (Incl. 40) MTD-753-04284
...
40
RETAINER .625 OD 2 MTD-791-610660
...
41
SPRING-SPOOL MTD-791-610317B
...
42
REEL-INNER SPOOL MTD-753-1155
...
43
BUMP HEAD KNOB ASSEMBLY MTD-791-153066B
...
xx
REEL SPOOL ASSEMBLY MTD-953-1156
