Remington RM25C 41AD25CA983 Gas String Trimmer

Model: RM25C 41AD25CA983

Back To Assemblies

Save Part Not Listed?
product name

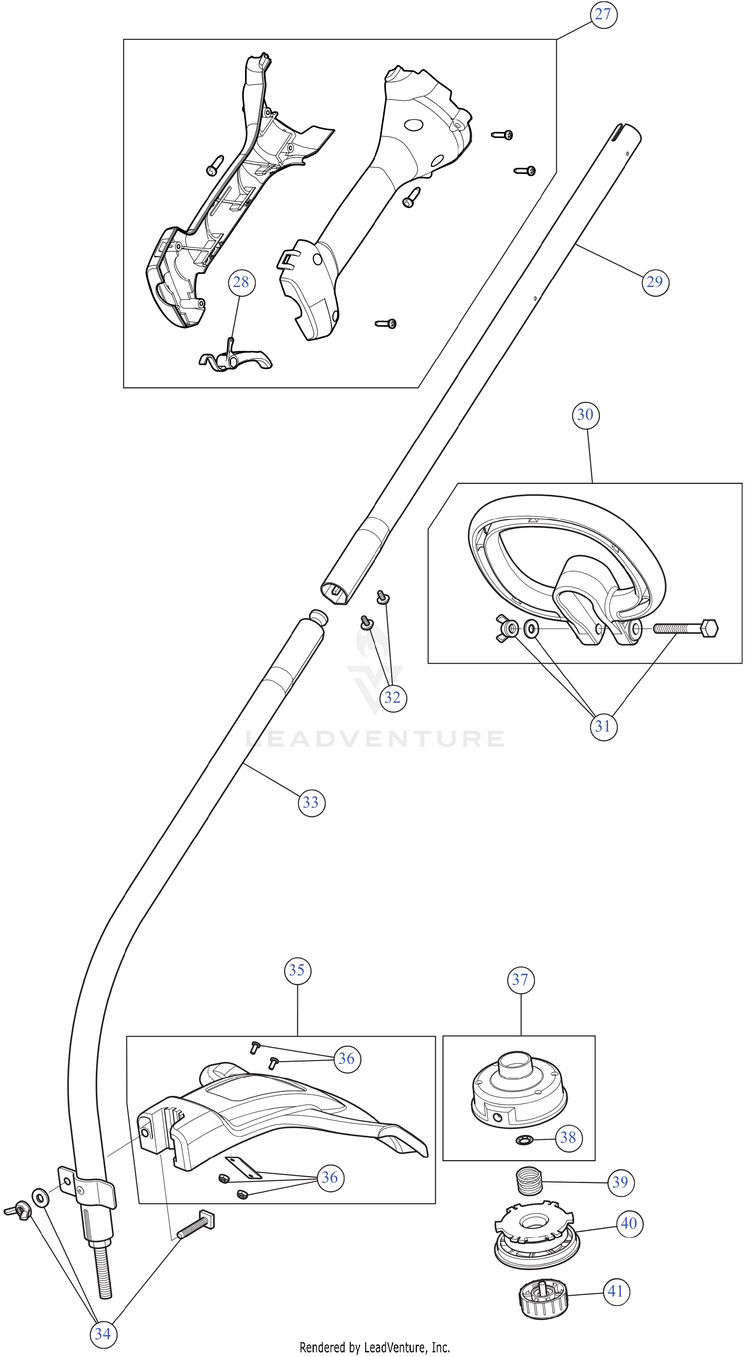

General Assembly

...
...
27
THROTTLE GRIP ASSEMBLY (Incl. 28) MTD-753-09146
...
28
THROTTLE TRIGGER MTD-731-13693
...
29
UPPER BOOM ASSEMBLY MTD-753-09147
...
30
HANDLE (Incl. 31) MTD-753-06198
...
31
HANDLE HWD MTD-753-06199
...
32
SCREW 8-32X3/8 MTD-710-06562
...
33
LOWER BOOM ASSEMBLY MTD-753-08687
...
34
BLADE GUARD MOUNTING HARDWARE MTD-753-04282
...
35
GUARD ASSEMBLY (Incl. 36) MTD-753-06200
...
36
BLADE ASSEMBLY CUTOFF MTD-753-06803
...
37
OUTER REEL W/RETAINING RING (Incl. 38) MTD-753-04284
...
38
RETAINER .625 OD 2 MTD-791-610660
...
39
SPRING-SPOOL MTD-791-610317B
...
40
REEL-INNER SPOOL MTD-753-1155
...
41
BUMP HEAD KNOB ASSEMBLY MTD-791-153066B
...
xx
REEL SPOOL ASSEMBLY MTD-953-1156
