Remington RM2580 41AD180G983 Gas String Trimmer

Model: RM2580 41AD180G983

Back To Assemblies

Save Part Not Listed?
product name

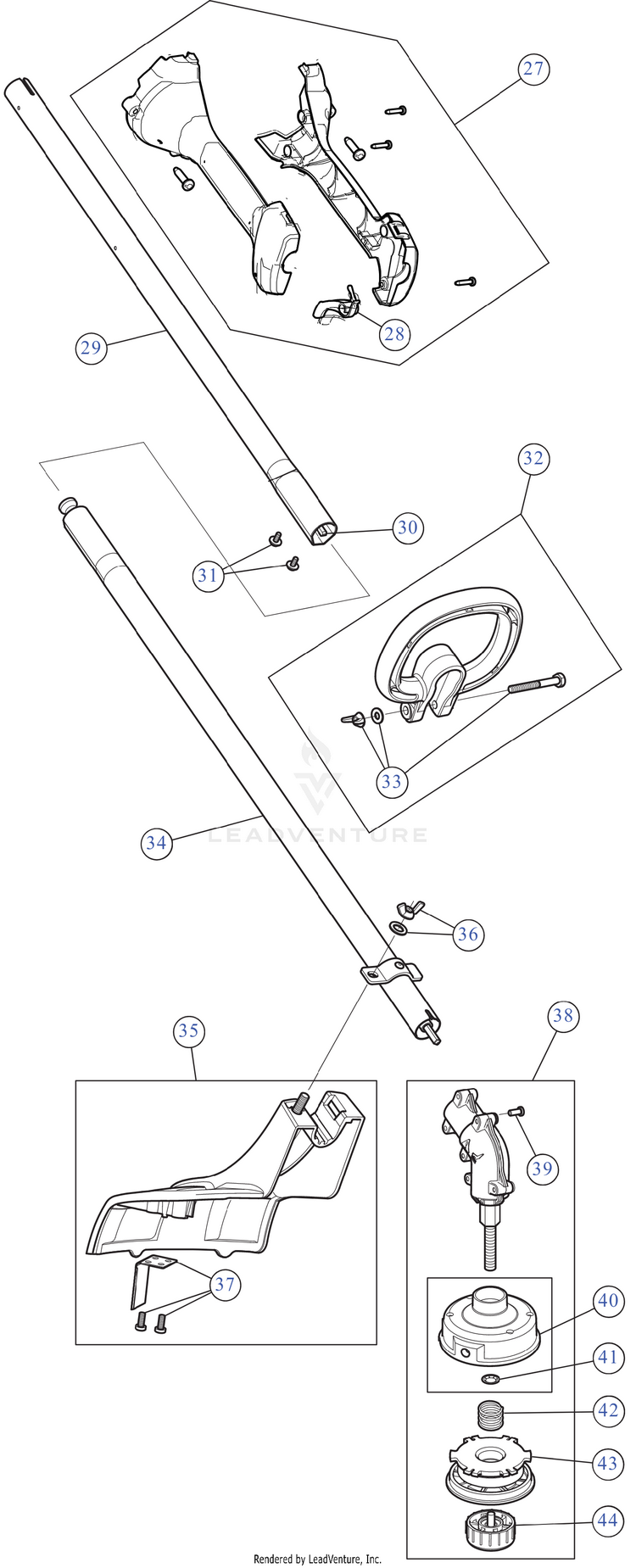

General Assembly

...
...
27
THROTTLE GRIP ASSEMBLY (Incl. 28) MTD-753-09146
...
28
THROTTLE TRIGGER MTD-731-13693
...
29
UPPER BOOM ASSEMBLY (Incl. 30) MTD-753-09147
...
30
UPPER BOOM ASSEMBLY MTD-753-09147
...
31
SCREW 8-32X3/8 MTD-710-06562
...
32
HANDLE (Incl. 33) MTD-753-06198
...
33
HANDLE HWD MTD-753-06199
...
34
LOWER BOOM ASSEMBLY MTD-753-08686
...
35
GUARD & BLADE ASSEMBLY (Incl. 36 & 37) MTD-753-08360
...
36
BLADE GUARD MOUNTING HARDWARE MTD-753-04282
...
37
BLADE ASSEMBLY W/HDW MTD-753-08355
...
38
GEARBOX ASSEMBLY (Incl. 39 - 44) MTD-753-06165
...
39
SCREW 8-32X.437 MTD-7039
...
40
OUTER REEL W/RETAINING RING (Incl. 41) MTD-753-04284
...
41
RETAINER .625 OD 2 MTD-791-610660
...
42
SPRING-SPOOL MTD-791-610317B
...
43
REEL-INNER SPOOL MTD-753-1155
...
44
BUMP HEAD KNOB ASSEMBLY MTD-791-153066B
...
xx
REEL SPOOL ASSEMBLY MTD-953-1156
